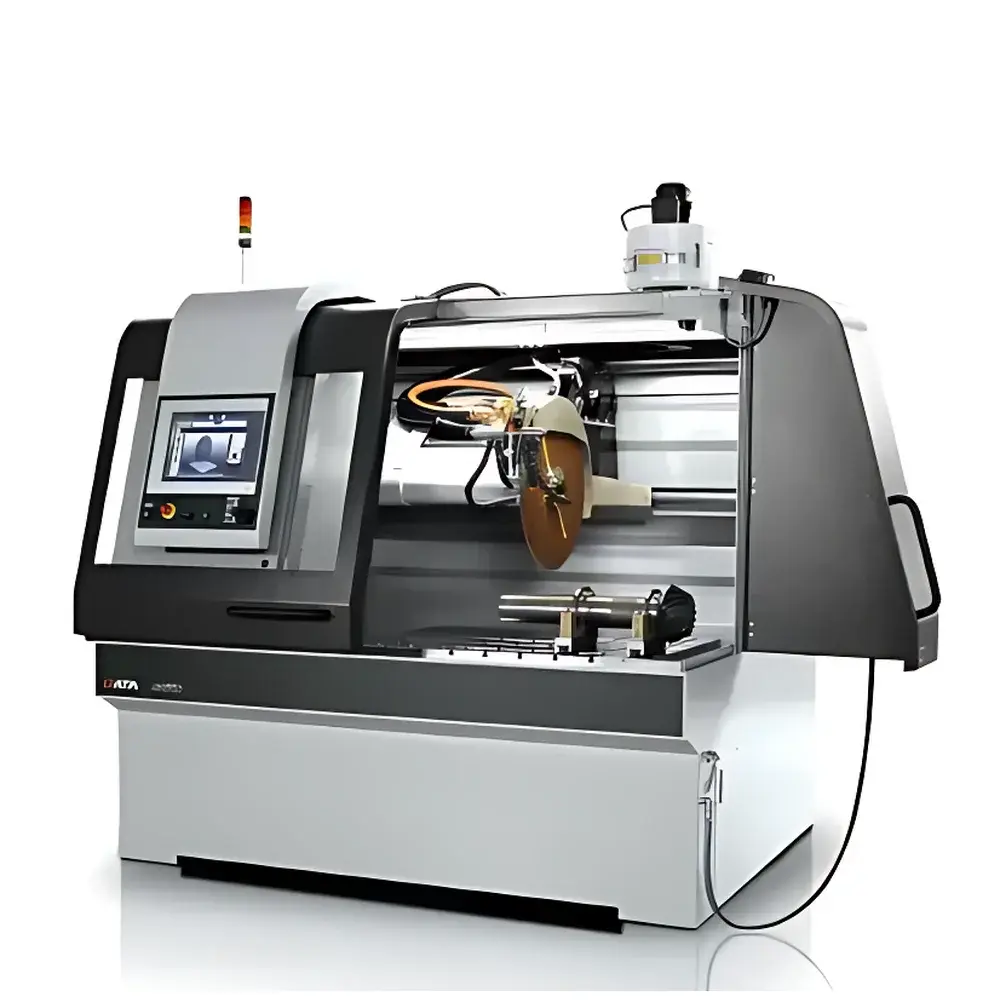

QATM Qcut 800 A Ultra-Large Industrial Wet-Bonded Abrasive Cutting Machine (Formerly Brillant 2000)

Overview

The QATM Qcut 800 A is an ultra-large industrial wet-bonded abrasive cutting machine engineered for precision metallurgical and materials science laboratories requiring high-throughput, repeatable sectioning of oversized or high-density specimens. Designed as the successor to the Brillant 2000 platform, it integrates a robust welded steel frame with advanced motion control architecture to deliver stable, vibration-damped operation under sustained heavy-duty loads. Its core principle relies on controlled abrasive cutting using water-cooled, resin-bonded silicon carbide or diamond wheels—where precise hydrodynamic cooling suppresses thermal damage, minimizes kerf loss, and prevents microstructural alteration in heat-sensitive alloys, composites, and ceramic-matrix materials. The machine operates under ISO 14001-compliant environmental conditions and meets EN 60204-1 safety standards for industrial machinery, with integrated emergency stop circuits, interlocked access doors, and real-time motor load monitoring.

Key Features

• 30 kW water-cooled main motor housed within a rotating cantilever arm, delivering consistent torque across the full 1000–2000 rpm spindle speed range
• Three-axis fully automated motion system: X-axis (horizontal table translation), Y-axis (vertical wheel carriage movement), and Z-axis (rotary-arm-mounted transverse feed), each driven by high-dynamic servo axes with positioning repeatability ≤ ±0.05 mm
• Dual parallel wheel guards enabling extended longitudinal cuts up to 225 mm depth while maintaining operator visibility and splash containment
• Large-format table (1150 × 800 mm) with dual-directional T-slots (12 mm width) for modular fixture integration—including hydraulic clamping systems, rotary vices, and custom jig adapters
• Interlocked sliding front door and side access panel with mechanical safety locks; side door permits wheel replacement without disassembling the guard assembly when Z-axis is positioned at extreme right
• Integrated closed-loop coolant circulation system with filtration, temperature regulation, and level monitoring to ensure consistent cutting performance over multi-hour runs
• Centralized automatic lubrication system powered by 6 bar compressed air, servicing all linear guides and gearboxes per preprogrammed intervals
• QATM proprietary touchscreen HMI with drag-and-drop programming interface supporting infinite program storage, password-protected parameter editing, USB-based firmware and recipe backup, and remote diagnostic connectivity via Ethernet (ISDN-compatible for legacy infrastructure)

Sample Compatibility & Compliance

The Qcut 800 A accommodates specimens up to 1100 mm wide, 450 mm high, and 800 mm deep—making it suitable for large castings, turbine discs, rail segments, extruded profiles, and geological core samples. It supports standard and custom abrasive wheels up to Ø800 mm with Ø32/40 mm arbor compatibility, including segmented diamond, vitrified alumina, and reinforced resin-bonded variants. All operational parameters comply with ASTM E3–22 (Standard Guide for Preparation of Metallographic Specimens), ISO 14857 (Metallographic Sectioning), and EU Machinery Directive 2006/42/EC. Optional documentation packages support GLP/GMP audit readiness, including IQ/OQ protocols, calibration traceability to DAkkS-accredited standards, and electronic audit trails for all user-initiated actions per FDA 21 CFR Part 11 requirements.

Software & Data Management

The embedded QATM software suite provides deterministic, scriptable control of cutting sequences—including single-pass sectioning, multi-step serial slicing, diagonal cuts, stepped profiling, and contour-based segmentation. Each program stores axis positions, feed rates, spindle speed ramps, coolant activation timing, and force-dependent adaptive feed modulation logic. Programs are version-controlled, timestamped, and exportable as XML or CSV for laboratory information management system (LIMS) ingestion. Remote service capability enables secure technician access for firmware updates, parameter optimization, and real-time troubleshooting—without compromising local network security. All operator interactions are logged with user ID, timestamp, and action type, fulfilling regulatory requirements for procedural accountability.

Applications

This system is routinely deployed in failure analysis labs for sectioning cracked welds or fractured components; in aerospace R&D centers for preparing turbine blade cross-sections; in foundry QA departments for sampling large ingots; and in academic materials research facilities for serial sectioning of additively manufactured parts prior to SEM-EBSD or synchrotron tomography. Its ability to maintain sub-0.1 mm Z-axis resolution across 700 mm of travel ensures geometric fidelity in layered microstructure studies, while its 30 kW motor sustains constant RPM under variable load—critical for uniform surface finish on hardened steels (HRC > 60) and nickel-based superalloys.

FAQ

What types of abrasive wheels are compatible with the Qcut 800 A?

Standard resin-bonded silicon carbide, aluminum oxide, and diamond wheels up to Ø800 mm with Ø32 mm or Ø40 mm arbors are supported. Custom wheel geometries require prior mechanical clearance verification.
Does the machine support automated sequential cutting across multiple specimens?

Yes—the software enables batch programming with positional offsets, variable feed rates per cut, and conditional logic based on sensor feedback (e.g., torque threshold triggering pause/retract).
Is the coolant system closed-loop and filter-integrated?

Yes—integrated stainless-steel reservoir, magnetic particle separator, and 25 µm bag filter ensure long-term fluid integrity and reduce maintenance frequency.
Can the Z-axis be manually overridden during setup?

Yes—via ergonomic joystick control with real-time position readout on the HMI screen, enabling fine-tuning of wheel-to-specimen engagement before automated cycle initiation.
What documentation is provided for regulatory compliance?

Factory calibration certificates, CE declaration of conformity, electrical safety test reports, and optional IQ/OQ validation kits aligned with ISO/IEC 17025 and GxP frameworks are available upon request.
