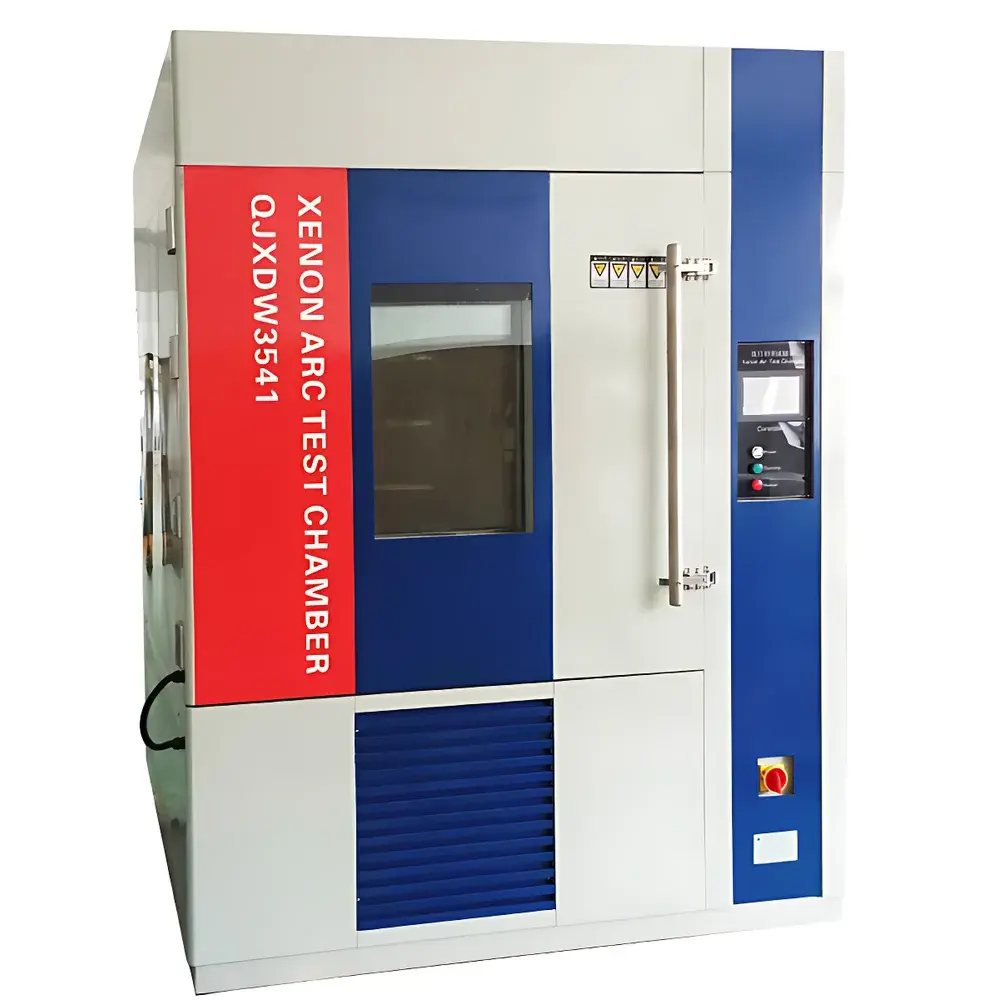

QJXDW3541 Xenon Arc Weathering Test Chamber

Overview

The QJXDW3541 Xenon Arc Weathering Test Chamber is an engineered environmental simulation system designed to accelerate the evaluation of material degradation under controlled exposure to solar radiation, thermal cycling, and moisture—key stressors in real-world outdoor service life. Based on the internationally recognized xenon arc irradiation principle, this chamber replicates the full-spectrum UV-Visible-NIR output of natural sunlight (290–800 nm), with calibrated spectral power distribution closely aligned to CIE No. 85 and ISO 4892-2 reference spectra. Unlike UV fluorescent or metal halide sources, xenon arc lamps provide photometric fidelity across the critical 300–400 nm UV-A and UV-B bands, enabling quantitative correlation between laboratory test data and field performance for polymers, coatings, textiles, automotive glazing, and architectural composites. The system integrates irradiance-controlled exposure cycles with precise temperature and humidity modulation—including condensation-driven moisture simulation—to emulate diurnal weathering mechanisms such as photo-oxidation, hydrolysis, and thermal fatigue.

Key Features

• High-fidelity 6 kW air/water-cooled xenon lamp assembly delivering stable 550 W/m² irradiance (300–800 nm), traceable to NIST-traceable radiometric calibration protocols
• Motorized rotating sample turntable (5 rpm) with dual-radius sample plane (inner 100 mm / outer 220 mm) ensuring uniform irradiance distribution per ISO 4892-2 Annex B
• Programmable light/dark and wet/dry cycles: exposure duration (0–240 min), rainfall duration (0–9999 min), and inter-cycle intervals fully configurable via intuitive touchscreen interface
• Precise climatic control: chamber temperature range RT+10°C to 80°C ±1°C; humidity profile independently adjustable to simulate dew, rain, and high-humidity stagnation
• Real-time and integrated irradiance monitoring with digital display—enabling dose-based test termination and compliance with ASTM G155 and ISO 4892-2 irradiance control requirements
• Robust stainless-steel interior (500 × 500 × 600 mm) with corrosion-resistant construction, optimized airflow design, and safety interlocks for lamp overtemperature and coolant failure

Sample Compatibility & Compliance

The QJXDW3541 accommodates flat-panel specimens up to 420 mm in height on its standardized sample tray, supporting standard test substrates including ISO 11341 plaques, ASTM D6675 panels, and OEM-specific automotive trim coupons. Its operational parameters align with core international standards for accelerated weathering, including ISO 4892-2 (xenon arc methods), ASTM G155 (Class A/B exposure cycles), SAE J2527 (automotive exterior materials), and GB/T 16422.2 (Chinese national standard). The system’s irradiance stability, temperature uniformity (≤2°C), and spectral fidelity support GLP-compliant testing environments when paired with documented calibration records and operator training logs. While not inherently 21 CFR Part 11 compliant, audit-ready data export (CSV/Excel) and timestamped event logging enable integration into validated QA/QC workflows.

Software & Data Management

The embedded controller provides local parameter programming, real-time graphing of irradiance, temperature, and humidity, and automatic cycle sequencing without external PC dependency. All test parameters—including cumulative radiant exposure (MJ/m²), peak irradiance (W/m²), and elapsed cycle time—are stored internally with time-stamped timestamps. Data export is supported via USB port in CSV format for post-test analysis in MATLAB, JMP, or LIMS platforms. Optional RS-485 or Ethernet interfaces allow integration into centralized lab automation systems. Calibration certificates for the irradiance sensor and temperature/humidity probes are provided at commissioning and recommended annually per ISO/IEC 17025 guidelines.

Applications

• Formulation screening of UV stabilizers, HALS, and pigment systems in automotive clearcoats and industrial coatings
• Comparative durability assessment of polymer blends (PP, ABS, PC, TPO) under cyclic UV/moisture stress
• Qualification testing of laminated safety glass interlayers (PVB, SG) per ECE R43 and FMVSS 205
• Accelerated aging of architectural cladding materials (aluminum composite panels, fiber cement, ETFE membranes)
• Validation of weatherability claims for consumer electronics housings, outdoor signage, and agricultural films
• Supporting root-cause analysis of field failures through controlled variable isolation (e.g., UV-only vs. UV+condensation protocols)

FAQ

What spectral range does the xenon lamp cover, and how is it filtered?
The lamp emits broadband radiation from 290 nm to 800 nm. Optional Daylight (ISO 4892-2 B) and Window Glass (ISO 4892-2 A) borosilicate filters are available to replicate terrestrial solar spectra behind glass or open-air exposure.
Is the irradiance value of 550 W/m² measured at the sample plane or lamp output?
It is the calibrated irradiance at the sample plane (300–800 nm), verified using a NIST-traceable spectroradiometer prior to shipment.
Can the chamber operate continuous light without dark cycles?
Yes—exposure mode is fully programmable, supporting continuous irradiation, intermittent light/dark sequences, and synchronized rain/condensation events.
What maintenance is required for the xenon lamp and cooling system?
Lamp replacement is recommended every ~2000 hours; quartz envelope cleaning and alignment verification should be performed quarterly. Water-cooling loop requires annual deionized water replenishment and filter inspection.
Does the system include calibration documentation?
Yes—factory calibration reports for irradiance sensor, PT100 temperature probes, and capacitive humidity sensors are supplied with each unit, along with a traceability statement to national metrology institutes.
