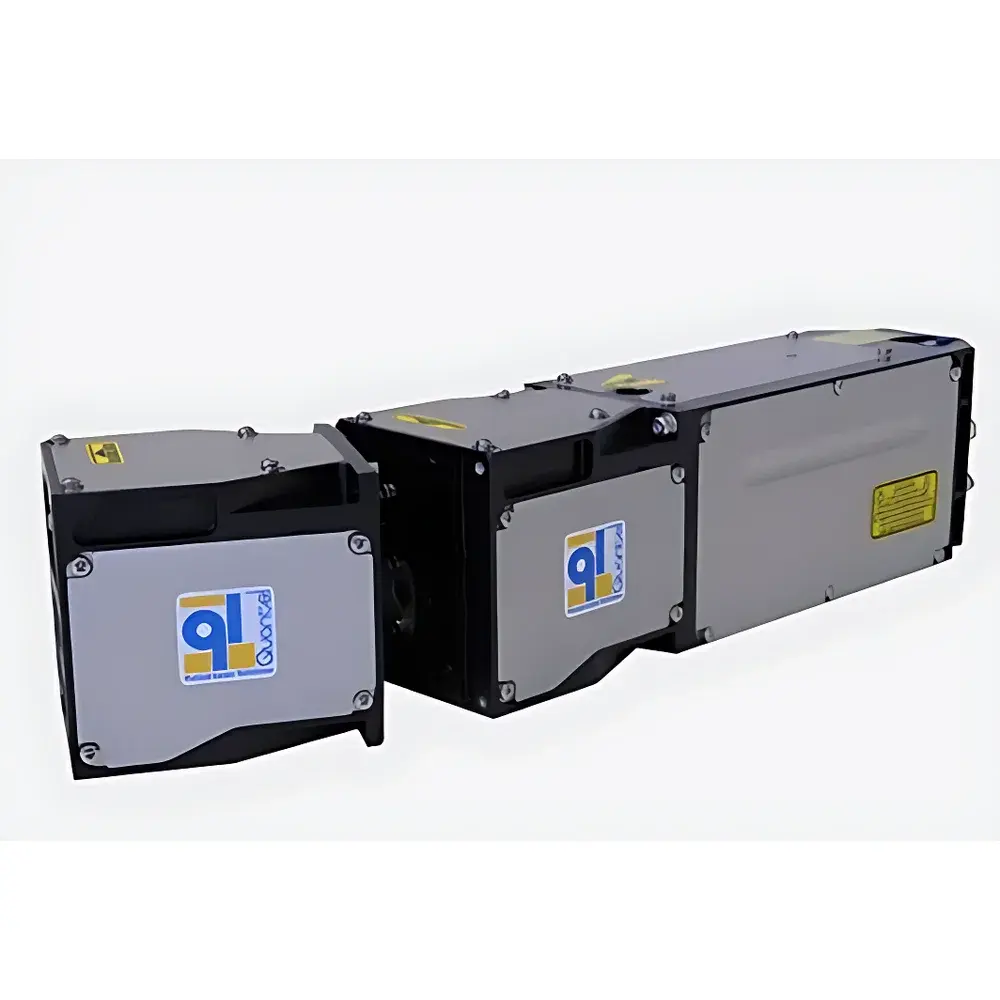

Quantel Q-smart 100 Nd:YAG Laser System

Overview

The Quantel Q-smart 100 is a compact, high-reliability solid-state pulsed Nd:YAG laser system engineered for precision optical measurement, time-resolved spectroscopy, LIDAR development, and industrial ablation applications. Based on a master oscillator power amplifier (MOPA)-compatible oscillator architecture, it employs a flashlamp-pumped Nd:YAG rod operating in Q-switched mode. Its core optical design integrates an external cavity harmonic generation module with motorized crystal rotation and real-time beam alignment feedback—enabling rapid, repeatable switching between four fundamental harmonics: 1064 nm (fundamental), 532 nm (second harmonic), 355 nm (third harmonic), and 266 nm (fourth harmonic). The GRM (Grating-Resonator Mirror) cavity ensures exceptional spatial mode stability and low beam divergence (<1.5 mrad full angle), critical for coupling into fiber optics, nonlinear crystals, or scanning optics. With a fully sealed mechanical housing and passive thermal management, the Q-smart 100 maintains stable output performance across ambient temperatures from 15 °C to 30 °C without active cooling or water circulation.

Key Features

• Modular harmonic generation architecture with automated crystal angle positioning for optimal conversion efficiency at each wavelength
• Integrated auto-alignment system continuously monitors and corrects cavity alignment to preserve beam pointing stability and M² < 1.3
• GRM resonator design delivering high beam quality, low divergence, and excellent pulse-to-pulse energy stability (≤1.5% RMS over 1 hr)
• Flashlamp rated for >100 million shots, significantly reducing maintenance intervals and total cost of ownership
• Compact footprint (360 × 220 × 140 mm) and lightweight chassis (≤12 kg) suitable for integration into OEM instruments and portable field systems
• No external chiller required—operates with convection-cooled lamp and thermally buffered crystal mounts

Sample Compatibility & Compliance

The Q-smart 100 is compatible with standard optical tables, breadboard-mounted harmonic separation optics, and commercial spectrometers (e.g., Ocean Insight, Princeton Instruments) requiring nanosecond-pulsed excitation. Its UV output at 266 nm enables direct excitation of aromatic amino acids and nucleic acid bases, supporting fluorescence lifetime measurements and pump-probe experiments. All optical interfaces conform to ISO 11146 beam parameter standards. The system complies with IEC 60825-1:2014 Class 4 laser safety requirements and carries CE marking under the EU Machinery Directive 2006/42/EC and Electromagnetic Compatibility Directive 2014/30/EU. Full traceable calibration documentation—including pulse energy linearity, temporal profile verification, and spectral purity assessment—is provided per ISO/IEC 17025-accredited procedures.

Software & Data Management

Laser operation is controlled via Quantel’s Q-Soft v3.2 GUI (Windows 10/11), supporting USB 2.0 and RS-232 interfaces. The software provides real-time monitoring of pulse energy (via integrated photodiode), repetition rate, lamp firing count, and internal temperature sensors. All operational parameters are logged with timestamping and exportable to CSV or HDF5 format for GLP-compliant data archiving. Remote triggering supports TTL, NIM, and analog voltage inputs; optional Ethernet interface enables integration into LabVIEW, MATLAB, or Python-based automation frameworks. Audit trail functionality meets FDA 21 CFR Part 11 requirements when deployed in regulated environments (e.g., pharmaceutical analytical labs).

Applications

• Laser-Induced Breakdown Spectroscopy (LIBS) for elemental analysis in metallurgy and geoscience
• Pump-probe transient absorption spectroscopy in photochemistry and ultrafast physics laboratories
• Time-of-flight mass spectrometry (TOF-MS) ionization source for MALDI and IR-MALDI platforms
• Calibration reference source for radiometric and photometric sensor validation (NIST-traceable energy calibration available)
• Seed laser for OPO/OPA systems targeting mid-IR spectral regions (3–12 µm)
• Industrial micromachining and thin-film ablation where multi-wavelength flexibility improves process yield

FAQ

Is the Q-smart 100 compatible with third-party harmonic separators and wavelength selectors?
Yes—standard SMA905 and FC/PC fiber-coupled outputs are available as options; free-space beam specs comply with ISO 10110 surface quality and wavefront error limits for downstream optics integration.
What is the typical pulse-to-pulse energy stability at 355 nm?
Measured stability is ≤1.2% RMS over 60 minutes at 10 Hz, with <0.5% short-term fluctuation (100-shot window), verified using calibrated pyroelectric energy meters traceable to NPL standards.
Does the system support external Q-switch triggering?
Yes—TTL-compatible external trigger input accepts 3.3 V or 5 V logic signals with jitter <2 ns, enabling synchronization with streak cameras, delay generators, or data acquisition systems.
Can the laser be operated in burst mode?
No—the Q-smart 100 operates in single-pulse or fixed-rate continuous pulsing only; burst-mode capability requires custom firmware and thermal derating not included in standard configuration.
Is service and spare parts support available outside the EU?
Quantel maintains authorized service centers in the US (Boulder, CO), Japan (Tokyo), and China (Shanghai); all GRM cavity components and harmonic crystals are stocked globally with lead times ≤4 weeks.
