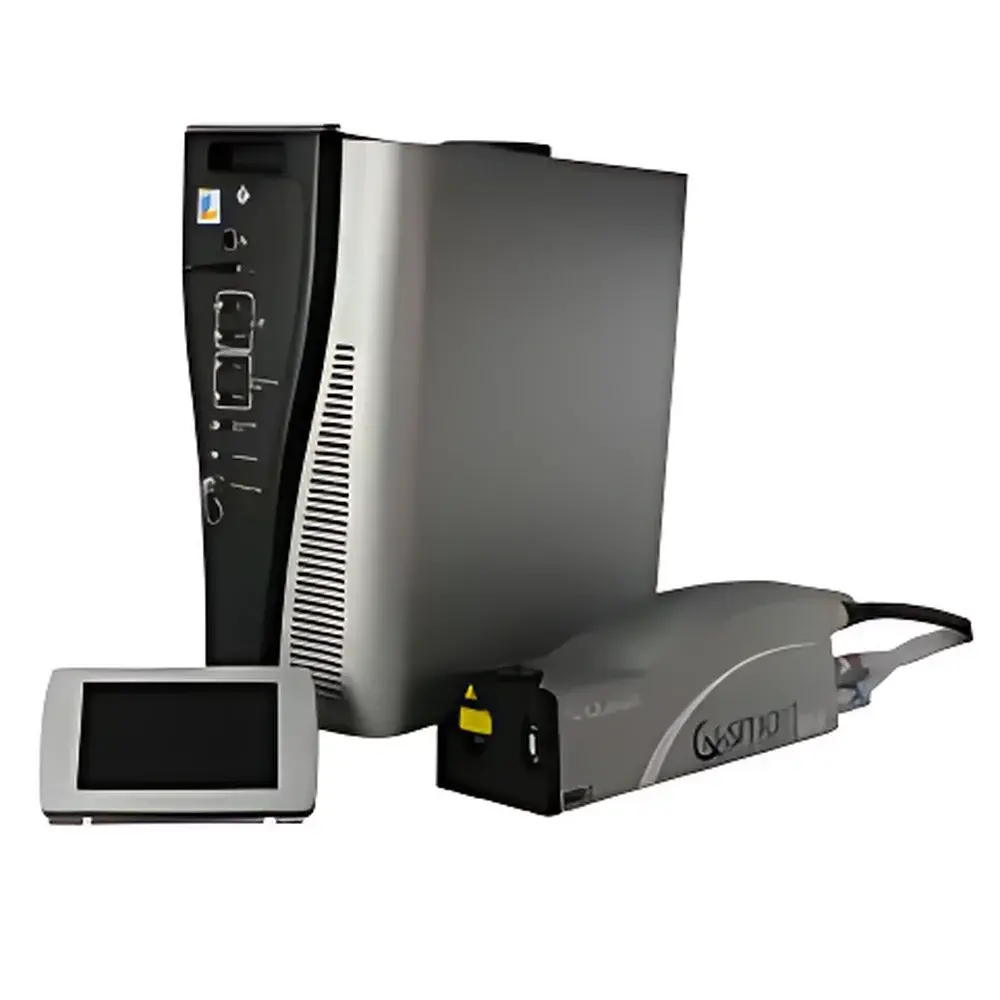

Quantel Q-smart 850 Solid-State Nd:YAG Laser System
| Brand | Quantel |
|---|---|
| Origin | France |
| Model | Q-smart 850 |
| Laser Type | Diode-Pumped, Q-Switched Nd:YAG |
| Wavelength | 1064 nm (fundamental), with optional harmonics at 532 nm, 355 nm, and 266 nm |
| Pulse Energy | Up to 850 mJ @ 1064 nm |
| Repetition Rate | 1–10 Hz (adjustable) |
| Pulse Width | < 6 ns (FWHM) |
| Beam Diameter | ~8 mm (1/e²) |
| Beam Divergence | < 0.5 mrad |
| Cooling | Air-cooled |
| Flashlamp Lifetime | > 100 million shots |
| Dimensions (Laser Head) | 420 × 220 × 120 mm |
| Dimensions (Power Supply) | 483 × 133 × 490 mm |
| Warranty | 24 months comprehensive |
Overview
The Quantel Q-smart 850 is a high-reliability, diode-pumped, Q-switched solid-state Nd:YAG laser system engineered for demanding industrial, scientific, and metrology applications requiring stable nanosecond pulse output at 1064 nm and its harmonics. Designed as the direct successor to the Brillant B series, the Q-smart 850 retains proven thermal management architecture and optical cavity stability while introducing significant enhancements in operational autonomy, footprint efficiency, and long-term maintenance predictability. Its core measurement principle relies on flashlamp-pumped Nd:YAG crystal lasing under electro-optic Q-switching, delivering consistent pulse-to-pulse energy stability (< ±1.5% RMS over 10⁶ shots) and temporal precision essential for time-resolved spectroscopy, LIBS (Laser-Induced Breakdown Spectroscopy), LIDAR calibration, and nonlinear frequency conversion setups.
Key Features
- Automated crystal angle optimization via integrated motorized rotation stage—ensures maximum harmonic conversion efficiency without manual alignment.
- Intuitive 7-inch capacitive touchscreen interface with embedded firmware for real-time parameter control, diagnostics logging, and system self-calibration routines.
- Flashlamp lifetime exceeding 100 million shots—validated under continuous operation at 10 Hz, reducing scheduled downtime and consumables cost per million pulses.
- Compact modular design: laser head volume reduced by 35% versus predecessor models while maintaining identical pulse energy output—achieving industry-leading power-to-volume ratio for air-cooled Nd:YAG systems.
- Extended ambient operating range: functional stability confirmed from 15 °C to 35 °C with no active temperature stabilization required—suitable for non-climate-controlled laboratories and mobile field deployments.
- Comprehensive 24-month warranty covering optics, electronics, and mechanical subsystems—including full labor and parts replacement under standard service terms.
Sample Compatibility & Compliance
The Q-smart 850 is compatible with standard optical tables, beam delivery arms, harmonic separation modules (e.g., dichroic mirrors, BBO/LBO crystals), and gated detection systems (ICCDs, PMTs). It meets IEC 60825-1:2014 Class 4 laser safety requirements when operated with appropriate interlocks and beam enclosures. The system supports integration into ISO/IEC 17025-accredited calibration workflows and complies with CE marking directives for electromagnetic compatibility (2014/30/EU) and low-voltage equipment (2014/35/EU). Firmware includes audit-trail-enabled configuration logging suitable for GLP-compliant environments.
Software & Data Management
The embedded control firmware provides USB 2.0 and RS-232 interfaces for remote command execution via SCPI-compatible syntax. Optional Quantel LaserStudio software enables automated sequence programming, shot-count tracking, energy trend analysis, and export of timestamped pulse metrics (energy, jitter, width) in CSV or HDF5 format. All configuration changes are logged with user ID, timestamp, and parameter delta—supporting FDA 21 CFR Part 11 compliance when deployed with validated network authentication and electronic signature modules.
Applications
- Laser-Induced Breakdown Spectroscopy (LIBS) for elemental analysis in metallurgy, geology, and nuclear forensics.
- Time-of-flight mass spectrometry (TOF-MS) ionization source in MALDI and ablation-coupled configurations.
- Calibration reference for photodetector linearity, transient recorder bandwidth, and optical shutter response testing.
- Pump source for optical parametric oscillators (OPOs) and tunable ultrafast amplifier seeding.
- Material processing R&D including thin-film ablation, micromachining threshold studies, and laser-induced damage threshold (LIDT) mapping.
- Atmospheric sensing platforms requiring stable, portable nanosecond pulses for differential absorption LIDAR (DIAL).
FAQ
What harmonics are supported, and how are they selected?
The Q-smart 850 includes internal harmonic generation modules for 532 nm (SHG), 355 nm (THG), and 266 nm (FHG). Selection is performed via motorized filter wheel and crystal positioning—fully automated through the touchscreen or SCPI commands.
Is external water cooling required?
No—this is an air-cooled system. Dual-stage forced-air thermal management maintains crystal and flashlamp junction temperatures within specification across the full operating ambient range.
Can the laser be integrated into a PLC-controlled production line?
Yes. Digital I/O ports support TTL-level trigger input, ready status output, and fault signaling—compatible with Siemens S7, Allen-Bradley ControlLogix, and Beckhoff TwinCAT architectures.
Does the 2-year warranty cover consumables such as flashlamps?
Yes—the warranty includes flashlamp replacement and labor for lamp exchange, provided usage remains within specified pulse count and repetition rate limits.
How is beam pointing stability maintained during thermal cycling?
The monolithic laser head incorporates low-CTE Invar mounts and stress-relieved optical rails, achieving < 5 µrad RMS pointing drift over 8-hour thermal soak at 30 °C ambient.
