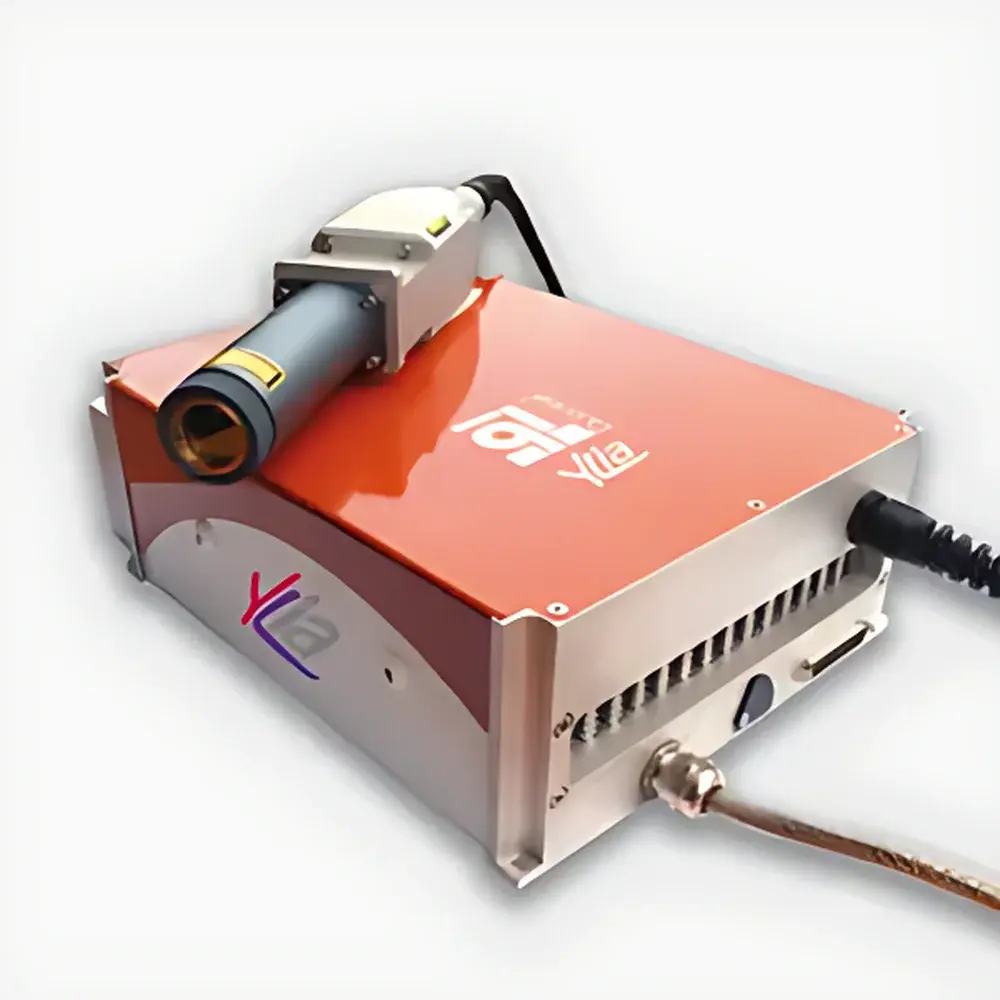

Quantel Ylia Ytterbium-Doped Fiber Pulsed Laser
| Brand | Quantel |
|---|---|
| Origin | France |
| Manufacturer Type | Authorized Distributor |
| Origin Category | Imported |
| Model | Ylia |
| Pricing | Available Upon Request |
| Core Technology | Fiber-Integrated Pulsed Laser System (Yb-Doped Double-Clad Fiber Amplifier Architecture) |
Overview
The Quantel Ylia is a high-reliability, industrial-grade ytterbium-doped fiber pulsed laser engineered for precision material processing applications including laser marking, engraving, and surface texturing. Operating in the near-infrared spectrum at a fundamental wavelength of 1064 nm, the Ylia leverages master oscillator power amplifier (MOPA) architecture with double-clad ytterbium-doped fiber gain media. This design enables stable nanosecond pulse generation with controllable pulse widths (typically 2–200 ns), repetition rates up to 1 MHz, and excellent beam quality (M² < 1.3). Unlike free-electron laser systems—which are large-scale, accelerator-based research instruments—the Ylia is a compact, air-cooled, OEM-integrable fiber laser platform. Its monolithic all-fiber construction eliminates free-space alignment, significantly improving long-term stability and reducing sensitivity to thermal drift or mechanical vibration—critical attributes for 24/7 factory-floor deployment.
Key Features
- Robust ytterbium-doped double-clad fiber amplifier core delivering consistent pulse energy and peak power across extended operational lifetimes (>100,000 hours MTBF)
- Digitally tunable pulse duration and repetition rate via front-panel interface or RS-232/Ethernet command set—enabling process optimization for diverse materials (anodized aluminum, stainless steel, plastics, ceramics)
- Integrated thermoelectric cooler (TEC) and real-time photodiode monitoring for closed-loop power stabilization (±1.5% RMS power stability over 8 hours)
- Beam delivery optimized for standard F-theta scanning lenses; collimated output with adjustable divergence (<0.3 mrad) and polarization-maintaining (PM) fiber output option
- CE-compliant enclosure with Class 4 laser safety interlocks, key-switch enable, and emergency stop interface per IEC 60825-1:2014
Sample Compatibility & Compliance
The Ylia is compatible with standard industrial galvanometric scanning systems and integrates seamlessly into automated production lines using TTL or analog modulation inputs. It meets electromagnetic compatibility requirements per EN 61326-1 (industrial environment) and laser safety standards IEC 60825-1 and FDA 21 CFR 1040.10. While not a medical or analytical instrument, its output parameters support traceable calibration against NIST-traceable power meters (e.g., Ophir StarLite with 3A-P-FS sensor). The system supports GLP-aligned operational logging when paired with Quantel’s optional LaserLog software, recording timestamped pulse energy, repetition rate, and internal temperature diagnostics—facilitating audit readiness for ISO 9001-certified manufacturing facilities.
Software & Data Management
The Ylia operates natively with Quantel’s LaserControl GUI (Windows-based), providing full parameter configuration, real-time oscilloscope-style pulse monitoring, and batch-mode script execution. Communication protocols include ASCII-over-RS232, TCP/IP Ethernet (Modbus TCP and custom SCPI-like command set), and USB-C virtual COM port. All operational logs—including startup/shutdown cycles, fault codes, and thermal history—are stored in non-volatile memory and exportable as CSV files. For integration into MES or SCADA environments, the laser supports OPC UA server mode (optional firmware upgrade), enabling direct data exchange with Siemens SIMATIC, Rockwell FactoryTalk, or Ignition platforms without middleware.
Applications
- Permanent high-contrast marking of UID/2D Data Matrix codes on aerospace components per AS9132 and MIL-STD-130
- Micromachining of thin-film solar cell scribes and PCB depaneling with minimal heat-affected zone (HAZ)
- Surface structuring of medical device implants to enhance osseointegration—validated on Ti-6Al-4V and CoCr alloys
- Coloration of stainless steel via controlled oxide layer growth (laser-induced periodic surface structures, LIPSS)
- Pre-treatment of polymer surfaces prior to adhesive bonding or painting—improving wettability and bond strength per ASTM D7234
FAQ
Is the Ylia suitable for cleanroom environments?
Yes—its sealed fiber-optic path, absence of open optical benches, and low particulate emission (tested per ISO 14644-1 Class 8) make it compatible with ISO Class 7 and 8 cleanrooms.
Does the system support external Q-switch triggering?
No—the Ylia uses an integrated semiconductor saturable absorber mirror (SESAM)-based passive Q-switch; external RF or acousto-optic triggering is not supported.
What maintenance is required beyond periodic cleaning of output optics?
None—no consumables, no gas replenishment, no alignment procedures. Annual verification of pulse energy calibration using a calibrated photodiode is recommended per ISO/IEC 17025 guidelines.
Can the Ylia be integrated with vision-guided robotic systems?
Yes—via Ethernet-synchronized trigger signals and positional feedback handshake protocols; reference implementations exist with Universal Robots UR10e and ABB IRB 1200 platforms.
