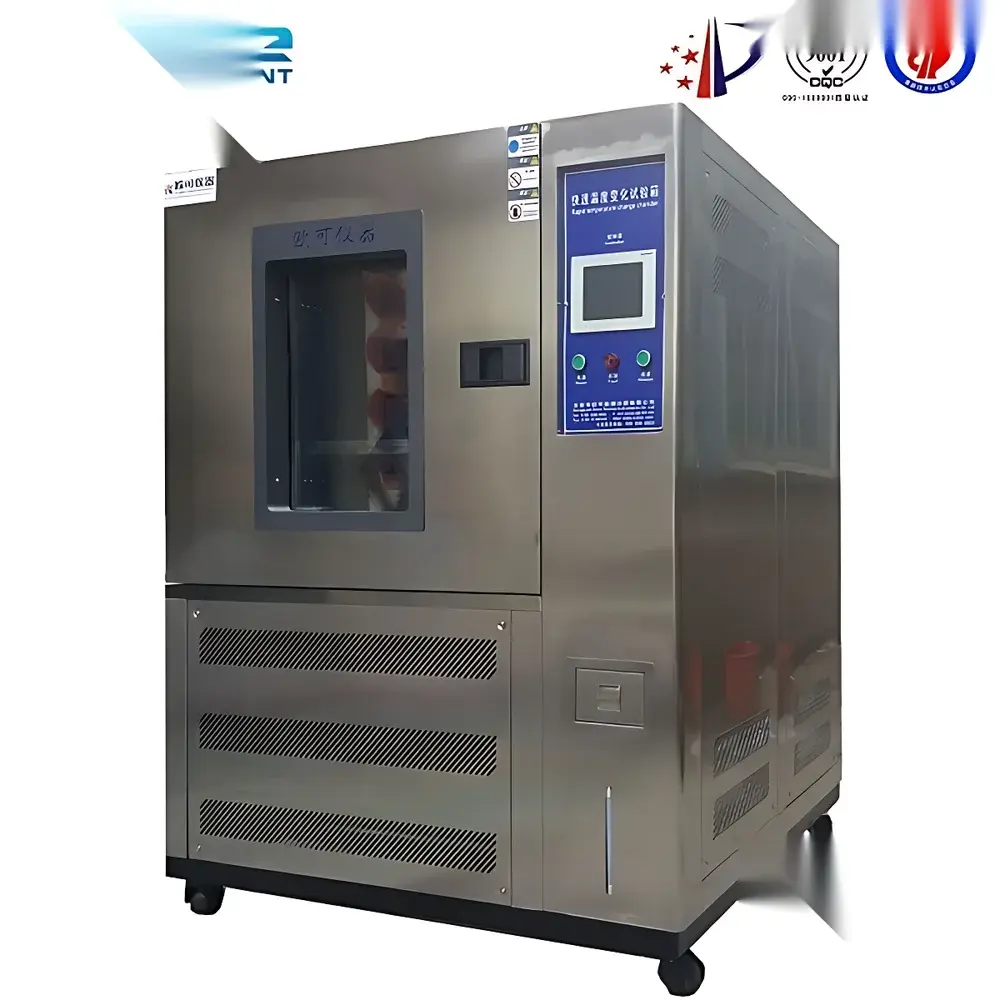

Quick-Temperature-Change Humidity & Thermal Cycling Chamber

Overview

The Quick-Temperature-Change Humidity & Thermal Cycling Chamber is an engineered environmental stress screening (ESS) platform designed for accelerated reliability validation of electronic components, automotive modules, aerospace avionics, and medical devices under dynamically varying thermal-hygrometric conditions. It operates on a dual-stage cascade refrigeration principle—combining independent high- and low-temperature circuits—to achieve precise, repeatable ramp rates up to 25 °C/min across a full operational envelope of −70 °C to +150 °C and 20–98% RH. Unlike conventional thermal chambers, this system integrates real-time humidity modulation synchronized with rapid temperature transitions, enabling simulation of field-relevant stress profiles such as condensation-prone thermal shock, dew-point cycling, and moisture ingress acceleration. Its structural integrity, P.I.D.-governed control architecture, and ISO-compliant airflow design ensure metrological stability compliant with IEC 60068-2 test standards.

Key Features

• High-fidelity dual-stage cascade refrigeration using environmentally compliant HFC-507 and R23 refrigerants—zero ozone depletion potential (ODP), low global warming potential (GWP) relative to legacy alternatives.
• 7-inch industrial-grade color LCD touch controller with intuitive bilingual interface (English/Chinese), supporting up to 96 programmable test profiles—including multi-segment ramps, dwells, and cyclic sequences—with cycle counts configurable from 1 to 999 and maximum duration per segment up to 999 hours 59 minutes.
• Scientifically optimized air circulation: axial fan array with adjustable vane diffusers ensures uniform temperature distribution (±2 °C) and humidity homogeneity (±3.0% RH above 75% RH) throughout the working volume—validated per ASTM E145 Annex A3 methodology.

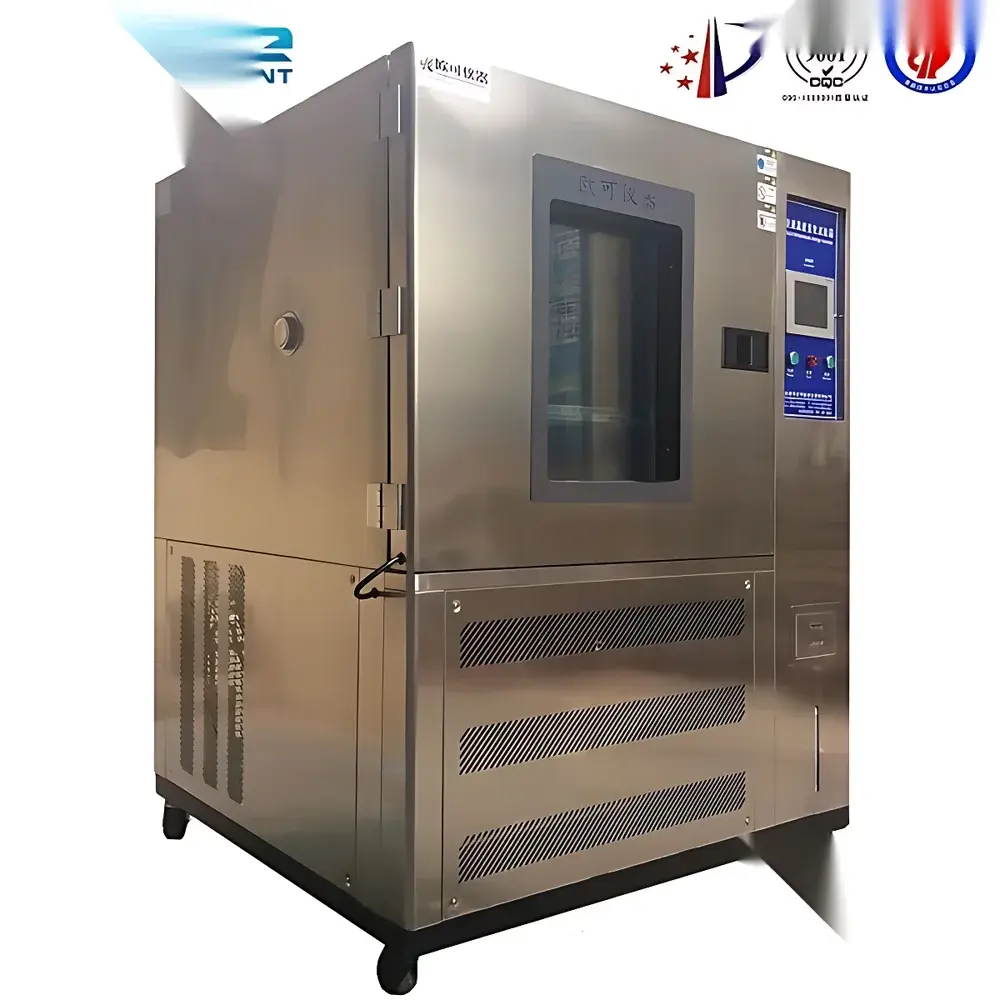

• Dedicated Ø50 mm access port on the left chamber wall, sealed with silicone gasket and clamping flange, enabling in-situ electrical load monitoring, thermocouple feedthrough, or external signal conditioning without compromising chamber integrity.
• Comprehensive safety architecture: PLC-monitored protection against compressor overload, refrigerant high-pressure trip, phase loss, ground fault, overtemperature excursion (>+155 °C or <−75 °C), and power supply anomalies—each triggering automatic shutdown and logged event timestamping.
• Modular construction using mirror-finished SUS304 stainless steel interior and exterior panels; non-porous welds prevent corrosion and particulate shedding—critical for cleanroom-adjacent deployment and long-term calibration stability.

Sample Compatibility & Compliance

This chamber accommodates DUTs ranging from PCB assemblies and sensor packages to sealed enclosures and battery packs, with internal dimensions scalable from 225 L to 1000 L (W×H×D: 50×75×60 cm to 100×100×100 cm). All configurations meet mandatory mechanical and electrical safety requirements per IEC 61000-6-2 (immunity) and IEC 61000-6-4 (emission), and are fully traceable to national metrology institutes via factory calibration certificates (NIST-traceable Pt100 sensors, capacitive RH transducers). Regulatory alignment includes full conformance with GB/T 2423 series (China’s adoption of IEC 60068), GJB 150A (military environmental test standards), and foundational specifications GB/T 10589, GB/T 11158, and GB/T 10592 for climatic test equipment performance verification. Optional upgrade paths include GLP/GMP audit-ready data logging with 21 CFR Part 11–compliant user access control and electronic signature support.

Software & Data Management

The embedded controller supports local data capture at user-defined intervals (1–60 sec resolution) with onboard storage for ≥10,000 hours of time-stamped temperature/humidity readings. Export is available via USB 2.0 to CSV or Excel-compatible formats. Optional PC-based software (Windows 10/11 compatible) enables remote supervision, real-time graphing, statistical process control (SPC) charting (X̄/R, Cp/Cpk), and automated report generation compliant with ISO/IEC 17025 documentation requirements. All system logs—including alarm events, parameter modifications, and maintenance alerts—are cryptographically timestamped and non-erasable, satisfying internal quality audits and external regulatory inspections.

Applications

• Qualification testing of automotive ECUs per ISO 16750-4 (road vehicle environmental conditions).
• Moisture sensitivity level (MSL) preconditioning and reflow simulation for J-STD-020-compliant semiconductor packaging.
• Accelerated life testing (ALT) of lithium-ion battery cells under combined thermal-hygric stress per UL 1642 Annex B.
• Validation of hermetic seal integrity in implantable medical devices per ISO 10993-12.
• Thermal fatigue evaluation of solder joints using JEDEC JESD22-A104D-defined profiles.
• Environmental stress screening (ESS) per MIL-STD-883 Method 1010.8 for defense electronics.

FAQ

What is the minimum dwell time between temperature transitions?
The system supports dwell times as short as 1 minute—configurable per segment—without compromising ramp rate accuracy or thermal overshoot.
Can the chamber operate continuously at 98% RH below 0 °C?
Yes, sustained sub-zero high-humidity operation is enabled by integrated de-icing logic and heated chamber walls, preventing frost accumulation on sensors and ductwork.
Is third-party calibration certification included with shipment?
Each unit ships with a factory calibration certificate referencing NIST-traceable standards; optional UKAS-accredited calibration is available upon request.
How is humidity controlled during rapid temperature ramps?
Humidity setpoint is dynamically adjusted using predictive algorithms that compensate for vapor pressure shifts—ensuring RH fidelity remains within ±2.5% during active ramping phases.
What refrigerant handling certifications are required for field service?
Technicians must hold EPA Section 608 Type II or equivalent international certification (e.g., EU F-Gas Category II) due to the use of regulated HFC blends.
