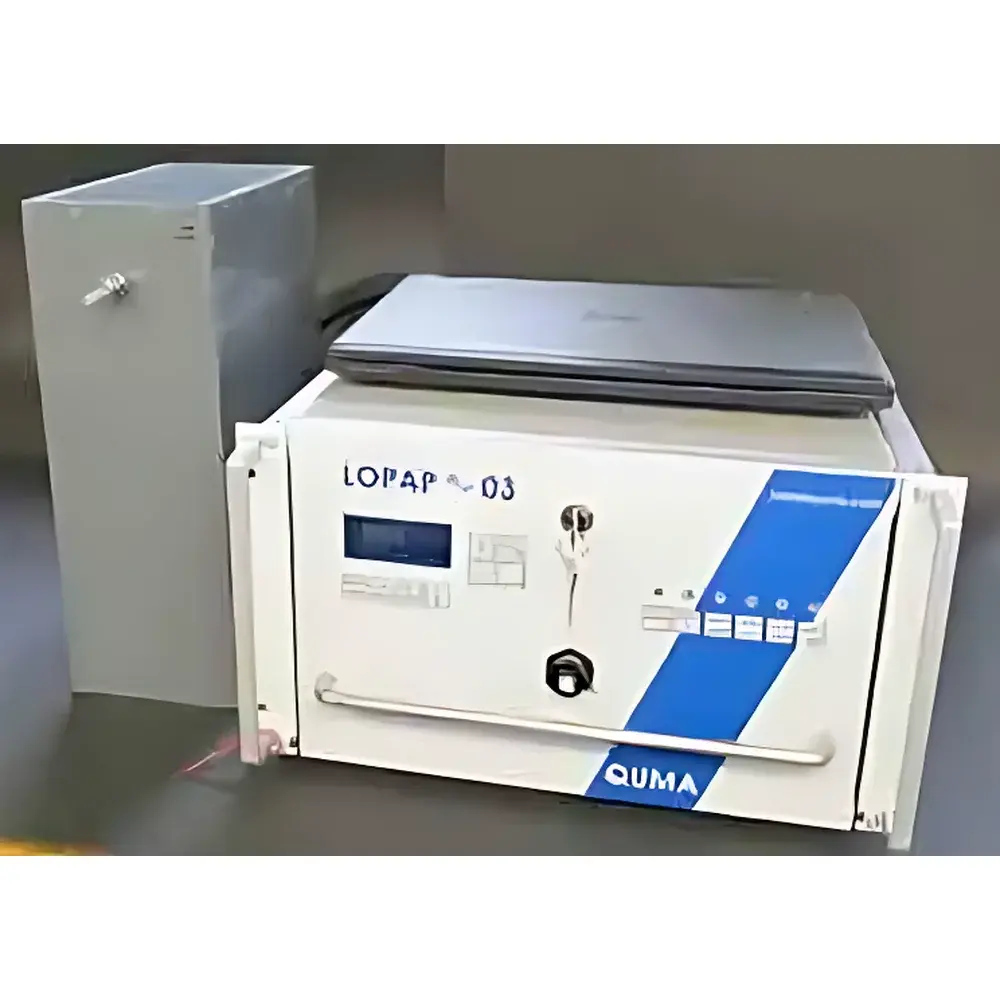

QUMA NO2-LOPAP Long-Path Absorption Photometer

Overview

The QUMA NO2-LOPAP (Long-Path Absorption Photometer) is a high-sensitivity, wet-chemical, in-situ trace gas analyzer engineered for the selective and quantitative detection of nitrogen dioxide (NO₂) in ambient air. Unlike conventional chemiluminescence or photolytic-converter-based analyzers, the NO2-LOPAP employs a well-established chemical conversion pathway—where gaseous NO₂ is quantitatively absorbed into an aqueous azide reagent to form stable nitrosyl azide—followed by highly sensitive optical detection via long-path UV absorption. This principle eliminates cross-sensitivity to common interferents such as ozone (O₃), nitrous acid (HONO), and peroxyacetyl nitrate (PAN), which plague standard commercial NO₂ monitors. The core optical cell is constructed from perfluorinated polymer tubing (Teflon® AF-2400), enabling total internal reflection over path lengths adjustable from 0.1 to 6 meters—directly translating into sub-pptv detection capability. Designed for unattended operation in remote and urban monitoring networks, the instrument meets the stringent requirements of atmospheric chemistry research, regulatory compliance verification, and long-term trend analysis under variable pollution regimes.

Key Features

• Ultra-low detection limit of 2 pptv at 6-minute time resolution, validated against reference methods and intercomparison campaigns (e.g., Villena et al., 2012; Peters et al., 2012)
• Adjustable optical path length (0.1–6 m) enables dynamic range extension from 2 pptv to 300 ppbv—and up to ppmv with shortened cell configuration
• Integrated ozone scrubber using aqueous indigo carmine solution upstream of the reaction coil, effectively removing O₃ and HONO without affecting NO₂ recovery
• External sampling module minimizes wall losses and surface reactions during intake—critical for accurate measurement of reactive nitrogen species
• Robust wet-chemistry architecture ensures high reproducibility and long-term stability (>6 months calibration interval under field conditions)
• Compliant with EU Directive 2008/50/EC and U.S. EPA Reference Method guidance for NO₂ monitoring in ambient air quality networks

Sample Compatibility & Compliance

The NO2-LOPAP is validated for direct measurement of NO₂ in undiluted ambient air across diverse environmental matrices—including polar boundary layers, marine background sites, suburban airsheds, and heavily polluted urban plumes. Its selectivity has been confirmed against >20 co-occurring trace gases (e.g., NO, NOₓ, SO₂, HCHO, ClNO₂, N₂O₅), all showing negligible interference (<0.5% signal contribution). The system satisfies key performance criteria outlined in ISO 7935:1994 (air quality—determination of nitrogen dioxide—chemiluminescence method) and supports GLP-compliant data acquisition when paired with optional audit-trail-enabled software. It is routinely deployed in EMEP, GAW, and ACTRIS infrastructure and conforms to the QA/QC protocols required for national air quality reporting under the EU Air Quality Directive.

Software & Data Management

Instrument control, real-time data logging, and diagnostic monitoring are managed via QUMA’s LOPAP Control Suite—a Windows-based application supporting automated zero/span validation, pressure/temperature compensation, and raw absorbance spectral visualization. All measurement parameters (flow rate, path length, reagent temperature, lamp intensity) are logged with timestamps and stored in ASCII-compatible .csv format. Optional integration with SCADA systems is supported via Modbus TCP/IP or RS-232. Data files include embedded metadata compliant with CF (Climate and Forecast) conventions, facilitating ingestion into atmospheric modeling frameworks (e.g., WRF-Chem, CMAQ). Full electronic records meet FDA 21 CFR Part 11 requirements when operated with user authentication and digital signature modules.

Applications

• Long-term ambient NO₂ monitoring in regulatory air quality networks requiring sub-ppbv sensitivity and interference-free operation
• Field validation of satellite-derived NO₂ column retrievals (e.g., TROPOMI, OMI) through ground-truth point measurements
• Process emission studies at industrial facilities where NO₂ coexists with high O₃ or volatile organic compounds
• Photochemical smog chamber experiments requiring artifact-free NO₂ kinetics under controlled irradiation
• Polar and high-altitude research stations where low-temperature condensation and low-concentration regimes demand extreme detection sensitivity
• Intercomparison studies with FTIR, CE-DOAS, and cavity-enhanced spectroscopy platforms

FAQ

How does the NO2-LOPAP eliminate ozone interference?

Ozone is removed upstream of the reaction coil using a liquid-phase indigo carmine scrubber; this reagent selectively depletes O₃ without reacting with NO₂, ensuring quantitative recovery.
Can the instrument measure NO₂ in humid or foggy conditions?

Yes—the Teflon AF-2400 optical cell is hydrophobic and chemically inert; no condensation occurs within the absorption path, and performance remains stable up to 95% RH.
What maintenance is required for routine operation?

Reagent solution (sodium azide + sulfanilamide + NEDD) must be replaced every 4–6 weeks; pump tubing and scrubber solution are serviced quarterly; annual lamp and photodiode calibration recommended.
Is the system compatible with unattended remote deployment?

Yes—it operates continuously on 12 V DC or 230 V AC, features internal temperature stabilization (±0.2 °C), and supports watchdog-triggered auto-restart after power interruption.
Does the NO2-LOPAP support simultaneous O₃ measurement?

An optional dual-channel configuration allows parallel O₃ quantification using the same indigo carmine scrubber effluent, per the methodology described in Peters et al. (Atmos. Meas. Tech., 2012).
