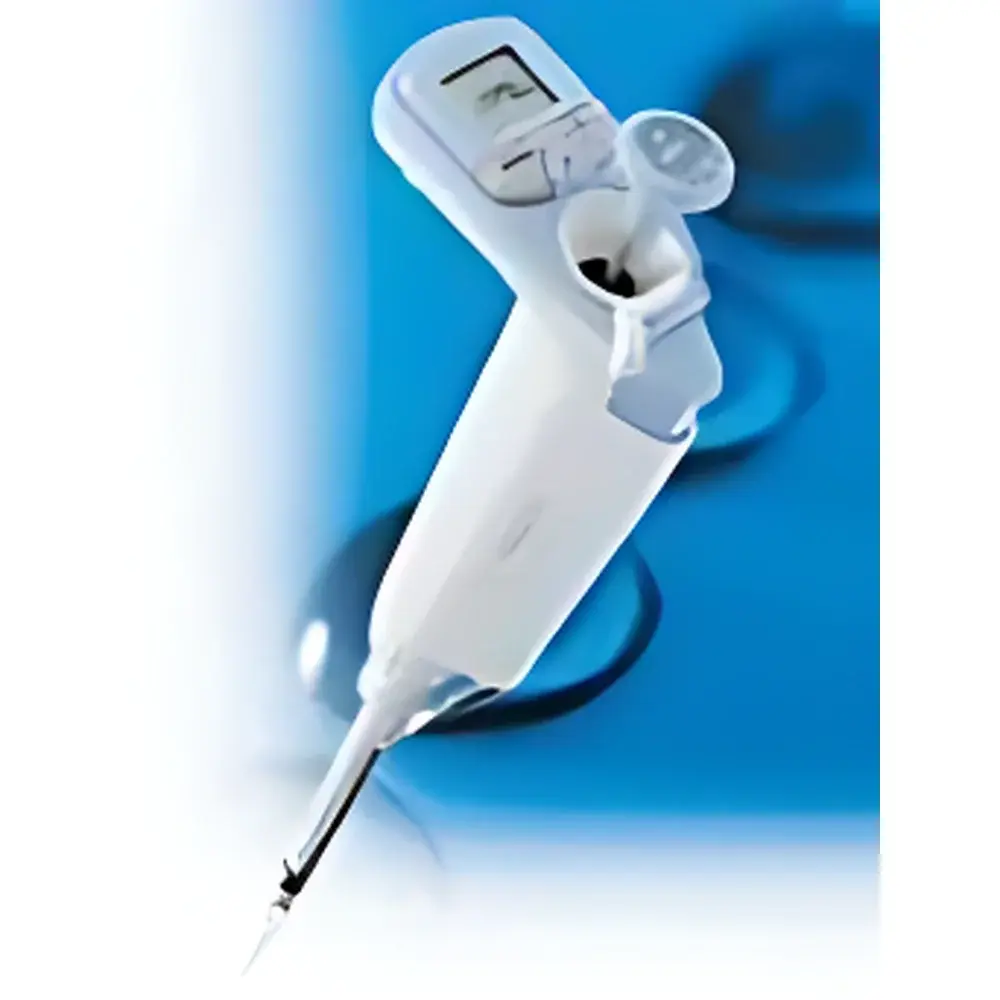

Rainin E-Man LCD Display Electronic Pipette

Overview

The Rainin E-Man LCD Display Electronic Pipette is an advanced hybrid liquid handling instrument engineered for precision, traceability, and operator ergonomics in regulated laboratory environments. Unlike conventional air-displacement pipettes, the E-Man integrates real-time capacitive piston position sensing—enabling continuous, high-resolution monitoring of plunger displacement during aspiration and dispensing. This proprietary sensing architecture delivers true volumetric feedback at every stage of the pipetting cycle, allowing users to verify actuation integrity, detect inconsistencies in technique, and maintain full procedural awareness. The integrated LCD display updates dynamically, presenting a four-digit volume readout synchronized with actual piston movement—not just setpoint—thereby transforming manual pipetting into a visually guided, metrologically transparent process. Developed by Rainin (a Mettler Toledo company), the E-Man conforms to ISO 8655-1:2022 for performance verification and supports routine calibration according to ASTM E2797-21 (Standard Guide for Verification of Automated Liquid Handling Devices).

Key Features

• Real-time piston position sensing with sub-microliter resolution across all volume ranges, enabling immediate visual confirmation of aspiration/dispensing fidelity
• Four-digit LCD display continuously reflecting actual piston displacement—distinct from static setpoint-only interfaces found on standard electronic pipettes
• LTS (Low-Torque Seal) tip attachment system reducing ejection force by up to 65% versus conventional mechanisms, minimizing repetitive strain risk and ensuring consistent tip seal integrity
• Cycle counter functionality for batch-level process documentation and workflow auditing
• On-device maintenance log with timestamped service events, supporting GLP/GMP compliance and internal quality audits
• ISO 8655-compliant ergonomic housing with balanced mass distribution and optimized grip geometry for extended use without fatigue
• Eight interchangeable volume models—from ultra-low-volume 0.1–2 µL (H-2/SH-2) to high-capacity 200–2000 µL (H-2000/SH-2000)—all sharing identical sensor architecture and UI logic

Sample Compatibility & Compliance

The E-Man is validated for use with aqueous solutions, buffers, cell culture media, and low-viscosity organic solvents (e.g., ethanol, isopropanol) within specified temperature and humidity ranges (15–30 °C, 30–70% RH). It meets ISO 8655-2:2022 accuracy and precision requirements across its full operating range, with typical intra-instrument CV ≤ 0.8% at nominal volume and ≤ 2.5% at 10% of nominal volume. For regulatory workflows, the device supports traceable maintenance records and provides data export capability (via optional Rainin LiteTouch software) compatible with 21 CFR Part 11-compliant systems when deployed with appropriate IT controls. All models are manufactured in Rainin’s ISO 13485-certified facility in Oakland, California, and carry CE marking for in vitro diagnostic (IVD) use where applicable.

Software & Data Management

While the E-Man operates autonomously via its onboard interface, it interoperates with Rainin’s LiteTouch PC software for advanced configuration, firmware updates, and audit-trail generation. LiteTouch enables user-defined volume presets, custom calibration offset application, and export of cycle logs in CSV format—including timestamps, volume settings, and cumulative cycle counts. When integrated into validated laboratory information management systems (LIMS) or electronic lab notebooks (ELN), the E-Man’s maintenance and usage history contributes to ALCOA+ (Attributable, Legible, Contemporaneous, Original, Accurate, Complete, Consistent, Enduring, Available) data integrity frameworks. No cloud connectivity or proprietary dongles are required; data transfer occurs via standard USB-C interface with signed firmware validation.

Applications

The E-Man is routinely deployed in applications demanding metrological transparency and procedural repeatability: qPCR master mix preparation, CRISPR guide RNA dilution, single-cell assay setup, ELISA plate loading, and reference standard dilution in analytical method validation. Its real-time feedback is particularly valuable in training environments—allowing instructors to identify and correct subtle technique deviations (e.g., inconsistent plunger speed, incomplete tip immersion) before they propagate into assay variability. In QC laboratories, the cycle counter and maintenance log facilitate adherence to SOPs requiring documented pipette usage thresholds prior to recalibration.

FAQ

How does real-time piston sensing differ from traditional electronic pipette feedback?
Unlike setpoint-only displays, the E-Man’s capacitive sensor measures absolute plunger position 100× per second—providing continuous verification that aspiration/dispense strokes match intended volume trajectories.
Is the E-Man compliant with ISO 8655 calibration requirements?
Yes—each model is supplied with a factory-verified calibration certificate traceable to NIST standards, and supports gravimetric verification per ISO 8655-6 using standard test weights and Class A volumetric glassware.
Can the E-Man be used with filtered tips or positive displacement systems?
It is validated exclusively for use with LTS-compatible filtered and unfiltered tips; positive displacement operation is not supported due to fundamental differences in fluidic architecture.
What maintenance intervals are recommended under GLP conditions?
Rainin recommends functional verification every 30 days and full calibration every 6 months—or after 10,000 cycles—whichever occurs first, with all events logged directly on the device.
Does the LCD display remain active during extended idle periods?
Yes—the display auto-dims after 60 seconds of inactivity but remains responsive to button press; full brightness resumes instantly upon interaction, preserving battery life without compromising operational readiness.
