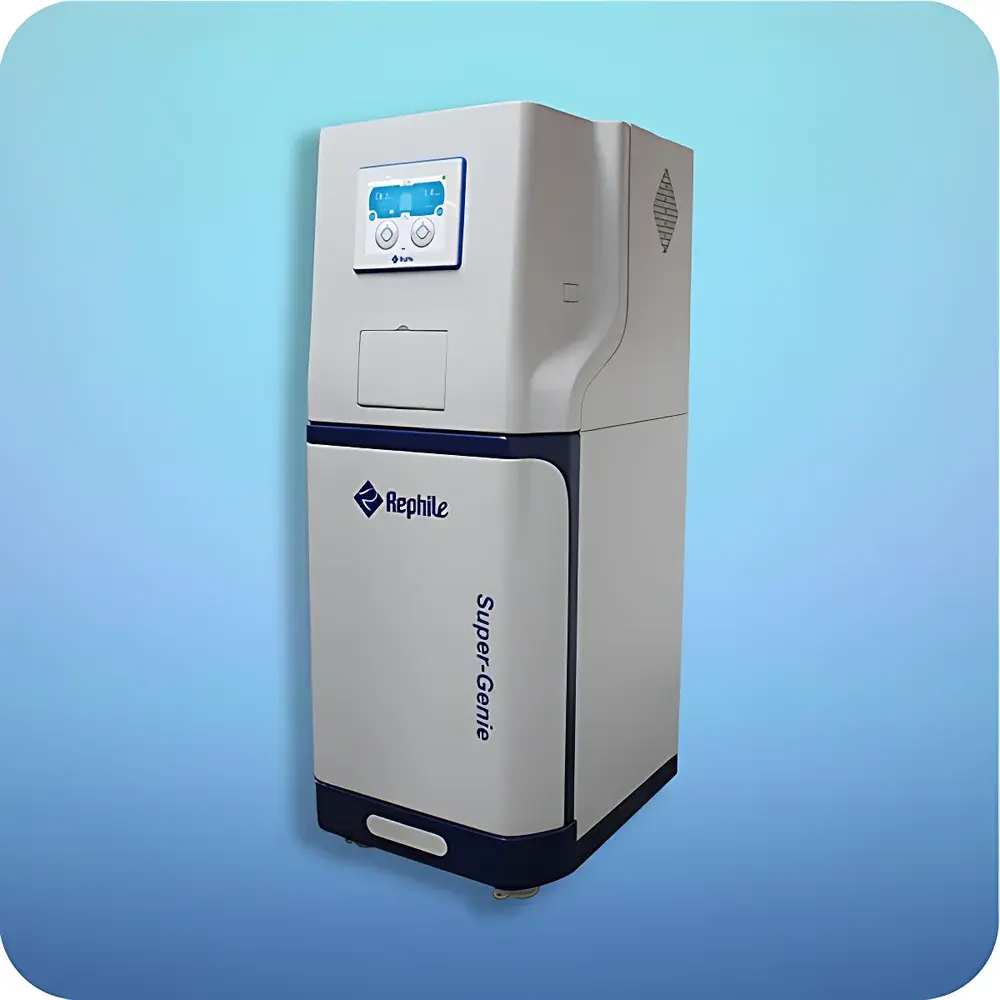

RephiLe Super-Genie Intelligent Centralized Ultra-Pure Water System

Overview

The RephiLe Super-Genie is an intelligent, centralized ultra-pure water generation and distribution system engineered for high-throughput laboratory environments requiring consistent, multi-point delivery of ASTM Type I water. Utilizing a modular architecture integrating reverse osmosis (RO), electrodeionization (EDI), and dual-stage ultrafiltration with continuous UVC LED (265 nm) irradiation, the Super-Genie delivers water meeting stringent specifications for trace-metal-sensitive analytical applications—including LC-MS, ICP-MS, and low-background radiochemical analysis. Its design emphasizes operational resilience: feed water quality monitoring, automatic RO reject diversion, leak detection with main supply cutoff, and redundant flow paths ensure uninterrupted service during maintenance or component replacement. As a floor- or room-level water hub, it eliminates point-of-use bottlenecks while maintaining full traceability of water quality parameters across time and distribution points—critical for laboratories operating under ISO/IEC 17025, CLIA, or pharmaceutical GMP frameworks.

Key Features

• Modular dual-output capability: Simultaneous production of ASTM Type I ultra-pure water (18.2 MΩ·cm, TOC < 2 ppb) and ASTM Type II/III purified water (≥5 MΩ·cm, TOC < 30 ppb) from a single platform
• Integrated 100 L storage tank with UVC LED (265 nm) irradiation, enabling continuous microbial control without mercury-based lamps or ozone residuals
• Real-time online TOC monitoring (standard on Super-Genie G and U variants) using high-sensitivity catalytic oxidation detection, compliant with USP and EP 2.2.44 methodologies
• Intelligent feedwater management: Automatic rejection of substandard RO permeate to protect downstream purification modules and extend consumable life
• Remote smart dispensing terminals (optional) with independent flow control, RFID authentication, and usage logging—enabling decentralized access without compromising central system integrity
• Comprehensive data governance: Two-year onboard storage of resistivity, TOC, temperature, pressure, and alarm logs; exportable via USB or Ethernet for regulatory review
• Ergonomic service design: Castor-mounted chassis, front-access service panels, and modular cartridge layout reduce mean time to repair (MTTR) and simplify preventive maintenance scheduling

Sample Compatibility & Compliance

The Super-Genie is validated for compatibility with a broad spectrum of laboratory instrumentation and preparative workflows. Ultra-pure water output meets or exceeds ASTM D1193-20, ISO 3696:1987, and CLSI C3-A4 standards for critical applications including HPLC mobile phase preparation, cell culture media formulation, and calibration standard dilution. When equipped with optional 0.2 µm final filtration and RephiBio endotoxin-removal cartridges, the system achieves <0.001 CFU/mL and <0.001 EU/mL—satisfying USP , EP 2.6.14, and JP 17 requirements for parenteral-grade water in preclinical research settings. All firmware and data handling modules are configurable to support ALCOA+ principles (Attributable, Legible, Contemporaneous, Original, Accurate, Complete, Consistent, Enduring, Available) and align with FDA 21 CFR Part 11 Annex 11 expectations for electronic record integrity.

Software & Data Management

The Super-Genie’s embedded control system runs on a real-time Linux kernel with deterministic I/O response. The 8-inch capacitive touchscreen interface provides live visualization of all critical parameters—including resistivity trends, TOC excursions, UV lamp intensity decay, and tank level dynamics—with intuitive navigation and role-based user permissions (Operator, Technician, Administrator). Historical datasets are timestamped, digitally signed, and stored in encrypted SQLite format. Data export supports CSV, PDF, and XML formats compatible with LIMS integration (via HL7 or RESTful API upon request). Optional cloud-enabled telemetry allows remote health monitoring and predictive maintenance alerts through RephiLe’s SecureLink portal—fully compliant with GDPR and HIPAA data residency requirements when deployed on private infrastructure.

Applications

• High-sensitivity analytical instrumentation: LC-MS, GC-MS, ICP-OES, ICP-MS, AAS, and ion chromatography demand ultra-low TOC and ionic contamination; Super-Genie’s dual-stage polishing and continuous UVC treatment minimize organic leaching and biofilm formation
• Biological and pharmaceutical research: Endotoxin-free ultra-pure water supports monoclonal antibody purification, CRISPR reagent preparation, and qPCR master mix formulation where nuclease or protease activity must be excluded
• Centralized facility support: Serves multiple labs across floors or wings via sanitary stainless-steel distribution loops (316L, electropolished, slope-controlled), eliminating redundant point-of-use systems and reducing total cost of ownership
• Regulated QC/QA environments: Built-in audit trail, electronic signatures, and configurable alarm thresholds facilitate compliance with ISO 13485, 21 CFR Part 211, and WHO TRS 970 Annex 4 for water system qualification (DQ/IQ/OQ/PQ)
• Sustainability-driven operations: Dedicated water recovery circuit improves overall recovery ratio by up to 25% versus conventional RO-only systems, reducing wastewater volume and lowering utility costs over system lifetime

FAQ

What water quality standards does the Super-Genie meet?
It complies with ASTM Type I (18.2 MΩ·cm, TOC < 2 ppb), ISO 3696 Class 1, and EP/USP purified water monographs when configured with appropriate final filtration and validation protocols.
Can the system be integrated into an existing building water network?
Yes—it accepts municipal tap water input (TDS < 1000 ppm, 5–35°C, 2–6 bar) and supports both pressurized and gravity-fed distribution loops with optional booster pumps.
Is remote monitoring supported out of the box?
Local touchscreen operation is standard; cloud-based remote access requires optional SecureLink telemetry module and on-premise network configuration per IT security policy.
How often do consumables require replacement?
Pre-filters: 6–12 months depending on feed water quality; RO membranes: 2–3 years; EDI stacks: 3–5 years; UV lamps: 12,000 hours nominal lifetime; final filters: 6–12 months based on usage volume and microbiological challenge.
Does the system support electronic record retention for regulatory audits?
Yes—data logging includes immutable timestamps, operator IDs, and change history; export formats comply with FDA 21 CFR Part 11 when deployed with validated software configuration and access controls.
