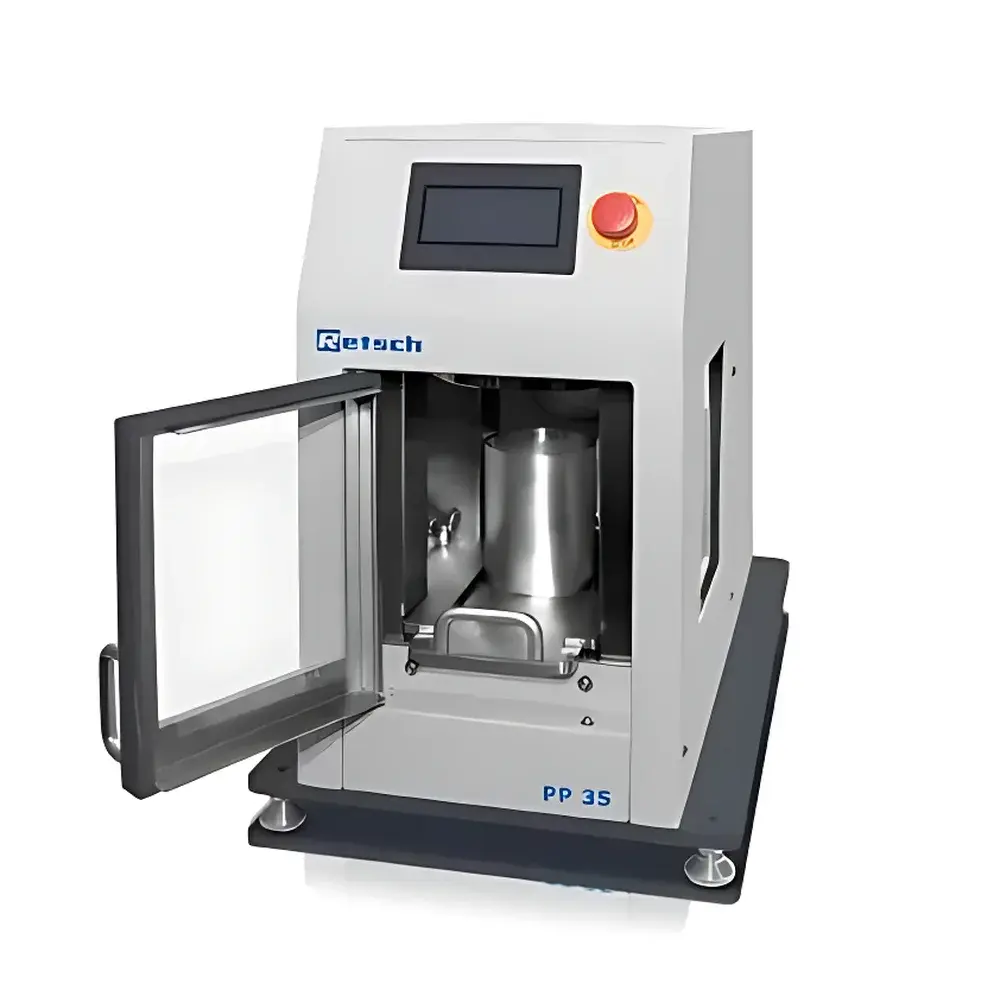

RETSCH PP35 Automatic Pellet Press

Overview

The RETSCH PP35 Automatic Pellet Press is an engineered solution for reproducible, high-integrity sample pelletization in preparation for X-ray fluorescence (XRF) spectroscopy, wavelength-dispersive XRF (WDXRF), energy-dispersive XRF (EDXRF), and other quantitative elemental analysis techniques. Designed around the principle of uniaxial cold compaction under controlled hydraulic force, the PP35 delivers consistent density, surface flatness, and mechanical stability across diverse powdered matrices—including cement clinker, metallurgical slags, geological ores, ceramic raw materials, fly ash, and environmental particulates. Its compact benchtop footprint (335 × 495 × 570 mm) integrates a robust hydraulic actuation system with closed-loop pressure feedback, enabling precise force application from 0 to 35 metric tons (0–343 kN) without manual intervention. The device operates on a fixed-ramp pressurization profile, with user-definable dwell duration (1–99 seconds), ensuring uniform particle rearrangement and interparticle bonding while minimizing preferential orientation or cracking—critical for minimizing matrix effects and improving analytical precision.

Key Features

• Fully automated operation with intuitive LCD interface for real-time monitoring of pressure, dwell time, and cycle status
• Pre-programmable storage for up to 10 Standard Operating Procedures (SOPs), supporting method traceability and laboratory workflow standardization
• Modular die system accommodating multiple steel ring configurations (40 mm outer Ø / 32 mm inner Ø; 40 mm / 35 mm) and aluminum cups (32 mm and 40 mm outer Ø), each rated for defined maximum loads to ensure mechanical safety and dimensional repeatability
• CE-compliant design meeting EU Machinery Directive 2006/42/EC and Low Voltage Directive 2014/35/EU requirements
• Single-phase power compatibility (110–240 V, 50/60 Hz), facilitating global deployment without voltage conversion hardware
• Hydraulic pressure control with automatic hold-and-release sequence, eliminating operator-dependent variability in force application and release kinetics

Sample Compatibility & Compliance

The PP35 supports a broad spectrum of inorganic, non-volatile powders requiring homogenization prior to XRF analysis. It is routinely validated for use with cementitious materials (ASTM C114, EN 196-2), metallurgical slags (ISO 12677), mineral concentrates (ASTM D5684), and recycled construction aggregates (EN 12620). All die components are manufactured to ISO 2768-mK general tolerances, and aluminum cups conform to ASTM B209 specifications for alloy 1100-H14. The system supports GLP-compliant documentation when integrated into LIMS environments via external data logging (RS232 or optional USB interface). While the PP35 itself does not include FDA 21 CFR Part 11 electronic signature functionality, its deterministic, repeatable process parameters align with GMP Annex 11 principles for equipment qualification (IQ/OQ/PQ) in regulated analytical laboratories.

Software & Data Management

The PP35 operates independently of external software but provides full parameter transparency through its built-in display. All active settings—including applied pressure, dwell duration, and selected SOP number—are visible during operation and retained in volatile memory until power-down. For laboratories implementing digital quality systems, the unit’s RS232 port enables ASCII-based output of cycle logs (timestamp, pressure setpoint, actual peak force, dwell time, completion status) to third-party SCADA or ELN platforms. No proprietary drivers or cloud dependencies are required. Method recall and execution are performed locally, ensuring operational continuity during network outages—a key consideration in production QC labs with strict uptime requirements.

Applications

• XRF sample preparation for cement and concrete raw material certification (e.g., SiO₂, Al₂O₃, Fe₂O₃, CaO quantification)
• Geochemical exploration workflows involving crushed rock and soil samples
• Metallurgical process control using slag and sinter analysis
• Environmental monitoring of heavy metal content in fly ash, bottom ash, and municipal waste incineration residues
• Ceramic and glass formulation QA/QC, where stoichiometric homogeneity directly impacts thermal expansion and optical properties
• Academic research in solid-state chemistry requiring reproducible pressed pellets for comparative spectroscopic studies

FAQ

What is the maximum recommended pressure for aluminum cup dies?
Aluminum cups with 32 mm outer diameter are rated for up to 25 t; 40 mm cups support the full 35 t range.
Can the PP35 be used for organic or heat-sensitive samples?
No—it is designed exclusively for cold compaction of inorganic, thermally stable powders. Volatile binders or polymers may deform or contaminate the hydraulic system.
Is calibration traceable to national standards?
Yes—RETSCH provides factory calibration certificates traceable to PTB (Physikalisch-Technische Bundesanstalt) for pressure transducers, valid for 12 months from commissioning.
Does the PP35 require compressed air or external cooling?
No—fully self-contained electro-hydraulic operation; no ancillary utilities beyond standard AC power.
How is maintenance access structured?
Front-panel hinged cover provides tool-free access to hydraulic reservoir, filter, and die alignment components; annual oil change and filter replacement are the only scheduled maintenance tasks.
