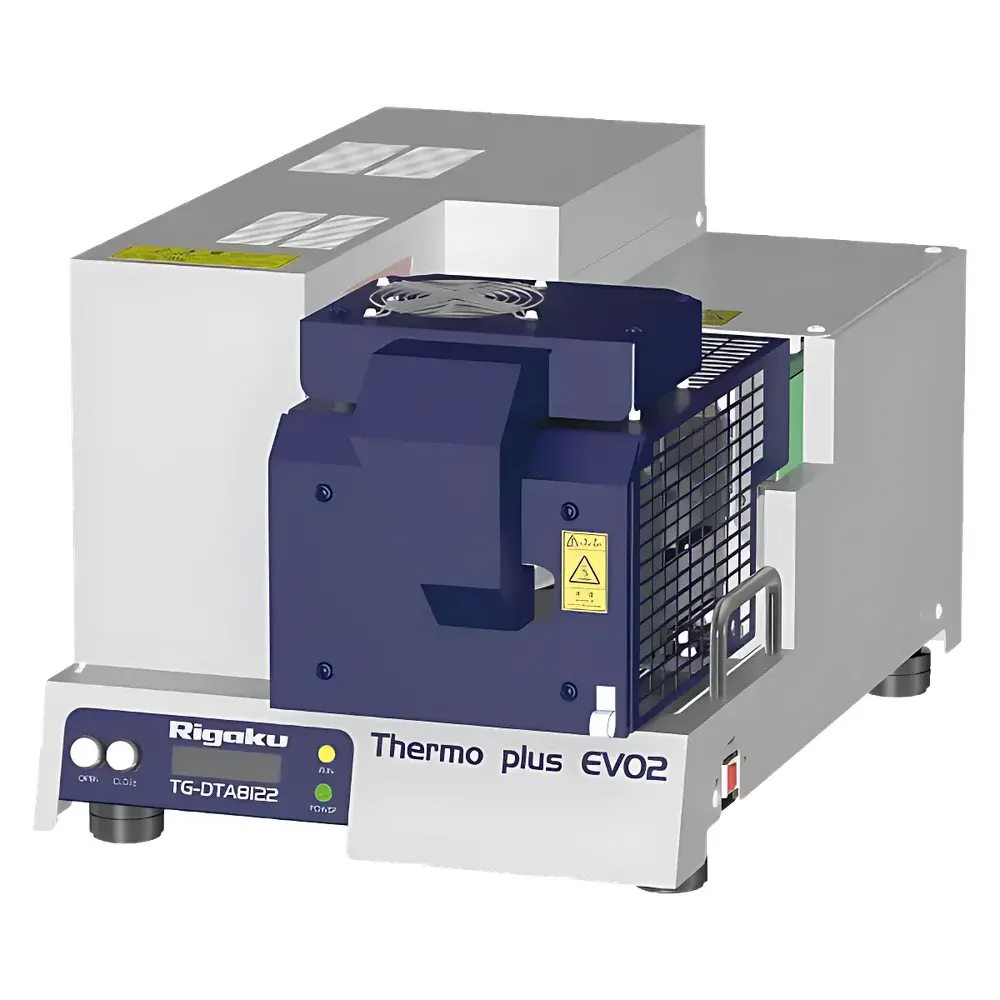

Rigaku TG-DTA8122 Simultaneous Thermal Analyzer

Overview

The Rigaku TG-DTA8122 Simultaneous Thermal Analyzer is an engineered solution for high-fidelity, concurrent measurement of thermal transitions and mass changes under controlled temperature programs. It operates on the horizontal dual-cantilever differential DTA principle—where two identical, symmetrically mounted ceramic cantilevers support sample and reference crucibles—and integrates a high-sensitivity microbalance for real-time thermogravimetric analysis (TG). This architecture inherently compensates for mechanical drift, thermal expansion asymmetry, and furnace-induced fluctuations. The differential DTA signal reflects enthalpic events (e.g., melting, crystallization, glass transition, oxidation), while the TG channel quantifies mass loss or gain (e.g., dehydration, decomposition, oxidation, volatilization) with sub-µg resolution. Designed for reproducible operation up to 1500 °C, the system maintains baseline stability and low noise across extended heating ramps and isothermal holds—critical for detecting subtle thermal events in advanced ceramics, battery cathode materials, pharmaceutical polymorphs, and refractory composites.

Key Features

• Horizontal dual-cantilever DTA design minimizes mechanical drift and improves long-term baseline stability compared to vertical configurations.
• Integrated high-resolution microbalance with active buoyancy correction ensures accurate mass tracking even during rapid gas atmosphere changes.
• Furnace optimized for uniform axial temperature distribution and minimal thermal lag; calibrated per ASTM E1131 and ISO 11357 standards.
• Gas flow management system reduces convective interference and enables precise control of purge/protective atmospheres (N₂, Ar, O₂, synthetic air) with mass-flow controllers.
• Robust ceramic sensor assembly resistant to thermal shock and chemical exposure, supporting repeated use in aggressive environments (e.g., oxidative decomposition studies).
• Modular design facilitates maintenance and calibration traceability; all critical components are individually certified and documented per ISO/IEC 17025 requirements.

Sample Compatibility & Compliance

The TG-DTA8122 accommodates standard platinum, alumina, and silicon carbide crucibles (up to 100 µL capacity), enabling analysis of powders, granules, thin films, and small solid specimens (≤100 mg typical). It supports both static and dynamic gas environments—including programmed switching between inert and reactive gases—without compromising signal fidelity. The instrument meets essential regulatory expectations for material characterization in R&D and quality control settings: data integrity aligns with FDA 21 CFR Part 11 requirements when used with compliant software; thermal calibration adheres to ASTM E967 (DSC calibration), ASTM E968 (TG calibration), and ISO 11357-2/3. Full audit trail capability, electronic signatures, and user-access controls are implemented via optional validated software modules compliant with GLP and GMP frameworks.

Software & Data Management

ThermoAnalysis Studio software provides full instrument control, real-time visualization, and post-run deconvolution. It supports multi-step temperature programs (ramp, hold, cooling, modulated), automatic peak detection with onset/midpoint/peak temperature annotation, and derivative (DTG) calculation. Raw data are stored in vendor-neutral ASCII format (.csv) and proprietary .tda files with embedded metadata (operator ID, calibration status, gas flow logs, furnace history). Data export options include ASTM E1447-compliant reports and direct integration into LIMS platforms via OPC UA or REST API. Software validation documentation (IQ/OQ/PQ protocols) is available upon request for regulated laboratories.

Applications

• Decomposition kinetics and activation energy estimation of polymer blends and flame-retardant formulations using isoconversional methods (e.g., Friedman, Ozawa-Flynn-Wall).
• Phase stability assessment of lithium-ion battery cathode materials (e.g., NMC, LFP) under oxygen-rich conditions to evaluate structural degradation thresholds.
• Hydration/dehydration behavior of pharmaceutical hydrates and amorphous dispersions—correlating mass loss steps with DTA endotherms to identify stoichiometric water release.
• Thermal stability mapping of metal-organic frameworks (MOFs) and porous carbons for gas storage applications.
• Quantification of filler content (e.g., carbon black, silica) in elastomers and composites via controlled pyrolysis in nitrogen.
• High-temperature sintering behavior and oxide formation in refractory metal alloys and ceramic precursors.

FAQ

What is the maximum recommended heating rate for reliable DTA/TG coupling?
Standard operation supports heating rates from 0.1 to 100 °C/min; optimal coupling fidelity is maintained at ≤50 °C/min for most inorganic and polymeric samples.
Can the system perform vacuum or reduced-pressure measurements?
No—the TG-DTA8122 is configured for atmospheric or positive-pressure gas environments only; vacuum compatibility requires alternative instrumentation.
Is calibration traceable to national standards?
Yes—temperature calibration uses high-purity reference metals (In, Sn, Pb, Zn, Al, Ag) certified to NIST SRM or equivalent; mass calibration employs certified weights traceable to BIPM.
How is buoyancy correction handled during TG analysis?
The software applies real-time buoyancy compensation based on measured gas density, crucible geometry, and temperature-dependent air displacement models.
Does the system support evolved gas analysis (EGA) coupling?
Yes—via standardized flange interfaces (KF-25 or CF-35), the outlet gas stream can be directly coupled to FTIR, MS, or GC-MS systems for time-resolved identification of decomposition products.
