X-Rite CiF3200 Imaging Desktop Spectrophotometer

Overview

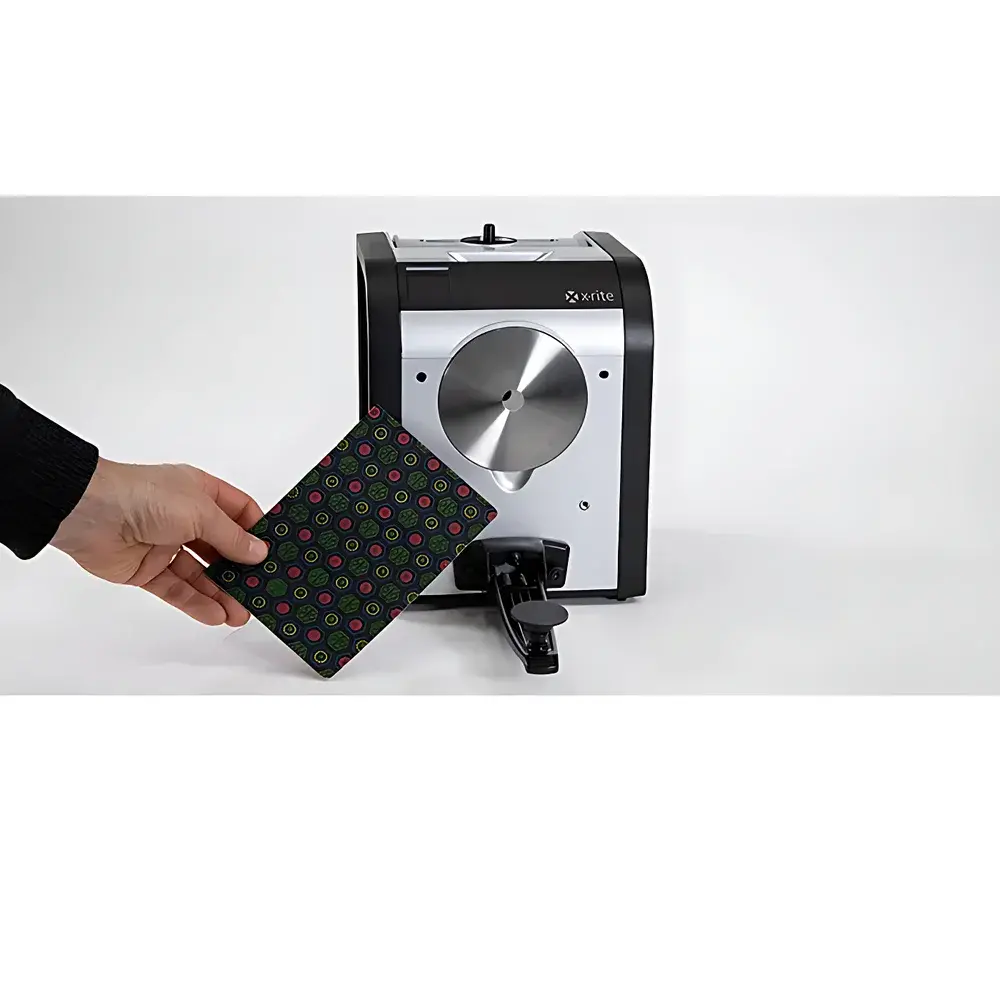

The X-Rite CiF3200 Imaging Desktop Spectrophotometer is an engineered solution for high-precision, spatially resolved color measurement of small and geometrically complex parts. Built upon a d/8° integrating sphere optical architecture with LED-based illumination, the CiF3200 delivers spectrophotometric accuracy across the visible spectrum (400–700 nm at 10 nm resolution) while incorporating real-time imaging capability to visually confirm measurement location and sample uniformity. Unlike conventional spot spectrophotometers, the CiF3200 integrates a high-resolution camera aligned coaxially with its optical path—enabling on-screen target positioning, virtual aperture selection (down to 2 mm), and automated multi-color extraction from heterogeneous surfaces. This dual-mode functionality—spectral acquisition plus spatial visualization—makes it particularly suited for industries where micro-feature color fidelity is critical: luxury watch components, precision injection-molded plastics, consumer electronics housings, automotive interior trims, and medical device enclosures. Its contact-mode operation eliminates working distance variability, ensuring reproducible geometry between instrument and sample—a foundational requirement for inter-laboratory and supplier-to-manufacturer color agreement.

Key Features

• Virtual aperture selection (2 mm, 4 mm, 8 mm, 12 mm) enables precise targeting of micro-features without mechanical aperture changes.
• Integrated high-resolution imaging system provides real-time visual confirmation of measurement location, surface texture, and gloss distribution.
• Multi-color extraction algorithm automatically identifies and quantifies up to five distinct color regions within a single captured image—each reported with full spectral data and CIEDE2000 (ΔE*) deviation metrics.
• LED illumination source ensures stable spectral output over ≥500,000 measurements, eliminating lamp drift and reducing calibration frequency.
• Touchscreen interface with status panel (tricolor LED indicators for power, calibration, and error states) supports standalone operation without external PC dependency.
• USB connectivity and comprehensive Software Development Kit (SDK) enable seamless integration into automated QA stations, MES platforms, and custom LIMS environments.
• Designed for compliance-ready workflows: supports timestamped measurement logs, user authentication hooks, and electronic signature readiness when deployed with X-Rite Color iQC under configured 21 CFR Part 11 protocols.

Sample Compatibility & Compliance

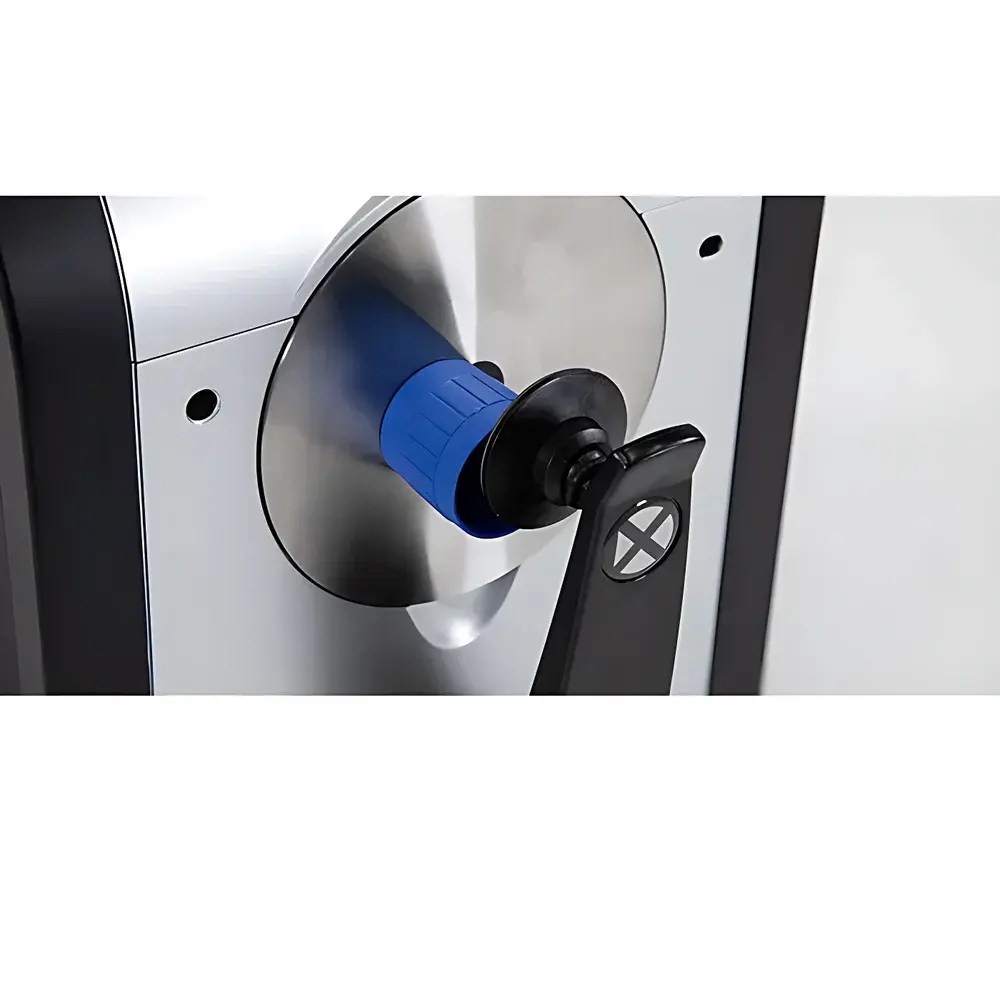

The CiF3200 accommodates rigid, semi-rigid, and textured substrates—including high-gloss polymers, anodized metals, coated ceramics, and matte-finish composites—without requiring sample masking or fixturing. Its zero-working-distance design ensures consistent illumination geometry regardless of part curvature or surface topography, provided the measurement area lies flat against the aperture plate. The instrument meets ISO 7724-1 (colorimetry), ISO 13655 (spectral measurement geometry), and ASTM E308 (computation of color coordinates from spectral data) requirements. When operated with validated software configurations and documented calibration procedures, it supports GLP and GMP color control processes in regulated manufacturing environments—including medical device production (ISO 13485) and pharmaceutical packaging (USP ).

Software & Data Management

The CiF3200 natively interfaces with X-Rite Color iQC software, enabling centralized database management, tolerance zone definition (ellipsoidal or rectangular), batch reporting, SPC charting, and cross-instrument comparison. All spectral data (400–700 nm @ 10 nm), CIELAB values, ΔE* metrics, and annotated measurement images are stored in vendor-neutral XML or CSV formats. The included SDK provides RESTful API access and .NET/C++ libraries for embedding measurement logic into factory automation systems. Audit trails—including operator ID, timestamp, instrument serial number, calibration status, and raw spectrum checksums—are generated per measurement event, satisfying traceability requirements for internal quality audits and regulatory inspections.

Applications

• Consumer electronics: Verification of RGB-matched bezels, logo inlays, and button actuation surfaces across global assembly lines.

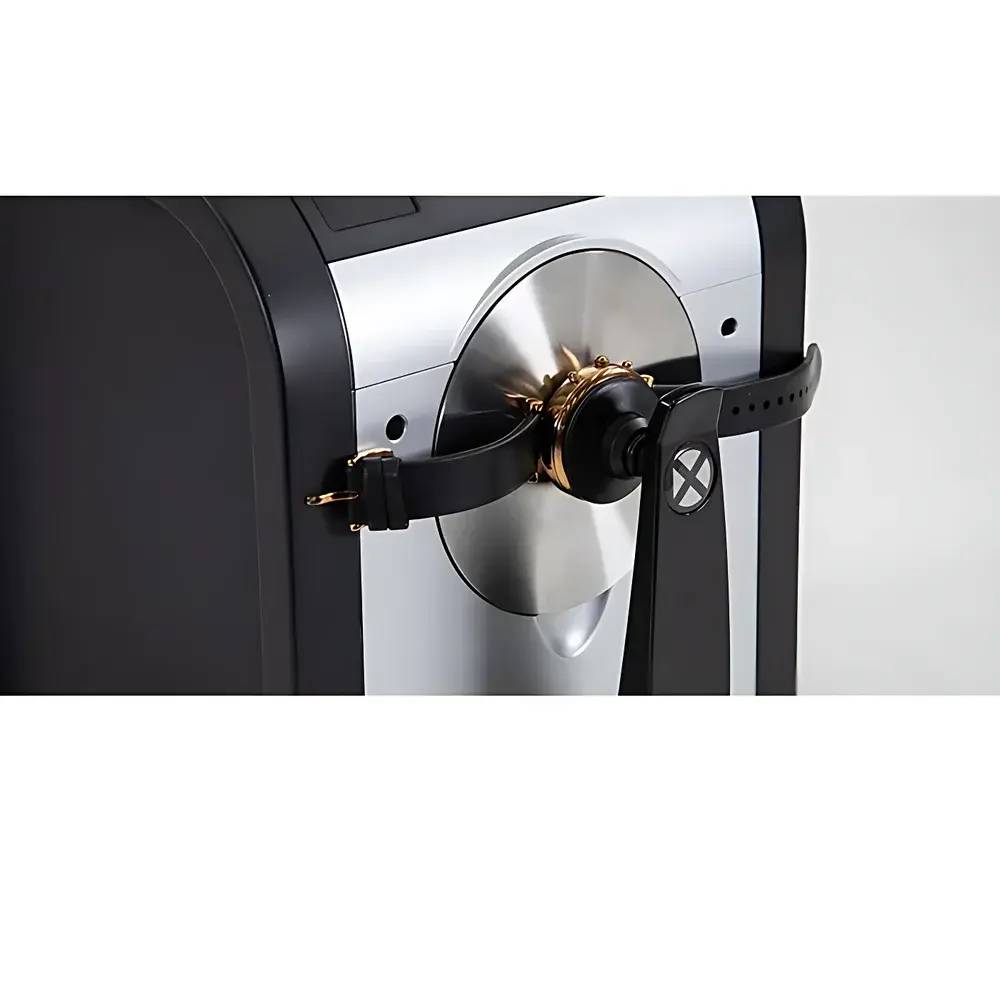

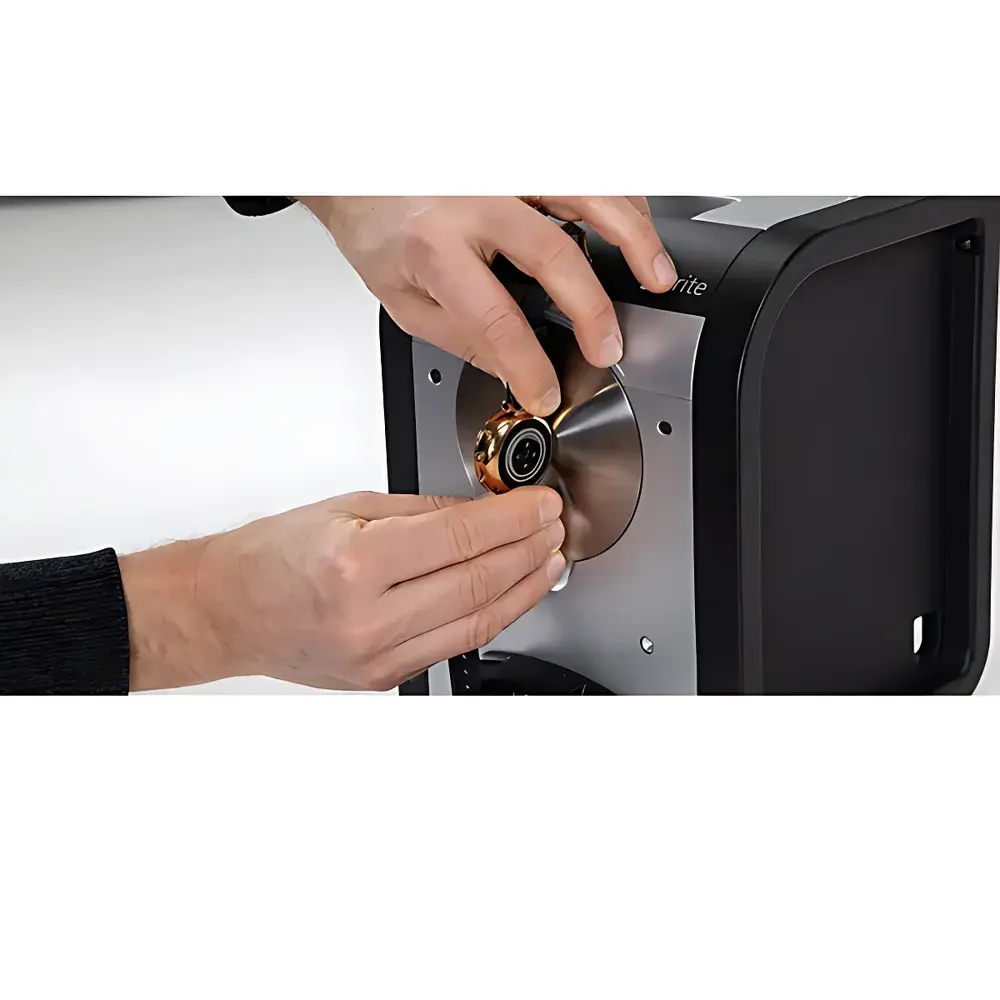

• Luxury goods: Quantitative assessment of PVD-coated watch cases, enamel dials, and leather strap stitching colors against master standards.
• Automotive interiors: Validation of trim piece color consistency across material transitions (e.g., soft-touch TPU adjacent to piano-black ABS).
• Medical devices: Objective verification of color-coded dosage indicators, housing identification bands, and sterilization indicator labels.
• Plastics manufacturing: Monitoring batch-to-batch pigment dispersion stability in injection-molded components with sub-3 mm feature dimensions.

FAQ

What is the smallest measurable feature size?
The CiF3200 supports virtual apertures down to 2 mm in diameter, enabling reliable spectral measurement of features as small as 2 mm × 2 mm when properly centered and in full contact with the aperture plate.
Does the instrument require annual recalibration by X-Rite service?
While no mandatory annual recalibration is required, X-Rite recommends quarterly verification using certified BCRA tiles and annual NIST-traceable recalibration for applications governed by ISO/IEC 17025 or FDA QSR requirements.
Can measurement images be exported for third-party review?
Yes—annotated JPEG/PNG images with overlaid target crosshairs and region-of-interest boundaries are saved alongside spectral data and can be exported via USB or network share.
Is the CiF3200 compatible with existing X-Rite standard observer settings?
Yes—it uses the CIE 1931 2° standard observer by default and supports configurable 10° observer mode, D50/D65/UV illuminants, and multiple color difference formulas (CIEDE2000, CMC, DIN99).
How is inter-instrument agreement maintained across a fleet of CiF3200 units?
Units are factory-matched to BCRA Series II tiles (≤0.15 ΔE* SPIN); ongoing agreement is maintained through synchronized firmware updates, shared calibration tile sets, and centralized tolerance management in Color iQC.
