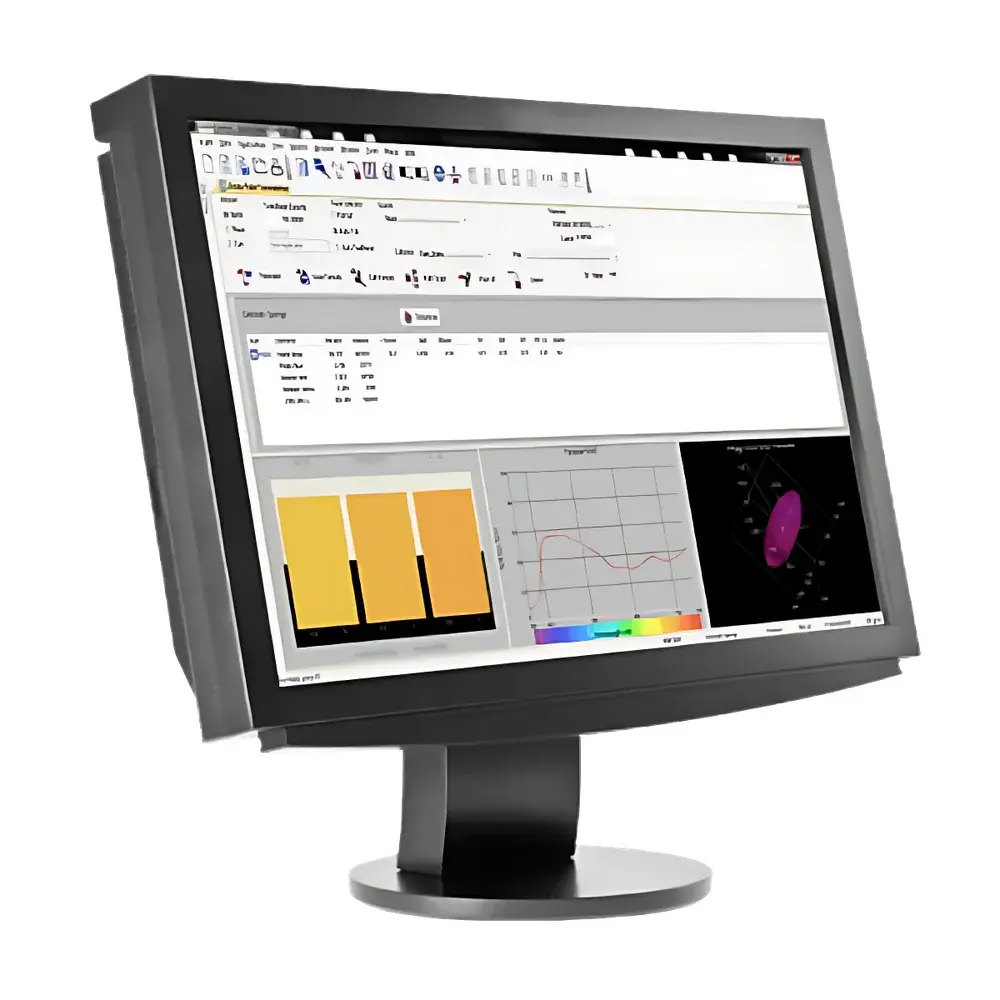

X-Rite Color iMatch Color Matching Software
| Brand | X-Rite |
|---|---|
| Origin | USA |
| Manufacturer Type | Authorized Distributor |
| Origin Category | Imported |
| Model | iMatch |
| Pricing | Available Upon Request |
Overview
X-Rite Color iMatch is a professional-grade color formulation and matching software engineered for precision color management in R&D laboratories, quality control environments, and production facilities across coatings, plastics, textiles, inks, and automotive OEM applications. Built upon a robust spectral-based color science foundation, iMatch leverages advanced multi-constant calculation engines—including Kubelka-Munk theory, Saunderson correction, and optimized scattering/absorption modeling—to predict colorant behavior under diverse substrate, film thickness, and illumination conditions. Unlike generic color-matching tools, iMatch integrates physical optics principles with empirical calibration data to deliver high reproducibility in both initial formula generation and subsequent correction (toning) cycles. Its architecture supports closed-loop integration with spectrophotometers (e.g., X-Rite Ci7800, MA98, or RM200QC) and automated dispensing systems, enabling traceable, audit-ready color development workflows compliant with ISO 13655, ASTM D2244, and CIE 15:2018 standards.
Key Features
- Spectral Multi-Constant Engine: Applies wavelength-specific absorption (K) and scattering (S) coefficients to model pigment interactions across UV–VIS–NIR ranges, improving match accuracy for transparent, translucent, and opaque substrates.
- Multi-Mode Measurement Support: Accommodates reflectance, transmittance, and opacity measurements—critical for evaluating tinting strength in transparent plastics or hiding power in architectural paints per ASTM D2805 and ISO 6504.
- Intelligent Candidate Ranking: Prioritizes candidate formulas using user-defined weighting of up to three critical parameters—e.g., cost, metamerism index (MI), or batch-to-batch variability—enabling rapid trade-off analysis without manual sorting.
- Chromaticity Gamut Visualization: Generates 2D or 3D CIELAB-based gamut maps overlaid with target coordinates and achievable formula clusters, supporting feasibility assessment prior to lab trials.
- Process-Compensated Adjustment: Allows directional tuning of formula variables (e.g., TiO₂ loading, dispersion efficiency, or solvent ratio) to offset known process drifts—such as mill base viscosity changes or spray gun pressure fluctuations—reducing rework in pilot-scale batches.
- Rule-Based Workflow Standardization: Enables creation of material-specific formulation rules (e.g., “no cobalt dryers in waterborne acrylics” or “max 0.8% carbon black in FDA-compliant food packaging”) and client-specific tolerances (ΔE₀₀ ≤ 0.8, CMC(2:1)), ensuring consistent decision logic across analysts and shifts.
Sample Compatibility & Compliance
iMatch supports spectral data from all major X-Rite benchtop and portable spectrophotometers, as well as third-party devices compliant with CIE 15:2018 spectral data exchange protocols (e.g., .qtx, .ciex, .spc). It accommodates raw reflectance/transmittance curves from 360–780 nm at 10 nm or 5 nm intervals, with optional UV-filtered measurement modes for fluorescent whitening agent (FWA) evaluation. The software meets GLP and GMP documentation requirements through built-in electronic signatures, full audit trails (per FDA 21 CFR Part 11), and version-controlled formula libraries. All color difference calculations adhere to CIEDE2000 (ΔE₀₀) by default, with configurable support for CMC(l:c), BFD, and DIN99d metrics.
Software & Data Management
iMatch operates on Windows 10/11 (64-bit) platforms and features centralized database architecture via Microsoft SQL Server, supporting concurrent multi-user access with role-based permissions (e.g., formulator, QA reviewer, administrator). Formula histories retain full metadata—including instrument ID, operator, date/time stamp, substrate lot number, and environmental conditions (temperature/humidity logs)—for full traceability. Export options include PDF reports with embedded spectral plots, CSV datasets for statistical process control (SPC), and XML-formatted recipes compatible with ERP/MES systems (e.g., SAP QM, Siemens Opcenter). Optional cloud synchronization enables secure remote collaboration while maintaining on-premise data sovereignty.
Applications
- Automotive refinish and OEM coating development requiring stringent inter-batch color consistency (SAE J1545, ISO 12647-2)
- Plastics compounding where transmission, haze, and yellowness index (YI E313) must be co-optimized
- Architectural paint manufacturing subject to LEED-certified VOC limits and AAMA 2605 durability testing
- Food packaging inks validated against FDA 21 CFR 175.300 and EU Plastics Regulation (EU) No 10/2011
- Textile dyeing processes governed by ISO 105-A02 grayscale assessments and ISO 105-J03 lightfastness protocols
FAQ
Does iMatch support non-X-Rite spectrophotometers?
Yes—iMatch accepts standardized spectral data files (.qtx, .ciex, .spc) from instruments meeting CIE 15:2018 spectral data format specifications.
Can iMatch integrate with our existing LIMS or ERP system?
Yes—via configurable ODBC/JDBC drivers and RESTful API endpoints for bidirectional recipe and result exchange.
Is audit trail functionality compliant with FDA 21 CFR Part 11?
Yes—electronic signatures, immutable activity logs, and user authentication meet Part 11 requirements for regulated industries.
How does iMatch handle metamerism prediction?
It calculates metameric index (MI) using multiple illuminants (D65, A, F2, F7) and observer angles (2° and 10°), reporting worst-case ΔE₀₀ deviation across conditions.
What training and technical support options are available?
X-Rite-certified application engineers provide on-site installation, workflow validation, and annual refresher training aligned with ISO/IEC 17025 competency requirements.
