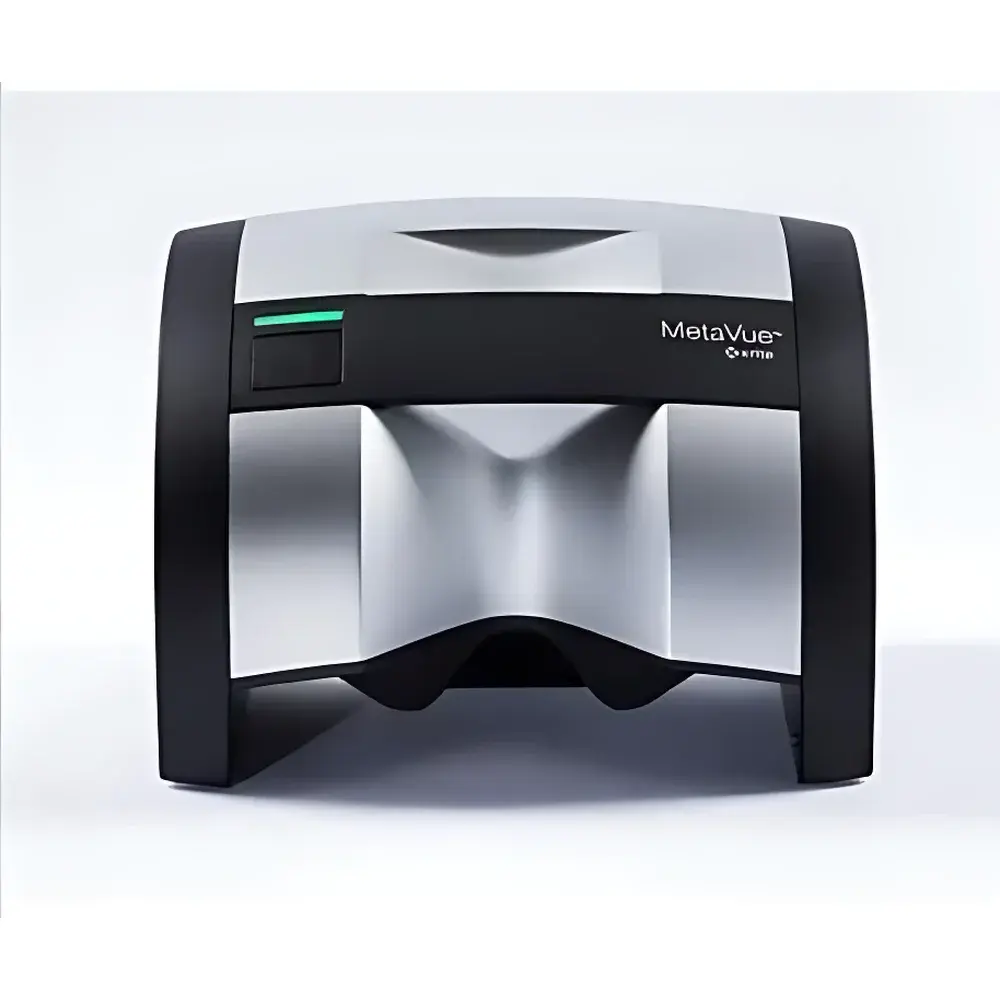

X-Rite MetaVue VS3200 Non-Contact Imaging Spectrophotometer

Overview

The X-Rite MetaVue VS3200 is a high-precision, non-contact imaging spectrophotometer engineered for objective color measurement across heterogeneous, delicate, or geometrically complex samples—ranging from liquid coatings and cosmetic emulsions to molded plastic parts and woven textiles. Operating on the 45/0 optical geometry per ISO 13655 and ASTM E308, it captures spatially resolved spectral data (360–740 nm, 10 nm FWHM) across user-defined regions of interest (ROIs) using a calibrated CMOS imaging sensor and integrated xenon flash illumination. Unlike traditional spot spectrophotometers, the VS3200 decouples measurement from physical contact—eliminating sample compression, surface distortion, or contamination risks inherent in probe-based systems. Its core architecture integrates real-time video preview, digital targeting, and intelligent image-based color extraction algorithms to deliver metrologically traceable CIE L*a*b*, ΔE00, and spectral reflectance curves with high intra-instrument reproducibility (<0.08 ΔE*ab repeatability on white tile, n=20).

Key Features

• Non-contact 45/0 imaging geometry: Eliminates mechanical pressure on soft, viscous, or fragile samples—including gels, creams, powders, and uncured coatings—ensuring measurement integrity without sample alteration.
• Adjustable aperture system (2–12 mm): Enables precise ROI selection for micro-scale features (e.g., printed ink dots) or macro-scale evaluation (e.g., full automotive trim panels), supporting both ASTM D2244 pass/fail tolerancing and ISO 12647-2 process control.
• Digital targeting with live video preview: Real-time 1080p imaging allows dynamic resizing and repositioning of measurement zones; 4× digital zoom supports accurate placement on textured or low-contrast surfaces.
• Smart Color Extraction™ algorithm: Compensates for surface texture, gloss variation, and directional appearance effects (e.g., sparkle, goniochromism) during spectral integration—transparently applied in background processing without user intervention.
• Modular positioning hardware: Includes height-adjustable stand (3″ clearance), slide-in sample tray (for liquids/powders), and optional bench-mounted arm fixture for repeatable orientation of rigid 3D parts—supporting GLP-compliant SOP execution.
• Embedded calibration verification: Integrated media placement guide ensures correct positioning of calibration tiles (green check standard included); auto-validation prompts if misalignment exceeds ±0.5 mm tolerance.

Sample Compatibility & Compliance

The VS3200 accommodates materials unsuitable for conventional contact probes: aqueous suspensions, silicone-based cosmetics, thermoplastic elastomers, electrostatically charged powders, and high-gloss metallic paints. Its non-contact design meets ISO 2813 requirements for gloss-independent color assessment and aligns with USP guidance for color consistency in topical pharmaceuticals. All firmware and software modules comply with FDA 21 CFR Part 11 when deployed with X-Rite’s optional Audit Trail and Electronic Signature package—enabling full traceability of operator actions, calibration events, and measurement history. Data output conforms to CGMP Annex 11 and ISO/IEC 17025 documentation standards, including embedded EXIF metadata (timestamp, operator ID, instrument serial, ROI coordinates) within stored TIFF images.

Software & Data Management

The VS3200 operates natively within X-Rite’s Color iQC (quality control dashboard) and Color iMatch (formulation prediction) environments. It supports bidirectional spectral data exchange with legacy X-Rite platforms (VS450, RM200QC, 962/964), preserving historical databases and eliminating retraining or data migration overhead. All measurements archive raw spectra, processed color values, annotated ROI images, and environmental metadata (ambient light level, temperature) in encrypted .cxf format. Optional network-based Instrument Performance Validation (IPV) enables remote diagnostic reporting, drift monitoring, and automated recalibration scheduling—fully auditable under GxP-regulated workflows.

Applications

• Coatings R&D: Quantifying batch-to-batch consistency in waterborne architectural paints and OEM automotive basecoats—especially where substrate texture or film thickness variability affects visual perception.
• Personal care QA: Measuring hue stability in sunscreen lotions, foundation emulsions, and lipstick waxes without disrupting rheological structure or introducing microbial risk.
• Plastics manufacturing: Validating color uniformity across injection-molded housings with draft angles, ribbing, or multi-material overmolding—where probe contact induces localized stress whitening.
• Textile & carpet production: Assessing dye lot conformity on loop-pile carpets and brushed nylon fabrics where directional reflectance and fiber density cause angular dependency.
• Pharmaceutical packaging: Verifying Pantone®-matched blister foil lamination and child-resistant cap coloration against ICH Q5E comparability thresholds.

FAQ

Does the VS3200 require annual recalibration by an accredited lab?
No—built-in self-diagnostic routines and traceable green-check tile validation enable daily user verification. Full NIST-traceable recalibration is recommended every 12 months or after impact events, performed by X-Rite-certified service engineers.
Can it measure translucent or backlit materials (e.g., LED diffusers)?
Not in transmission mode—the VS3200 is strictly reflectance-configured (45/0). For transmissive applications, X-Rite recommends the Ci7800 series with dual-path optics.
Is spectral data export compatible with third-party statistical process control (SPC) platforms?
Yes—CSV and XML exports include full 31-point reflectance spectra, CIE XYZ, L*a*b*, and ΔE metrics, fully ingestible by Minitab, JMP, and SPC software compliant with ASTM E2918.
How does the system handle ambient lighting interference during imaging?
The xenon flash duration is <10 µs—effectively freezing ambient light contribution. Internal shutter synchronization and dark-current subtraction further suppress photometric noise from variable lab illumination.
What is the minimum measurable feature size within a single ROI?
At 12 mm aperture, spatial resolution is ~0.15 mm/pixel; at 2 mm aperture, effective sampling resolution improves to ~0.025 mm/pixel—sufficient for evaluating fine print registration or pigment dispersion homogeneity.
