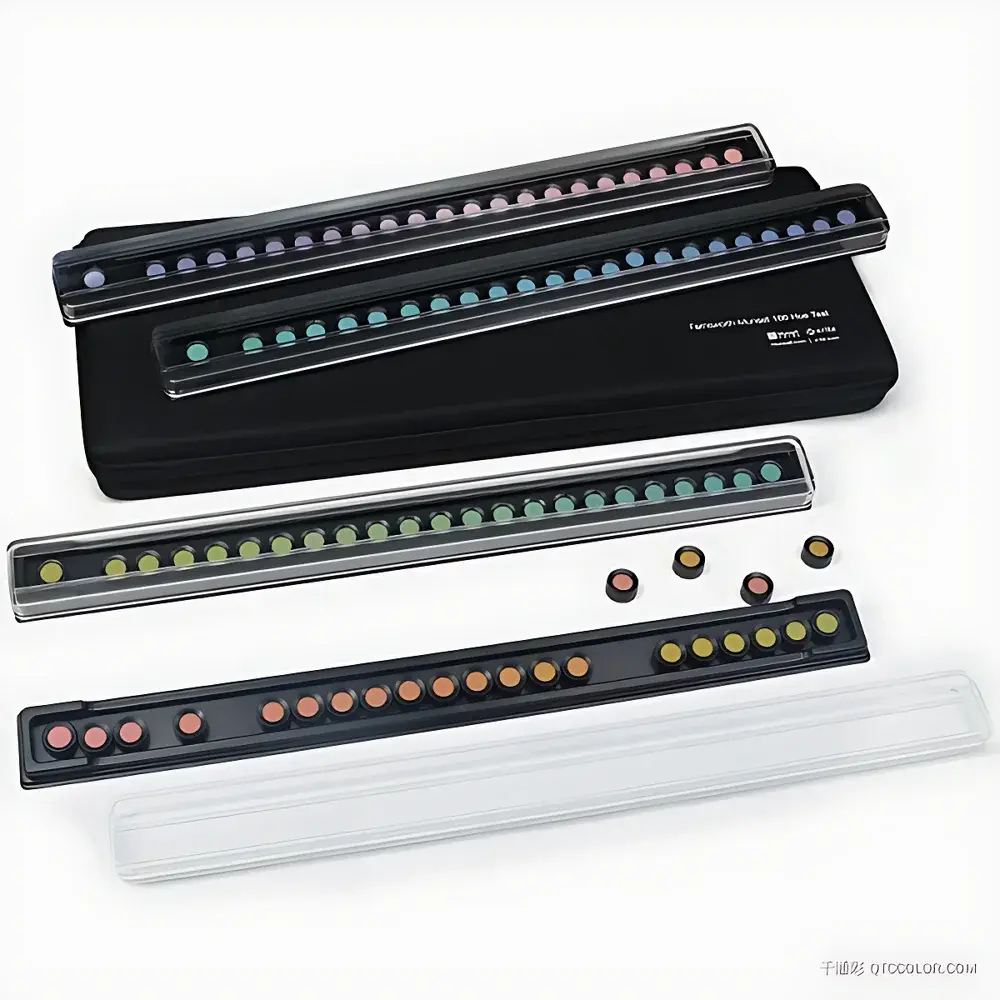

X-Rite Munsell FM-100 Hue Test

Overview

The X-Rite Munsell FM-100 Hue Test is a standardized, psychophysical assessment tool engineered to quantify an individual’s ability to discriminate minute differences in hue across the full visible spectrum. Unlike instrumental color measurement systems, the FM-100 evaluates human visual perception—specifically chromatic discrimination acuity—using 85 carefully calibrated Munsell hue chips arranged in four trays (100 total caps, with 15 fixed anchor caps). The test is grounded in the CIELAB color space and aligned with ASTM E308 and ISO/CIE 11664-4 standards for colorimetric evaluation. It serves as a foundational component in color-critical industries—including paint formulation, textile dyeing, packaging print, pharmaceutical coating, and automotive OEM supply chains—where consistent human color judgment directly impacts product conformity, regulatory compliance, and inter-operator reproducibility.

Key Features

• Validated psychometric design based on the Munsell Renotation System, with spectral reflectance data certified against NIST-traceable reference standards
• Four modular trays (100 hue caps total) enabling controlled, repeatable administration under standardized D65 illumination (CIE 1964 10° observer)
• Quantitative scoring algorithm generating Total Error Score (TES), confusion axis identification (e.g., protan/deutan/tritan deficiencies), and zone-specific deviation mapping
• Supports both manual administration and digital scoring via X-Rite’s free FM-100 Scoring Tool (Windows/macOS), with exportable CSV reports compliant with 21 CFR Part 11 audit trail requirements
• Designed for routine use in GLP- and GMP-regulated environments: includes certificate of conformance, lot-specific spectral data sheets, and annual recalibration recommendations

Sample Compatibility & Compliance

The FM-100 is not a physical sample analysis instrument but a human performance evaluation protocol. It requires no consumables or sample preparation; however, successful administration mandates strict environmental controls: illuminant D65 (≥500 lux), neutral gray surround (Munsell N7), and absence of metamerism-inducing light sources. Its methodology is referenced in ISO 9241-303 (Ergonomics of Human-System Interaction), ASTM D2244 (Standard Practice for Calculation of Color Tolerances), and FDA guidance documents concerning visual inspection competency in pharmaceutical manufacturing. Each production lot undergoes spectral verification per ISO 13655:2017 (Spectral Measurement and Colorimetric Computation), ensuring inter-lot consistency and traceability to the CIE 1931 standard observer.

Software & Data Management

While the FM-100 itself is hardware-based, its digital workflow integrates natively with X-Rite’s enterprise color management ecosystem. Raw test results imported into Color iQC support automated pass/fail thresholds, trend analysis over time, and operator competency dashboards. When linked via X-Rite Link, FM-100 scores synchronize with instrument calibration logs and QC event histories—enabling root-cause correlation between visual assessment drift and spectrophotometer performance degradation. All scoring files retain embedded metadata (operator ID, date/time stamp, ambient conditions), satisfying ALCOA+ data integrity principles. Audit-ready reports include digital signatures, version-controlled scoring algorithms, and optional integration with LIMS platforms via RESTful API.

Applications

• Pre-employment and periodic screening of color technicians, QC inspectors, and formulation scientists in regulated manufacturing
• Root-cause investigation of batch rejections attributed to subjective color judgments
• Validation of visual inspection procedures per ICH Q5E and USP guidelines
• Baseline establishment for color vision training programs in printing, plastics, and cosmetics R&D labs
• Supporting ISO 17025 accreditation by documenting assessor competence as part of method validation evidence

FAQ

Is the FM-100 Hue Test suitable for diagnosing clinical color vision deficiency?
No—it is not a medical diagnostic tool. It assesses functional hue discrimination capacity under industrial viewing conditions and should not replace ophthalmological evaluation.
How often should operators be retested?
Annual retesting is recommended; high-risk roles (e.g., release sign-off in pharma) may require biannual assessment per internal SOPs.
Can FM-100 results be used to justify spectrophotometer recalibration?
Indirectly—consistent operator error patterns may indicate systemic issues (e.g., aging booth lamps or uncalibrated monitors), prompting cross-instrument verification.
Does X-Rite provide training for FM-100 administration?
Yes: certified instructor-led workshops and e-learning modules cover standardized protocols, lighting validation, and report interpretation per ISO/IEC 17025 Clause 6.2.5.
What is the shelf life of an FM-100 kit?
Five years from manufacture when stored in original packaging at 23°C ± 5°C and ≤50% RH; spectral stability is verified at 12-month intervals per ISO 13655 Annex B.
