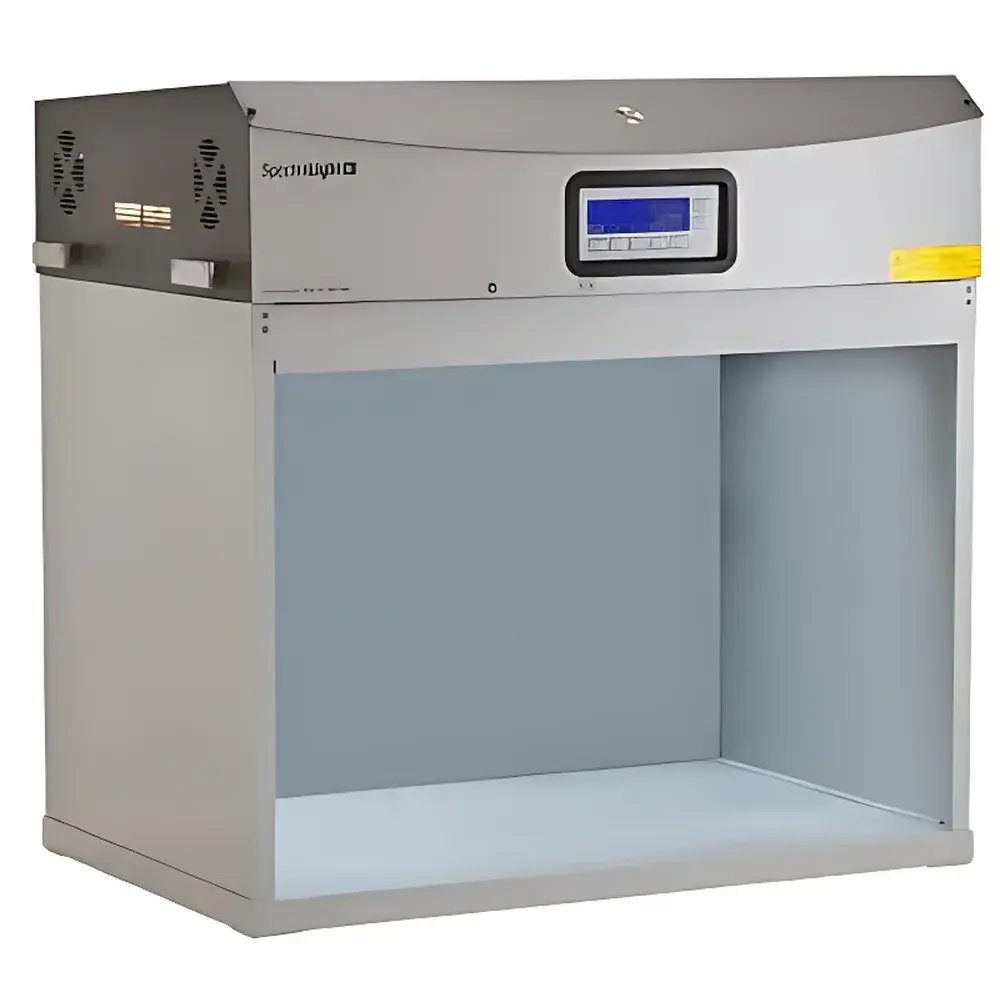

X-Rite SpectraLight QC Standard Light Booth

Overview

The X-Rite SpectraLight QC Standard Light Booth is an engineered solution for objective, repeatable visual color evaluation across global supply chains. Designed in accordance with the fundamental principles of CIE tristimulus colorimetry and spectral matching theory, it delivers controlled, spectrally stable illumination to minimize observer variability and metamerism-related assessment errors. Unlike generic light cabinets, the SpectraLight QC employs rigorously characterized, high-CRI (Color Rendering Index ≥ 90) lamps that replicate standardized illuminants defined by international metrological bodies—including CIE, ISO, and ASTM. Its optical architecture ensures uniform irradiance distribution (>90% uniformity across the observation field) and precise spectral power distribution (SPD) fidelity, enabling reliable pass/fail decisions in quality control, product development, and regulatory compliance workflows.

Key Features

• Seven Pre-Configured Standard Illuminants: Includes D50 and D65 (CIE daylight), CWF (Cool White Fluorescent), UVA (Ultraviolet-A), two user-selectable fluorescent sources from U30, U35, and TL84, CIE Illuminant A (incandescent), and Horizon (2300 K low-angle daylight simulation).
• Digital Illuminance Management: Integrated solid-state light sensor enables real-time luminance monitoring and automatic stabilization—eliminating manual adjustment drift and ensuring consistent viewing brightness across sessions and instruments.
• UV Output Compensation System: Continuously monitors and corrects UV spectral contribution using proprietary feedback circuitry, maintaining grade-B UV metamerism performance per ISO 3664:2009 and supporting accurate evaluation of fluorescent whitening agents (FWAs) and optical brighteners.
• Lamp-Life Tracking & Predictive Maintenance: Embedded lamp-hour counter logs cumulative usage per source, enabling scheduled replacement before spectral degradation impacts conformance—critical for GLP/GMP environments requiring documented instrument lifecycle control.
• UL-Listed Robust Enclosure: Constructed from powder-coated steel with sealed optical chamber, EMI-shielded electronics, and thermal management system validated for continuous operation within 0–35 °C ambient conditions.
• Touch-Enabled Human Interface: Intuitive LCD touchscreen supports dual-language operation (English/Chinese), direct source selection, timer activation, and service status alerts—designed for integration into multi-shift production or lab settings.

Sample Compatibility & Compliance

The SpectraLight QC accommodates flat, rigid, or flexible specimens up to 90 cm × 58 cm × 58 cm in its standardized observation chamber. Its geometry and internal matte-black non-reflective surface (L* < 5) comply with ISO 3668 requirements for minimizing stray light interference. All seven light sources are traceably aligned to CIE spectral definitions and certified against ISO 3664:2009’s critical parameters: illuminance (≥2000 lux at sample plane), UV component (1.5 ± 0.5% of total irradiance for D50), and spatial uniformity. The system satisfies full audit requirements for ISO/IEC 17025-accredited labs and meets documentation prerequisites under FDA 21 CFR Part 11 when paired with X-Rite’s optional IQ-OQ validation package. It is routinely deployed in textile, paint, plastics, packaging, and automotive OEM quality assurance processes where adherence to AATCC EP9, ASTM D1729, and SAE J361 visual assessment protocols is contractually mandated.

Software & Data Management

While the SpectraLight QC operates as a standalone hardware platform, it integrates seamlessly with X-Rite’s Color iMatch™ and Ci7800 spectrophotometer ecosystems via Ethernet or USB. Lamp-hour logs, calibration timestamps, and source usage history are exportable in CSV format for inclusion in electronic lab notebooks (ELN) or LIMS databases. Firmware updates are delivered through X-Rite’s secure Customer Portal, with version-controlled release notes and change logs maintained per ISO 13485 design history file conventions. Optional IQ/OQ documentation kits include installation qualification checklists, operational qualification test reports, and traceable reference measurements against NIST-traceable standards—supporting 21 CFR Part 11-compliant audit trails and GxP validation readiness.

Applications

• Textile and apparel color approval against brand-specific lighting specifications (e.g., retailer-mandated D65 + TL84 dual-source evaluation)
• Automotive interior trim and coating assessment under CIE A (incandescent) and Horizon (low-sun angle) to simulate cabin lighting conditions
• Pharmaceutical packaging verification per USP and ISO 13076 for label legibility and ink consistency under UV-enhanced illumination
• Plastics and polymer formulation development requiring precise metamerism screening across D50/CWF pairs
• Printing and graphic arts proofing aligned with ISO 12647-2 process control standards
• Regulatory submission support for FDA color-matching dossiers where lighting condition repeatability must be demonstrable

FAQ

Does the SpectraLight QC require annual recalibration?
No—its lamp spectral output and UV compensation system are factory calibrated and stabilized via embedded sensors; however, periodic verification using X-Rite’s Traceable Light Booth Verification Kit (P/N 01-9999-000) is recommended every 12 months for ISO/IEC 17025 compliance.
Can third-party lamps be used without compromising certification?
No—only X-Rite-certified lamps (P/Ns ending in “-SLQC”) maintain spectral conformance to ISO 3664. Substitution voids compliance statements and invalidates audit-ready documentation.
Is remote monitoring supported?
Yes—via optional Ethernet connectivity and X-Rite’s Network Manager software, enabling centralized lamp-hour logging, firmware version tracking, and service alert notification across enterprise-wide installations.
What is the warranty coverage?
Standard 2-year parts-and-labor warranty; extended service plans available with preventive maintenance visits and lamp replacement bundles.
How does the Horizon illuminant differ from D50?
Horizon (2300 K) simulates early-morning or late-afternoon sunlight with elevated red content and reduced blue energy—critical for evaluating warm-toned materials like leather, wood veneers, and natural fibers under low-angle illumination conditions defined in CIE 15:2018.
