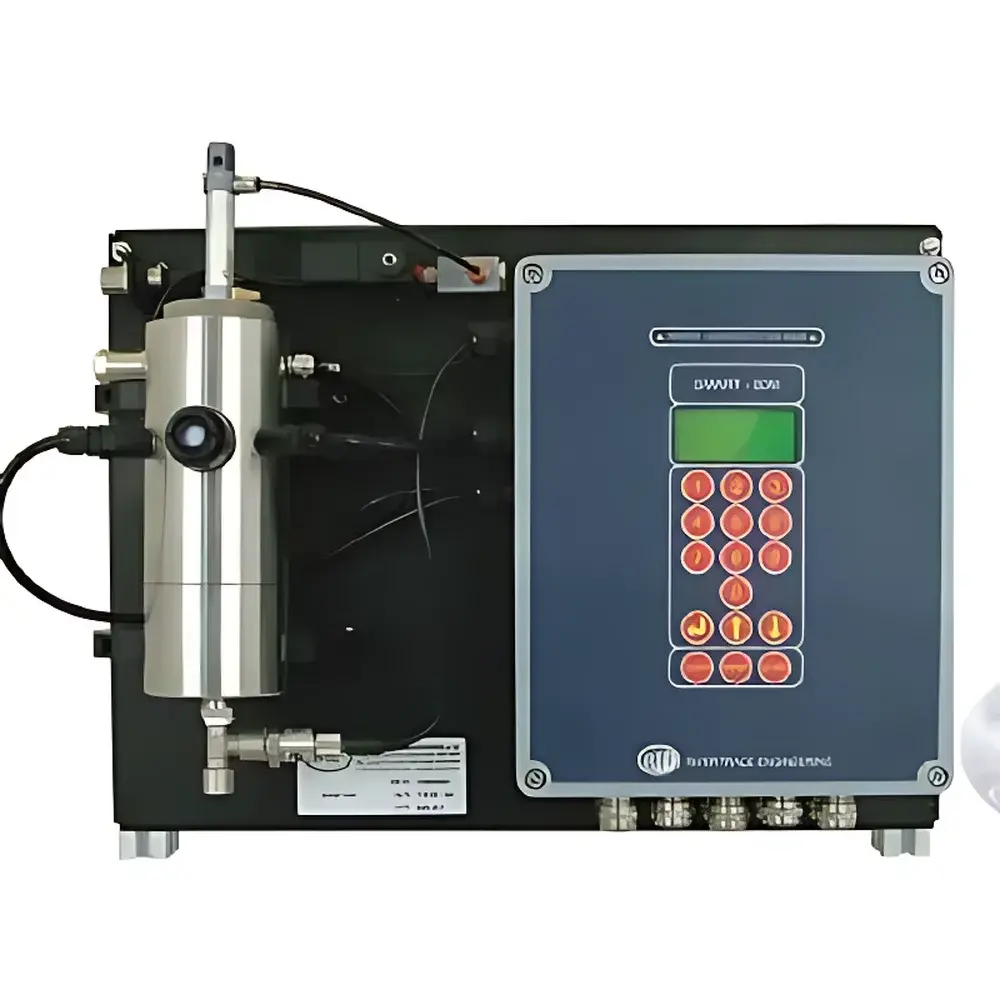

Rivertrace Smart 50M Boiler Water Oil Monitor

Overview

The Rivertrace Smart 50M Boiler Water Oil Monitor is a dedicated online fluorometric analyzer engineered for continuous, real-time detection of hydrocarbon contamination in high-purity water systems. It operates on the principle of ultraviolet (UV) excitation and fluorescence emission—specifically targeting aromatic compounds present in mineral oils, lubricants, and hydrocarbon-based coolants. Unlike broad-spectrum absorbance methods, this technique delivers high selectivity for trace oil concentrations without interference from turbidity, dissolved organics, or common water treatment additives. Designed explicitly for boiler feedwater, turbine condensate, and closed-loop cooling circuits, the Smart 50M ensures early detection of oil ingress—critical for preventing deposit formation, corrosion under deposits (CUD), and catastrophic heat exchanger fouling. Its dual-cell configuration enables application-specific optimization: the large measurement cell supports ultra-low-range monitoring (0–10 ppm) required for high-pressure boiler systems compliant with ASTM D4294 and IAPWS guidelines, while the medium cell (0–200 ppm) accommodates auxiliary cooling water or makeup water streams where higher thresholds apply.

Key Features

• Dual optical measurement cells: Interchangeable large-cell (0–10 ppm) and medium-cell (0–200 ppm) configurations for application-specific sensitivity and dynamic range.
• High-stability UV-LED excitation source with temperature-compensated photodetector array, ensuring long-term signal reproducibility and minimal drift (<0.5 % FS/month).
• Integrated automatic optical surface cleaning system using pressurized air pulses—prevents fouling of quartz windows in high-solids or high-temperature environments.
• High-temperature-rated optical components: Fused silica flow cells and Viton®/EPDM sealing materials rated for continuous operation up to 90 °C.
• Configurable dual independent alarm outputs with adjustable setpoints, delay timers (1–600 s), and fail-safe dry-contact relay logic compatible with plant DCS/SCADA systems.
• Robust IP55-rated enclosure with stainless-steel wetted parts option (316L SS flow cell, fittings, and sample chamber) for aggressive chemical or saline environments.
• 4–20 mA analog output with HART® protocol support (optional), enabling seamless integration into legacy control architectures and asset management platforms.

Sample Compatibility & Compliance

The Smart 50M is validated for use with deionized, demineralized, and condensate-grade water streams across thermal power generation, marine propulsion, and industrial process steam systems. It meets Germanischer Lloyd (GL) Type Approval requirements for marine boiler water monitoring and complies with key industry benchmarks including ASTM D3921 (Standard Practice for Monitoring Oil in Steam Condensate), ISO 8502-9 (surface cleanliness assessment), and IAPWS Technical Guidance Document TG-17 (Guidelines for Control of Oil in Boiler Feedwater). The instrument’s design supports GLP-compliant operation when paired with audit-trail-enabled data logging—fully traceable calibration records, alarm event timestamps, and parameter change logs are retained internally for regulatory review.

Software & Data Management

While the Smart 50M operates as a standalone analyzer with local LCD interface and push-button configuration, it supports external data acquisition via its isolated 4–20 mA output. When integrated with Rivertrace’s optional R-Link™ PC software (Windows-based), users gain access to full historical trending, configurable alarm dashboards, automated report generation (PDF/CSV), and firmware update capability. All configuration changes—including alarm thresholds, delay settings, and unit scaling—are logged with user ID, timestamp, and pre-/post-value metadata—meeting foundational requirements for FDA 21 CFR Part 11 compliance in regulated utility environments. No cloud connectivity or remote telemetry is embedded; data sovereignty and network security are preserved by default.

Applications

• Continuous monitoring of boiler feedwater and turbine condensate in fossil-fuel and nuclear power plants.
• Early-warning detection of lube oil leakage in steam turbine bearing oil mist systems.
• Integrity verification of shell-and-tube heat exchangers in marine engine cooling loops.
• Performance validation of coalescing filters and oil-water separators in closed-loop industrial cooling circuits.
• Compliance auditing for ISO 50001 energy management systems where condensate purity directly impacts thermal efficiency.

FAQ

What measurement principle does the Smart 50M employ?
It uses UV-induced fluorescence spectroscopy optimized for aromatic hydrocarbons—providing selective, interference-resistant quantification of mineral oil contaminants in aqueous matrices.
Can the instrument operate continuously at 90 °C sample temperature?
Yes—the flow cell, optical window seals, and internal thermal management are certified for uninterrupted operation at up to 90 °C, provided ambient conditions remain within specified limits (+1 to +50 °C, ≤80 % RH).
Is calibration traceable to national standards?
Calibration is performed using NIST-traceable mineral oil-in-water reference standards (e.g., AccuStandard® OIL-1000 series); certificate of calibration includes uncertainty budget per ISO/IEC 17025 requirements.
Does the Smart 50M support Modbus or Profibus communication?
No—only 4–20 mA analog output is standard; digital protocols require external signal converters or the optional R-Link™ USB interface module.
How often is maintenance required for the automatic cleaning system?
The air-pulse cleaning cycle activates automatically every 15 minutes during operation; compressed air supply must be oil-free and filtered to 5 µm; no scheduled servicing of the cleaning mechanism is required within the first 24 months of operation.
