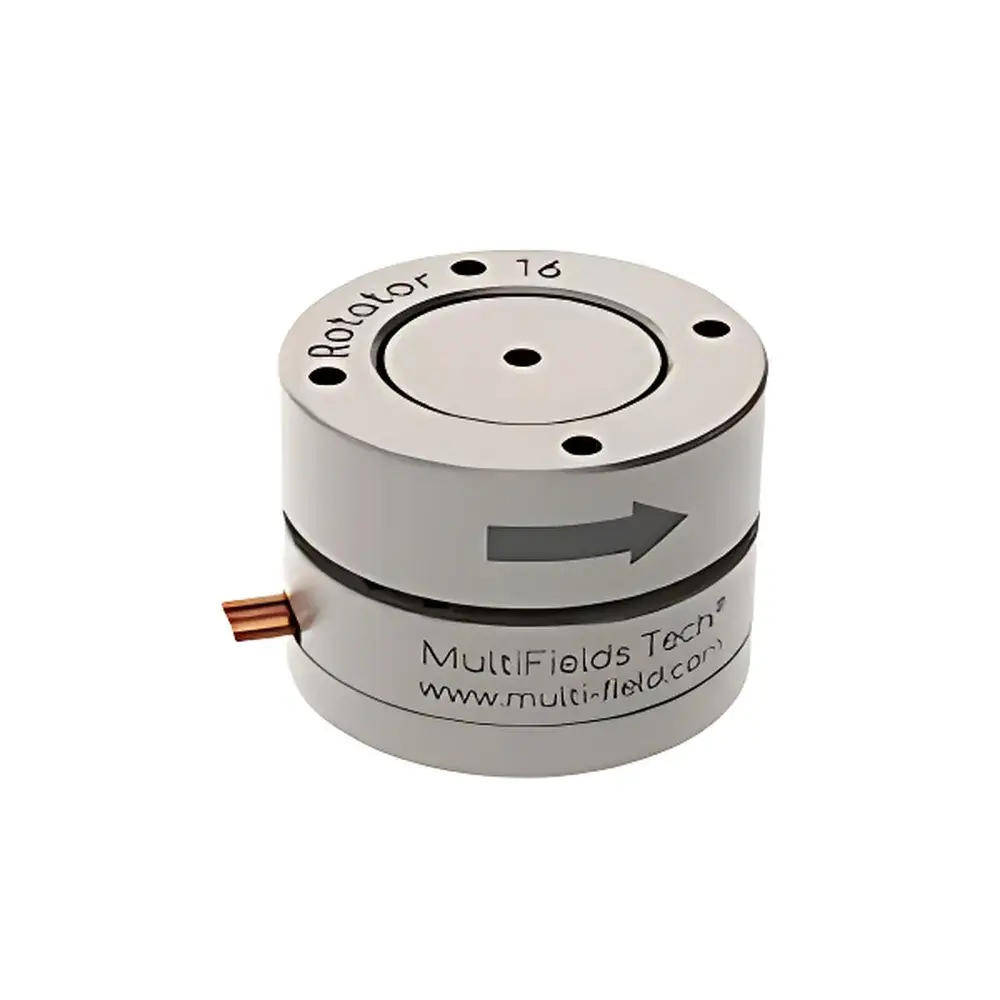

Rotator16 Closed-Loop Piezoelectric Rotary Stage

Overview

The Rotator16 is a compact, closed-loop piezoelectric rotary stage engineered for extreme-condition optical and quantum experimental environments. Unlike conventional stepper- or servo-driven rotation stages, the Rotator16 employs direct piezoelectric actuation with integrated resistive position feedback—enabling precise angular control without magnetic interference, gear backlash, or thermal drift. Its core design principle leverages the inverse piezoelectric effect under high-voltage excitation (≤200 V), generating nanoscale strain in custom-optimized ceramic elements that translate into smooth, continuous 360° rotation. This architecture ensures deterministic motion behavior across cryogenic temperatures (down to 30 mK), ultra-high vacuum (UHV, ≤2×10⁻¹¹ mbar), and intense magnetic fields (up to 18 T), making it uniquely suited for applications in dilution refrigerator-mounted spectroscopy, scanning probe microscopy alignment, and cavity quantum electrodynamics (cQED) setups where electromagnetic cleanliness and dimensional stability are non-negotiable.

Key Features

• Sub-16 mm form factor: With a diameter of only 16 mm and height of 15.6 mm, the Rotator16 is the smallest commercially available closed-loop piezoelectric rotary stage—ideal for space-constrained cryostat inserts and multi-axis nanopositioning stacks.
• Extreme-environment compatibility: Constructed entirely from non-magnetic, low-outgassing materials—pure titanium (Ti) and beryllium copper (BeCu)—it meets ASTM E595 requirements for total mass loss (TML) & collected volatile condensable materials (CVCM) under UHV conditions.
• Cryogenic performance validated: Fully operational from 1.4 K (liquid helium base temperature) to 400 K; optional ULT configuration qualified for integration with ³He refrigerators and dry dilution systems—no cold-welding, no hysteresis degradation below 100 mK.
• True continuous rotation: 360° unlimited travel without cable wrap or slip-ring limitations—achieved via torsionally compliant flexure mechanism and low-torque piezo drive (0.4 N·cm max torque, 100 g radial load capacity).
• Closed-loop precision: Integrated resistive angular sensor provides real-time position feedback over 270°, delivering 10 m° (0.01°) resolution and repeatability of ±50 m° (0.05°) across full range—even after thermal cycling between 4 K and 300 K.

Sample Compatibility & Compliance

The Rotator16 is designed for integration into ISO/IEC 17025-accredited laboratories and research-grade cryogenic infrastructure. Its material selection and surface finish comply with ESA ECSS-Q-ST-70-02C (space-grade outgassing) and IEEE Std 1115–2019 (cryogenic instrumentation). The UHV-rated version (2×10⁻¹¹ mbar) conforms to ISO 20483:2017 for vacuum compatibility testing, while its non-magnetic construction satisfies IEC 61000-4-8 (magnetic field immunity) Class 5 requirements. All electrical interfaces use glass-fiber-reinforced polyetheretherketone (PEEK) insulators and beryllium copper contacts—certified for low thermal conductivity (<0.2 W/m·K at 4 K) and zero ferromagnetic contamination. No lubricants, epoxies, or polymer adhesives are used in critical structural joints.

Software & Data Management

The Rotator16 operates via standard analog voltage input (0–10 V or ±10 V) for open-loop operation, or digital command interface (RS-422 or LVDS) when paired with ZOLIX’s optional STAGE-CTRL-PRO controller. The controller supports programmable ramp profiles, position-triggered TTL outputs, and real-time sensor data streaming at up to 1 kHz sampling rate. All position logs—including timestamped sensor readings, drive voltage, and thermal status—are exportable in HDF5 format for traceability. Audit trails comply with FDA 21 CFR Part 11 requirements when configured with user authentication and electronic signature modules. Firmware updates follow IEC 62443-3-3 SL2 security protocols, and configuration files are digitally signed to prevent unauthorized modification.

Applications

• Polarization state control in ultra-low-noise single-photon detection systems
• Angle-resolved photoemission spectroscopy (ARPES) sample goniometers inside UHV MBE chambers
• Fiber coupling alignment in superconducting nanowire single-photon detectors (SNSPDs)
• Mirror and grating orientation in Fourier-transform infrared (FTIR) spectrometers operating at liquid-helium temperatures
• Multi-axis positioning for NV-center magnetometry and optically detected magnetic resonance (ODMR) platforms
• Automated calibration of cryogenic radiometric standards per CIPM Guide to the Expression of Uncertainty in Measurement (GUM)

FAQ

Is the Rotator16 compatible with commercial dilution refrigerators?
Yes—the ULT variant is fully qualified for mounting directly on mixing chamber plates and still stages of leading dilution refrigerator systems (Bluefors, Leiden Cryogenics, CryoConcept), including thermal anchoring via indium solder pads and vibration-damped kinematic mounts.
Can it be operated in air or only under vacuum?
It functions reliably in ambient atmosphere, but performance specifications (especially torque and lifetime) are guaranteed only under vacuum or inert-gas purge; operation above 10⁻³ mbar may accelerate piezo aging due to moisture absorption.
Does the resistive sensor require external excitation?
Yes—it operates with a constant 1 mA current source; output is ratiometric voltage proportional to angular position, eliminating sensitivity to supply voltage drift.
What is the recommended driver for closed-loop operation?
ZOLIX recommends the PZD-200HV amplifier (200 V, 10 mA, bandwidth ≥10 kHz) with integrated PID tuning and sensor signal conditioning; third-party drivers must support 0–10 V analog setpoint + 0–5 V sensor feedback input.
Are custom cable lengths or connector types available?
Yes—standard 20 cm phosphor bronze twisted pair can be extended up to 2 m with impedance-matched shielding; SMA, LEMO 00, or custom hermetic feedthrough connectors are available upon request with full thermal contraction compensation.
