Ruixin RXHGZ-V1.0 Food Traceability & Commitment-Based Compliance Certificate Printing Management System

Overview

The Ruixin RXHGZ-V1.0 Food Traceability & Commitment-Based Compliance Certificate Printing Management System is a purpose-built digital infrastructure solution designed to support regulatory compliance and supply chain transparency for fresh agricultural produce in China’s food safety governance framework. It does not perform analytical chemistry measurements itself; rather, it integrates with rapid pesticide residue screening devices (e.g., enzyme inhibition-based testers) to digitally record, validate, and issue traceable Commitment-Based Compliance Certificates (CBCCs) — a statutory requirement under the PRC’s *Measures for the Supervision and Administration of Agricultural Product Quality and Safety* (2023 revision). The system operates on a dual-layer architecture: cloud-hosted certificate management software and a mobile application that enables field-level printing via Bluetooth-enabled thermal label printers. Its core function is to convert qualitative or semi-quantitative rapid test outcomes into auditable, scannable QR-coded certificates, thereby enabling end-to-end traceability from farm to market without requiring laboratory-grade instrumentation at point-of-origin.

Key Features

• Cloud-synchronized certificate issuance: Real-time upload of CBCC metadata (producer ID, product name, harvest date, test result, inspector signature) to a centralized, role-based web dashboard.
• Multi-tier access control: Distinct permission levels for producers, county-level agricultural bureaus, and municipal supervision authorities — ensuring data integrity and audit readiness.
• QR-code embedded traceability: Each printed certificate contains a unique, tamper-evident QR code linking to a read-only public portal showing origin farm, testing timestamp, responsible entity, and pass/fail status per GB/T 32950-2016 (Traceability Requirements for Edible Agricultural Products).
• Offline-capable mobile workflow: The Android/iOS app caches certificate templates and user credentials, allowing uninterrupted printing in low-connectivity rural environments.

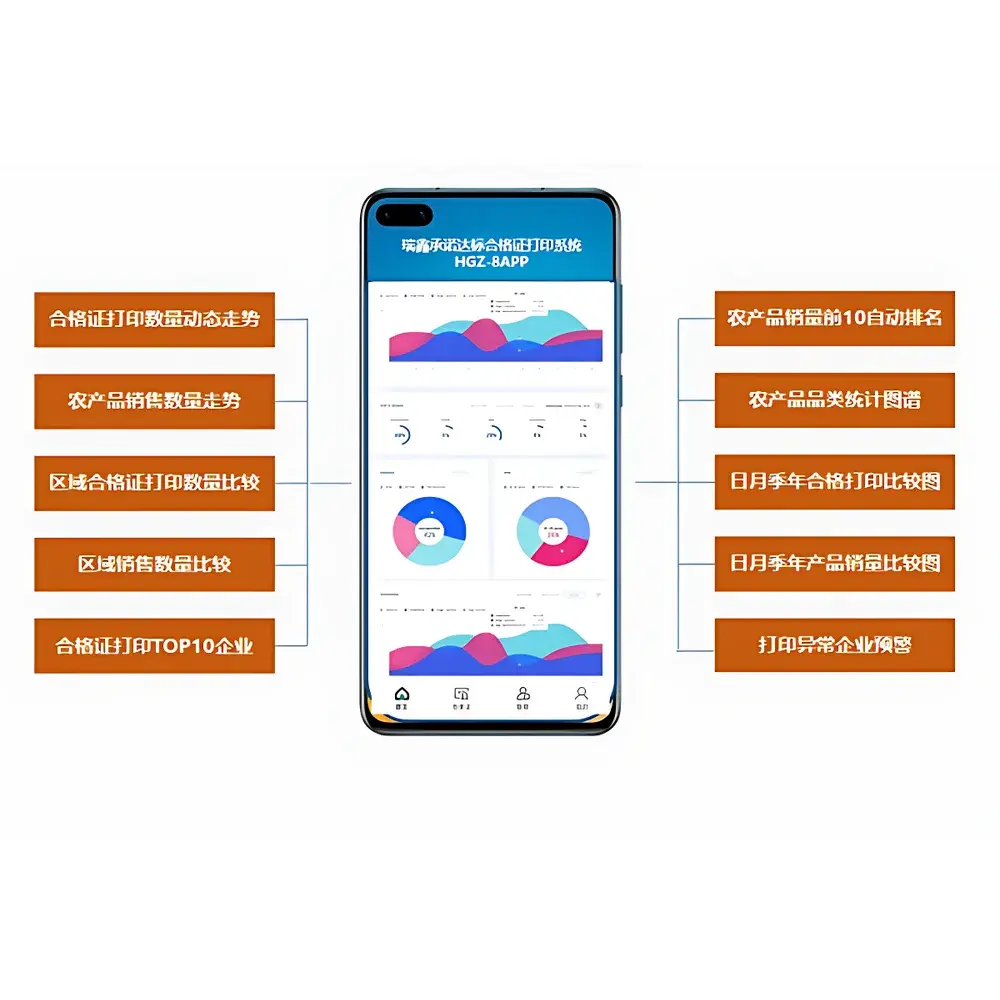

• Automated statistical reporting: Dashboard modules generate dynamic maps and tables showing regional CBCC issuance volume, enterprise coverage rate, and temporal trends — supporting evidence-based policy evaluation.

Sample Compatibility & Compliance

The RXHGZ-V1.0 system supports all edible agricultural products covered under China’s *National Food Safety Standard for Maximum Residue Limits of Pesticides in Foods* (GB 2763-2021), including leafy vegetables, fruits, root crops, and edible fungi. It accepts input from any rapid pesticide residue tester compliant with NY/T 448-2021 (*Rapid Detection Method for Organophosphorus and Carbamate Pesticide Residues in Vegetables*) or equivalent national standard methods. While the system itself is not subject to ISO/IEC 17025 accreditation, its data structure conforms to the technical specifications outlined in GB/T 37030-2018 (*Information System Requirements for Agricultural Product Quality and Safety Traceability*) and aligns with the Ministry of Agriculture and Rural Affairs’ (MARA) *Guidelines for Digitalization of Agricultural Production Records* (2022). All stored certificate records retain full metadata for minimum 24 months, satisfying retention requirements under MARA Order No. 1 of 2022.

Software & Data Management

The web-based management platform is deployed on secure, ISO 27001-certified cloud infrastructure with TLS 1.3 encryption and daily encrypted backups. Role-based dashboards provide granular visibility: producers view only their own certificates; county supervisors see aggregated data across assigned jurisdictions; provincial auditors access cross-regional trend analytics. All certificate generation events are logged with immutable timestamps, IP addresses, and device identifiers — fulfilling basic audit-trail requirements under China’s *Regulations on the Protection of Personal Information in Agricultural Data Collection* (2023). Export functions support CSV, PDF, and XML formats compatible with provincial agricultural data exchange platforms. No raw sensor data (e.g., absorbance values) is stored unless explicitly enabled by the connected rapid tester’s API — preserving system neutrality and interoperability.

Applications

• Farm cooperatives and family farms issuing CBCCs prior to wholesale market entry.
• County-level agricultural technology extension stations monitoring real-time compliance rates across townships.
• Supermarket procurement departments scanning QR codes to verify origin authenticity and recent testing history.
• Food safety regulators conducting remote spot audits without physical document collection.
• Research institutions analyzing regional pesticide usage patterns using anonymized, aggregated certificate metadata.

FAQ

Does the RXHGZ-V1.0 perform pesticide residue analysis?

No. It is a digital certification and traceability system. Analytical testing must be conducted separately using validated rapid test kits or instruments meeting NY/T 448-2021 or GB/T 5009.199-2003 standards.

Can the system integrate with existing LIMS or ERP platforms?

Yes — via RESTful API (documentation provided upon license activation) supporting JSON payloads for certificate creation, status updates, and batch queries.

Is printer hardware included in the base package?

No. The system is compatible with Bluetooth-enabled thermal label printers meeting the specified mechanical and communication parameters; recommended models are listed in the Hardware Compatibility Matrix (v2.1).

What data privacy safeguards apply to producer information?

All personal and business identifiers are encrypted at rest and in transit; access requires two-factor authentication; data sharing outside the authorized administrative hierarchy requires explicit written consent per Article 12 of MARA’s Data Governance Directive (2023).
