Safepod DCA Controlled Atmosphere Monitoring System

Overview

The Safepod DCA Controlled Atmosphere Monitoring System is an engineered solution for precise, real-time quantification of respiratory physiology in fresh horticultural commodities under dynamic controlled atmosphere (CA) conditions. Unlike conventional static CA setpoint controllers or empirical “menu-based” storage protocols, the Safepod operates on a physiological feedback principle: it continuously measures the respiratory quotient (RQ = CO₂ evolution / O₂ consumption) and respiration rate (Resp) of a representative sample batch—up to 65 kg—to determine the lowest sustainable O₂ concentration that avoids anaerobic metabolism. This measurement-driven approach enables scientific optimization of CA parameters, minimizing oxidative stress, suppressing ethylene biosynthesis, and reducing respiration-derived heat load—thereby extending shelf life while lowering refrigeration energy demand.

Key Features

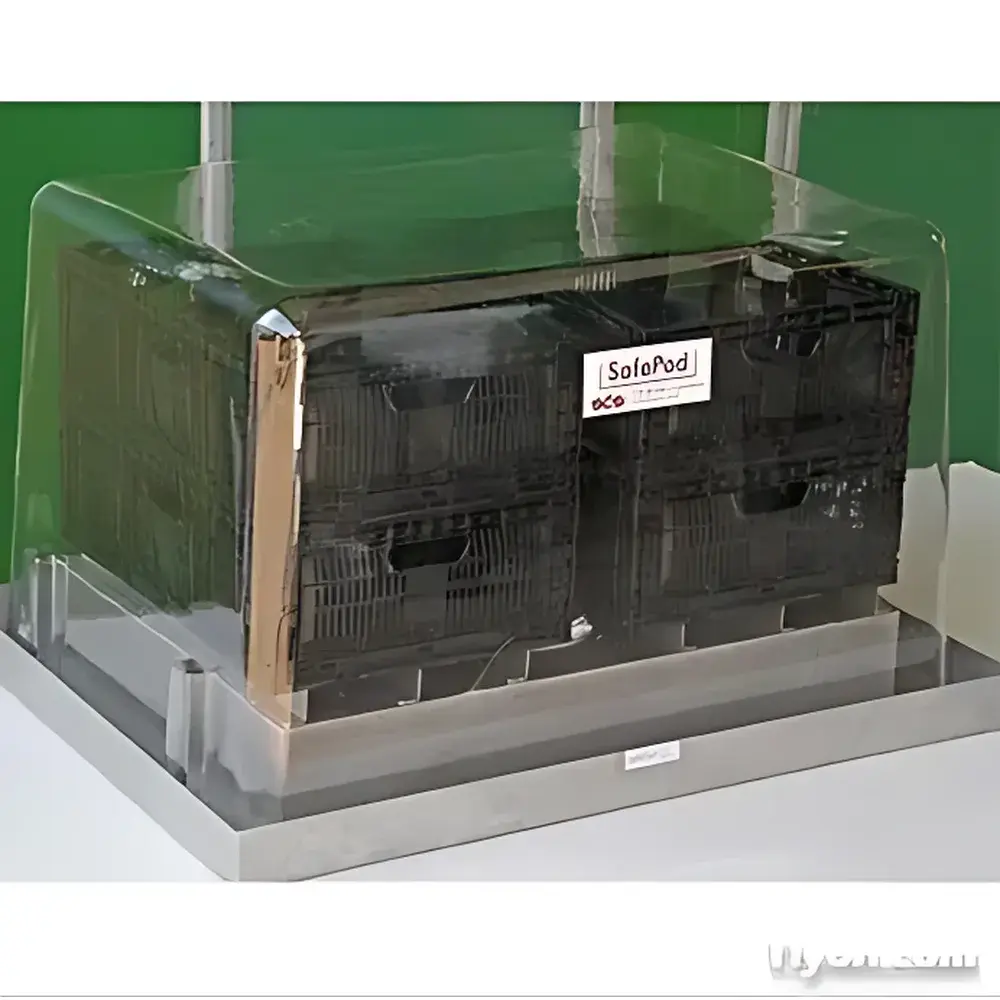

• Sealed, water-trough-isolated sample chamber with stainless-steel base and optically transparent polycarbonate dome—ensuring leak-tight integrity (<0.05% vol/vol/h O₂ ingress) during extended RQ assays.
• Integrated high-resolution electrochemical O₂ and NDIR CO₂ sensors (±0.02% O₂, ±0.05% CO₂ full-scale accuracy), calibrated traceably to NIST-certified gas standards.
• Automated pneumatic valve manifold and recirculation fan system, synchronized via embedded PLC to maintain internal gas composition within ±0.1% of user-defined setpoints.
• Real-time RQ and Resp computation engine—calculating molar gas exchange ratios every 30 seconds using stoichiometrically corrected flow-compensated sensor data.
• Pre-assay deoxygenation protocol: programmable O₂ reduction to sub-0.5% prior to sample loading, eliminating initial anaerobic shock and enabling true baseline establishment.
• Scalable architecture: single PLC controller manages up to 48 Safepod units; native Modbus TCP and OPC UA interfaces support seamless integration into existing ICA6000 CA infrastructure.
• Fully automated data acquisition: timestamped sensor readings, calculated RQ/Resp trends, valve actuation logs, and environmental metadata stored locally and exportable in CSV/Excel format.

Sample Compatibility & Compliance

The Safepod is validated for use with whole fruits (e.g., apples, pears, kiwifruit), vegetables (e.g., broccoli, lettuce), and cut produce under commercial CA storage conditions (0–10°C, RH 90–95%). Its sealed design accommodates heterogeneous batches without requiring homogenization or destructive sampling. The system supports method development aligned with ASTM F2075 (Standard Guide for Modified Atmosphere Packaging for Fresh-Cut Produce) and ISO 22000 food safety management requirements. All software-generated reports include electronic signatures, time-stamped audit trails, and version-controlled configuration logs—meeting FDA 21 CFR Part 11 criteria for regulated environments where CA process validation is required (e.g., GMP-aligned cold chain logistics).

Software & Data Management

The Safepod Control Suite runs on Windows-based industrial PCs and provides a browser-accessible interface for remote monitoring. It features configurable alarm thresholds (e.g., RQ > 1.2 triggers automatic O₂ enrichment), scheduled assay templates, and comparative analysis across multiple pods. Raw sensor data is archived in SQLite databases with SHA-256 hash integrity verification. Export modules generate GLP-compliant PDF reports containing instrument ID, calibration certificates, operator ID, ambient conditions, and full RQ/Resp time-series plots. Data encryption at rest and TLS 1.2 encryption in transit ensure compliance with GDPR and HIPAA-aligned data governance policies applicable to research-grade agricultural physiology datasets.

Applications

• Determination of commodity-specific critical O₂ threshold (COT) to prevent fermentation while maximizing storage duration.
• Evaluation of 1-MCP (1-methylcyclopropene) efficacy on respiration suppression and RQ modulation across cultivars and maturity stages.
• Validation of CA room performance against theoretical gas decay models—quantifying wall permeability, door leakage, and scrubber efficiency.
• Energy optimization studies: correlating RQ-derived metabolic heat output with chiller duty cycles to quantify refrigeration savings from ultra-low-O₂ protocols.
• Development of dynamic CA algorithms for smart cold chain systems, where RQ serves as the primary control variable for adaptive atmosphere modulation.
• Academic and industrial research in postharvest physiology, including hypoxia tolerance screening and mitochondrial respiration phenotyping.

FAQ

How does Safepod differ from traditional CA monitoring systems?
Unlike fixed-setpoint CA controllers, Safepod uses real-time RQ as a physiological biomarker to dynamically adjust O₂—ensuring operation just above the anaerobic threshold rather than relying on generic industry tables.
Can Safepod operate independently of an ICA6000 system?
Yes—the integrated PLC supports standalone operation with local HMI; ICA6000 integration is optional for enterprise-level CA fleet management.
Is calibration traceable to international standards?
All gas sensors are factory-calibrated against NIST-traceable reference gases; field recalibration kits and documented SOPs are provided for ISO/IEC 17025 laboratory compliance.
What sample preparation is required?
No pre-treatment or tissue homogenization is needed—whole, unmodified produce is loaded directly into the chamber.
Does Safepod support regulatory audit requirements?
Yes—software includes electronic signature capture, immutable audit logs, and 21 CFR Part 11–compliant user access controls and data retention settings.
