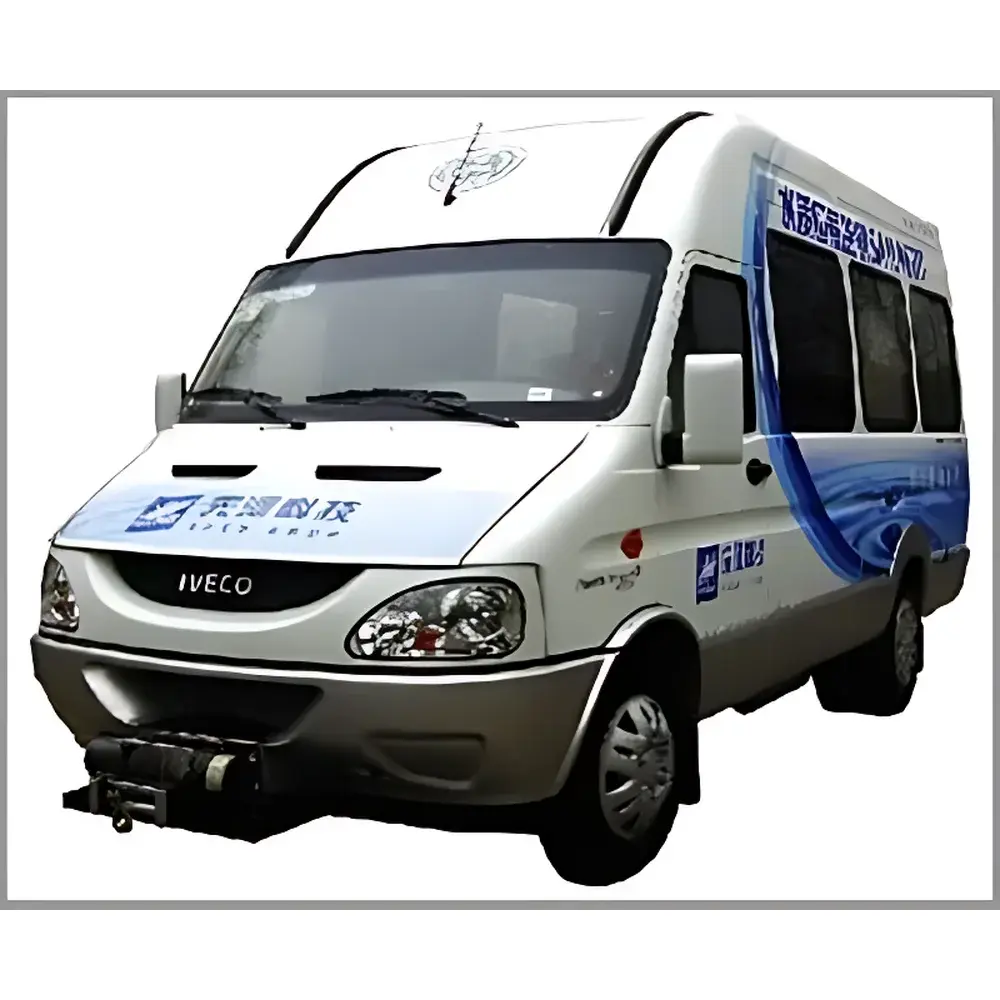

SAIL HERO Air Emergency Mobile Monitoring Vehicle

Overview

The SAIL HERO Air Emergency Mobile Monitoring Vehicle is a fully integrated, vehicle-mounted environmental laboratory engineered for rapid deployment and real-time atmospheric monitoring during chemical spills, industrial accidents, natural disasters, or other time-critical air quality incidents. Built on a robust chassis with climate-controlled cabin architecture, it functions as a self-sufficient field analytical platform—combining ISO/IEC 17025-aligned measurement infrastructure with emergency response ergonomics. The system operates on the principle of continuous ambient air sampling coupled with onboard instrumental analysis (e.g., GC-FID, PID, FTIR, or electrochemical sensor arrays—configurable per mission profile), enabling quantitative detection of VOCs, inorganic gases (SO₂, NOₓ, H₂S, NH₃, Cl₂), particulate matter (PM₁₀/PM₂.₅), and meteorological parameters. Its mobility, power autonomy, and containment design ensure compliance with national emergency response protocols while maintaining data integrity under dynamic field conditions.

Key Features

• Climate-controlled laboratory cabin with ergonomic workstations, acoustic insulation, and anti-vibration flooring to support stable instrument operation.
• Integrated water management system featuring stainless-steel sink, independent freshwater tank (≥120 L), greywater holding tank, and sealed wastewater discharge interface compliant with EPA Method 1664 and local environmental discharge regulations.
• Dual-power architecture: 3 kW silent diesel generator + UPS-backed 220 VAC/50 Hz output (≥2 kVA, 30 min hold-up time), enabling pre-heating of analyzers prior to site arrival and uninterrupted operation during grid failure.
• Hazard mitigation suite including ceiling-mounted fume extraction arm (adjustable flow ≥300 m³/h), ANSI Z358.1-compliant eyewash station, chemical-resistant PPE cabinet, and spill containment trays rated for Class II–IV hazardous materials.
• Instrument stabilization system: Adjustable anti-slip instrument restraints, shock-absorbing mounting rails, and vibration-dampened optical tables (optional) for high-sensitivity spectrometers or chromatographs.
• Field-ready connectivity: Embedded GPRS/CDMA telemetry module with TLS-encrypted data transmission; optional LTE-M and satellite backup; remote access via secure SSH/VNC for instrument diagnostics and method updates.
• Navigation & georeferencing: Integrated GPS receiver (WAAS-enabled, ±2.5 m CEP) with optional GIS software (QGIS-compatible export) for spatial mapping of concentration gradients and plume modeling.

Sample Compatibility & Compliance

The vehicle accommodates grab sampling (Tedlar® bags, SUMMA canisters), active sorbent tube sampling (e.g., Tenax TA, Carbopack™), and real-time continuous monitoring across gaseous and aerosol phases. All internal surfaces are non-reactive (304 stainless steel or epoxy-coated aluminum), minimizing adsorption artifacts. The system supports method validation per EPA TO-14A, TO-15, Method 25A, and ISO 16000-6 for indoor/outdoor air. Structural design conforms to GB/T 25994–2010 (Chinese standard for mobile environmental labs) and incorporates grounding, surge protection, and EMC shielding aligned with IEC 61000-6-2/6-4. Electrical safety meets IP54 ingress protection and UL 61010-1 requirements.

Software & Data Management

Data acquisition is managed via a ruggedized Windows-based workstation running proprietary SAIL HERO FieldDAQ software—capable of synchronized multi-instrument control, real-time calibration verification, and automatic QA/QC flagging (e.g., zero/span drift >5%, pressure deviation >±5%). Raw data files are stored in vendor-neutral CSV/NetCDF formats with embedded metadata (GPS coordinates, UTC timestamps, operator ID, instrument serial numbers). Audit trails comply with GLP and FDA 21 CFR Part 11 requirements, including electronic signatures, immutable log files, and role-based user permissions. Cloud synchronization (AWS S3-compatible) enables centralized dashboard visualization and automated report generation (PDF/Excel) with customizable templates aligned to provincial environmental bureau reporting standards.

Applications

• Rapid assessment of fugitive emissions following pipeline ruptures or storage tank overflows
• Post-disaster air quality surveillance after wildfires, volcanic eruptions, or flood-related mold/toxin release
• Perimeter monitoring during hazardous material transport incidents
• Source apportionment studies in industrial clusters using mobile receptor modeling
• Validation of fixed-site air monitoring networks during maintenance or recalibration windows
• Supporting emergency drills and inter-agency response exercises under national contingency plans (e.g., China’s National Emergency Response Plan for Sudden Environmental Incidents)

FAQ

What regulatory standards does the vehicle meet for field deployment in China?
It complies with HJ 93–2013 (ambient air PM samplers), HJ 653–2013 (SO₂/NOₓ analyzers), and GB 3095–2012 (ambient air quality standards), and is certified by CNAS for on-site testing capability.
Can the vehicle be configured for specific pollutants such as benzene or formaldehyde?
Yes—sensor modules and analyzer options are modular and configurable at order stage, including EPA-certified GC-PID systems for BTEX and DNPH-cartridge HPLC for carbonyls.
Is remote firmware and method update supported?
Yes, over-the-air (OTA) updates are delivered via encrypted HTTPS channel with SHA-256 signature verification and rollback capability.
What is the typical deployment readiness time from engine start?
Full instrument warm-up and system self-test complete within 12 minutes for standard configurations; critical sensors achieve operational stability within 5 minutes.
Does the vehicle support integration with national environmental monitoring platforms?
Yes—it exports data in MIIT-approved XML schema compatible with China’s National Environmental Monitoring Data Platform (NEMDP) and provincial EIMIS systems.
