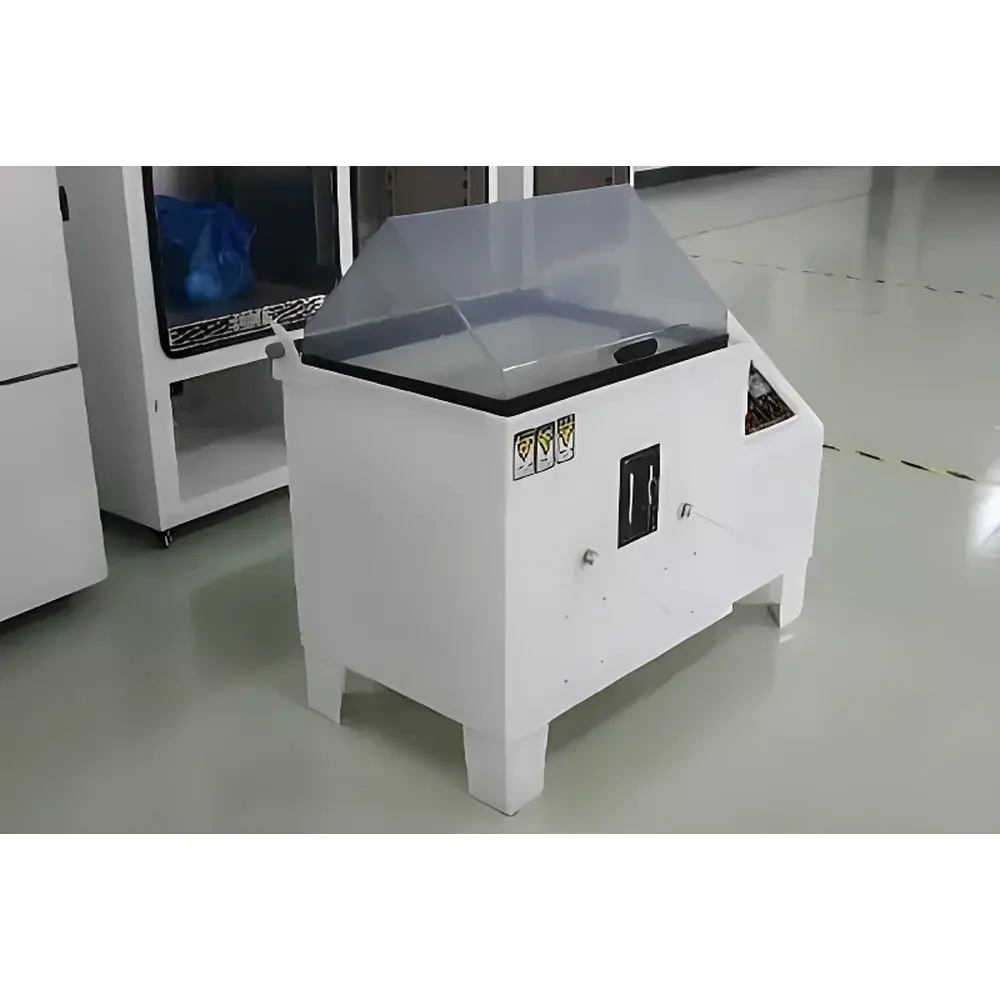

Salt Spray Test Chamber YW-150 / YW-250 / YW-750 / YW-1000

Overview

The Salt Spray Test Chamber YW-Series is a precision-engineered environmental test system designed to simulate aggressive chloride-laden atmospheric conditions for evaluating the corrosion resistance of metallic substrates, electroplated coatings, anodized finishes, and protective organic layers. Based on the fundamental principle of accelerated corrosion testing via continuous or cyclic atomization of a standardized sodium chloride (NaCl) solution, the chamber generates a controlled, reproducible salt fog environment in accordance with internationally recognized test methodologies. Its operational architecture conforms to the core physical requirements of ASTM B117 (Standard Practice for Operating Salt Spray (Fog) Apparatus), ISO 9227 (Corrosion tests in artificial atmospheres — Salt spray tests), and GB/T 2423.17 (Environmental testing — Part 2: Tests — Test Ka: Salt mist). Unlike generic humidity chambers, this system integrates thermally stabilized fog generation, precise temperature regulation, and calibrated droplet deposition control—enabling reliable qualification of surface treatments under repeatable laboratory conditions.

Key Features

• Monolithic welded construction using high-purity, UV-stabilized PVC and PP panels—resistant to HCl, NaCl, and acidic condensate; zero leakage design verified per ISO 9227 Annex A.
• Tower-type pneumatic spray system with non-crystallizing quartz nozzles and integrated multi-stage filtration (5 µm pre-filter + activated carbon post-filter) ensures consistent aerosol particle size distribution (median diameter < 10 µm) and eliminates nozzle clogging.
• Water-sealed lid interface prevents salt fog egress during operation; transparent polycarbonate viewing window (impact-resistant, UV-filtered) enables real-time visual monitoring without opening the chamber.
• Independent PID temperature controller (±0.1 °C accuracy) with PT100 platinum RTD sensor and Ni-Cr heating elements maintains chamber setpoint stability within ±0.5 °C fluctuation and ≤±2 °C uniformity across working volume.
• Configurable spray mode: continuous fog generation or programmable on/off cycling (1–999 h/m/s intervals); adjustable salt deposition rate (1.0–2.0 mL/80 cm²·h) validated by ASTM D1654-compliant collection funnels and calibrated graduated cylinders.
• Full electrical safety architecture: dual overheat protection (mechanical bimetal + electronic cut-off), ground-fault circuit interrupter (GFCI), low-level water detection, and automatic shutdown on test completion or fault condition.

Sample Compatibility & Compliance

This chamber accommodates flat, cylindrical, or irregularly shaped specimens up to maximum dimensions of 900 × 2000 × 600 mm (YW-1000 model), including printed circuit boards (PCBs), fasteners, automotive brake calipers, aerospace fasteners, and coated sheet metal panels. Sample racks are constructed from corrosion-resistant 316 stainless steel or titanium-clad fixtures to prevent galvanic interference. The system meets full regulatory alignment for quality assurance workflows: compliant with ISO/IEC 17025 documentation requirements for test equipment calibration, supports GLP audit trails when paired with optional data logging modules, and satisfies FDA 21 CFR Part 11 electronic record integrity criteria when used with validated software configurations. It is routinely deployed in laboratories accredited to CNAS, UKAS, and A2LA standards for materials qualification under MIL-STD-810H Method 509.6, DIN EN 60068-2-11, JIS Z 2371, and CNS 3627.

Software & Data Management

While the base configuration features standalone LED/PID control, optional RS485/Modbus RTU or Ethernet TCP/IP interfaces enable integration into centralized lab management systems (LIMS) or MES platforms. Optional data acquisition modules provide time-stamped temperature, spray duration, and cycle count logs with CSV export capability. All recorded parameters—including chamber setpoint, actual temperature, elapsed test time, and alarm events—are timestamped and stored with immutable audit trail functionality, supporting traceability requirements per ISO 17025 Clause 7.7 and ICH Q5C stability protocol guidelines. Print output (via optional thermal printer) includes configurable interval reporting, test ID stamping, and operator authentication fields.

Applications

• Qualification of zinc, nickel, chromium, and tin plating adhesion and porosity per ASTM B633 and ISO 4520.
• Validation of epoxy, polyester, and polyurethane powder coating performance on aluminum extrusions (e.g., architectural façade components).
• Corrosion screening of solder mask integrity on high-reliability PCBs prior to HALT/HASS validation.
• Accelerated aging assessment of stainless steel passivation layers per ASTM A967.
• Comparative evaluation of conversion coatings (e.g., trivalent chromium vs. hexavalent chromium alternatives) for automotive under-hood components.
• Supporting failure analysis investigations where field corrosion patterns suggest chloride-induced pitting or crevice attack.

FAQ

What standards does this chamber support out-of-the-box?
It natively complies with ASTM B117, ISO 9227, GB/T 2423.17, GB/T 10125, and JIS Z 2371. Optional firmware upgrades extend support to cyclic corrosion testing per ISO 14993 and VDA 621-415.

Can it perform acetic acid salt spray (AASS) or copper-accelerated acetic acid salt spray (CASS)?
Yes—when equipped with chemically resistant internal linings (PP grade) and compatible pH-stabilized solution delivery tubing, the YW-Series supports both AASS (ISO 9227 Annex B) and CASS (ISO 9227 Annex C) protocols.

Is calibration certification included?
Factory calibration certificates (traceable to NIM, China) are provided with each unit. On-site IQ/OQ validation packages and third-party ISO/IEC 17025 calibration services are available upon request.

What maintenance intervals are recommended?
Daily: drain and rinse sump tank; weekly: inspect filters and nozzle integrity; quarterly: verify temperature uniformity per GB/T 5170.8; annually: full sensor recalibration and pressure regulator servicing.

Does the chamber meet CE or UKCA marking requirements?
The YW-Series is supplied with CE-compliant electrical design (EN 61000-6-3, EN 61000-6-4, EN 61000-3-2) and RoHS-conformant materials. UKCA marking requires additional conformity assessment by a UK-recognized body, which can be coordinated through our European technical support team.
