Sanotac ELSD3300 Evaporative Light Scattering Detector

Overview

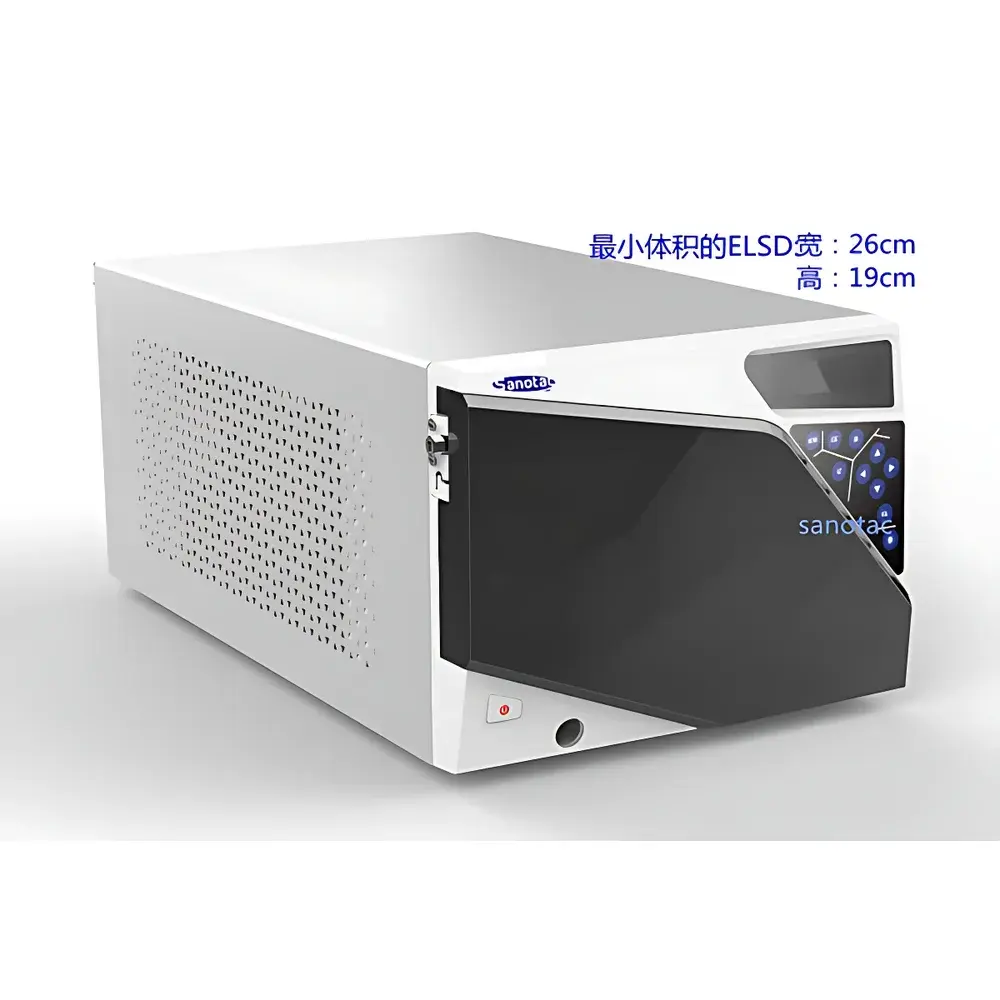

The Sanotac ELSD3300 Evaporative Light Scattering Detector (ELSD) is a high-performance, CE-certified universal mass-sensitive detector engineered for compatibility with high-performance liquid chromatography (HPLC), ultra-high-performance liquid chromatography (UHPLC), and preparative LC systems. Unlike UV-Vis or fluorescence detectors, the ELSD operates on the principle of nebulization, solvent evaporation, and light scattering—making it inherently insensitive to chromophore presence, molecular absorption, or optical activity. This enables robust detection of non-volatile and semi-volatile analytes—including carbohydrates, lipids, polymers, saponins, glycosides, and small-molecule pharmaceuticals—that lack UV absorbance or exhibit weak/variable extinction coefficients. The ELSD3300 employs a stable 650 nm, 30 mW laser source and a low-noise photomultiplier tube (PMT) detector in a dual-beam optical configuration, delivering exceptional baseline stability (≤0.01 mV noise, ≤0.2 mV/30 min drift) and quantitative repeatability (≤1.5% RSD). Its compact footprint (26 × 19 × 46 cm) supports benchtop integration or stacked deployment with modular HPLC systems, while its temperature-controlled nebulizer (RT–56 °C) and evaporator (RT–150 °C) ensure precise, reproducible aerosol generation across diverse mobile phase compositions—including aqueous, acetonitrile-, and methanol-based gradients.

Key Features

• CE-certified design meeting essential EU safety and electromagnetic compatibility (EMC) requirements for laboratory instrumentation.
• Dual-beam optical architecture with real-time reference beam compensation, minimizing signal drift from ambient thermal or vibrational perturbations.
• Integrated mass flow controller for carrier gas (clean air or nitrogen), calibrated to ±0.02 L/min accuracy—critical for method transfer and inter-laboratory reproducibility.
• 16-point automated self-diagnostic routine at startup, verifying gas valve actuation, heater status, laser emission, PMT bias voltage, and analog output integrity.
• Intelligent thermal management: rapid auxiliary cooling system reduces post-run cooldown time; programmable heating profiles prevent condensation and thermal shock during gradient elution.
• Full parameter programmability via 10 method slots (25 parameters per slot), including temperature ramps, gain settings, zero-offset calibration, and event-triggered actions (e.g., laser shutdown, gas cutoff).
• Multi-protocol communication stack (RS-232, RS-485, USB, TCP/IP over LAN) enabling native integration with third-party chromatography data systems (CDS) compliant with ASTM E1381 and FDA 21 CFR Part 11 audit-trail requirements.

Sample Compatibility & Compliance

The ELSD3300 detects any solute with volatility lower than that of the mobile phase—regardless of UV absorbance, fluorescence, or electrochemical activity. It is routinely applied in QC/QA laboratories for analysis of herbal extracts (e.g., ginsenosides, astragalosides), lipidomics (free fatty acids, phospholipids), carbohydrate profiling (mono-/di-/oligosaccharides), synthetic polymers (PEG, PVP), and excipient quantification in biopharmaceutical formulations. The detector complies with ISO/IEC 17025 traceability frameworks when operated within validated methods. Its analog output (−1200 to +1200 mV) and digital sampling rate (100 Hz) support GLP/GMP-compliant data acquisition when paired with Clarity™ CDS configured for electronic signatures, audit trails, and secure user access control. All firmware and control logic are designed to meet IEC 61010-1 safety standards for laboratory electrical equipment.

Software & Data Management

The ELSD3300 is supported by Sanotac’s native chromatography control software and fully interoperable with Clarity™ (v8.2+), leveraging its dynamic link library (DLL) interface for bidirectional command exchange and synchronized data streaming. Clarity™ integration enables automatic method loading, real-time gain adjustment, remote diagnostics, and export of raw scatter intensity values alongside processed peak areas. All instrument events—including temperature setpoint changes, gas flow adjustments, and calibration triggers—are timestamped and logged with operator ID and reason-for-change fields, satisfying FDA 21 CFR Part 11 requirements for electronic records. Data files are stored in vendor-neutral formats (e.g., .csv, .txt) with embedded metadata (instrument ID, firmware version, method name, acquisition time), facilitating long-term archival and cross-platform reprocessing.

Applications

• Quantitative analysis of UV-transparent compounds in traditional Chinese medicine (TCM) quality control—e.g., quantification of polysaccharide content in Astragalus membranaceus extracts per Chinese Pharmacopoeia monographs.
• Stability-indicating assays for non-UV-absorbing degradation products in parenteral formulations containing polyethylene glycol (PEG) or polysorbate surfactants.
• Method development for reversed-phase and hydrophilic interaction liquid chromatography (HILIC) separations of oligosaccharides, where UV detection fails due to lack of chromophores.
• Residual solvent and excipient monitoring in lyophilized biologics, using low-flow micro-ELSD-compatible conditions (0.01–0.2 mL/min).
• Preparative LC fraction detection and triggering, leveraging programmable external event outputs to synchronize fraction collector activation with elution peaks.

FAQ

What types of analytes are suitable for detection with the ELSD3300?
The ELSD3300 detects non-volatile and semi-volatile solutes—including carbohydrates, lipids, polymers, glycosides, and surfactants—provided their volatility is lower than that of the mobile phase. It does not detect volatile small molecules (e.g., ethanol, acetone) or inorganic salts unless thermally stabilized.

Can the ELSD3300 be used with gradient elution methods?
Yes. Its precisely controlled evaporator temperature (RT–150 °C, ±1 °C accuracy) and active nebulizer cooling prevent baseline disturbances during organic solvent ramping, enabling stable response across steep gradients (e.g., 5–95% ACN in 10 min).

Is the ELSD3300 compatible with UHPLC systems operating above 1000 bar?
The detector accepts flow rates from 0.01 to 3 mL/min and interfaces seamlessly with UHPLC via standard 1/16″ stainless steel tubing. Backpressure effects are negligible as the nebulizer operates downstream of the column outlet at atmospheric pressure.

How is calibration performed, and is it traceable to international standards?
Calibration is performed using certified reference materials (e.g., sucrose, sodium taurocholate) across the dynamic range (0.5 ng–5 µg). While the ELSD3300 itself is not a primary standard, its output is traceable to NIST-traceable mass standards when used with validated gravimetric preparation protocols and documented uncertainty budgets.

Does the ELSD3300 support 21 CFR Part 11 compliance for regulated environments?
Yes—when deployed with Clarity™ CDS configured for electronic signatures, role-based access control, audit trail logging, and data encryption, the ELSD3300 meets technical prerequisites for Part 11 compliance. Full validation documentation (IQ/OQ/PQ) is available upon request.
