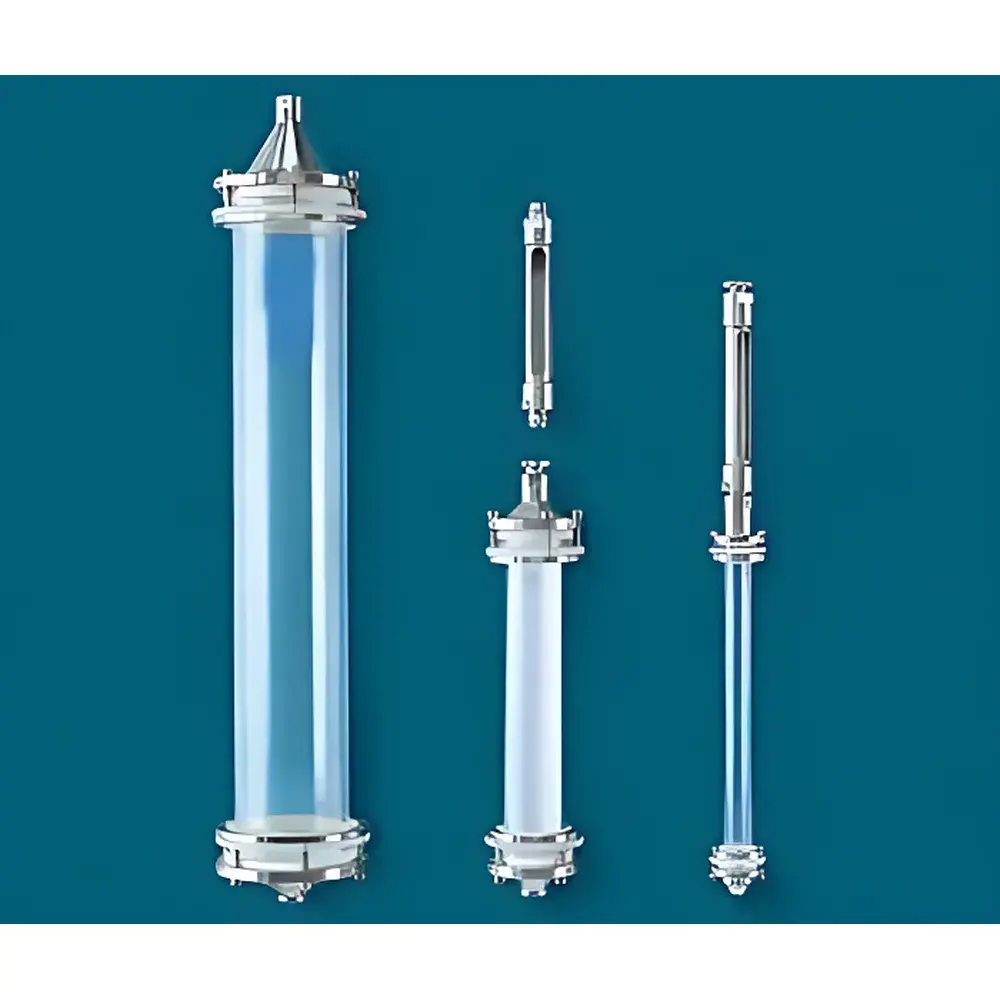

Sanotac S26460 Medium-Pressure Glass Chromatography Column

Overview

The Sanotac S26460 Medium-Pressure Glass Chromatography Column is an engineered solution for scalable, transparent, and reproducible preparative chromatography in natural product isolation, pharmaceutical impurity enrichment, and synthetic compound purification. Designed around the principles of radial flow uniformity and mechanical robustness under sustained medium-pressure operation (up to 40 bar), this column integrates borosilicate glass construction with stainless-steel reinforced end fittings and integrated burst-protection membranes. Unlike conventional stainless-steel or polymer columns, its optically transparent body enables real-time visual monitoring of band migration—particularly critical when resolving colored natural extracts (e.g., anthocyanins, curcuminoids, chlorophyll derivatives) or tracking gradient elution progression without reliance on UV detection alone. The column operates within standard medium-pressure preparative LC workflows and is fully interoperable with both domestic and international preparative HPLC systems—including Biotage®, Teledyne ISCO®, and domestic platforms such as Wuhan Rayleigh and Shanghai Tauto—ensuring seamless integration into existing laboratory infrastructure.

Key Features

• Optimized inlet geometry featuring a flared喇叭口 (bell-mouth) column head—replacing traditional frit-based sample introduction—to ensure homogeneous sample distribution across the entire cross-sectional area, thereby increasing loading capacity by ≥5× compared to equivalent-diameter analytical or semi-preparative HPLC columns.
• Stainless-steel jacketed inner glass liner eliminates reliance on six-port valve loops for high-concentration sample injection; mitigates clogging risk at valve interfaces during crude extract or viscous fraction loading.
• High-purity borosilicate glass tube (equivalent in pressure tolerance and chemical inertness to 316L stainless steel), validated for continuous operation from low-pressure gravity-fed to medium-pressure forced-flow conditions (1–40 bar).
• Pre-packed with 30–50 µm spherical C18 silica stationary phase—capable of resolving >95% of small-molecule organic compounds across diverse polarity ranges without requiring column switching.
• Demonstrated impurity capture performance: isolates 10–100 mg quantities of structurally related drug impurities within ≤60 minutes using isocratic or shallow-gradient methods.
• User-serviceable design allows full disassembly, cleaning, and repacking without specialized tools—significantly reducing long-term consumables cost and downtime.

Sample Compatibility & Compliance

The S26460 column supports a broad range of sample matrices, including aqueous plant extracts, organic-soluble synthetic intermediates, peptide fractions, and polar glycosides. Its chemically resistant glass surface exhibits negligible metal leaching or silanol activity, ensuring compatibility with acidic, basic, and chelating mobile phases (pH 2–12, 0–100% organic modifier). All column hardware complies with ISO 8573-1 (compressed air purity for pneumatic actuation) and meets mechanical safety requirements per EN 13445-3 (unfired pressure vessels). When used in conjunction with validated preparative LC systems, the column supports GLP-compliant workflows, including audit-trail-enabled method storage and electronic batch records aligned with FDA 21 CFR Part 11 requirements.

Software & Data Management

While the column itself is hardware-only, it is designed for native integration with industry-standard preparative LC control software (e.g., Biotage SCOUT™, ISCO COMBIFLASH® Rf Console, or open-architecture platforms supporting ASCII/CSV export). Real-time UV-Vis data acquisition at 10 Hz enables precise peak tracking and fraction triggering. Baseline noise specification (±0.5 × 10⁻⁵ AU at 254 nm, 1 s time constant) ensures reliable quantitation of trace-level impurities. Wavelength accuracy (±1 nm) and repeatability (0.2 nm) meet ASTM E275 and USP criteria for photometric validation in regulated environments.

Applications

• Isolation of bioactive constituents from botanicals (e.g., ginsenosides, alkaloids, flavonoids) with direct visual confirmation of separation efficiency.
• Rapid purification of synthetic APIs and process-related impurities under non-denaturing conditions.
• Scale-up studies bridging analytical method development (UHPLC) to milligram-to-gram preparative output.
• Method scouting for orthogonal stationary phases—compatible with silica, amino, cyano, and phenyl-hexyl packings beyond standard C18.
• Educational use in university teaching labs: transparent design facilitates student observation of chromatographic theory in practice—band broadening, fronting/tailing, solvent strength effects.

FAQ

Can the S26460 column be used with high-pressure systems exceeding 40 bar?
No. The glass body is rated for maximum 40 bar (S26xx series); operation above this limit voids mechanical warranty and poses safety risk. For >40 bar applications, stainless-steel columns are recommended.
Is the column compatible with aggressive solvents like THF or DMSO?
Yes—borosilicate glass demonstrates excellent resistance to THF, DCM, MeOH, ACN, and EtOAc. Prolonged exposure to hot DMSO (>60 °C) is not advised due to potential thermal stress on glass seals.
What packing protocols are supported for user repacking?
Sanotac provides validated slurry-packing procedures for 15–50 µm silica-based media using its optional column packing station (gas-driven, 10 kg/cm² input), enabling high-efficiency beds without need for high-pressure homogenization.
Does the column include UV-transparent endfittings?
Yes—quartz windows integrated into both inlet and outlet ferrules permit in-line UV monitoring at multiple axial positions, enhancing method development fidelity.
How is column performance verified post-repacking?
Users may perform backpressure profiling, asymmetry factor (As) measurement via test injections (e.g., acetophenone), and plate count (N) calculation per USP guidelines using standard reference compounds.
