Sanxin TN450 Portable Turbidimeter (Red LED Optical System)

Overview

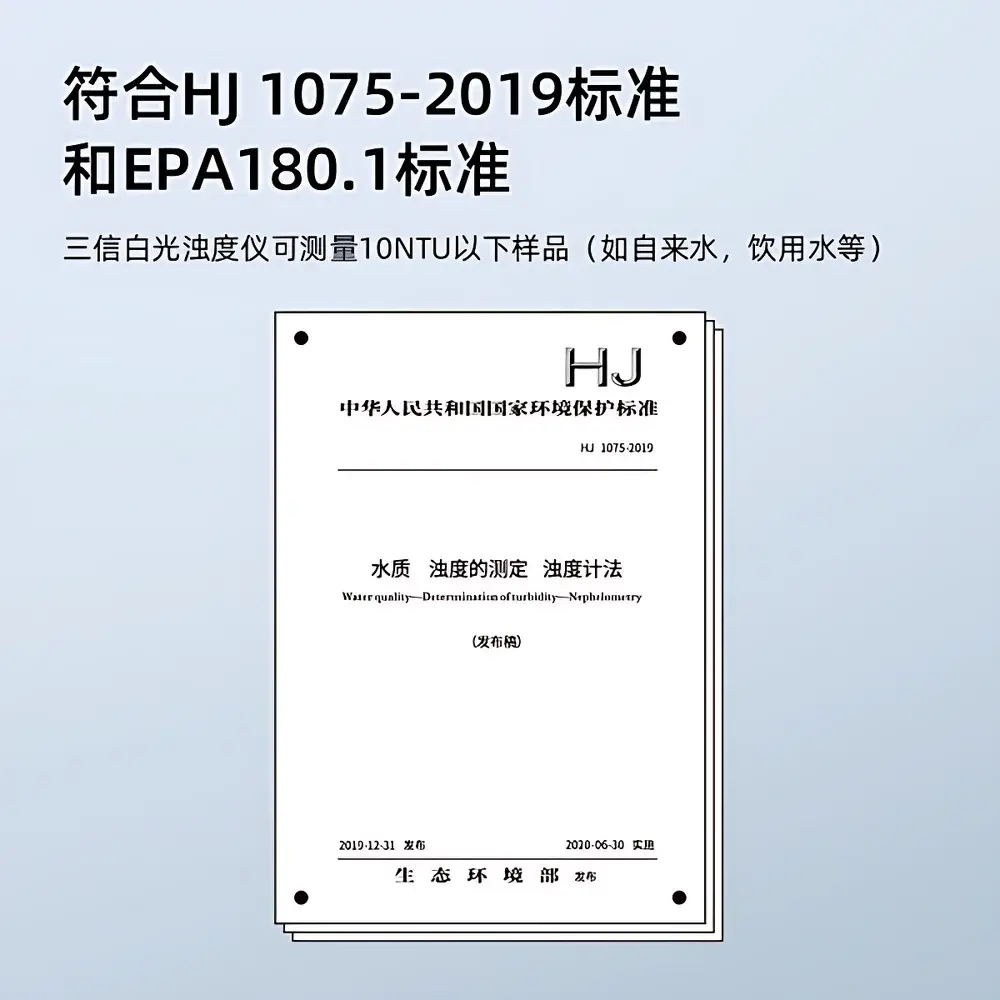

The Sanxin TN450 Portable Turbidimeter (Red LED Optical System) is an ISO 7027–compliant, field-deployable optical instrument engineered for high-reliability turbidity measurement in diverse aqueous matrices—including colored samples such as fruit juices, wine, wastewater effluents, and process streams where traditional white-light or blue-light turbidimeters suffer spectral interference. It employs the 90° nephelometric scattering principle using a near-infrared light-emitting diode (LED) at 860 ± 30 nm—optimized to minimize absorbance artifacts from natural chromophores (e.g., humic substances, anthocyanins, or dye contaminants). This red LED configuration ensures robust performance under ambient lighting conditions and eliminates the need for sample decolorization or dilution in many routine applications. Designed for both laboratory benchtop verification and unattended field deployment, the TN450 meets the metrological requirements of HJ 1075–2019 (China’s Environmental Monitoring Standard), DIN 27027, and supports traceable calibration against NIST-traceable Formazin or EPA-certified polymer standards.

Key Features

• ISO 7027–validated 90° scattered-light detection with stable 860 nm red LED source—immune to color-induced bias in non-clear liquids
• Three-tier auto-ranging measurement (0.01–19.99 / 20.0–99.9 / 100–1000 NTU), dynamically selecting optimal gain and integration time per sample
• TruRead mode: configurable multi-shot acquisition (up to 10 consecutive readings) with on-screen display of min/max/mean values and statistical validation—critical for rapidly settling suspensions (e.g., coagulation/flocculation trials)
• Zero-point calibration verification with real-time drift alert: detects and flags deviations exceeding ±0.5 NTU from stored zero reference, ensuring low-turbidity integrity (e.g., ultrapure water, filtered drinking water)
• IP67-rated enclosure: fully dust-tight and submersible to 1 m for 30 minutes—certified for harsh outdoor, industrial, or wastewater treatment plant environments
• TFT color display with intuitive graphical navigation, supporting English, Chinese, and Spanish—enabling rapid operation without training overhead
• Built-in real-time clock with GLP-compliant timestamping: all 200 stored measurements include date, time, operator ID (optional), calibration history, and environmental metadata (temperature, battery status)

Sample Compatibility & Compliance

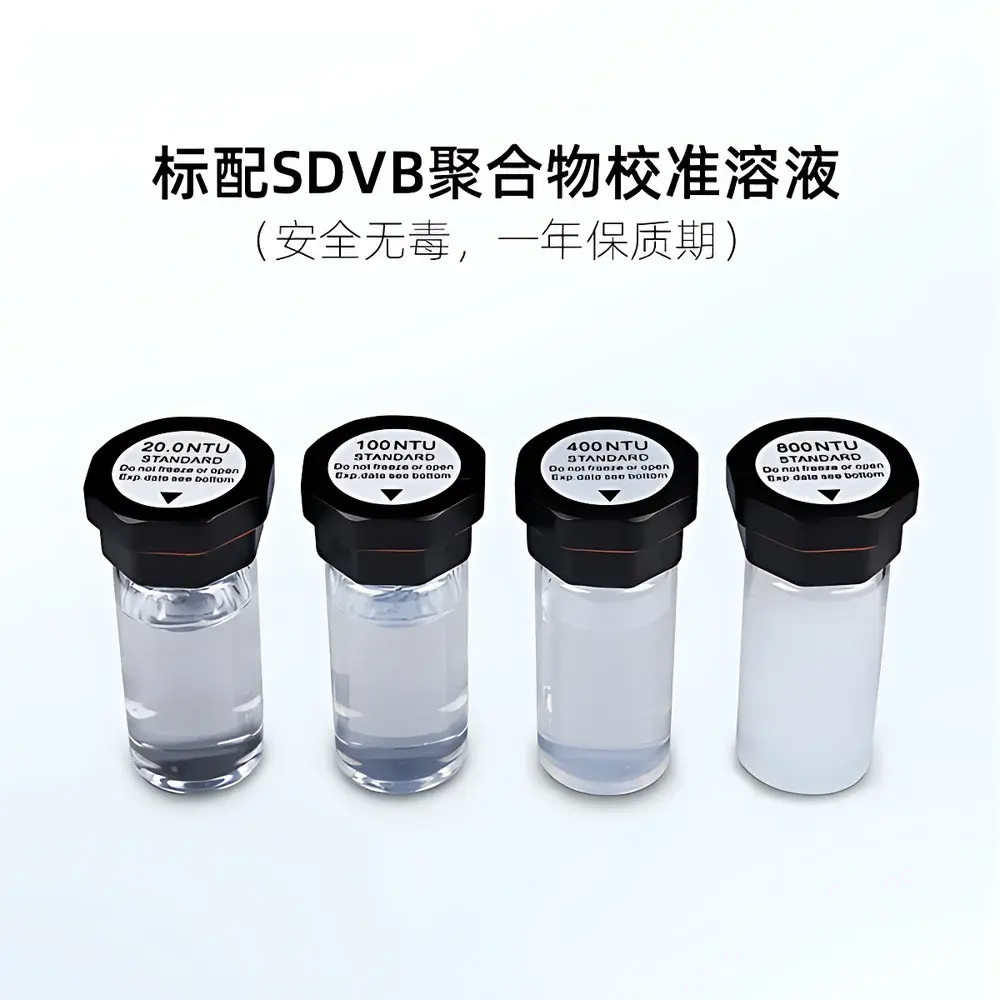

The TN450 is validated for use with standard Φ25 × 60 mm high-borosilicate glass sample vials (18 mL capacity), compatible with both Formazin and EPA-recognized polymer-based calibration standards (0, 20, 100, 400, and 800 NTU). Its red-light optical path enables accurate quantification of turbidity in chromatically complex matrices—including grape must, apple juice, tea extracts, and dyed pharmaceutical process waters—where visible-light instruments exhibit systematic negative bias. The system conforms to regulatory frameworks requiring documented measurement traceability: full audit trail support aligns with FDA 21 CFR Part 11 (when used with compliant USB data export workflows), GLP/GMP environmental monitoring protocols, and ISO/IEC 17025–accredited laboratory quality systems. All calibration events—including date, standard lot number, and operator input—are retained in non-volatile memory and exportable via USB for external review.

Software & Data Management

Data capture and export are facilitated through a standardized USB interface (USB-A to micro-USB cable included), enabling direct transfer of GLP-compliant datasets to Windows/macOS platforms without proprietary drivers. Exported files follow CSV format with fixed-column headers (Measurement ID, NTU Value, Timestamp, Calibration Status, Battery Level, Ambient Temp Estimate), ensuring compatibility with LIMS, Excel, and statistical analysis tools (e.g., JMP, Minitab). Internal storage retains 200 full measurement records—including raw signal intensity, temperature-compensated NTU, and user-entered sample IDs—with overwrite protection and selective deletion capability. Firmware supports over-the-air updates via USB; version history and calibration log timestamps are embedded in every exported dataset to satisfy internal audit requirements.

Applications

• Drinking water quality verification at distribution points and household taps
• Wastewater treatment plant effluent compliance monitoring (e.g., discharge permits referencing NTU limits)
• Food & beverage QC: turbidity assessment of clarified juices, wines, syrups, and dairy filtrates
• Pharmaceutical water system validation (PW, WFI)—low-range stability supports USP particulate testing workflows
• Environmental field surveys: river, lake, and reservoir turbidity profiling under variable lighting and temperature
• Educational labs: hands-on instruction in optical scattering theory, calibration hierarchy, and method validation per ISO 5725

FAQ

Does the TN450 require recalibration when switching between colored and colorless samples?
No—its 860 nm red LED inherently minimizes absorption interference; no optical filter changes or software reconfiguration are needed.
Can the instrument be used underwater or in heavy rain?
Yes—the IP67 rating certifies full protection against immersion (1 m, 30 min) and dust ingress, making it suitable for submerged sampling or monsoon-season fieldwork.
Is the polymer calibration standard EPA-certified and traceable to NIST?
Yes—the included 0–800 NTU polymer set carries EPA Certificate #EPA-STD-2023-087 and is manufactured against NIST SRM 2102a reference material.
What is the battery life under typical field use?
With alkaline AA cells, continuous operation exceeds 1,200 measurements (≈60 hours) at 25 °C; low-battery warning activates at ≈1.1 V per cell.
Does the USB interface support real-time data streaming to a PC?
No—it operates in bulk-transfer mode only; live serial streaming is not implemented to preserve measurement integrity and power efficiency.
