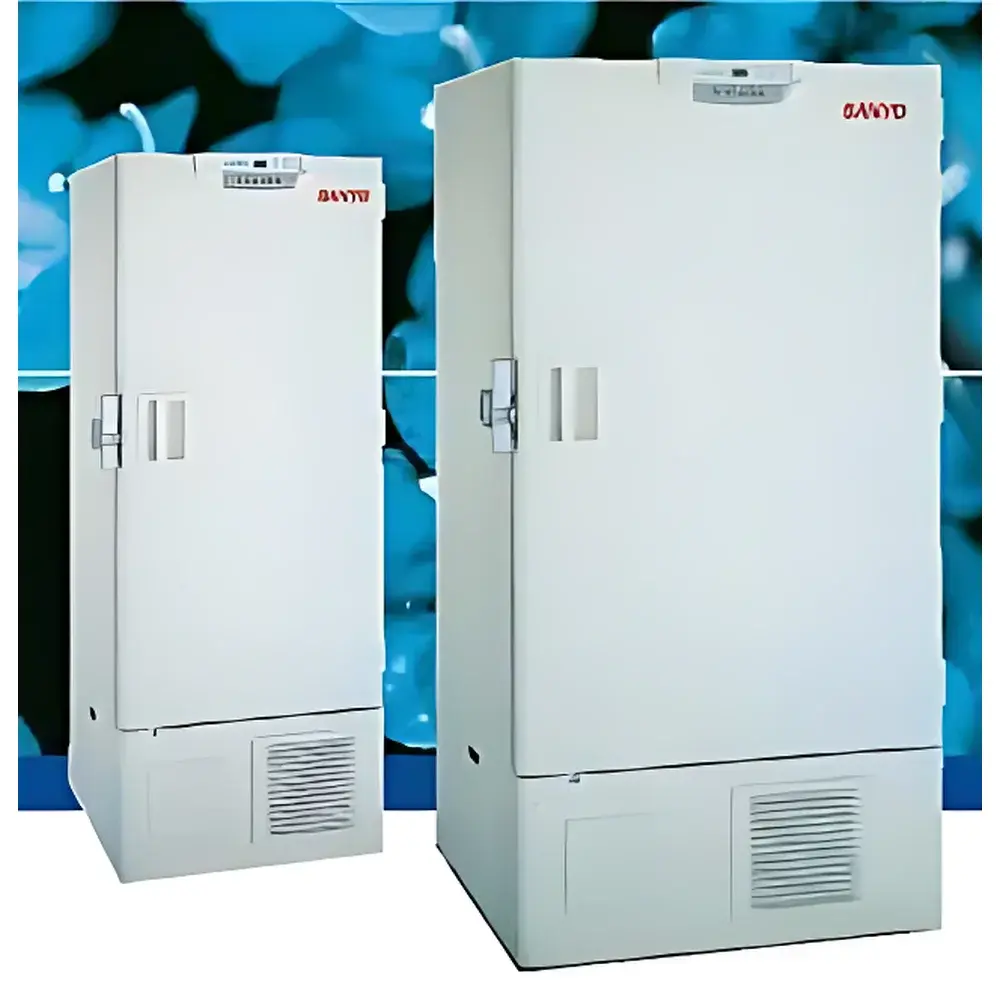

SANYO MDF-U32V(N) / MDF-U53V / MDF-U73V Ultra Low Temperature Freezer

Overview

The SANYO MDF-U32V(N), MDF-U53V, and MDF-U73V series represent a generation of high-efficiency ultra low temperature (ULT) freezers engineered for long-term biological sample preservation in research laboratories, biobanks, clinical diagnostics, and pharmaceutical development environments. Operating within a precisely controlled range of –50 °C to –86 °C, these units employ dual-stage cascade refrigeration systems with environmentally optimized refrigerants to achieve stable thermal performance under variable ambient conditions (up to 30 °C). The integration of Vacuum Insulation Panels (VIPs) with in-situ rigid polyurethane foam provides exceptional thermal resistance—reducing heat ingress by up to 40% compared to conventional foam-only insulation—thereby minimizing compressor cycling, energy consumption, and temperature fluctuation during door openings. Designed as vertical upright cabinets, each model maximizes volumetric efficiency: the MDF-U32V(N) delivers 333 L of usable storage in a footprint of just 0.58 m², while the MDF-U73V achieves 728 L within 0.89 m²—critical for space-constrained core facilities and GMP-compliant storage suites.

Key Features

• Advanced dual-layer insulation architecture combining VIPs and high-density polyurethane foam for superior thermal stability and energy efficiency
• Three-tier stainless-steel shelving system with tool-free height adjustment, supporting standardized cryoboxes, racks, and vial holders
• Dual inner doors with integrated gasket seals and ergonomic eagle-beak latches—designed for rapid resealing and reduced cold loss during routine access
• Intuitive LED control panel with real-time temperature display, programmable setpoint (1 °C resolution), and event-driven status indicators
• Comprehensive alarm suite compliant with ISO 13485 and ICH guidelines: audible/visual alerts for temperature deviation (>±3 °C), power interruption, condenser filter clogging, system self-diagnostics, and low backup battery condition
• Remote alarm interface (dry-contact, DC 30 V / 2 A) enables integration into centralized laboratory monitoring systems (e.g., Siemens Desigo, Honeywell Experion) and supports 21 CFR Part 11–compliant audit trails when paired with validated data loggers
• Four heavy-duty casters (two height-adjustable) facilitate precise leveling on uneven floors and safe relocation without disassembly

Sample Compatibility & Compliance

These ULT freezers are routinely deployed for the cryopreservation of primary cells, stem cell lines, plasma, serum, DNA/RNA extracts, tissue sections, and monoclonal antibody intermediates. Their uniform internal temperature distribution (<±2.5 °C across all zones per ASTM F745-22) ensures integrity retention over extended periods—validated for ≥10-year archival stability per ISBER Best Practices. The interior chamber is constructed from electrophoretically coated steel with non-porous surface finish, inhibiting microbial adhesion and enabling routine decontamination using 70% ethanol or hydrogen peroxide vapor (HPV) protocols. Units conform to IEC 61000-6-3 (EMC emissions), IEC 61000-6-2 (immunity), and UL 61010-1 safety standards. Optional factory-installed temperature mapping reports and IQ/OQ documentation packages are available to support GLP, GCP, and GMP regulatory submissions.

Software & Data Management

While the base configuration features standalone microprocessor-based control, the MDF-U series supports seamless connectivity via optional RS-485 or Ethernet modules. When integrated with SANYO’s proprietary CryoLink Manager software (v3.2+), users gain access to continuous temperature logging (1-min intervals), configurable alarm escalation workflows, electronic signature-enabled user access logs, and automated PDF report generation aligned with FDA 21 CFR Part 11 requirements—including time-stamped operator authentication, audit trail immutability, and role-based permission tiers. All data exports comply with CSV and XML schema standards for ingestion into LIMS platforms such as LabWare, STARLIMS, or Thermo Fisher SampleManager.

Applications

• Long-term storage of human biospecimens in biorepositories accredited to ISO 20387
• Cold chain continuity for clinical trial materials requiring strict –80 °C qualification (per USP and )
• Backup storage for liquid nitrogen-dependent infrastructure, mitigating risk of catastrophic sample loss
• QC/QA stability chambers for accelerated degradation studies of biologics and vaccines
• Support of single-cell genomics workflows where RNA integrity number (RIN) preservation is thermally sensitive

FAQ

What is the recommended ambient operating environment for these units?
Optimal operation requires ambient temperatures between 10 °C and 30 °C, relative humidity ≤80% non-condensing, and adequate rear clearance (≥100 mm) for condenser airflow.

Are the inner doors removable for cleaning and defrosting?
Yes—the inner doors are fully detachable without tools, allowing unobstructed access to chamber walls and shelf supports for manual defrost cycles and disinfection.

Can temperature data be exported for regulatory audits?
Yes—when equipped with the optional communication module and CryoLink Manager software, full audit-ready datasets—including calibration history, alarm events, and user actions—are exportable with cryptographic hash verification.

Is validation support available for GxP environments?
SANYO-certified IQ/OQ protocols, installation qualification checklists, and operational qualification test scripts are provided upon request and may be executed by qualified third-party vendors under client supervision.

What maintenance intervals are specified for optimal performance?
Condenser filter inspection is recommended every 3 months; annual compressor oil analysis and refrigerant pressure verification are advised for continuous 24/7 operation in critical applications.
