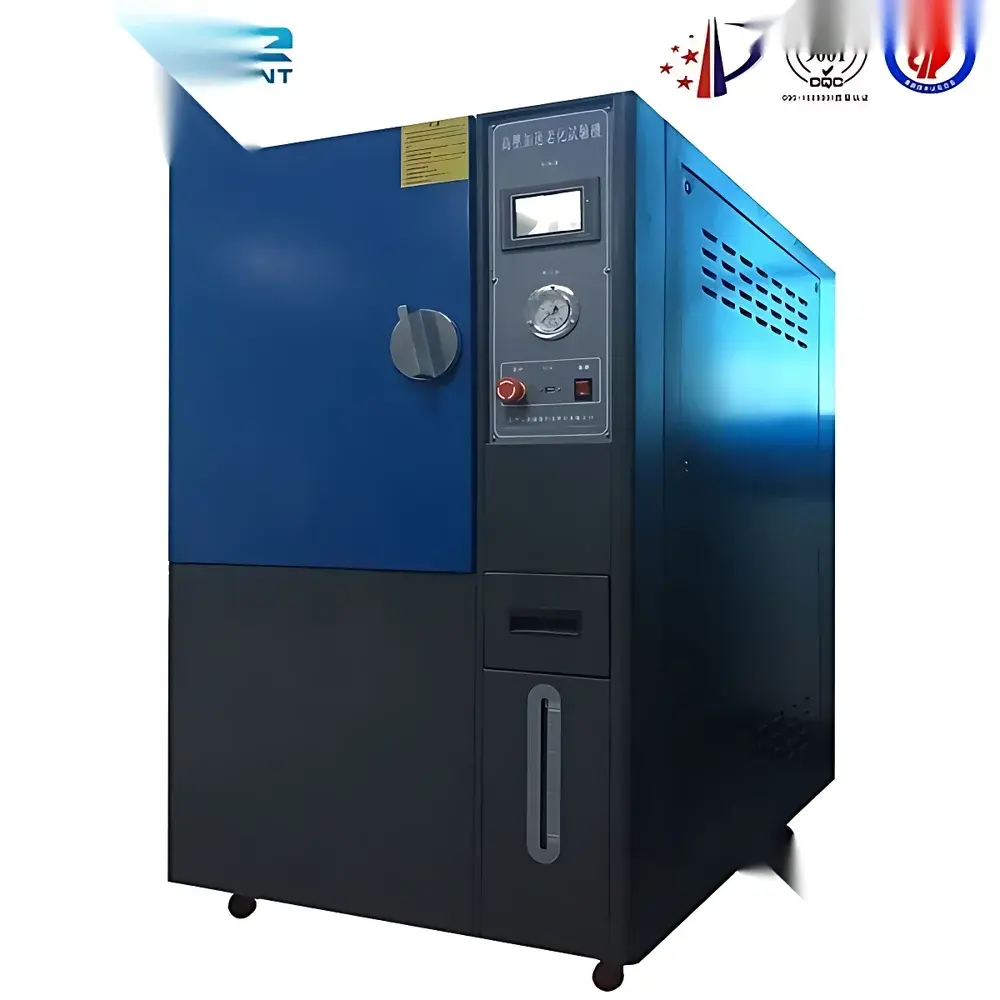

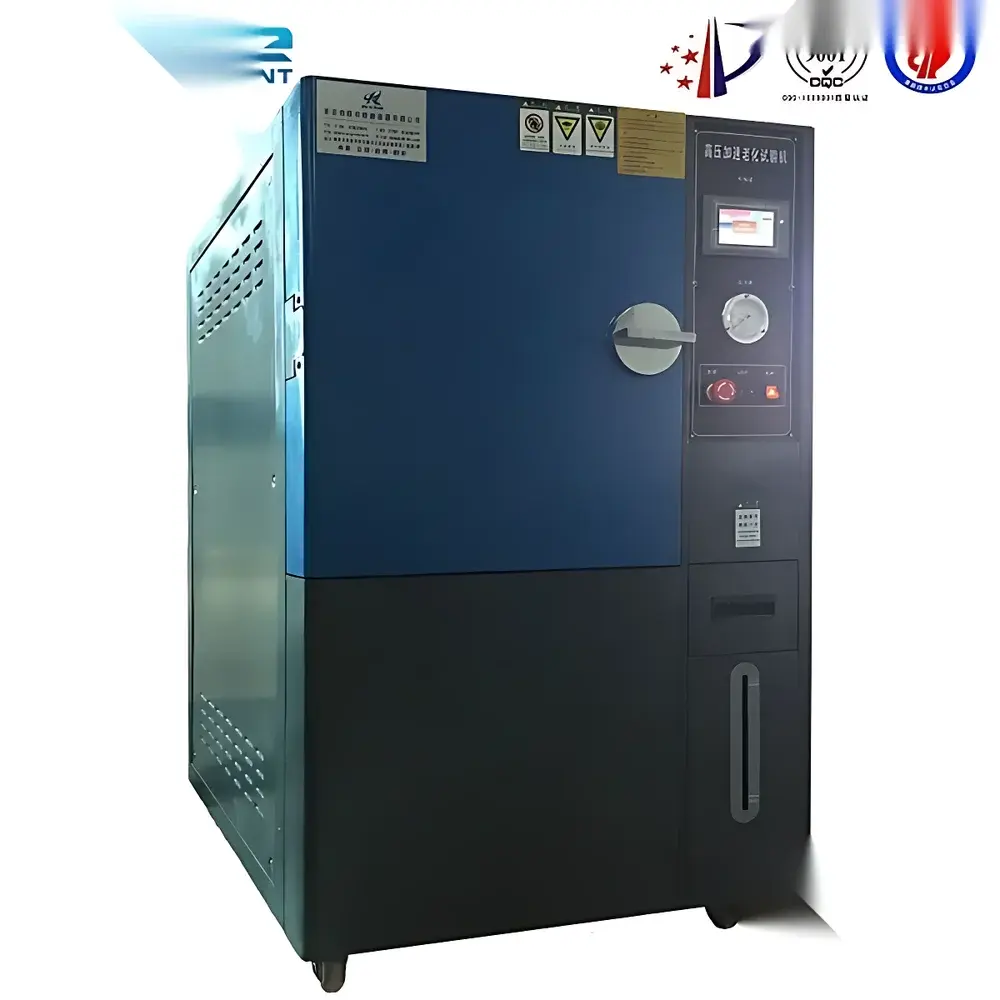

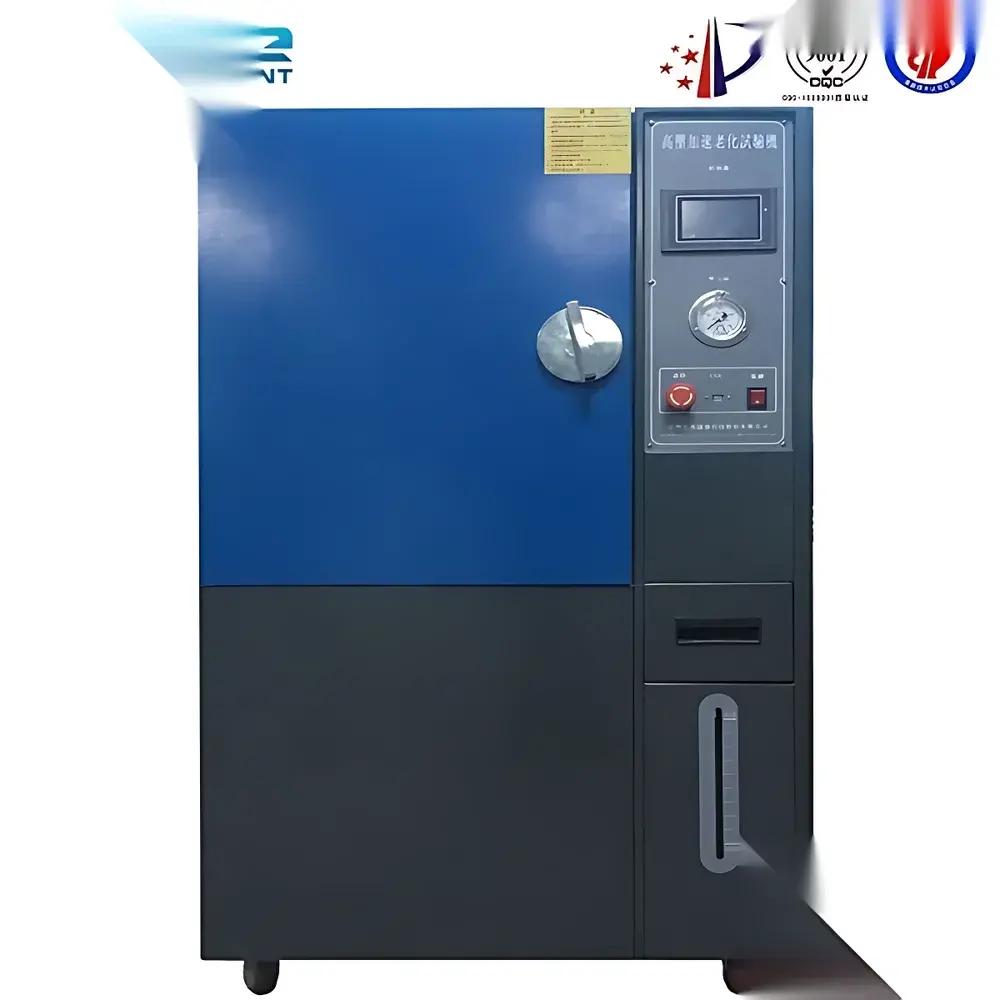

Saturated Steam Aging Test Chamber

Overview

The Saturated Steam Aging Test Chamber is an engineered environmental stress test system designed to accelerate material degradation under controlled high-temperature, high-pressure saturated steam conditions. It operates on the fundamental principle of exposing test specimens—primarily polymeric insulators, medical device packaging, sterilization validation materials, and aerospace-grade elastomers—to thermodynamically stable saturated steam environments, where temperature and pressure are intrinsically coupled per the steam saturation curve. Unlike conventional humidity chambers, this system maintains true thermodynamic saturation (i.e., 100% RH at equilibrium), enabling reproducible aging kinetics aligned with ASTM F1980 (Accelerated Aging of Sterile Barrier Systems), ISO 11137 (Radiation Sterilization), and IEC 60068-2-66 (Test Db: Damp Heat, Steady State). The chamber’s stainless-steel construction, precision PID-controlled steam generation, and integrated pressure regulation ensure compliance with GLP and GMP requirements for qualification and validation protocols.

Key Features

• Multiple chamber volume options (Φ25×35 cm to Φ50×60 cm) support scalability from R&D sample batches to full-scale production validation runs.
• Triple-tier temperature range selection (105–132°C, 105–142.9°C, 105–155°C) enables correlation with industry-standard accelerated aging models (e.g., Q10 = 2–3, Arrhenius-based shelf-life extrapolation).
• Adjustable gauge pressure range (0.2–3.5 kg/cm²) permits precise alignment with specific saturation points—critical for validating autoclave-compatible materials and evaluating seal integrity under elevated vapor pressure.
• Dual-language (English/Chinese) programmable controller with real-time graphing, USB mass storage export, and RS-232C serial communication supports integration into centralized lab data management systems and 21 CFR Part 11-compliant audit trails when paired with validated software.
• High-resolution sensing (0.1°C, 0.1% RH, 0.1 kg/cm²) and tight uniformity (±0.5°C / ±5% RH) ensure measurement repeatability across spatial zones—essential for ISO/IEC 17025-accredited testing laboratories.
• Optional bias terminal module (8–55 channels, 125 V AC/DC, 1 A) allows concurrent electrical performance monitoring during aging—enabling in-situ dielectric strength, insulation resistance, or leakage current assessment per IEC 60601-1 or UL 62368-1.

Sample Compatibility & Compliance

This chamber accommodates a broad spectrum of non-volatile, non-explosive test articles including Tyvek® pouches, silicone gaskets, PVC tubing, epoxy encapsulants, and printed circuit board conformal coatings. All internal wetted surfaces are electropolished 316L stainless steel to prevent corrosion-induced contamination. The system conforms to mechanical design best practices outlined in MIL-STD-810H (Method 514.7, Vibration; Method 516.7, Shock) and ECSS-E-ST-32-01C (Space Product Assurance), particularly regarding structural rigidity, avoidance of resonant cantilevers, and elimination of micro-gaps in hinged or removable access panels. No standard bias terminals are included; optional configurations require user-defined electrical isolation and grounding per IEC 61000-4-5 surge immunity guidelines.

Software & Data Management

Data acquisition is handled via embedded firmware supporting continuous timestamped logging of temperature, relative humidity (calculated from saturation state), chamber pressure, and optional external sensor inputs (e.g., thermocouples, digital multimeters). Export formats include CSV and PDF reports with embedded trend curves. When interfaced with third-party LIMS or ELN platforms via RS-232C, the controller supports command-response protocol for remote start/stop, setpoint modification, and alarm acknowledgment—facilitating unattended overnight operation and electronic record retention per FDA 21 CFR Part 11 Annex 11 requirements. Audit trail functionality (user login, parameter changes, calibration events) is enabled through optional firmware upgrade.

Applications

• Accelerated aging validation of sterile medical packaging per ISO 11607-1 and AAMI TIR17.
• Thermal-oxidative stability testing of wire insulation and cable jacketing (UL 1581, CSA C22.2 No. 0.3).
• Material compatibility screening for pharmaceutical primary packaging exposed to steam sterilization cycles.
• Reliability qualification of avionics enclosures and conformal-coated electronics under combined thermal-hygric stress.
• Research into hydrolytic degradation kinetics of biodegradable polymers (e.g., PLA, PCL) under saturated conditions.

FAQ

What steam source does the chamber require?
The unit requires connection to a clean, oil-free compressed air supply (typically 6–8 bar) to drive the pneumatic pressure regulator and steam generator actuator. An external boiler or steam line is not required.
Is calibration certification included?
Factory calibration certificates (traceable to NIST or equivalent national metrology institutes) are available upon request; on-site IQ/OQ/PQ validation support can be arranged through authorized service partners.
Can the chamber operate continuously for extended periods (e.g., 72+ hours)?
Yes—designed for uninterrupted operation up to 168 hours, provided ambient cooling capacity and water replenishment (if applicable) meet manufacturer specifications.
Does it support automated pressure ramping profiles?
Standard firmware supports stepwise pressure hold modes; custom ramp-and-soak sequences require optional advanced programming license and PC-based control software.
Are safety interlocks compliant with IEC 61508 SIL-2?
The system integrates dual redundant pressure relief valves, overtemperature cut-off, and door-mounted safety switches meeting EN 60204-1; SIL-2 certification requires site-specific risk assessment and integration into a broader functional safety architecture.
