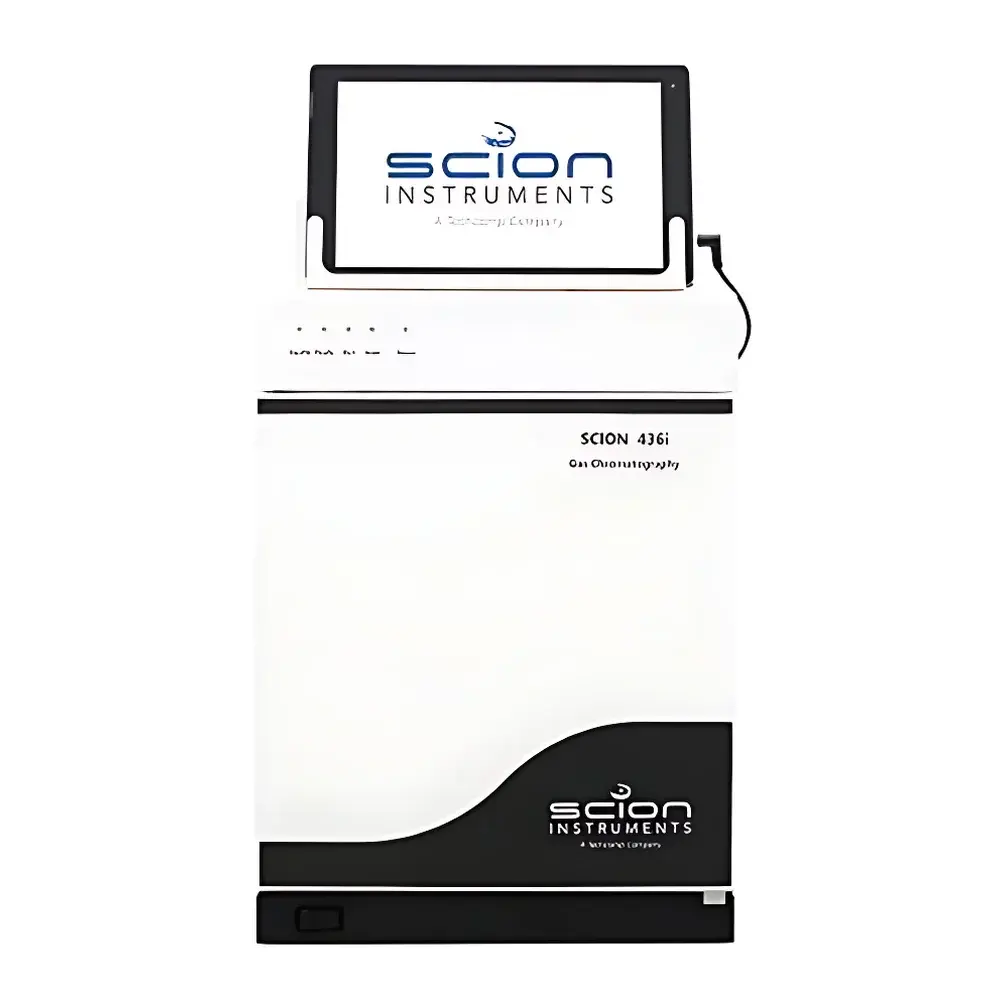

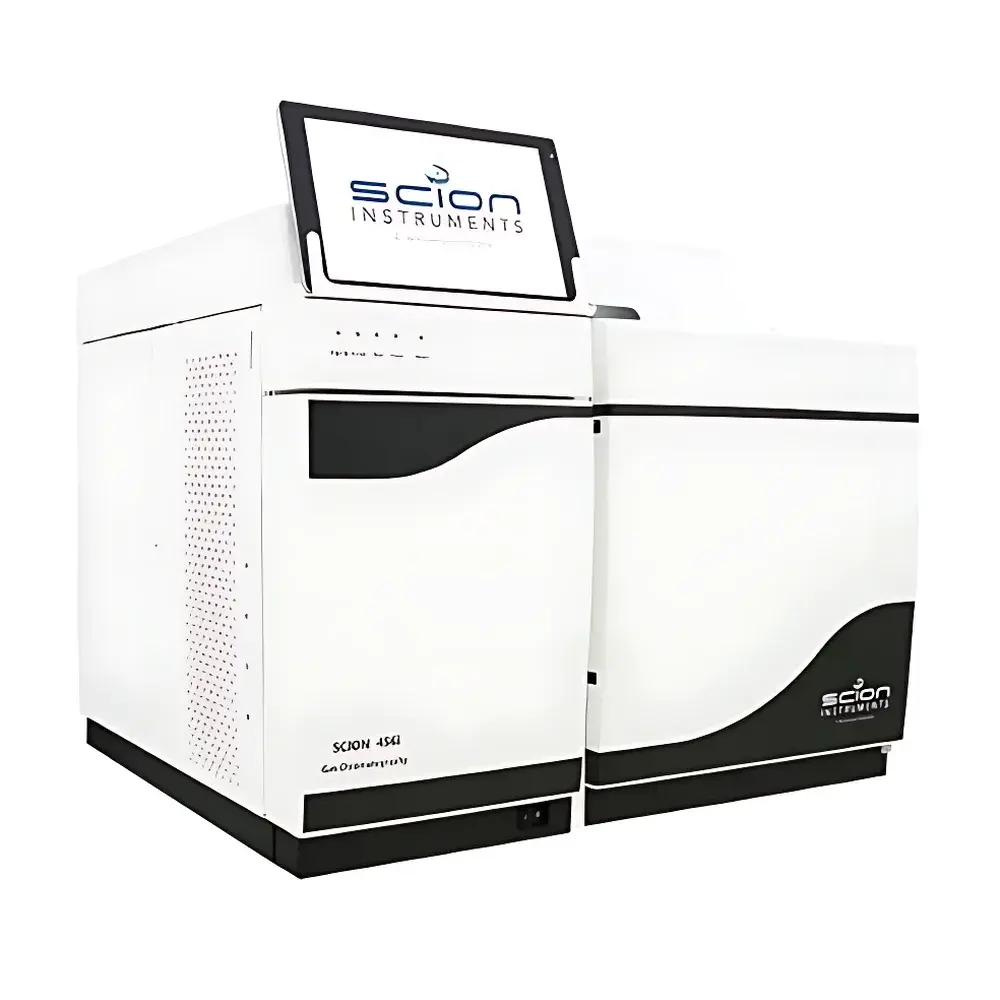

Scion 436i / 456i Gas Chromatograph

Overview

The Scion 436i and 456i Gas Chromatographs are modular, network-ready analytical systems engineered for precision, reproducibility, and operational flexibility in regulated and research laboratory environments. Based on proven capillary GC architecture, these instruments employ constant-flow and constant-pressure electronic pressure control (EPC) and electronic flow control (EFC) to maintain highly stable carrier gas delivery—critical for retention time stability and quantitative accuracy across multi-day sequences. The oven system supports programmable temperature gradients with precise ramping and cooling profiles, while the dual-injector and multi-detector configuration options enable method development scalability—from routine QC screening to complex multi-analyte quantification. Designed for compliance-driven workflows, the platform integrates seamlessly into modern laboratory infrastructures via native Client/Server (C/S) deployment of Compass CDS software, eliminating dependency on dedicated acquisition servers and supporting unlimited instrument connectivity within a single domain.

Key Features

• Full electronic pneumatic control (EPC/EFC) with pressure resolution down to 0.001 psi, ensuring exceptional retention time reproducibility (RSD < 0.05% for repeated injections under optimized conditions)
• Modular detector architecture supporting up to four detector types—including FID, TCD, ECD, and PID—with data acquisition rates up to 600 Hz for high-resolution peak capture
• Two configurable inlet options: split/splitless and programmable temperature vaporizing (PTV) injectors, each with independent pressure and flow control
• 9-inch full-color capacitive touchscreen with intuitive icon-based navigation and real-time status visualization; firmware supports 13 language interfaces including English, German, French, Japanese, and Simplified Chinese
• Mobile tablet integration enabling remote monitoring and parameter adjustment via local Wi-Fi or Ethernet—no proprietary hardware required
• Compass CDS software preconfigured for 21 CFR Part 11 compliance: electronic signatures, role-based access control, immutable audit trail, and automated backup of method files, sequence logs, and raw data

Sample Compatibility & Compliance

The Scion 436i/456i systems accommodate a broad range of volatile and semi-volatile organic compounds (VOCs/SVOCs) across matrices including aqueous solutions, headspace vials, solid-phase microextraction (SPME) fibers, and thermal desorption tubes. Inlet temperature capability (configurable per model specification) supports derivatized analytes and thermally labile compounds. The platform is validated for use in accordance with ISO/IEC 17025:2017 requirements for testing laboratories and aligns with ASTM D3612 (petroleum hydrocarbons), EPA Method 8260D (VOCs in water and soil), and USP (chromatography). All firmware and software modules undergo periodic verification per GLP/GMP documentation standards, with traceable calibration logs and instrument qualification reports available upon request.

Software & Data Management

Compass CDS operates in both standalone and enterprise C/S modes. In networked deployments, centralized database management enables shared method libraries, cross-instrument sequence scheduling, and automated report generation compliant with LIMS HL7 and ASTM E1467 interfaces. The software includes IntelliUpdate—a retention time alignment algorithm that dynamically adjusts peak identification windows based on system drift, reducing manual reintegration effort. Raw data (.cdf) and processed results (.pdf, .xlsx) are stored with embedded metadata (operator ID, instrument ID, method version, timestamp). Audit trail records include all user actions—method edits, sequence modifications, result overrides—and are exportable in tamper-evident PDF/A format for regulatory submission.

Applications

• Food Safety: Pesticide residue screening (e.g., organophosphates, pyrethroids) in fruits/vegetables per EU SANTE/11312/2021; flavor compound profiling in fermented beverages (esters, aldehydes, higher alcohols); migration testing of plastic packaging additives (phthalates, BADGE derivatives)
• Environmental Analysis: Quantification of BTEX, chlorinated solvents, and trihalomethanes in drinking water (EPA 524.4); ambient air VOC monitoring using canister sampling and cryo-focusing; leachate analysis from landfill soils per TCLP protocols
• Pharmaceutical & Biotech: Residual solvent testing in APIs (ICH Q3C Class 1–3); essential oil composition in herbal extracts (monoterpenes, sesquiterpenes); genotoxic impurity detection (e.g., alkyl halides) using ECD or mass-selective detection add-ons

FAQ

Does the Scion 436i/456i support 21 CFR Part 11 compliance out-of-the-box?
Yes—Compass CDS includes configurable electronic signature workflows, audit trail logging, and data integrity safeguards. Full validation documentation (IQ/OQ/PQ templates) is provided for implementation in FDA- or EMA-regulated facilities.
Can multiple 436i/456i units be controlled from a single Compass CDS server instance?
Yes—the Client/Server architecture supports unlimited instrument registration without requiring additional acquisition hardware or licensing tiers.
Is remote maintenance and diagnostics supported?
Remote desktop access (via secure TLS-encrypted VNC) and built-in self-diagnostics (leak detection, column flow verification, detector baseline stability monitoring) are enabled by default.
Are application notes and method transfer packages available for common regulatory methods?
Scion provides validated method bundles for EPA 8260D, USP , and ISO 11843-7, including instrument setup files, calibration curves, and reporting templates—all accessible through the customer portal.
What service and support options are offered globally?
Standard warranty covers parts and labor for 12 months; extended service plans include preventive maintenance contracts, on-site engineer response SLAs, and priority firmware/software update notifications.
