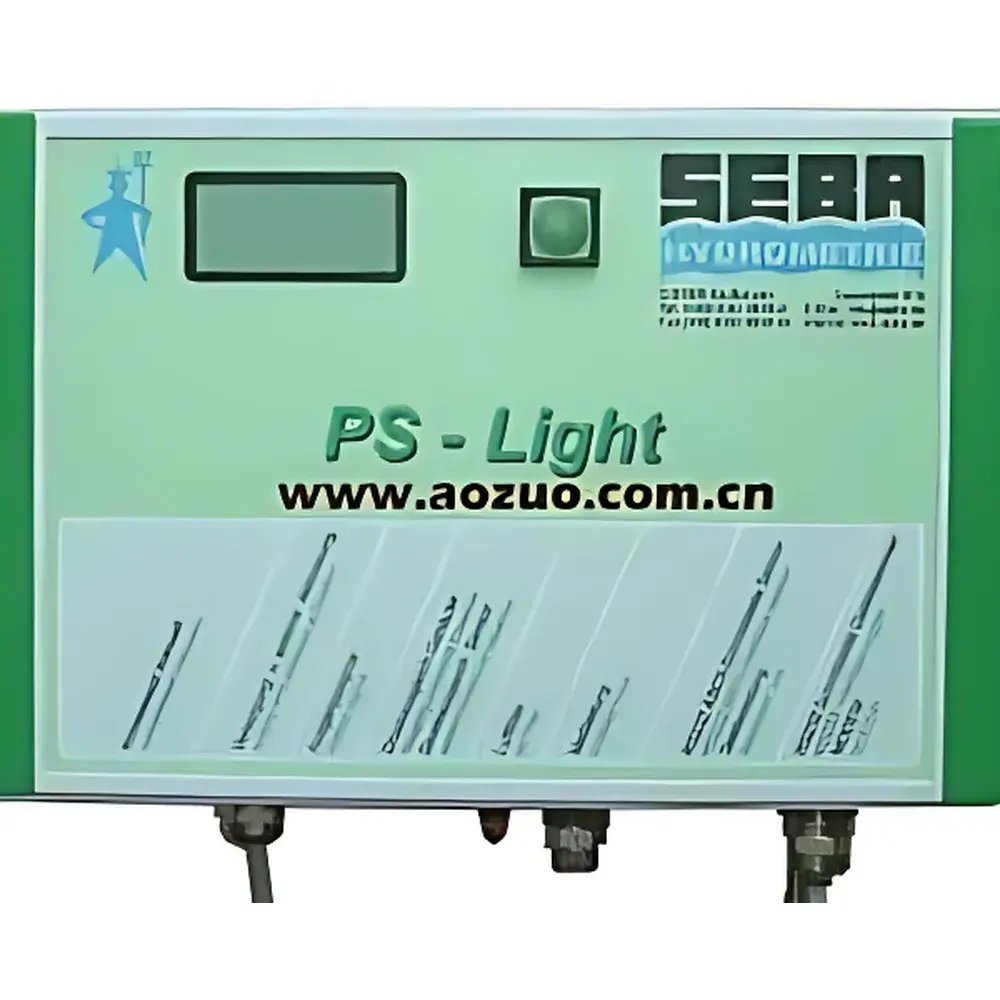

SEBA PS-Light-2 Bubble-Type Water Level Sensor

Overview

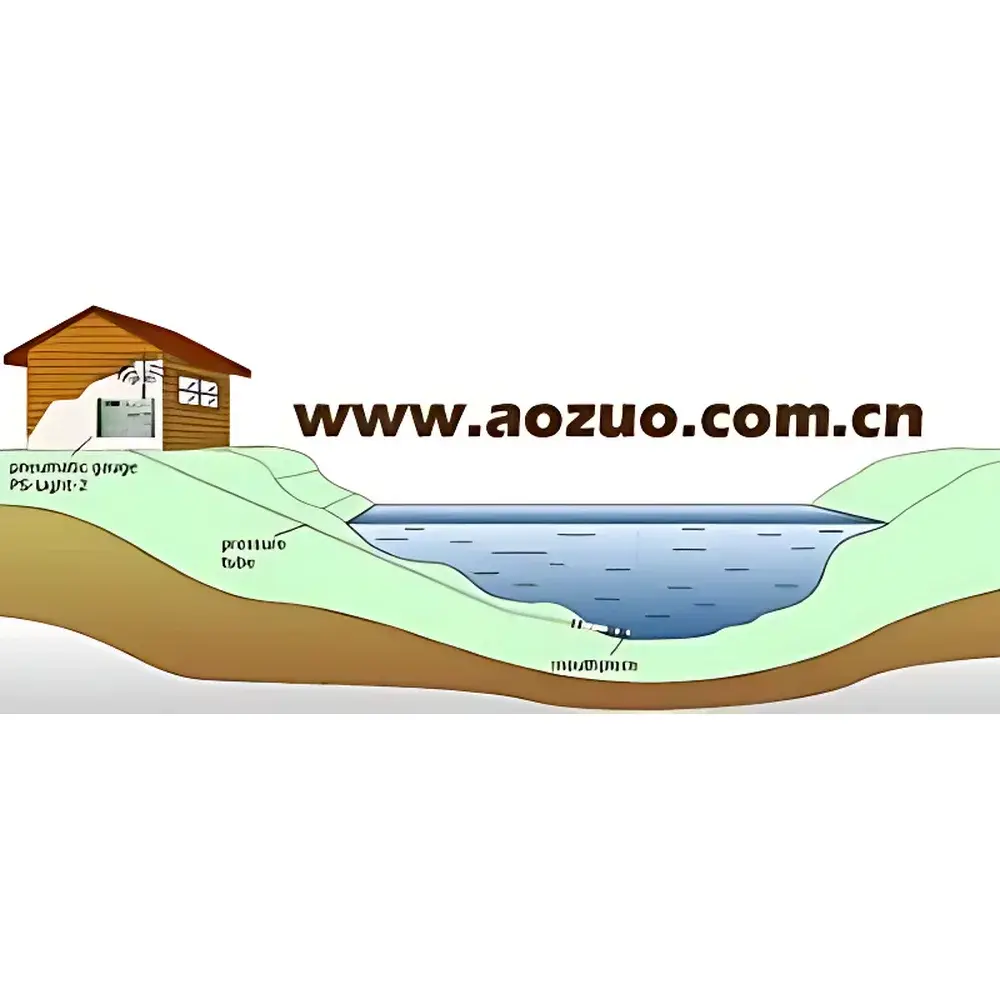

The SEBA PS-Light-2 Bubble-Type Water Level Sensor is a precision-engineered, submersible hydrostatic level measurement instrument designed for long-term, unattended deployment in open-channel, riverine, and reservoir environments. It operates on the proven principle of pneumatic bubbling: a compact, intelligent micro-compressor delivers air through a calibrated pressure tube submerged at a fixed reference elevation. When airflow ceases, hydrostatic pressure equilibrates across the tube, and an embedded high-stability piezoresistive pressure transducer measures the static head pressure. This value—directly proportional to water column height above the bubble tip—is converted into water level with traceable metrological accuracy. Unlike float or ultrasonic systems, the PS-Light-2 eliminates mechanical wear, avoids surface wave interference, and requires no stilling well—making it ideal for remote, low-infrastructure sites where traditional gauge wells are impractical or cost-prohibitive. Its design adheres to fundamental hydrometric principles outlined in ISO 4359 (open channel flow measurement) and supports compliance with national water data standards including USGS NWIS and WMO guidelines for automated hydrometric networks.

Key Features

• High-resolution measurement capability: 1 mm resolution across all standard ranges (0–10 m, 0–20 m, 0–40 m, 0–70 m)
• Robust metrological performance: total system accuracy better than 0.1% full scale, with linearity deviation ≤0.05% FS
• Low-power architecture: integrated energy-efficient micro-compressor with adaptive duty cycling, enabling multi-year operation on a single 12 V battery
• Environmental resilience: IP68-rated housing, operating temperature range from –20 °C to +50 °C, suitable for year-round deployment in temperate and alpine watersheds
• Flexible configuration: programmable measurement intervals (1–180 minutes), configurable analog/digital outputs (0–5 V, RS232, RS485, 0/4–20 mA), and optional LCD display (PS-Light-2-LCD variant)
• GSM/GPRS telemetry readiness: native support for wireless data transmission via industry-standard protocols, facilitating integration into SCADA and cloud-based hydrometric platforms

Sample Compatibility & Compliance

The PS-Light-2 is compatible with freshwater, brackish, and mildly corrosive aquatic environments typical of rivers, irrigation canals, drainage ditches, and floodplains. Its stainless steel pressure tube and chemically resistant polymer housing ensure long-term stability in sediment-laden or organically enriched waters. The sensor does not require direct electrical contact with water, eliminating galvanic corrosion risks and simplifying maintenance. From a regulatory standpoint, its output signals and data logging behavior conform to IEC 61000-6-2 (EMC immunity) and IEC 61000-6-3 (EMC emissions). When deployed as part of a certified hydrometric network, the PS-Light-2 supports audit-ready data integrity through timestamped, non-volatile storage and configurable data validation flags—facilitating adherence to GLP-aligned field data collection practices and national water resource reporting frameworks such as the EU Water Framework Directive (WFD) monitoring requirements.

Software & Data Management

The PS-Light-2 interfaces seamlessly with SEBA’s proprietary configuration and data retrieval software, supporting both local setup via RS232 and remote parameterization over GSM/GPRS links. The onboard 1 MB flash memory stores up to ~80,000 timestamped records using a real-time, circular-buffer architecture with 12-bit analog-to-digital conversion. All stored values include acquisition time, pressure reading, computed water level, battery voltage, and system status flags—enabling comprehensive diagnostics and post-deployment QA/QC analysis. Data export is supported in CSV and ASCII formats, ensuring compatibility with hydrological modeling tools (e.g., HEC-RAS, MIKE SHE), GIS platforms (ArcGIS, QGIS), and enterprise environmental data management systems. Optional firmware updates provide enhanced calibration traceability and extended telemetry protocol support (e.g., MQTT, Modbus TCP), aligning with modern IIoT infrastructure requirements for distributed environmental sensing.

Applications

The PS-Light-2 serves critical roles in operational hydrology, flood forecasting, irrigation scheduling, and climate-resilient water resource management. It is widely deployed in ungauged basins where rapid installation and minimal civil works are essential—such as mountainous catchments, ephemeral streams, and peri-urban drainage networks. Its reliability under variable sediment loads makes it particularly suited for sediment transport studies and dam outflow monitoring. In research contexts, the sensor has been validated in long-term ecological observatories—including floodplain wetland dynamics, glacier-fed river baseflow analysis, and tidal estuary salinity intrusion tracking. Field deployments documented in peer-reviewed literature include early-warning flood monitoring in the Aosta Valley (Italy), groundwater-surface water interaction studies in the Luan River Basin (Inner Mongolia), and ecohydrological assessments in alpine meadow systems on the Tibetan Plateau. Its low-maintenance profile also supports UNESCO-IHP benchmark networks and FAO-supported agricultural water productivity initiatives.

FAQ

How does the PS-Light-2 achieve high accuracy without a stilling well?

It relies on precise pneumatic equilibrium measurement: by controlling airflow timing and measuring stabilized pressure at the bubble tip, it eliminates dynamic head errors common in open-tube systems—achieving <0.1% FS accuracy independent of well geometry.

Can the PS-Light-2 be used in saline or polluted water?

Yes—the pressure tube is constructed from 316 stainless steel, and the sensor head uses chemically inert encapsulation; however, regular inspection of the diffuser tip is recommended in high-sediment or biofouling conditions.

What is the typical battery life under standard operation?

With a 12 V, 12 Ah sealed lead-acid or lithium-thionyl chloride battery and 15-minute measurement intervals, field deployments routinely exceed 24 months without replacement.

Is calibration traceable to national standards?

Each unit ships with a factory calibration certificate referenced to NIST-traceable deadweight testers; on-site verification kits and periodic recalibration services are available through SEBA-certified service centers.

Does the system support integration with third-party SCADA platforms?

Yes—via RS485 Modbus RTU, 0/4–20 mA analog output, or GSM/GPRS with configurable TCP/IP or SMS-based data push protocols compliant with IEC 60870-5-101/104 standards.
