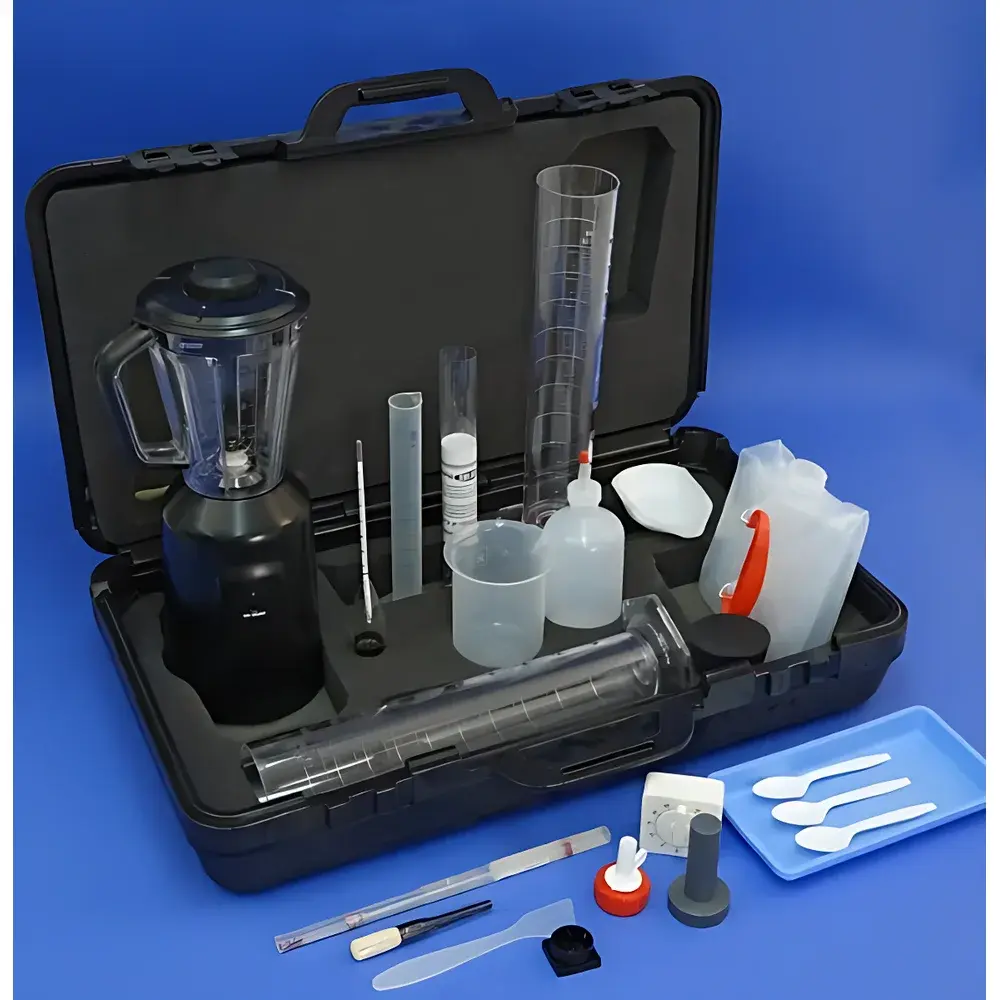

SEC 0318 Soil Texture Analysis Kit

Overview

The SEC 0318 Soil Texture Analysis Kit is a field-deployable, laboratory-validated sedimentation system engineered for precise determination of soil particle size distribution (PSD) via the hydrometer method. It implements the fundamental physical principle of Stokes’ law—where terminal settling velocity of suspended particles in water is inversely proportional to particle diameter—to quantitatively separate and classify silt, clay, and sand fractions. Unlike rapid-scan optical or laser-based analyzers, this kit delivers gravimetrically traceable, reproducible texture classification aligned with the USDA Soil Taxonomy triangular classification system. Its design supports both on-site preliminary screening and accredited lab-level reporting, making it suitable for environmental site assessments, agricultural land evaluation, regulatory compliance sampling, and long-term soil health monitoring programs.

Key Features

• Calibrated ASTM D422-compliant hydrometer set (1.0–1.03 g/cm³ range) with temperature-compensated scale and NIST-traceable certification documentation
• Dual-purpose sedimentation cylinders (1000 mL volumetric) fabricated from borosilicate glass with etched calibration marks and base stability ring
• Integrated mechanical shaker platform with adjustable amplitude and timed oscillation (0–60 min programmable) to ensure uniform particle dispersion prior to sedimentation
• Digital temperature probe (±0.1 °C accuracy) and calibrated stopwatch module synchronized to ASTM-specified reading intervals (e.g., 40 s, 2 h, 24 h)
• Pre-formatted calculation workbook (Excel and PDF) implementing USDA texture triangle logic, including clay/silt/sand percentage derivation and textural class assignment
• Carrying case with custom-cut foam inserts, corrosion-resistant hardware, and IP54-rated dust/moisture protection for transport between field and lab environments

Sample Compatibility & Compliance

The SEC 0318 accommodates air-dried, disaggregated soil samples ≤2 mm in nominal sieve size, following standard pretreatment protocols (organic matter removal via H₂O₂, dispersion via sodium hexametaphosphate). It supports analysis of mineral soils across pH 4.0–8.5 and electrical conductivity ≤4 dS/m. All procedural steps conform to ASTM D422 “Standard Test Method for Particle-Size Analysis of Soils” and ISO 11277 “Soil Quality — Determination of Particle Size Distribution in Mineral Soil Material — Method by Sieving and Sedimentation”. Data outputs satisfy reporting requirements under EPA Region 10 Field Sampling Guidance, USDA-NRCS Soil Survey Manual, and EU Soil Thematic Strategy Annex II analytical specifications. The kit does not require electrical power during sedimentation phase, enabling deployment in off-grid locations while maintaining metrological integrity.

Software & Data Management

No proprietary software installation is required. All calculations are performed using the included SEC TextureCalc™ Workbook—a password-protected Excel file compliant with FDA 21 CFR Part 11 audit trail requirements (version-controlled change logs, user-defined electronic signatures, and read-only output sheets). Raw hydrometer readings, temperature corrections, meniscus vs. bottom-of-meniscus calibration offsets, and final texture class assignments are stored in timestamped CSV exports compatible with LIMS integration (e.g., LabWare, STARLIMS). Optional API-enabled data upload to SEC’s cloud portal (sec-soilcloud.com) provides automated USDA texture mapping, historical trend visualization, and georeferenced layering against SSURGO datasets—all accessible via secure TLS 1.3 authentication.

Applications

• Regulatory Phase I/II Environmental Site Assessments (ESAs) requiring documented soil texture for contaminant mobility modeling
• Agricultural extension services performing land capability classification and irrigation scheduling support
• Construction QA/QC for embankment fill material verification per ASTM D2487 and AASHTO T 88
• Ecological restoration projects assessing substrate suitability for native species establishment
• University soil physics laboratories conducting Stokes’ law validation experiments and sediment transport simulations
• Long-term ecological research (LTER) networks archiving baseline PSD data across climate gradients

FAQ

Is the SEC 0318 certified for use in EPA-regulated testing?
Yes—the methodology implemented meets ASTM D422, which is explicitly referenced in EPA SW-846 Method 9070A for soil particle size characterization in hazardous waste site investigations.
Can the kit be used for saline or sodic soils?
Yes, provided sodium hexametaphosphate dispersion is replaced with 0.1 M NaOH pretreatment per ISO 11277 Annex B for high-sodium soils; full procedure modifications are detailed in the included Technical Supplement No. 3.
Does the system require annual recalibration?
The hydrometers carry NIST-traceable calibration certificates valid for 24 months; cylinder volume verification is recommended annually using distilled water density at 20 °C per ISO/IEC 17025 Clause 6.5.3.
What training resources accompany the kit?
SEC provides a 90-minute instructor-led virtual workshop, SOP templates compliant with GLP standards, and access to the SEC Soil Analytical Proficiency Program (SAPP) inter-laboratory comparison dataset.
