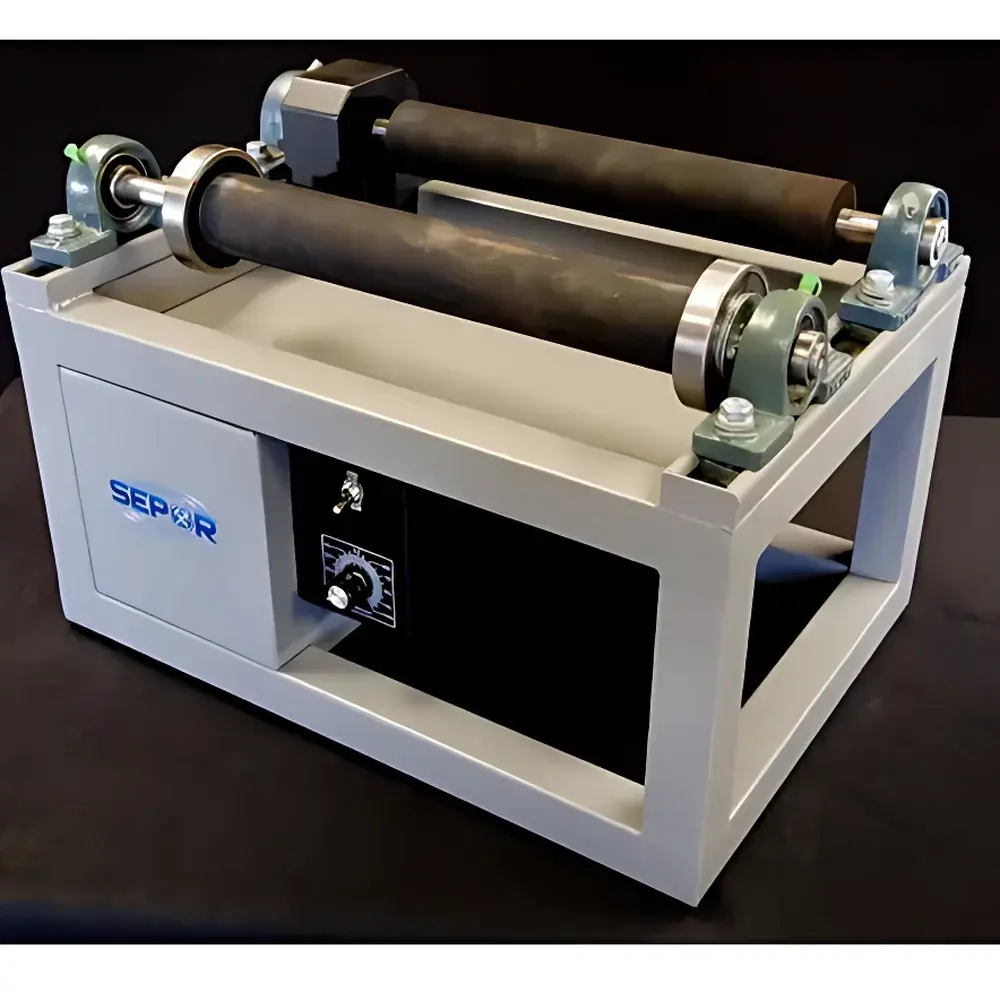

SEPOR Floor-Mounted Jar Mill Drive Unit Model 010E-027

Overview

The SEPOR Floor-Mounted Jar Mill Drive Unit (Model 010E-027) is a precision-engineered mechanical drive system designed to power laboratory-scale rotating jar mills for controlled wet or dry grinding, homogenization, dispersion, and particle size reduction of solid materials. Operating on the principle of rotational shear and impact energy transfer, the unit employs dual counter-rotating rolls to impart torque to cylindrical grinding jars—typically made of stainless steel, polyurethane, or ceramic—mounted horizontally between the rolls. Unlike magnetic stirrers or planetary ball mills, this drive architecture delivers consistent, low-slip torque transmission via high-friction chloroprene rubber rolls (60 Shore D), ensuring stable rotational velocity across variable load conditions. The unit converts AC input to regulated DC output, enabling fine-grained speed control from 20 to 320 RPM with ±1 RPM repeatability under steady-state operation. Its floor-mounted configuration provides enhanced structural rigidity and vibration damping, critical for extended-duration milling cycles and reproducible process scaling.

Key Features

• Robust floor-standing frame fabricated from powder-coated mild steel, rated for continuous-duty operation and compliant with ANSI/BIFMA ergonomic stability standards;
• Interchangeable roll diameters: 2-inch (50.8 mm) rolls for compact configurations; automatic upgrade to 2.5-inch (63.5 mm) rolls for drive lengths ≥48 inches to maintain optimal torque density and surface velocity;
• Adjustable inter-roll spacing accommodates jars from 3 to 10 inches in diameter, with calibrated micrometer-scale indicators for repeatable setup;
• Integrated cap stop mechanism prevents over-rotation and jar disengagement during high-speed operation, enhancing operator safety and jar integrity;
• Universal dual-voltage capability: factory-configurable for either 110 V / 1 Ph / 60 Hz (North America) or 220 V / 1 Ph / 50 Hz (EU/Asia) without external transformers;
• Modular design supports optional accessories—including programmable digital timer (0–99 hr), mechanical rotation counter (0–999,999 rev), jar alignment fixtures, and explosion-proof motors—for GMP-aligned or hazardous-area deployment.

Sample Compatibility & Compliance

The 010E-027 drive unit is compatible with standard ASTM E11-compliant grinding jars ranging from 3-inch to 10-inch diameters and up to 8-inch lengths per jar. When configured in multi-jar arrangements (e.g., four 5″ × 8″ jars requiring 40″ total roll length), the system maintains uniform angular velocity distribution across all jars—critical for statistical comparability in QC batch testing. All electrical components conform to IEC 61000-6-2 (immunity) and IEC 61000-6-4 (emission) standards. The unit carries CE marking and complies with RoHS Directive 2011/65/EU. For laboratories operating under FDA 21 CFR Part 11 or ISO/IEC 17025 frameworks, optional audit-trail-capable timers and electronic loggers are available to support data integrity requirements.

Software & Data Management

This is a hardware-only drive system with no embedded firmware or network interface. Speed calibration and operational parameters are set manually via front-panel potentiometer and mechanical switches. However, when paired with optional accessories—such as the SEPOR Digital Timer Module (P/N TIM-200)—the system supports timestamped start/stop logging, cycle count tracking, and password-protected parameter locking. Raw timer outputs can be exported via RS-232 or USB-to-serial adapters for integration into LIMS or ELN platforms. No proprietary software installation is required; data export follows plain-text CSV conventions compatible with Excel, LabArchives, and Benchling.

Applications

• Mineralogical sample preparation for XRF and XRD analysis (e.g., pulverizing ore composites to <75 µm D90);
• Pharmaceutical excipient blending and API micronization validation per USP and ;
• Ceramic slurry homogenization for tape-casting processes;
• Recycled battery cathode material reconditioning prior to electrochemical testing;
• Geotechnical soil stabilization additive dispersion studies;
• QC/QA batch verification in ISO 17025-accredited environmental labs processing sediment or sludge samples.

FAQ

What is the maximum jar weight supported per roll position?
Each roll position supports up to 35 lb (15.9 kg) static load at nominal speed. Dynamic load capacity decreases linearly above 250 RPM—consult SEPOR Application Note AN-JM-03 for torque derating curves.

Can this drive be used with non-cylindrical containers?
No. The system requires symmetric, rotationally balanced cylindrical jars with uniform outer diameter. Conical, square, or irregular-profile vessels induce unbalanced forces that compromise bearing life and speed accuracy.

Is speed calibration traceable to NIST standards?
Yes. SEPOR provides optional factory calibration certificates (NIST-traceable tachometer verification) upon request, valid for 12 months from date of issue.

Does the unit include emergency stop functionality?
All floor-mounted models ship with a hardwired, red mushroom-head E-stop button meeting IEC 60947-5-5 Category 0 requirements. Circuit interruption occurs within ≤100 ms.

What maintenance intervals are recommended?
Rubber roll surface inspection every 500 operating hours; roll replacement recommended at 2,000 hours or when Shore D hardness drops below 55. Gearbox oil change required every 5,000 hours using ISO VG 68 synthetic lubricant.
