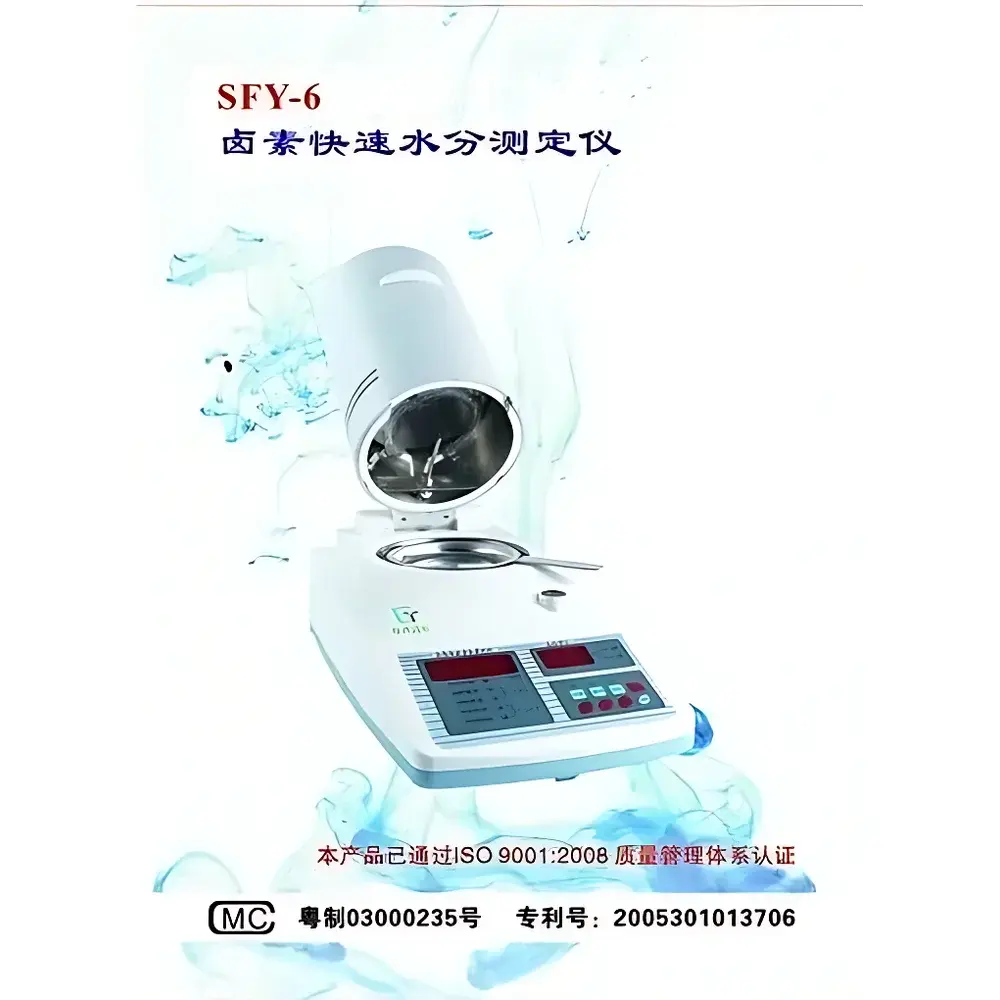

Shanghai Huanyu SFY-6 Halogen Rapid Moisture Analyzer

Overview

The Shanghai Huanyu SFY-6 Halogen Rapid Moisture Analyzer is a precision thermal-gravimetric instrument engineered for rapid, reproducible moisture quantification in solid and semi-solid samples. It operates on the principle of halogen-assisted thermogravimetry: a high-efficiency ring-shaped halogen lamp delivers uniform radiant heating across the sample surface, inducing controlled evaporation of volatile components—primarily water—while an integrated high-stability strain-gauge weighing system continuously monitors mass loss in real time. The instrument calculates moisture content (%) as the relative mass difference between the initial and final dried states, referenced to the original sample mass. Unlike conventional oven-drying methods requiring 2–24 hours, the SFY-6 achieves endpoint determination typically within 3–8 minutes, with measurement repeatability ≤ ±0.2% RSD (n=10, standard reference material). Its design conforms to the fundamental methodology outlined in ASTM D4442 (Standard Test Methods for Direct Moisture Content of Wood and Wood-Based Materials) and ISO 4463 (Plastics — Determination of water content), serving as a validated alternative to gravimetric oven procedures where throughput and operational efficiency are critical.

Key Features

• Adjustable sample chamber height (3 cm / 5 cm / 10 cm) accommodates diverse physical forms—including thin fillets (e.g., dried fish), irregular fungal caps (e.g., shiitake), granular feedstock, or powdered botanicals—without compromising thermal uniformity.
• Hybrid halogen heating architecture ensures rapid thermal response (< 60 s to reach 150 °C) and stable temperature maintenance (±1 °C over full range), minimizing localized charring and enabling accurate moisture profiling for heat-sensitive organic matrices.
• JK-series high-resolution load cell (0.01 g readability) coupled with automatic internal calibration and drift compensation algorithms ensures long-term metrological integrity under variable ambient conditions.
• Seven-parameter red LED display provides simultaneous, dedicated readouts—moisture %, initial/final mass, drying duration, start/end temperature, and auto-judgment time—eliminating manual transcription errors and supporting real-time process evaluation.
• Programmable temperature ramping and endpoint detection logic (slope-based or time-based termination) allow method customization per material class, aligning with internal SOPs or regulatory expectations such as USP or Ph. Eur. 2.5.12.

Sample Compatibility & Compliance

The SFY-6 is validated for use with heterogeneous biological and industrial materials including but not limited to: dried seafood products (e.g., cod, squid, anchovy), edible fungi (Agaricus bisporus, Lentinula edodes), herbal extracts, cereal grains, animal feed pellets, tobacco lamina, and pharmaceutical excipients. Its open-chamber geometry permits direct placement of intact specimens up to 60 g, avoiding pre-grinding when structural integrity must be preserved. While not certified to IEC 61000-4 electromagnetic immunity standards or FDA 21 CFR Part 11 out-of-the-box, the dual RS-232 interface supports integration into validated laboratory informatics systems when paired with compliant third-party software (e.g., LabX™ or custom GLP-compliant data loggers). All operational parameters—including date/time stamps, user ID, method name, and raw mass/time series—are exportable for audit trail reconstruction per ISO/IEC 17025 requirements.

Software & Data Management

Data acquisition and reporting are managed via optional PC connectivity using ASCII-protocol RS-232 communication. The analyzer transmits timestamped mass readings at configurable intervals (default: 1 s), enabling generation of complete drying curves in spreadsheet or LIMS-compatible formats. When used with the optional thermal printer, hard-copy reports include sample ID, operator code, test start/end timestamps, final moisture %, and method identifier—satisfying basic documentation needs in QC environments. For regulated settings, users may implement external validation protocols to verify data integrity, transmission accuracy, and electronic signature capability in accordance with Annex 11 (EU GMP) or ALCOA+ principles.

Applications

This analyzer serves as a primary moisture verification tool in quality control laboratories across food processing (e.g., verifying compliance with Codex Alimentarius moisture limits for dried mushrooms), aquaculture product certification (e.g., EU Regulation No. 1379/2013 for dried fish shelf-life prediction), agricultural commodity trading (e.g., grain moisture thresholds per ISO 712), and pharmaceutical raw material release testing (e.g., lactose monohydrate dehydration monitoring). Its portability (3.7 kg) and low power demand (≤500 W) also support field-deployable use in feed mills, tea estates, and coastal drying facilities where centralized lab access is limited.

FAQ

Does the SFY-6 comply with ISO 12099 for feed moisture analysis?

It implements the same thermogravimetric principle specified in ISO 12099; however, formal method validation—including bias assessment against reference oven-dry values—is required prior to routine use in accredited feed testing labs.

Can the instrument measure bound vs. free water separately?

No. The SFY-6 reports total volatiles lost below 180 °C as “moisture”; differentiation of water fractions requires complementary techniques such as Karl Fischer titration or DSC.

Is calibration traceable to NIST standards?

Internal calibration uses factory-traceable weights; external verification should be performed using certified reference materials (e.g., sodium tartrate dihydrate, 15.66% H₂O) traceable to national metrology institutes.

What maintenance is required for long-term accuracy?

Monthly cleaning of the halogen lamp housing and sample pan with lint-free ethanol swabs; annual verification of temperature sensor linearity and load cell hysteresis by authorized service personnel.

Is the heating profile programmable for multi-stage drying?

No—the SFY-6 executes single-phase heating only. Multi-step protocols require manual intervention or external controller integration.
