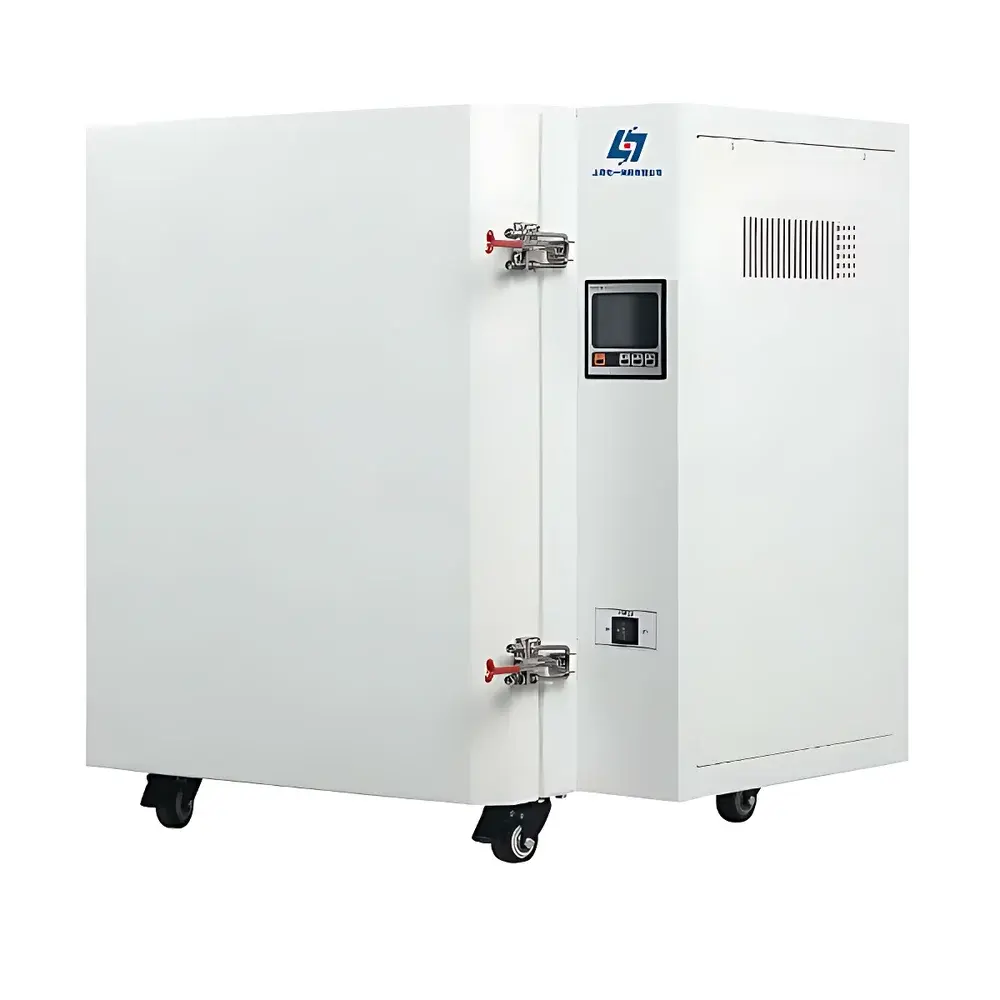

Shanghai RightOne DHG-9038A High-Temperature Forced-Air Drying Oven (400 °C)

Overview

The Shanghai RightOne DHG-9038A is a precision-engineered high-temperature forced-air drying oven designed for laboratory and industrial thermal processing applications requiring stable, uniform heating up to 400 °C. Built upon convection-based thermal management principles, it employs a microprocessor-controlled PID temperature regulation system coupled with a multi-blade centrifugal circulation fan to ensure rapid heat-up and minimal spatial deviation across the working chamber. Unlike natural-convection ovens, the DHG-9038A actively circulates preheated air through an optimized duct system—feeding heated air directly into the chamber via a pre-heating cavity—thereby achieving superior thermal homogeneity (±2.5 % at 100 °C, empty load) and reproducible process conditions. Its structural architecture prioritizes long-term operational integrity under sustained high-temperature exposure, making it suitable for drying, baking, curing, sterilization validation support, and pre-conditioning of samples prior to analytical testing.

Key Features

• Microprocessor-based PID temperature controller with 4.3-inch full-color TFT LCD interface, supporting real-time display of setpoint, actual chamber temperature, elapsed time, and remaining timer duration
• Pre-heating cavity design that thermally conditions incoming air before entry into the working chamber—reducing thermal lag and improving ramp rate consistency

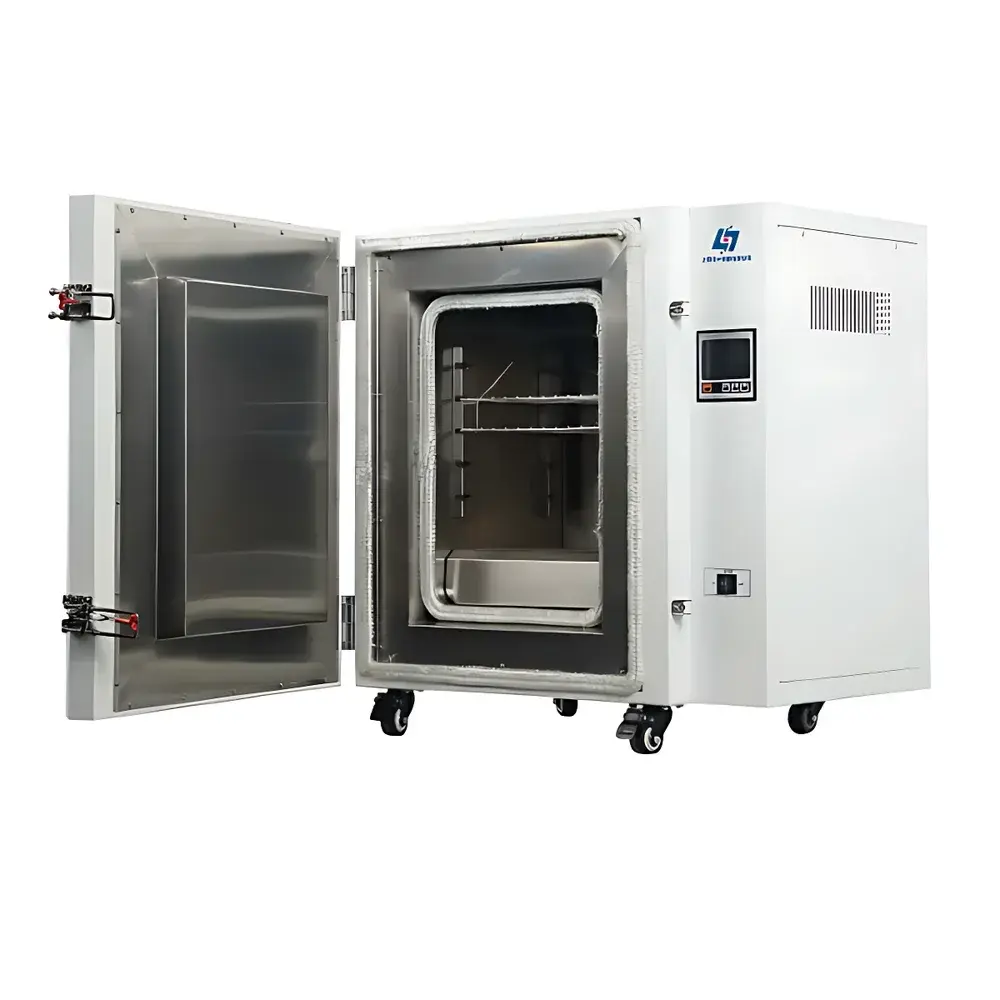

• Mirror-finish SUS304 stainless steel interior chamber (300 × 300 × 350 mm) with seamless welded corners and electropolished surface for corrosion resistance and ease of cleaning
• Dual-layer ceramic fiber rope door gasket rated for continuous operation at 400 °C, ensuring low thermal leakage and extended service life under cyclic thermal stress
• High-efficiency glass fiber insulation (≥80 mm thickness) between chamber and outer casing minimizes external surface temperature rise and energy consumption
• Cold-rolled steel exterior with electrostatic epoxy powder coating for mechanical durability and chemical resistance in shared lab environments
• Two adjustable stainless steel shelves with rack-and-pinion height positioning; reinforced tray supports rated for ≥15 kg loading per shelf
• Self-diagnostic startup sequence with power-loss memory retention—automatically restores last-used parameters after interruption or brownout events
• Optional independent over-temperature cut-off system (hardware-based, non-software dependent) compliant with IEC 61000-4-2/4-4 immunity standards

Sample Compatibility & Compliance

The DHG-9038A accommodates a broad range of sample types including metal components, polymer specimens, ceramic powders, pharmaceutical excipients, and coated substrates. Its 30 L chamber volume and uniform airflow profile support standardized test protocols aligned with ASTM D2240 (Shore hardness preconditioning), ISO 293 (thermoplastic compression molding), and USP (dry heat sterilization validation support). The unit meets CE marking requirements for electromagnetic compatibility (EMC Directive 2014/30/EU) and low-voltage safety (LVD Directive 2014/35/EU). While not certified to UL 61010-1 out-of-box, its electrical architecture—including grounded chassis, thermal fusing, and isolated heater circuits—is engineered to facilitate third-party certification for GMP-regulated facilities. All materials in contact with the chamber interior comply with FDA 21 CFR 177.2400 for repeated-use food-contact equipment.

Software & Data Management

Standard configuration includes RS485 serial communication port (Modbus RTU protocol) enabling integration with centralized lab monitoring systems or SCADA platforms. Optional accessories include embedded thermal printer (real-time timestamped temperature logs), PC software suite (Windows-compatible) for data export in CSV/Excel format, and configurable alarm event logging with audit trail capability. When equipped with the optional intelligent program controller, users may define up to 30 segmented ramp-soak cycles with slope control, enabling compliance with accelerated aging studies per ICH Q1A(R2) guidelines. All digital interfaces adhere to GLP-compliant data integrity principles: user authentication, electronic signature support, and immutable record storage with tamper-evident timestamps.

Applications

• Pre-drying of moisture-sensitive reagents and reference standards prior to Karl Fischer titration or gravimetric analysis
• Thermal conditioning of composite laminates and adhesives for tensile strength testing (ASTM D638, ISO 527)
• Baking of printed circuit board (PCB) assemblies to remove residual solvents prior to conformal coating
• Heat treatment of calibration weights and metrology fixtures to stabilize dimensional properties
• Accelerated stability testing of packaging materials under elevated temperature conditions (ISO 11607-1 Annex B)
• Residue ashing support for total organic carbon (TOC) determination workflows
• Moisture content verification in raw materials for pharmaceutical manufacturing (ICH Q5C)

FAQ

What is the maximum continuous operating temperature of the DHG-9038A?
The unit is rated for continuous operation at 400 °C, validated per manufacturer’s thermal endurance testing under full-load conditions.
Does the oven meet ISO/IEC 17025 requirements for temperature uniformity verification?
Yes—the ±2.5 % uniformity specification at 100 °C (empty chamber) aligns with ISO/IEC 17025:2017 Clause 6.4.3 for equipment performance verification; users should perform periodic mapping per ILAC-G8:2021.
Can the DHG-9038A be integrated into a LIMS or MES environment?
Via optional RS485 + Modbus RTU interface, it supports bi-directional communication with enterprise lab systems when paired with compatible gateway hardware.
Is the stainless steel chamber electropolished to meet pharmaceutical cleanroom standards?
The interior uses mirror-finish SUS304 with Ra ≤ 0.8 µm surface roughness—suitable for Class C/D cleanroom-adjacent applications but requires supplemental passivation per ASTM A967 for full USP compliance.
What maintenance intervals are recommended for sustained 400 °C operation?
Fan motor bearings and door gaskets should be inspected every 500 operational hours; insulation integrity checks are advised annually using thermal imaging per ISO 18436-7.
