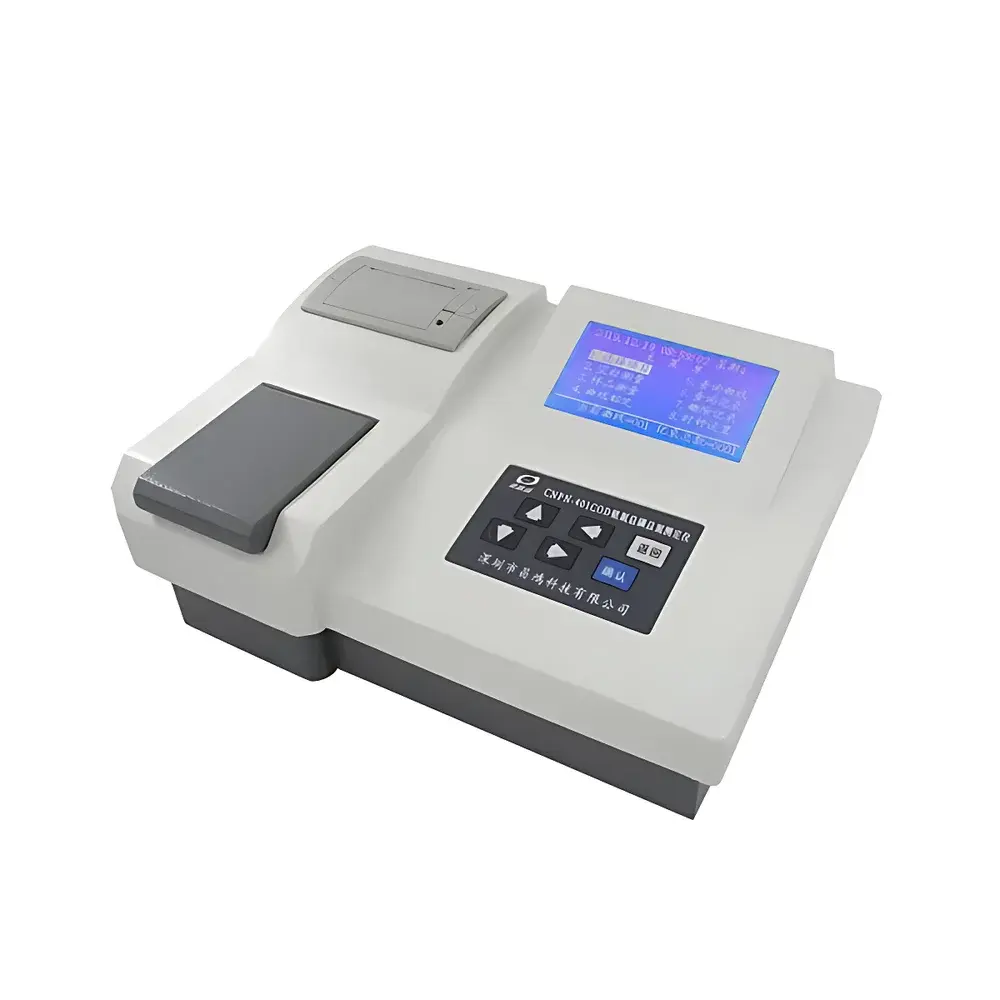

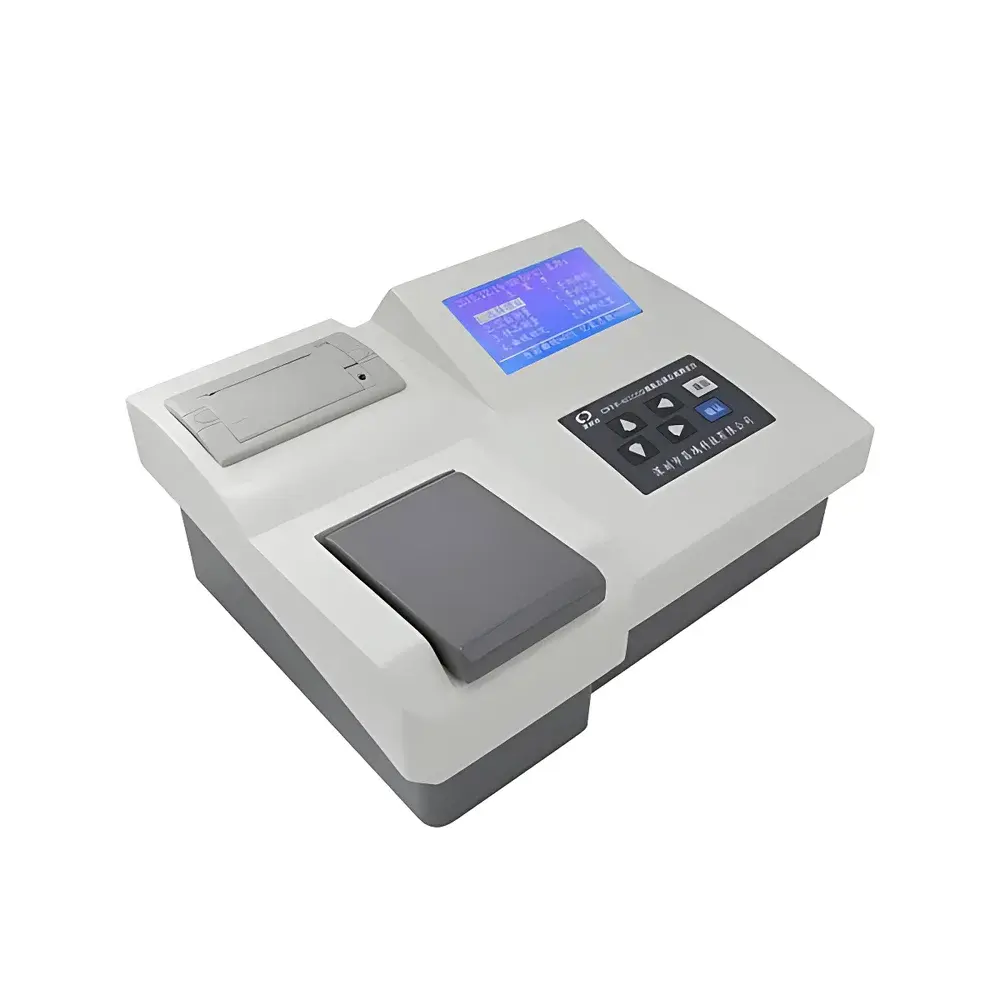

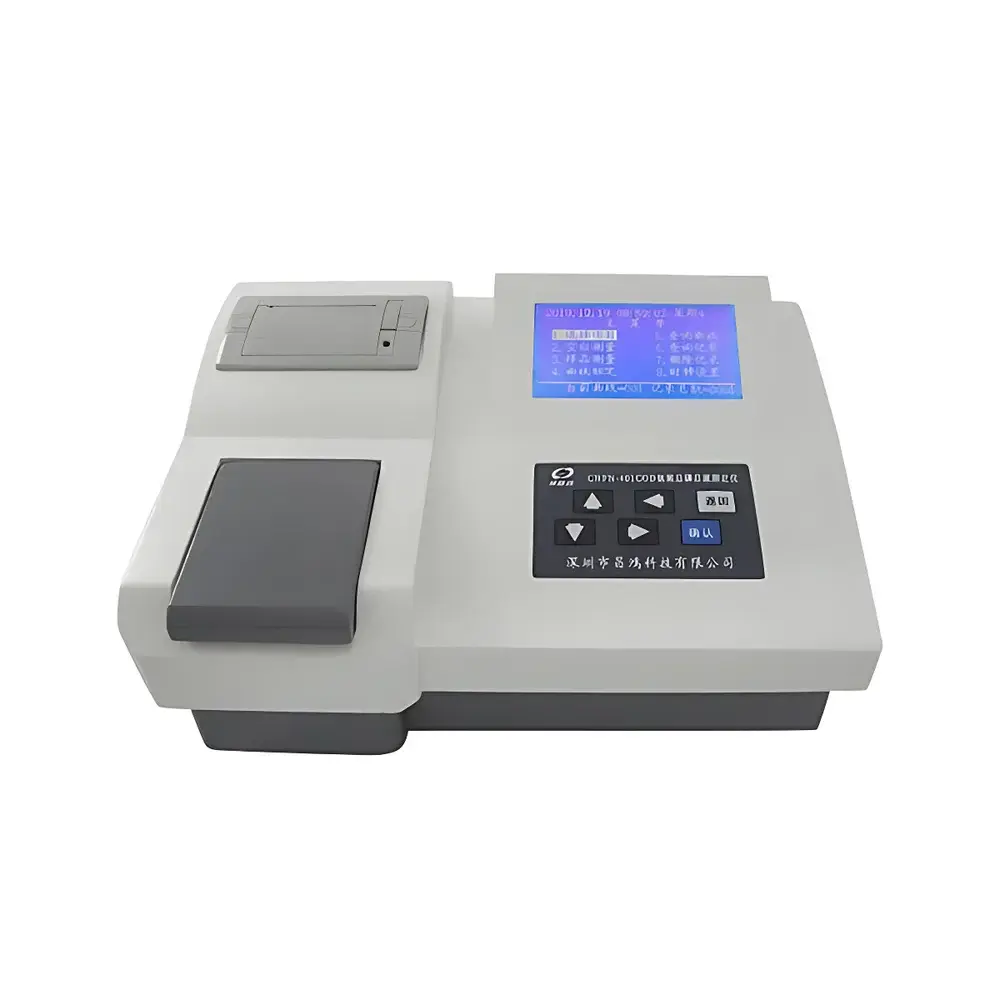

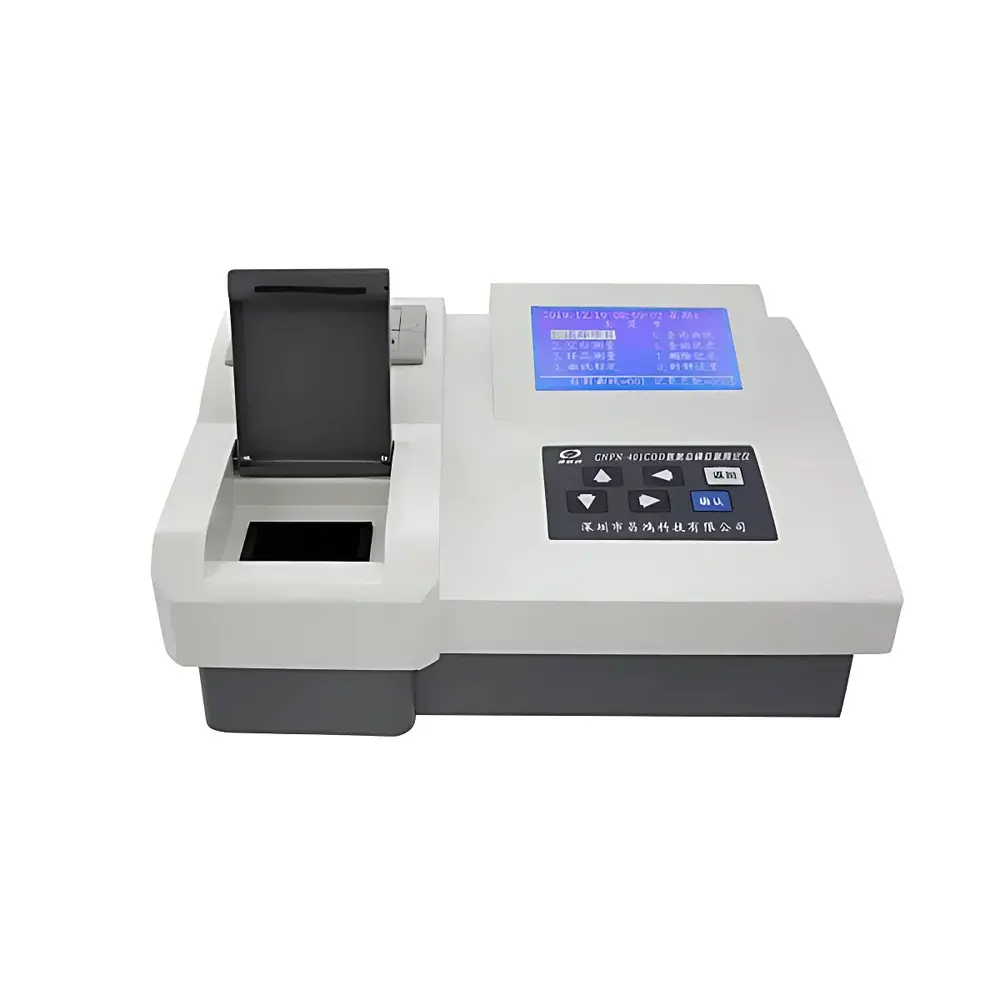

Shenchanghong CNPN-401 Multi-Parameter Water Quality Analyzer for COD, Ammonia Nitrogen, Total Phosphorus and Total Nitrogen

Overview

The Shenchanghong CNPN-401 is a laboratory-grade multi-parameter water quality analyzer engineered for precise, reproducible quantification of key regulatory analytes—including Chemical Oxygen Demand (COD), Ammonia Nitrogen (NH₃-N), Total Phosphorus (TP), and Total Nitrogen (TN)—in municipal, industrial, and environmental wastewater samples. The instrument operates on standardized spectrophotometric principles: after sample digestion (where applicable), target species are converted into chromophores with defined molar absorptivities; absorbance is measured at optimized wavelengths using a narrow-band interference optical system paired with a high-brightness, long-life cold light source. This architecture ensures minimal spectral overlap, low thermal drift (<0.002 A over 20 min), and immunity to ambient light interference—critical for compliance with ISO 8467 (COD), ISO 7150-1 (ammonia), ISO 6878 (total phosphorus), and ISO 11905-1 (total nitrogen) methodologies. Designed as a modular platform, the CNPN-401 decouples optical measurement from thermal digestion, eliminating cross-contamination risks and preserving photometric stability during extended operation.

Key Features

• Modular architecture: Independent spectrophotometer and programmable digester (DIS-16B/20B/25B/36B) prevent thermal coupling and ensure long-term optical integrity.
• PID-controlled digester with ±0.5 °C temperature accuracy across 0–200 °C range; pre-optimized protocols for COD (165 °C/15 min), TP (125 °C/30 min), and TN (125 °C/30 min).
• Dual-use digestion–colorimetric tubes: Borosilicate glass tubes rated for repeated high-temperature use (up to 200 °C) and mechanical durability; compatible with all four core assays.
• Bilingual 3.5-inch color touchscreen (320×240) with intuitive icon-driven menu navigation; supports real-time method selection, calibration curve management, and on-device result review.
• Robust data governance: Stores up to 20 calibration curves and 400 measurement records per parameter (COD/NH₃-N/TP/TN); non-volatile memory retains data through power loss.
• Regulatory-ready interfaces: USB port enables secure export of raw absorbance values, calibration coefficients, timestamps, and operator IDs to external PCs for audit-trail generation.
• Expanded analytical capability: Supports 56 additional water quality parameters—including nitrate, fluoride, heavy metals (Cr⁶⁺, Cd, Pb, As), sulfide, phenols, and dissolved oxygen—via validated reagent kits and wavelength-specific calibrations.

Sample Compatibility & Compliance

The CNPN-401 accommodates liquid samples within standard 16 mm diameter digestion tubes (40 included), accepting volumes from 0.5 to 5.0 mL depending on assay protocol. It is validated for use with clarified, filtered, or centrifuged wastewater matrices per EPA Method 410.4 (COD), EPA Method 350.1 (ammonia), EPA Method 365.4 (phosphorus), and EPA Method 351.2 (total Kjeldahl nitrogen). Chloride tolerance up to 2000 mg/L in COD analysis meets ASTM D1253 requirements for high-salinity effluents. All optical and thermal subsystems comply with IEC 61010-1:2010 safety standards for laboratory electrical equipment. While not FDA 21 CFR Part 11 certified out-of-box, its timestamped data logs, user-accessible calibration history, and USB-exportable records support implementation of GLP/GMP-compliant workflows when integrated into validated laboratory information management systems (LIMS).

Software & Data Management

No proprietary software installation is required: the CNPN-401 functions as a standalone measurement terminal with embedded firmware supporting full method execution, curve fitting (linear, polynomial), and concentration calculation. Calibration curves may be generated in-house using NIST-traceable standards or imported via USB. All stored data include mandatory metadata: date/time stamp, operator ID (manually entered), digestion temperature/duration, lot numbers of reagents used, and raw absorbance values at primary and reference wavelengths. Exported CSV files are structured for direct import into Excel, LabWare LIMS, or Empower CDS—enabling automated report generation, trend analysis, and QC charting (e.g., X-bar/R charts per ISO/IEC 17025). Firmware updates are delivered via USB drive and include version-controlled change logs aligned with ISO 9001 documentation requirements.

Applications

The CNPN-401 serves as a core analytical tool in municipal wastewater treatment plants (WWTPs) for daily process control of nitrification/denitrification efficiency, phosphorus removal performance, and organic loading assessment. Environmental monitoring agencies deploy it for field-lab verification of discharge compliance against national limits (e.g., China’s GB 8978-1996, EU Urban Wastewater Treatment Directive 91/271/EEC). Industrial clients—including textile, electroplating, food processing, and pharmaceutical facilities—use it for pretreatment verification, influent characterization, and sludge dewatering optimization. Its expandable parameter set also supports research applications in limnology, sediment pore-water analysis, and constructed wetland performance evaluation—particularly where rapid turnaround of multiple nutrient metrics is essential for kinetic modeling.

FAQ

Does the CNPN-401 require annual recalibration by a certified service provider?
No. Users perform routine calibration using supplied standard solutions; factory calibration certificates (traceable to NIM, China) are provided. Annual verification against reference materials is recommended under ISO/IEC 17025 but not mandatory unless specified by internal QA protocols.
Can the instrument measure COD using both dichromate and permanganate methods?
Yes. The CNPN-401 supports both EPA 410.4 (dichromate) and ISO 8467 (permanganate) protocols via dedicated reagent kits and wavelength selection—enabling method flexibility for saline vs. freshwater matrices.
Is remote monitoring or network integration possible?
Not natively. The device lacks Ethernet/Wi-Fi; however, scheduled USB data exports can be automated via host PC scripts, enabling integration into centralized environmental data platforms (e.g., SCADA, EHS dashboards) through middleware.
What maintenance is required for long-term optical stability?
Annual inspection of the interference filter alignment and LED output intensity is advised. Cleaning of the cuvette chamber and optical path with lint-free wipes and isopropanol is performed between sample batches per SOP.
Are reagents supplied with CE/REACH certification for export to the EU?
Yes. All Shenchanghong reagent kits carry RoHS and REACH declarations of conformity; SDS documents are available in English upon request for customs clearance and lab safety compliance.
