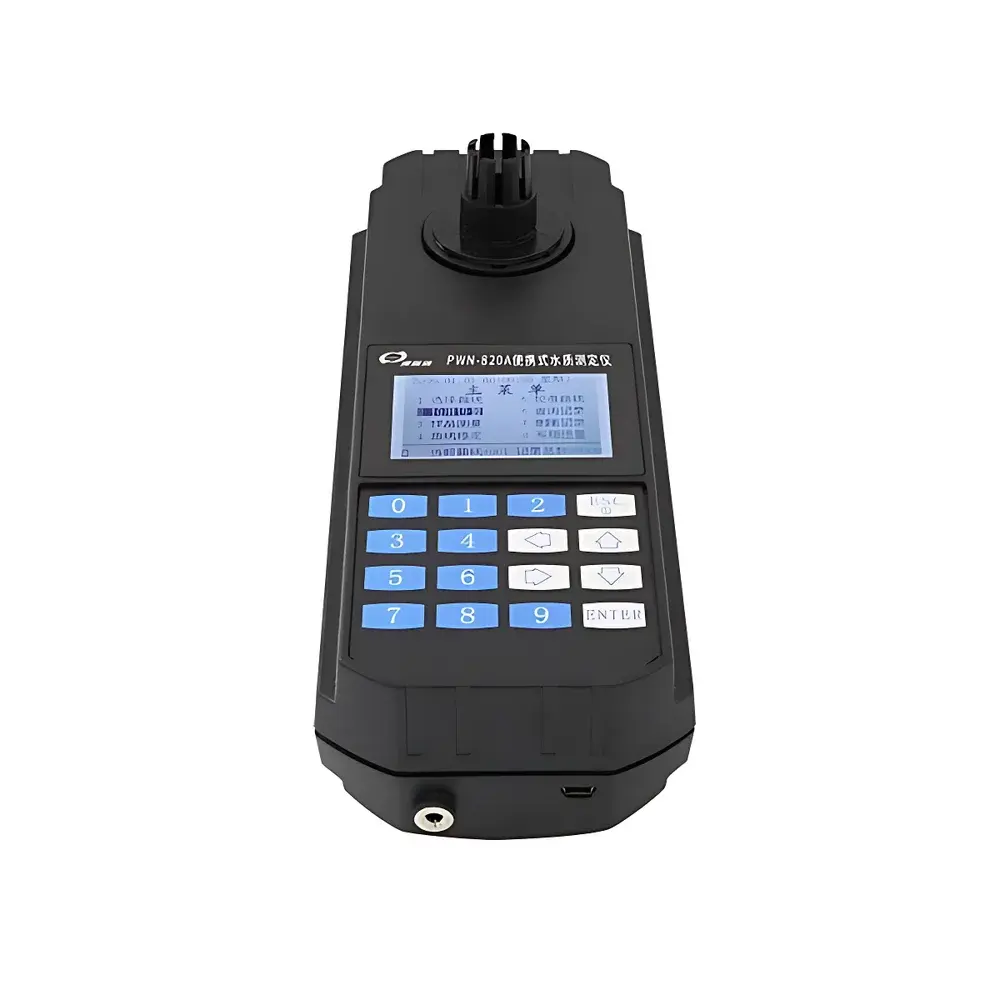

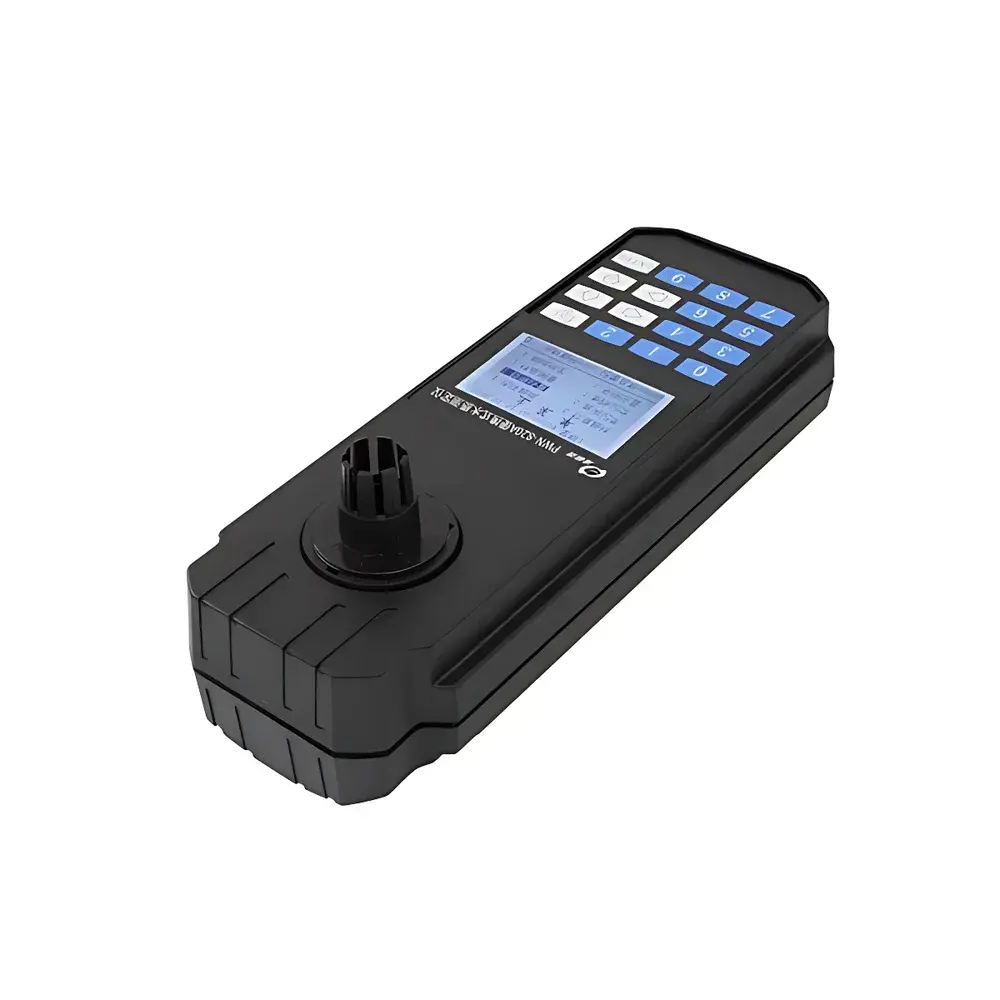

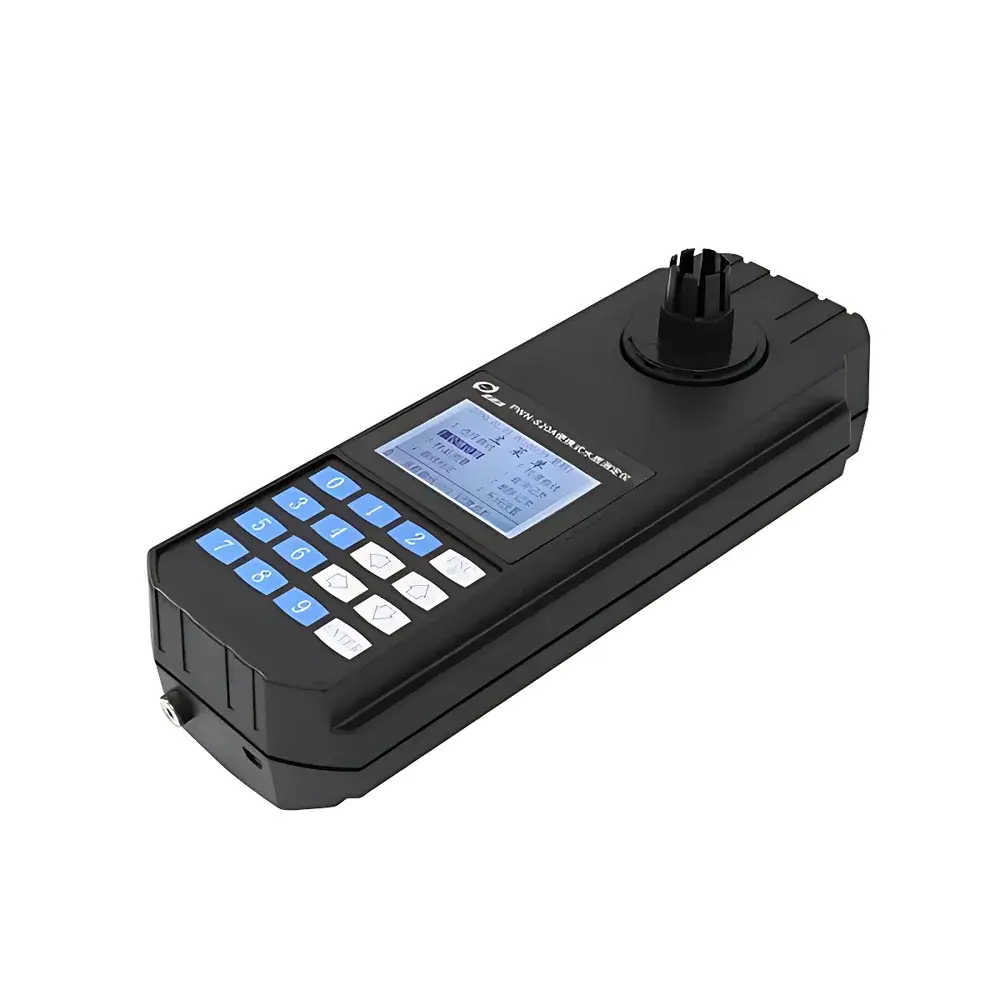

Shenchanghong PWN-820A Portable COD and Ammonia-N Analyzer

Overview

The Shenchanghong PWN-820A Portable COD and Ammonia-N Analyzer is a field-deployable dual-parameter spectrophotometric instrument engineered for rapid, on-site assessment of chemical oxygen demand (COD) and ammonia nitrogen (NH₃-N) in surface water, wastewater, drinking water sources, and environmental monitoring stations. It operates on the principle of wavelength-specific absorption photometry: COD is quantified at 610 nm following dichromate digestion under acidic conditions, while ammonia-nitrogen is determined at 420 nm using the Nesslerization method (or salicylate-based colorimetry, depending on reagent formulation). The system integrates a dedicated 4-position digital digester with independent PID temperature control and timing logic—ensuring consistent thermal treatment across samples without cross-interference with optical measurement. Its compact form factor (500 g total analyzer mass), IP65-rated ABS enclosure, and ultra-low-power 16-bit microcontroller architecture enable reliable operation in humid, dusty, or mobile environments—including riverbanks, municipal pumping stations, industrial effluent outfalls, and emergency response scenarios.

Key Features

• Dual-wavelength optical system with cold LED light source and narrow-band interference filters, delivering long-term photometric stability (absorbance drift < 0.002 A over 20 minutes)
• Independent 4-hole digester unit with precision PID-controlled heating (range: ambient to 165 °C) and automatic countdown timer—eliminating thermal crosstalk during spectral acquisition
• On-board data management supporting up to 30 user-defined calibration curves and 199 timestamped measurement records (including absorbance, transmittance, concentration, and full ISO 8601 timestamps)
• USB interface compliant with standard CDC/ACM protocols for direct data transfer to Windows/Linux systems; compatible with CSV export and third-party LIMS integration
• Battery-powered operation with >6 months standby life and integrated low-power mode; includes universal AC/DC adapter (220 V input / 12 V output)
• Robust mechanical design: injection-molded ABS housing, sealed keypad, and corrosion-resistant internal optics—certified to IP65 ingress protection standards
• Chloride interference mitigation up to 2000 mg/L for COD analysis, enabling accurate measurements in saline or coastal wastewater matrices

Sample Compatibility & Compliance

The PWN-820A accommodates standard 16 mm outer-diameter glass or quartz digestion tubes (supplied as 20× disposable/reusable cuvettes) and supports both unfiltered and filtered aqueous samples per ISO 6060 (COD) and ISO 7150-1 (ammonia-nitrogen). Sample volumes are standardized at 2.5 mL for digestion and 1.0 mL for colorimetric readout. The instrument’s methodology aligns with core elements of APHA Standard Methods 5220B (COD) and 4500-NH₃ F/G (ammonia), and its data integrity framework—including timestamped storage, non-volatile memory, and protected calibration parameters—supports GLP-compliant field documentation. While not certified to FDA 21 CFR Part 11, its audit-ready record structure satisfies internal QA/QC requirements for environmental laboratories operating under ISO/IEC 17025:2017 Annex A.2 traceability provisions.

Software & Data Management

No proprietary software installation is required: raw data export occurs via standard USB mass-storage emulation or CDC serial mode. Each stored record contains concentration (mg/L), measured absorbance (A), transmittance (%T), calibration curve ID, operator ID (user-configurable), and full timestamp (year, month, day, hour, minute, second). Internal memory retains all entries through power cycles; data loss prevention logic ensures write confirmation prior to buffer flush. Calibration curves may be imported/exported as plain-text .CSV files, facilitating traceable method validation and inter-instrument consistency checks. Firmware updates are delivered via signed binary packages over USB, preserving cryptographic integrity of embedded algorithms.

Applications

• Routine surveillance of municipal wastewater treatment plant influent/effluent streams
• Field verification of industrial discharge compliance against local environmental permits (e.g., China’s GB 8978-1996, EU Urban Wastewater Treatment Directive Annex I)
• Emergency spill response—rapid triage of organic load and nitrogen toxicity in receiving waters
• Research-grade longitudinal studies in limnology and hydrology where portability and reproducibility are prioritized over laboratory-grade throughput
• Educational use in environmental engineering labs requiring hands-on exposure to standardized wet-chemistry analytical workflows

FAQ

Does the PWN-820A require external lab calibration before first use?
No—factory-calibrated with NIST-traceable reference standards; however, users must perform initial verification using certified check standards per ISO/IEC 17025 clause 7.7.
Can the instrument measure COD and ammonia-N simultaneously in one sample?
No—sequential analysis is required: COD digestion (15–20 min at 165 °C) must be completed before ammonia-N determination, which uses a separate reagent set and shorter reaction time (10 min at room temperature).
Is the 4-hole digester compatible with alternative tube formats?
It accepts only 16 mm OD round-bottom digestion tubes conforming to DIN 12775 specifications; non-standard diameters or flat-bottom designs will compromise thermal uniformity and safety.
How is data security maintained during USB transfer?
Data export is read-only; no firmware or calibration parameters can be modified via USB—preventing accidental configuration changes in shared-use environments.
What maintenance intervals are recommended for optical components?
Annual inspection of LED intensity and filter transmission is advised; cleaning limited to lint-free swabs with isopropanol—no disassembly of optical module required under normal operating conditions.
