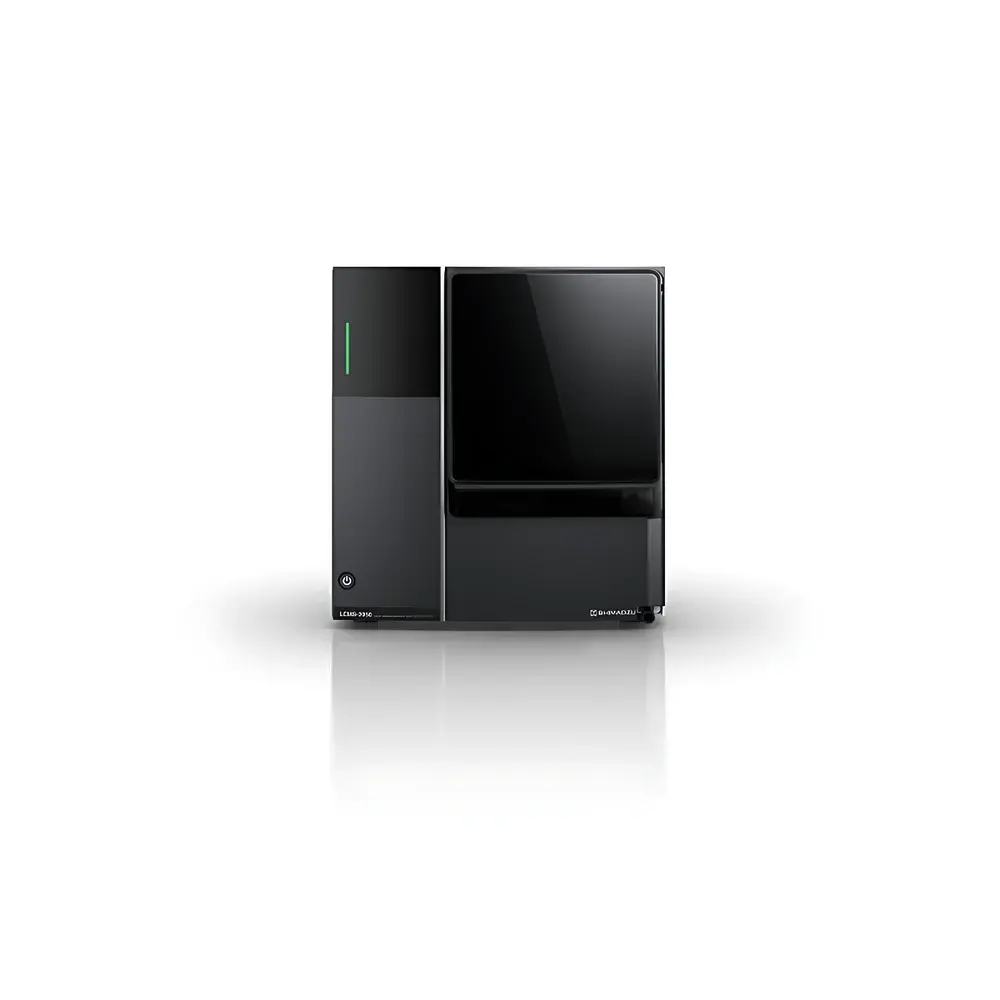

Shimadzu LCMS-2050 Single Quadrupole Liquid Chromatography Mass Spectrometer

Overview

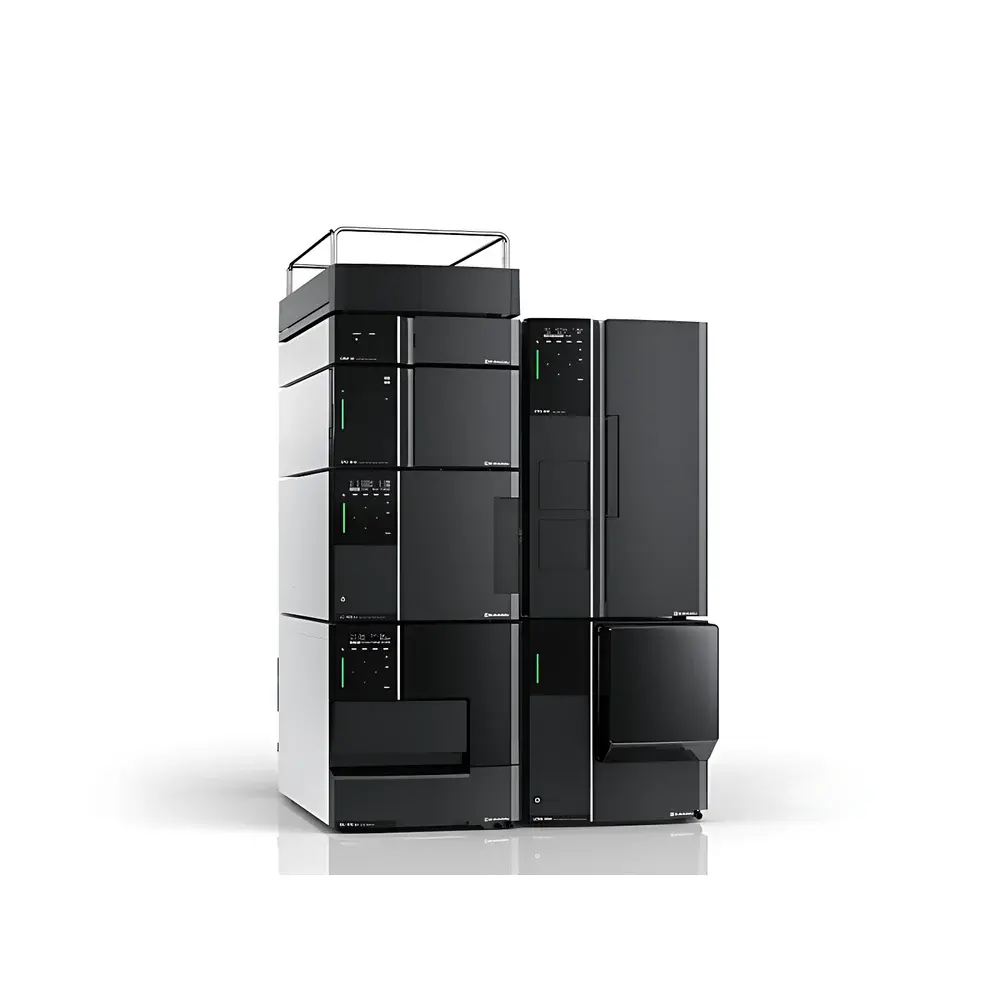

The Shimadzu LCMS-2050 is a compact, high-performance single quadrupole liquid chromatography mass spectrometer engineered for routine quantitative and qualitative analysis in regulated and research laboratories. It operates on the principle of electrospray ionization (ESI) and atmospheric pressure chemical ionization (APCI), coupled with a robust radio frequency (RF)-only quadrupole mass analyzer that transmits ions across a broad mass range (m/z 2–2000) with high transmission efficiency and stable DC/RF voltage control. Unlike hybrid or triple quadrupole platforms, the LCMS-2050 is optimized for simplicity, speed, and reproducibility in targeted single-ion monitoring (SIM) and full-scan acquisition modes—making it especially suitable for applications requiring rapid method deployment, high sample throughput, and minimal operator training. Its integrated hardware architecture eliminates external vacuum pumps and reduces footprint by 66% versus prior-generation Shimadzu LC-MS systems, enabling seamless benchtop integration with Shimadzu Nexera UHPLC or third-party HPLC systems without compromising analytical integrity.

Key Features

• Compact Integrated Design: Engineered as a fully self-contained LC-MS unit with built-in vacuum system, ion source, and quadrupole mass analyzer—no external roughing pump required. Dimensions reduced to under 50 cm (W) × 55 cm (D) × 45 cm (H), facilitating installation in space-constrained QC labs or core facilities.
• Dual-Mode Heated Composite Ion Source (DUIS): Combines ESI and APCI capabilities within a single, thermally stabilized probe. Optimized gas flow dynamics and adjustable desolvation temperature (up to 500 °C) enhance ionization efficiency for diverse analytes—including low-polarity small molecules, polar metabolites, and thermally labile pharmaceuticals—without hardware reconfiguration.
• Mass-it Real-Time Data Visualization: Proprietary software interface overlays extracted ion chromatograms (XIC), base peak chromatograms (BPC), and real-time mass spectra directly on the acquisition screen. Enables immediate assessment of retention time alignment, signal-to-noise ratio, and spectral purity—critical for method development and troubleshooting.
• Rapid System Readiness: Achieves operational vacuum and thermal equilibrium in ≤6 minutes from cold start, reducing instrument downtime between shifts and supporting walk-up operation in shared-lab environments.
• Robust Quadrupole Architecture: Precision-machined rod set with active RF compensation ensures long-term mass calibration stability (<±0.1 Da over 24 h) and consistent resolution across the full mass range, meeting routine compliance requirements for GLP and ISO/IEC 17025-accredited testing.

Sample Compatibility & Compliance

The LCMS-2050 supports direct coupling with standard reversed-phase, HILIC, and ion-pairing LC methods using common mobile phases (e.g., water/acetonitrile with 0.1% formic acid). It complies with key regulatory frameworks governing analytical instrumentation: data integrity features align with FDA 21 CFR Part 11 (audit trail, electronic signatures, user access controls); acquisition and reporting workflows support GLP/GMP documentation standards; and performance verification protocols reference ASTM D7984 (for environmental analysis) and USP (chromatography) where applicable. The system is validated for use in pharmaceutical impurity profiling, clinical toxicology screening, food contaminant testing, and environmental residue analysis per EPA Method 1694 and EU SANTE/11312/2021 guidelines.

Software & Data Management

Controlled via LabSolutions LCMS software (v5.9 or later), the LCMS-2050 provides intuitive method building, automated calibration, and batch processing with customizable report templates. Raw data files (.qgd) are stored in vendor-neutral formats compatible with third-party processing tools (e.g., Compound Discoverer, SimLynx). Audit trail functionality logs all user actions—including parameter changes, data reprocessing, and report generation—with immutable timestamps and operator IDs. Data backup and archiving comply with ISO 27001-aligned IT security policies, and optional network deployment supports centralized instrument management across multi-site laboratory networks.

Applications

• Quantitative bioanalysis of small-molecule drugs and metabolites in plasma, urine, and tissue homogenates (using internal standard calibration)
• Residue screening in agricultural commodities (pesticides, veterinary drugs) per EU MRL regulations
• Impurity identification and quantification in API synthesis batches (ICH Q3A/Q3B)
• Environmental monitoring of pharmaceuticals and personal care products (PPCPs) in wastewater influent/effluent
• Food safety testing for mycotoxins, allergens, and adulterants using confirmatory SIM methods
• Academic research in natural product chemistry, lipidomics, and forensic toxicology where high-throughput screening precedes structural elucidation

FAQ

Is the LCMS-2050 compliant with 21 CFR Part 11?
Yes—the LabSolutions LCMS software includes full electronic signature capability, audit trail logging, and role-based access control, satisfying all technical requirements for Part 11 compliance in regulated environments.
Can the system be operated by non-mass spectrometry specialists?
Yes—its workflow-driven interface, pre-configured method templates, and Mass-it visualization reduce reliance on deep MS expertise. Routine operation requires only basic HPLC knowledge and minimal training.
What maintenance intervals are recommended for the ion source and quadrupole?
Source cleaning is recommended every 2–4 weeks depending on sample matrix complexity; quadrupole cleaning is typically required annually under normal usage conditions, verified via daily tuning and mass calibration checks.
Does the LCMS-2050 support APCI and ESI simultaneously?
No—it uses a single heated composite ion source (DUIS) capable of rapid switching between ESI and APCI modes, but not concurrent operation.
Is remote monitoring or control supported?
Yes—LabSolutions LCMS supports secure remote access via TLS-encrypted client-server architecture, enabling real-time status monitoring, method upload, and result review from off-site locations.
