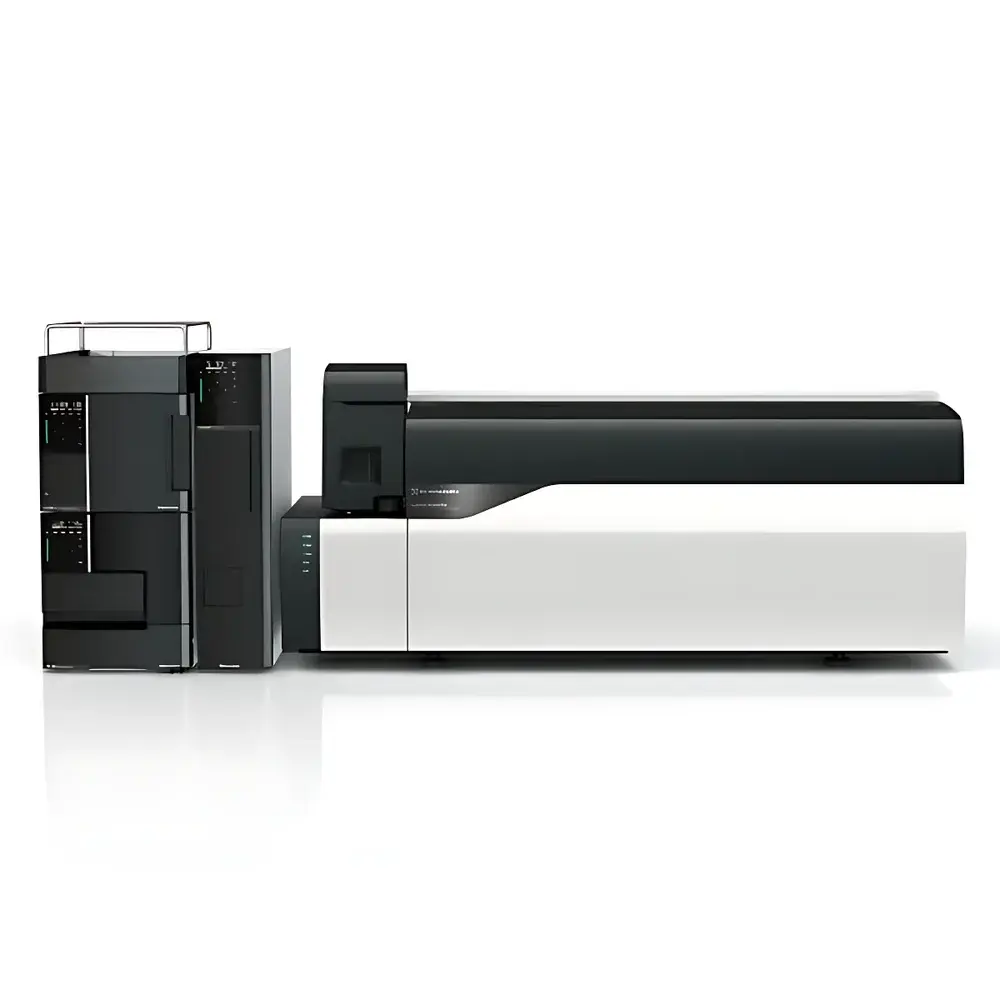

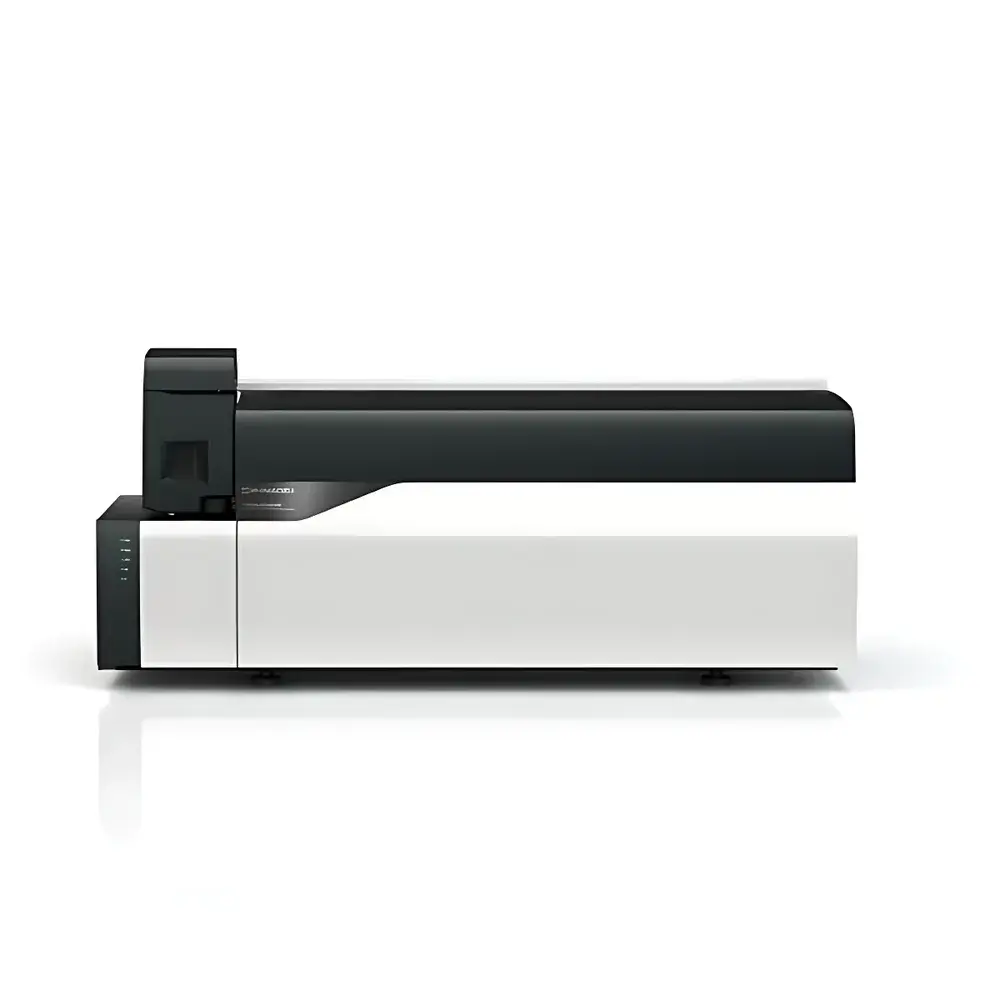

Shimadzu LCMS-8050RX Triple Quadrupole Liquid Chromatography Mass Spectrometer

Overview

The Shimadzu LCMS-8050RX is a high-performance triple quadrupole liquid chromatography mass spectrometer engineered for robust, high-throughput quantitative and qualitative analysis in regulated and research laboratory environments. Built upon the proven Ultra-Fast Mass Spectrometry (UFMS) architecture of Shimadzu’s LCMS-8000 series, the LCMS-8050RX integrates advanced ion optics, a redesigned atmospheric pressure ionization (API) source, and intelligent system management to deliver enhanced sensitivity (sub-fg on-column detection for key pharmaceutical analytes), improved signal stability over extended acquisition periods (>24 h RSD <8% for internal standard-normalized peak areas), and reduced method development time. Its tandem quadrupole configuration enables selective reaction monitoring (SRM), multiple reaction monitoring (MRM), and enhanced product ion scanning—core techniques for targeted quantitation in compliance-driven workflows including bioanalysis, environmental contaminant screening, food safety testing, and metabolomics.

Key Features

• Advanced API Source with Optimized Ion Transmission: Redesigned heated electrospray ionization (H-ESI) and atmospheric pressure chemical ionization (APCI) interfaces featuring active desolvation gas control and self-cleaning geometry to minimize matrix-induced suppression and extend maintenance intervals.
• High-Speed MRM Acquisition: Capable of >1,000 MRM transitions per second with dwell times as low as 1 ms, enabling comprehensive multi-analyte panels without sacrificing duty cycle or sensitivity.
• Performance Guardian Functionality: Automated pre-run system diagnostics—including vacuum integrity verification, detector gain calibration, mass axis alignment, and tuning compound response evaluation—executed without user intervention to ensure analytical readiness and traceable instrument qualification.
• Eco Mode Power Management: Dynamic power-down protocol activates after user-defined idle periods (configurable from 15–120 min), reducing standby power consumption by up to 31% while preserving vacuum integrity and thermal equilibrium for rapid resumption of analysis.
• Integrated UHPLC Compatibility: Seamless bidirectional communication with Shimadzu Nexera series ultra-high-performance liquid chromatographs supports synchronized auto-start/stop, gradient synchronization, and real-time flow rate compensation—minimizing carryover and improving retention time reproducibility (RSD <0.15% over 100 injections).

Sample Compatibility & Compliance

The LCMS-8050RX accommodates a broad range of sample matrices—including plasma, urine, tissue homogenates, surface water, soil extracts, and food digests—following standard protein precipitation, solid-phase extraction (SPE), or QuEChERS preparation protocols. Its hardware and software architecture comply with key regulatory requirements for data integrity and auditability: full support for 21 CFR Part 11-compliant electronic signatures, audit trail logging (user actions, parameter changes, calibration events), and secure role-based access control. System suitability testing (SST) templates align with USP , ICH Q2(R2), and ISO/IEC 17025:2017 criteria. Routine operation meets GLP and GMP documentation standards when deployed with validated methods and controlled change management procedures.

Software & Data Management

LCMS-8050RX operates exclusively with Shimadzu’s LabSolutions LCMS software (v5.9 or later), a Windows-based platform offering dual-language interface support (English and Simplified Chinese). The software provides integrated method building, real-time MRM optimization, automated peak integration using adaptive baseline algorithms, and customizable report generation compliant with LIMS export formats (e.g., CSV, XML, AnIML). Raw data files adhere to open mzML 1.1.0 specifications for third-party processing compatibility. All acquisition parameters, calibration logs, and audit trail records are stored in encrypted SQLite databases with configurable backup policies and tamper-evident timestamps.

Applications

• Pharmaceutical: PK/PD studies, impurity profiling, extractable/leachable analysis, and dissolution testing per ICH M7 and Q5C guidelines.
• Environmental: Quantification of PFAS, pesticides, pharmaceutical residues, and endocrine disruptors in wastewater and sediment at sub-ng/L levels.
• Food & Agriculture: Multi-residue pesticide screening (≥500 compounds), mycotoxin confirmation, and veterinary drug residue monitoring in meat, dairy, and produce.
• Clinical & Forensic Toxicology: High-sensitivity detection of drugs of abuse, novel psychoactive substances (NPS), and endogenous biomarkers in biological fluids.
• Academic Research: Targeted metabolite quantitation, lipidomics workflow support, and method transfer validation across instrument platforms.

FAQ

Is the LCMS-8050RX manufactured in Japan or China?
The LCMS-8050RX is produced at Shimadzu’s Jiangsu manufacturing facility in China under strict global quality control standards aligned with ISO 9001:2015 and Shimadzu’s proprietary Production Excellence System (PES). Final assembly, performance verification, and factory acceptance testing follow identical protocols used for Japan-assembled instruments.
Does the system support remote monitoring and troubleshooting?
Yes—via optional LabSolutions Remote Access Module (RAM), authorized users can monitor real-time instrument status (vacuum levels, detector voltage, column temperature), review recent run logs, and initiate diagnostic routines from external networks with TLS 1.2 encryption and two-factor authentication.
Can existing LCMS-8040 or LCMS-8060 methods be migrated to the LCMS-8050RX?
Method portability is supported through Shimadzu’s Method Migration Assistant tool, which automatically adjusts dwell times, collision energies, and declustering potentials based on instrument-specific transmission efficiency profiles—typically achieving >95% retention time and peak area reproducibility without manual re-optimization.
What service and support options are available globally?
Shimadzu offers tiered support packages including Standard Warranty (2 years parts/labor), Extended Service Contracts (up to 5 years), Preventive Maintenance Plans with quarterly on-site inspections, and 24/7 technical hotline access staffed by certified LC-MS application scientists.
