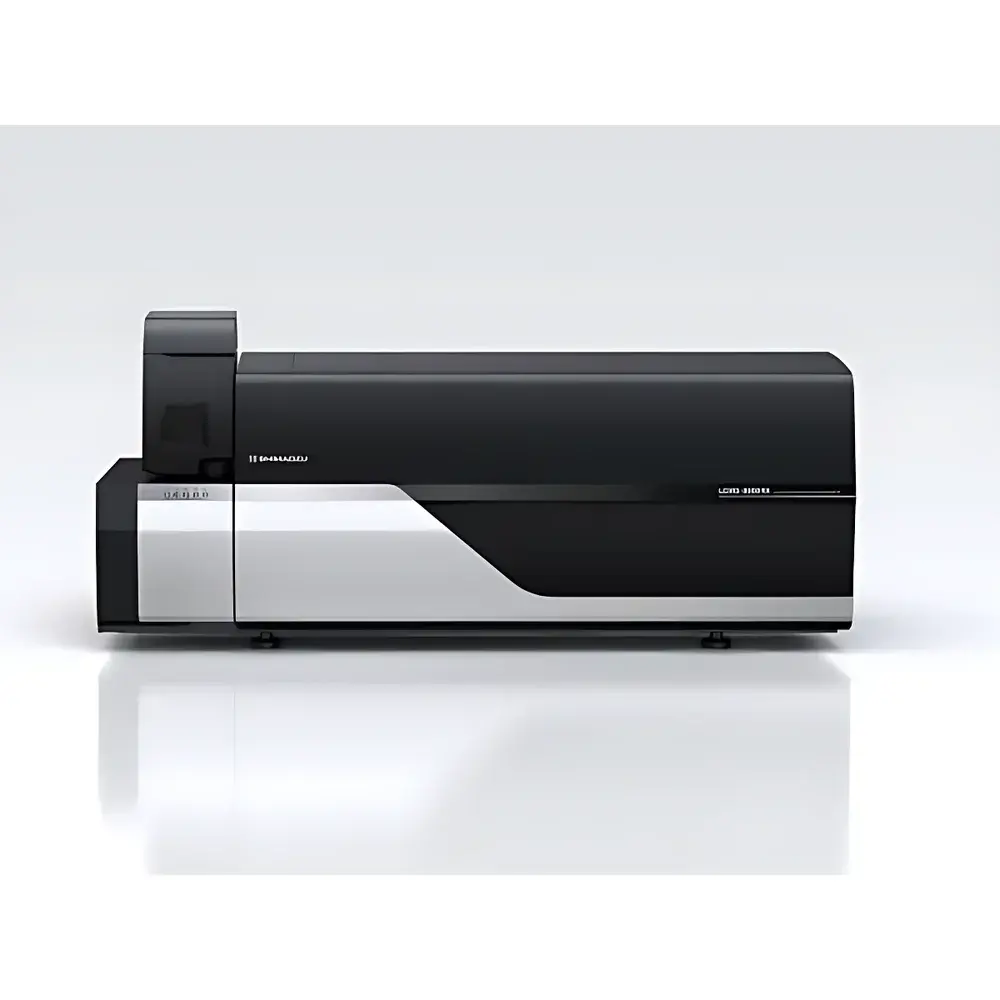

Shimadzu LCMS-8060RX Triple Quadrupole Liquid Chromatography Mass Spectrometer

Overview

The Shimadzu LCMS-8060RX is a high-performance triple quadrupole liquid chromatography mass spectrometer engineered for robust, high-sensitivity quantitative analysis in regulated and academic laboratories. Built upon the proven architecture of the LCMS-8060NX platform, the RX series integrates advanced ion optics, enhanced vacuum system design, and optimized collision cell geometry to deliver improved signal-to-noise ratio, superior long-term stability, and reduced matrix effects across complex sample matrices. Its tandem quadrupole (Q1–q2–Q3) configuration operates in multiple reaction monitoring (MRM), precursor ion scan, neutral loss scan, and selected reaction monitoring (SRM) modes—enabling precise, selective detection of target analytes at sub-pg/mL levels in biological fluids, environmental extracts, food homogenates, and pharmaceutical formulations. The instrument employs electrospray ionization (ESI) and atmospheric pressure chemical ionization (APCI) as standard atmospheric pressure ionization sources, with optional support for microflow and nano-electrospray configurations.

Key Features

• Advanced Ion Source Design: Patented Ultra-Fast (UF) ion source with active desolvation gas control and heated probe geometry minimizes ion suppression and enhances resistance to contamination from high-salt or protein-rich samples.
• Performance管家 (Performance Guardian) Functionality: Automated pre-run system check, real-time status diagnostics, and self-calibration routines—including mass axis calibration, detector gain optimization, and Q1/Q3 transmission tuning—reduce manual intervention and ensure consistent analytical readiness.
• Eco Mode Power Management: Intelligent power-down protocol activates after user-defined idle periods (configurable from 15 to 120 minutes), reducing standby power consumption by up to 31% without compromising vacuum integrity or thermal stability.
• Integrated UHPLC Compatibility: Seamless hardware and software synchronization with Shimadzu Nexera X2 and Nexera UC systems enables automated method-triggered instrument startup/shutdown, gradient synchronization, and event-driven data acquisition.
• Robust Vacuum Architecture: Dual-stage differential pumping system with turbomolecular pumps and intelligent pressure regulation ensures stable operation under variable flow rates (0.05–2.0 mL/min) and extended column backpressure conditions.

Sample Compatibility & Compliance

The LCMS-8060RX supports a broad range of sample types—including plasma, serum, urine, tissue homogenates, soil extracts, wastewater, plant metabolites, and synthetic small molecules—without requiring extensive method redevelopment. Its MRM transition library management and built-in retention time alignment algorithms facilitate cross-laboratory reproducibility. The system complies with key regulatory frameworks for data integrity and auditability: full adherence to FDA 21 CFR Part 11 requirements (including electronic signatures, audit trails, and role-based access control), GLP/GMP-compliant instrument qualification documentation packages (IQ/OQ/PQ), and alignment with ISO/IEC 17025:2017 clauses on measurement uncertainty and traceability. All firmware and software updates are version-controlled and validated per internal SOPs aligned with ASTM E2500-13 and ICH M10 guidelines.

Software & Data Management

The LCMS-8060RX operates exclusively with Shimadzu LabSolutions LCMS software (v6.1 or later), featuring a fully localized English-language interface with optional bilingual (English/Chinese) display mode for multilingual lab environments. The software provides integrated peak integration, calibration curve fitting (linear, quadratic, weighted), limit-of-quantitation (LOQ) validation tools, and batch processing with customizable report templates compliant with LIMS export standards (ASTM E1467, HL7 v2.x). Raw data files (.qgd) are stored in vendor-neutral, open-format archives supporting third-party reprocessing via MSConvert (ProteoWizard) and Skyline. Audit trail logs record all parameter changes, sequence modifications, and user actions with timestamps and operator IDs—retained for ≥10 years per configurable retention policy.

Applications

The LCMS-8060RX is routinely deployed in pharmaceutical quality control (residual solvent analysis, impurity profiling, pharmacokinetic bioanalysis per FDA Guidance for Industry), environmental monitoring (EPA Method 1694, EU Water Framework Directive priority pollutants), food safety testing (mycotoxins, pesticide residues, veterinary drug screening per EU Commission Regulation No. 2021/2008), and life science research (targeted metabolomics, lipidomics, and peptide quantification). Its high-duty-cycle MRM capability supports >1,000 transitions per run with dwell times down to 1 ms—enabling comprehensive multi-analyte panels in single injections without sacrificing sensitivity or precision.

FAQ

Is the LCMS-8060RX compliant with FDA 21 CFR Part 11?
Yes—the system includes full electronic signature support, immutable audit trails, and role-based permissions configured during installation and validated per 21 CFR Part 11 Annex A.
Can the LCMS-8060RX be integrated into an existing LIMS environment?
Yes—it supports standard data export formats (CSV, XML, PDF) and offers optional API-based connectivity via Shimadzu’s LabSolutions Connect module for bidirectional LIMS communication.
What maintenance intervals are recommended for routine operation?
Ion source cleaning every 2–4 weeks (depending on sample load), turbo pump bearing inspection every 18 months, and annual full system performance verification (SPV) using NIST-traceable standards.
Does the system support method transfer from legacy LCMS-8060 models?
Yes—method files (.mth) from LCMS-8050, LCMS-8060, and LCMS-8060NX platforms are directly importable and auto-converted with parameter mapping validation.
Is remote monitoring and troubleshooting supported?
Yes—via Shimadzu Remote Support Portal (RSP), which enables secure, encrypted technician access with customer approval and session logging.
