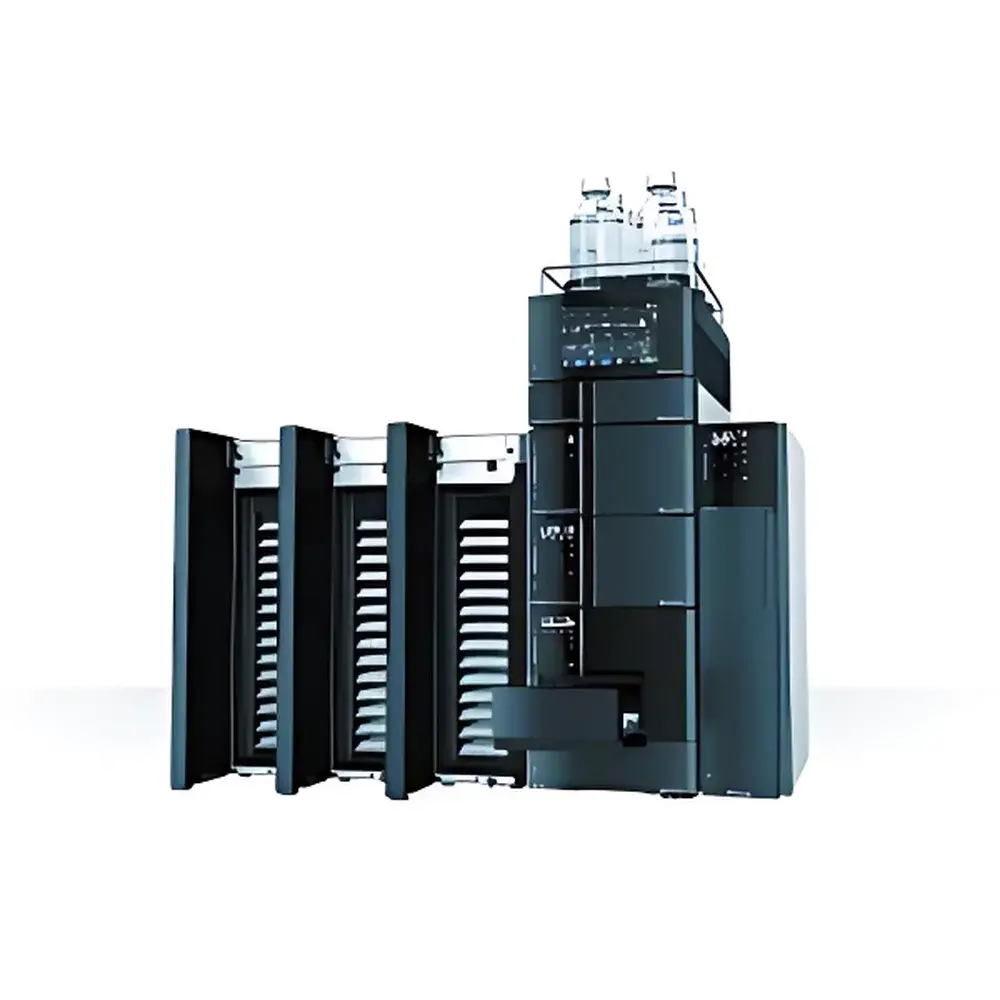

Shimadzu Nexera LC-40 Ultra-High Performance Liquid Chromatograph

Overview

The Shimadzu Nexera LC-40 is an ultra-high performance liquid chromatograph engineered for precision, robustness, and seamless integration into modern analytical laboratories. Built upon Shimadzu’s decades-long expertise in HPLC system architecture and fluidic control, the Nexera LC-40 employs a dual-piston parallel pump design with active solvent compressibility compensation to deliver exceptional flow stability and gradient reproducibility at pressures up to 130 MPa (1300 bar). Its core measurement principle relies on high-pressure liquid-phase separation coupled with real-time UV-Vis absorbance detection—enabling quantitative and qualitative analysis of small molecules, peptides, pharmaceuticals, natural products, and environmental contaminants. Unlike legacy HPLC platforms, the LC-40 is designed from the ground up as a networked, AI-ready analytical node—supporting remote monitoring, predictive maintenance alerts, and automated method validation workflows compliant with GLP and GMP environments.

Key Features

• High-pressure binary or quaternary solvent delivery system with real-time pressure feedback and automatic degassing
• Low-dead-volume, high-reproducibility autosampler with needle-in-loop injection and temperature-controlled sample compartment (4–40 °C)
• Thermostatically controlled column oven with rapid equilibration (±0.1 °C stability) and dual-zone capability for multi-column switching
• UV-Vis photodiode array detector (PDA) offering full-spectrum acquisition (190–800 nm) at up to 125 Hz sampling frequency
• Integrated hardware-level security features supporting 21 CFR Part 11 compliance—including electronic signatures, audit trails, and role-based access control
• Native support for Shimadzu LabSolutions software suite with AI-assisted peak integration, retention time prediction, and anomaly detection algorithms

Sample Compatibility & Compliance

The Nexera LC-40 accommodates a broad range of sample matrices—including aqueous buffers, organic solvents, biological extracts, and formulated drug products—without compromising system integrity or data fidelity. Its inert fluidic path (titanium and PEEK-lined components) minimizes metal-catalyzed degradation and adsorption artifacts, especially critical for acidic, basic, or chelating analytes. The platform conforms to international regulatory standards including ISO/IEC 17025 for testing laboratories, ASTM E2656 for chromatographic system suitability, and USP <621> for chromatographic separations. All firmware and software modules undergo periodic verification per IQ/OQ/PQ protocols and are validated for use in FDA-submitted analytical methods.

Software & Data Management

LabSolutions LC-40 software provides a unified interface for instrument control, data acquisition, processing, and reporting. It supports hierarchical project-based data organization, customizable report templates (PDF, CSV, XML), and direct export to LIMS via ASTM E1384 or HL7-compliant interfaces. Audit trail functionality records all user actions—including parameter changes, sequence modifications, and reprocessing events—with immutable timestamps and operator IDs. For enterprise deployment, the system integrates with Shimadzu’s CloudLink service for secure offsite backup, cross-site method synchronization, and centralized instrument health dashboards accessible via web browser or mobile application.

Applications

• Pharmaceutical quality control: assay, related substances, dissolution testing, and stability-indicating methods per ICH Q2(R2)
• Clinical research: therapeutic drug monitoring (TDM), biomarker quantification in plasma/serum, and metabolomics profiling
• Food and environmental safety: pesticide residue screening, mycotoxin analysis, and PFAS detection in water matrices
• Academic and contract research: method development for complex natural product isolation and synthetic reaction monitoring
• Regulatory submissions: fully documented, 21 CFR Part 11-compliant raw data archives suitable for FDA, EMA, and PMDA review

FAQ

What is the maximum operating pressure supported by the Nexera LC-40?
The system is rated for continuous operation up to 130 MPa (1300 bar), enabling compatibility with sub-2-µm particle-packed columns and ultra-fast gradient elution.
Does the LC-40 support method transfer from legacy HPLC systems?
Yes—via Shimadzu’s Method Transfer Assistant tool, which automatically adjusts flow rates, gradients, and dwell volumes to maintain retention time alignment across platforms.
Can the autosampler handle viscous or particulate-containing samples?
The high-torque syringe drive and programmable needle wash cycles allow reliable handling of samples up to 20 cP viscosity; optional filter-injector kits are available for particulate-laden matrices.
Is remote diagnostics and firmware update capability included?
Yes—CloudLink-enabled instruments support secure remote troubleshooting, predictive failure alerts, and over-the-air firmware updates verified via digital signature authentication.
How is data integrity ensured during long unattended runs?
Hardware-level power-fail recovery, redundant data buffering, and continuous checksum validation ensure no data loss—even during unexpected interruptions or network latency events.
