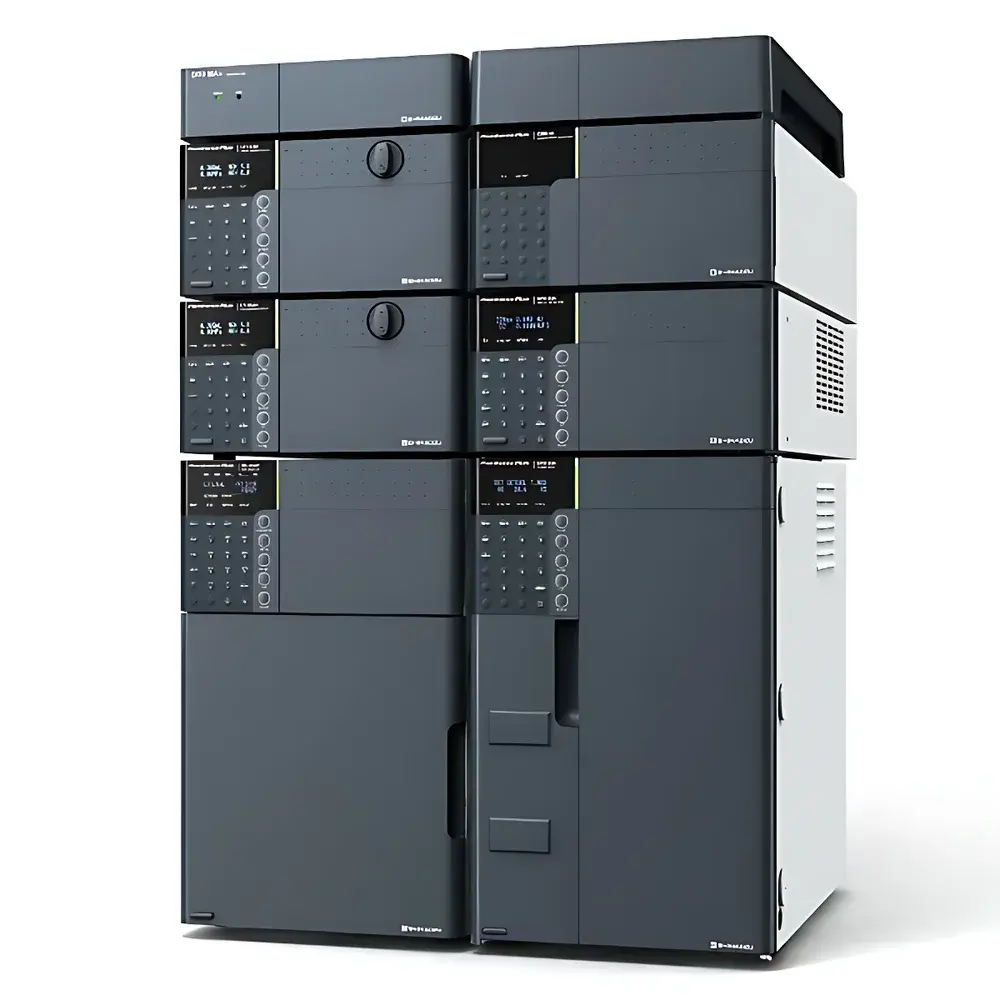

Shimadzu Prominence Plus LC-30A Ultra-High Performance Liquid Chromatograph

Overview

The Shimadzu Prominence Plus LC-30A Ultra-High Performance Liquid Chromatograph (UHPLC) is an engineered platform designed for demanding analytical workflows requiring sub-2 µm particle column operation, ultra-fast gradient elution, and high-resolution separation under sustained 130 MPa system pressure. Built upon Shimadzu’s proven LC-30AD high-pressure solvent delivery architecture and SIL-30AC precision autosampler, the system implements core UHPLC principles—including minimized dwell volume, low dispersion flow paths, and thermally stabilized detection optics—to deliver robust retention time reproducibility, baseline stability, and method transfer fidelity across laboratories. Its modular design supports both binary high-pressure and quaternary low-pressure gradient configurations, enabling method flexibility without hardware reconfiguration. The system is validated for routine use in regulated environments compliant with USP , ICH Q2(R2), and ISO/IEC 17025 requirements.

Key Features

• 130 MPa High-Pressure Solvent Delivery (LC-30AD): Dual-piston parallel pumping with active check valve monitoring ensures continuous, pulse-free flow across the full 0.0001–10.0000 mL/min range; gradient delay volume <100 µL in binary high-pressure mode for rapid method development and method transfer.
• Flexible Gradient Architecture: Configurable as either a binary high-pressure gradient system (for minimal dwell volume and fast gradient response) or a quaternary low-pressure gradient system (for multi-solvent screening and cost-effective method scouting).
• Automated Mobile Phase Preparation: Integrated solvent blending capability enables on-demand preparation of buffered mobile phases, acidified solvents, and dilutions—reducing manual preparation error, improving batch-to-batch consistency, and minimizing organic solvent waste.
• Ultra-Low Carryover Autosampling (SIL-30AC): Optimized needle seat geometry, inert sample loop materials (e.g., PEEK-siliconized stainless steel), and programmable multi-solvent needle wash (up to 4 distinct wash solvents per injection) achieve <0.001% carryover for highly adsorptive analytes (e.g., chlorhexidine, peptides) without mandatory post-injection rinse cycles.
• Overlapped Injection Protocol: Real-time scheduling of needle movement, loop fill, and column injection enables concurrent operations—reducing cycle time by up to 35% in high-throughput screening applications.
• On-Deck Sample Preprocessing: Programmable dilution, internal standard addition, and derivatization steps executed directly within the autosampler—eliminating off-line handling and enhancing quantitative reproducibility (RSD <0.5% for 100 injections).

Sample Compatibility & Compliance

The Prominence Plus LC-30A accommodates diverse sample formats including 1–4 mL vials, 96-well and 384-well microplates (standard and deep-well), and custom rack configurations. Column oven temperature control (ambient ±10 °C to 85 °C) ensures retention time stability for temperature-sensitive separations. UV-Vis detection across 190–700 nm supports broad-spectrum quantitation of small molecules, pharmaceuticals, natural products, and degradation impurities. The system meets mechanical and electrical safety standards per IEC 61010-1 and electromagnetic compatibility per IEC 61326-1. Data integrity features—including electronic signatures, audit trail logging, and user-access role management—support compliance with FDA 21 CFR Part 11, EU Annex 11, and GLP/GMP documentation requirements when paired with LabSolutions LC software in validated configuration.

Software & Data Management

Controlled via Shimadzu LabSolutions LC software (v5.9+), the system provides integrated method development tools, peak tracking algorithms, and automated system suitability assessment per USP criteria. Raw data files (.lcd) are stored in vendor-neutral format with embedded metadata (instrument parameters, sequence logs, calibration history). Audit trail records all critical user actions—including method edits, sequence modifications, and report generation—with timestamp, operator ID, and reason-for-change fields. Optional integration with LIMS platforms (e.g., Thermo Fisher SampleManager, LabWare LIMS) is supported through ASTM E1578-compliant interfaces. Batch processing, template-based reporting, and customizable PDF/CSV export ensure alignment with laboratory quality management systems.

Applications

• Pharmaceutical QC/QA: Assay, related substances, residual solvents, and extractables/leachables analysis per ICH Q3C/Q5C guidelines.
• Biopharmaceutical characterization: Peptide mapping, intact mass analysis support, and glycan profiling using sub-2 µm reversed-phase and HILIC columns.
• Environmental testing: Multi-residue pesticide screening in water, soil, and food matrices per EPA Method 8321B and EN 15662.
• Clinical research: Therapeutic drug monitoring (TDM), vitamin D metabolites, and steroid hormone profiling with LC-MS/MS coupling.
• Academic & method development labs: Robust platform for orthogonal column screening, forced degradation studies, and stability-indicating method validation.

FAQ

What gradient configurations does the Prominence Plus LC-30A support?
It supports both binary high-pressure gradient (low dwell volume, ideal for UHPLC methods) and quaternary low-pressure gradient (multi-solvent flexibility, cost-efficient method scouting) via interchangeable modules.
Is the system compatible with mass spectrometry interfaces?
Yes—the LC-30AD’s low-dead-volume flow path and SIL-30AC’s low-carryover performance make it suitable for direct coupling to ESI, APCI, and nano-ESI sources in LC-MS/MS workflows.
How is data integrity ensured during routine operation?
LabSolutions LC enforces electronic signatures, immutable audit trails, and role-based access control—fully configurable to meet 21 CFR Part 11 and Annex 11 requirements when deployed in validated environments.
Can the autosampler perform derivatization reactions prior to injection?
Yes—SIL-30AC supports timed reagent addition, incubation, and mixing steps within the autosampler deck, enabling automated pre-column derivatization for amino acids, carbonyls, and catecholamines.
What column oven specifications are included?
The integrated column oven maintains temperature from ambient ±10 °C to 85 °C with ±0.1 °C stability, supporting both narrow-bore and standard 2.1–4.6 mm ID columns.
