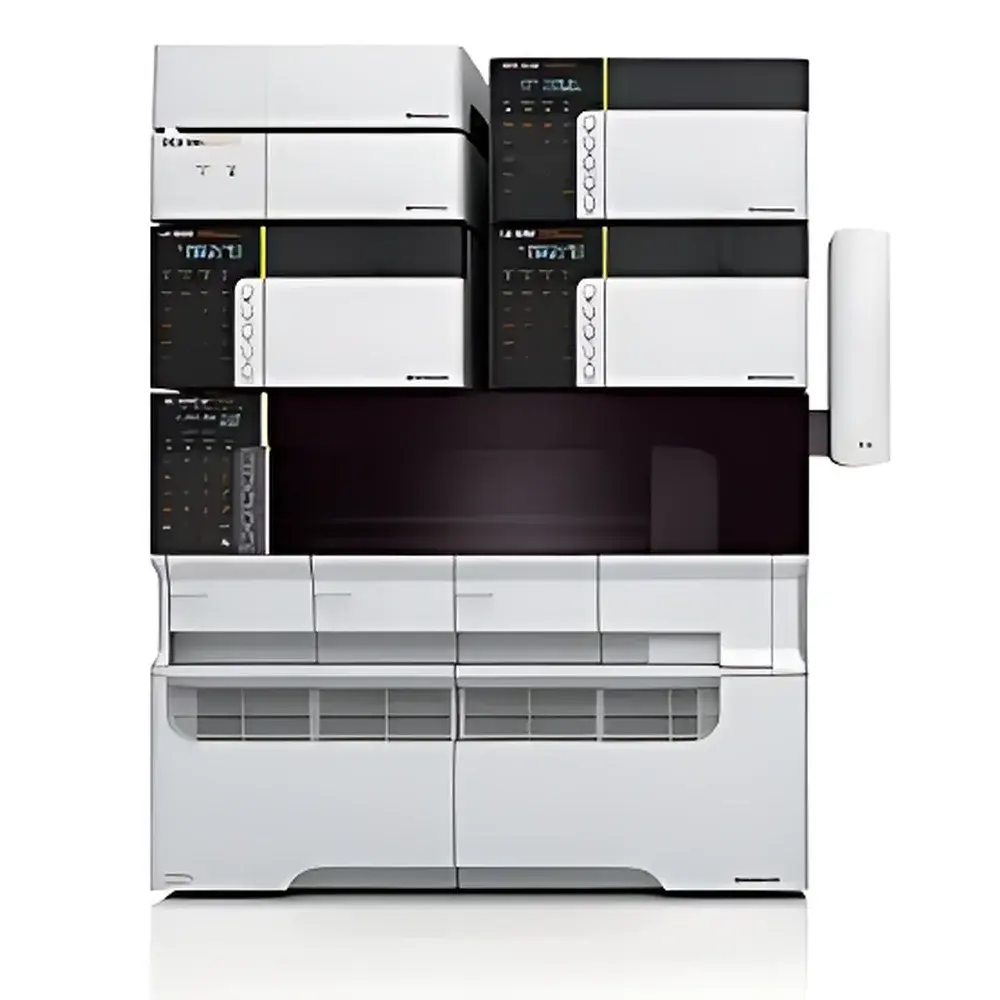

Shimadzu SIL-30ACMP High-Throughput Autosampler for Nexera LC-30A UHPLC Systems

Overview

The Shimadzu SIL-30ACMP High-Throughput Autosampler is an engineered component of the Nexera LC-30A ultra-high-performance liquid chromatography (UHPLC) platform, designed to meet the rigorous demands of modern analytical laboratories requiring unattended, large-scale sample processing without compromising chromatographic integrity. Operating on a precision syringe-driven sampling mechanism with dual-loop injection architecture, the SIL-30ACMP delivers quantitative reproducibility through optimized fluidic pathways and thermally stabilized needle wash stations. Its core function is to automate the introduction of liquid-phase samples into the UHPLC flow path with minimal carryover, consistent dwell volume control, and full compatibility with gradient elution and low-volume column configurations typical of sub-2-µm particle-packed columns. The system is integral to high-speed LC–MS/MS workflows where injection cycle time, peak fidelity, and sequence robustness directly impact data quality and throughput efficiency.

Key Features

• Ultra-low carryover performance: ≤0.0015% (measured using caffeine standard in acetonitrile/water matrix), achieved via multi-stage needle wash protocol with solvent-selective rinse zones and vacuum-assisted purge.
• Exceptional injection precision: ≤0.2% RSD for repeated injections (n ≥ 6) across full sample volume range (0.1–100 µL), validated per ISO 17025-compliant internal calibration procedures.
• Scalable sample capacity: Supports up to three independent sample trays simultaneously—each accommodating standard 96-well or 384-well microplates, 1.5-mL vial racks, or custom-format holders—enabling mixed-mode sequencing within a single run.
• Maximum unattended operation: Configurable for up to 2,304 discrete samples per batch when utilizing six microplates (e.g., four 384-well plates + two 96-well plates) across the three tray positions.
• Integrated thermal management: Optional CTO-30AS compact column oven mounts laterally to the autosampler chassis, reducing post-column tubing length to <15 cm and minimizing extra-column band broadening during sub-30-second gradient runs.
• Intelligent tray recognition: Auto-detection of tray type and orientation via embedded optical sensors ensures accurate coordinate mapping and prevents mis-injection errors.

Sample Compatibility & Compliance

The SIL-30ACMP accommodates a broad range of sample containers including 1.5-mL screw-thread vials (with crimp or snap caps), 96-well and 384-well polypropylene microplates (ANSI/SLAS standard footprint), and custom-inserted deep-well plates. It supports aqueous, organic, and mixed-solvent matrices without degradation of sealing integrity or plunger seal life. All wetted materials—including stainless steel needle, PEEK capillary lines, and ceramic syringe barrel—are chemically inert and compatible with common HPLC mobile phases (e.g., 0.1% formic acid, 10 mM ammonium acetate, acetonitrile, methanol). The system complies with ISO/IEC 17025:2017 requirements for automated sample handling validation and supports audit-ready documentation under FDA 21 CFR Part 11 when deployed with Shimadzu LabSolutions software configured for electronic signatures and event logging.

Software & Data Management

Controlled exclusively through Shimadzu LabSolutions LC software (v5.9 or later), the SIL-30ACMP integrates seamlessly into method-driven acquisition workflows. Sequence tables support conditional logic (e.g., skip injection on failed QC check), dynamic dilution series generation, and real-time status monitoring via Ethernet-connected diagnostics. All injection events—including volume, tray position, wash cycles, pressure transients, and error flags—are timestamped and stored in a relational database with immutable audit trails. Data export conforms to AIA/ANDI standards for third-party integration with LIMS platforms (e.g., Thermo Fisher SampleManager, LabWare LIMS) and supports CSV, XML, and .cdf formats for downstream statistical analysis.

Applications

• High-throughput bioanalysis: Pharmacokinetic (PK) studies requiring >1,000 plasma/serum samples per week with strict USP analytical instrument qualification.
• Metabolomics screening: Unbiased profiling of biological extracts across diverse sample classes (urine, CSF, tissue homogenates) using retention-time-aligned peak detection.
• Quality control in biopharmaceutical manufacturing: Release testing of monoclonal antibodies and ADCs per ICH Q5, Q6, and Q2(R2) guidelines.
• Environmental residue analysis: Multi-residue pesticide screening in food matrices per EU SANTE/11312/2021 extraction protocols.
• Method development labs: Rapid scouting of column chemistry, gradient slope, and injection volume effects under GLP-compliant conditions.

FAQ

Does the SIL-30ACMP support partial-loop injection mode?

Yes—it operates in both full-loop and partial-loop modes, with programmable fill volumes independent of injection volume to optimize solvent consumption and reduce cycle time.
Can it be retrofitted to legacy Nexera systems (e.g., LC-2030C)?

No—the SIL-30ACMP requires firmware-level synchronization with LC-30A pump controllers and LabSolutions v5.9+; compatibility is limited to Nexera X2 and LC-30A platforms.
Is remote monitoring supported via network interface?

Yes—Ethernet port enables SNMP-based health monitoring, SMTP alerting for tray depletion or hardware faults, and secure HTTPS access to real-time status dashboard.
What maintenance intervals are recommended for syringe and needle assemblies?

Shimadzu recommends syringe replacement every 10,000 injections and needle cleaning after every 500 injections using the built-in ultrasonic wash station; full preventive maintenance is scheduled annually per Shimadzu PM Kit #PMA-SIL30ACMP.
