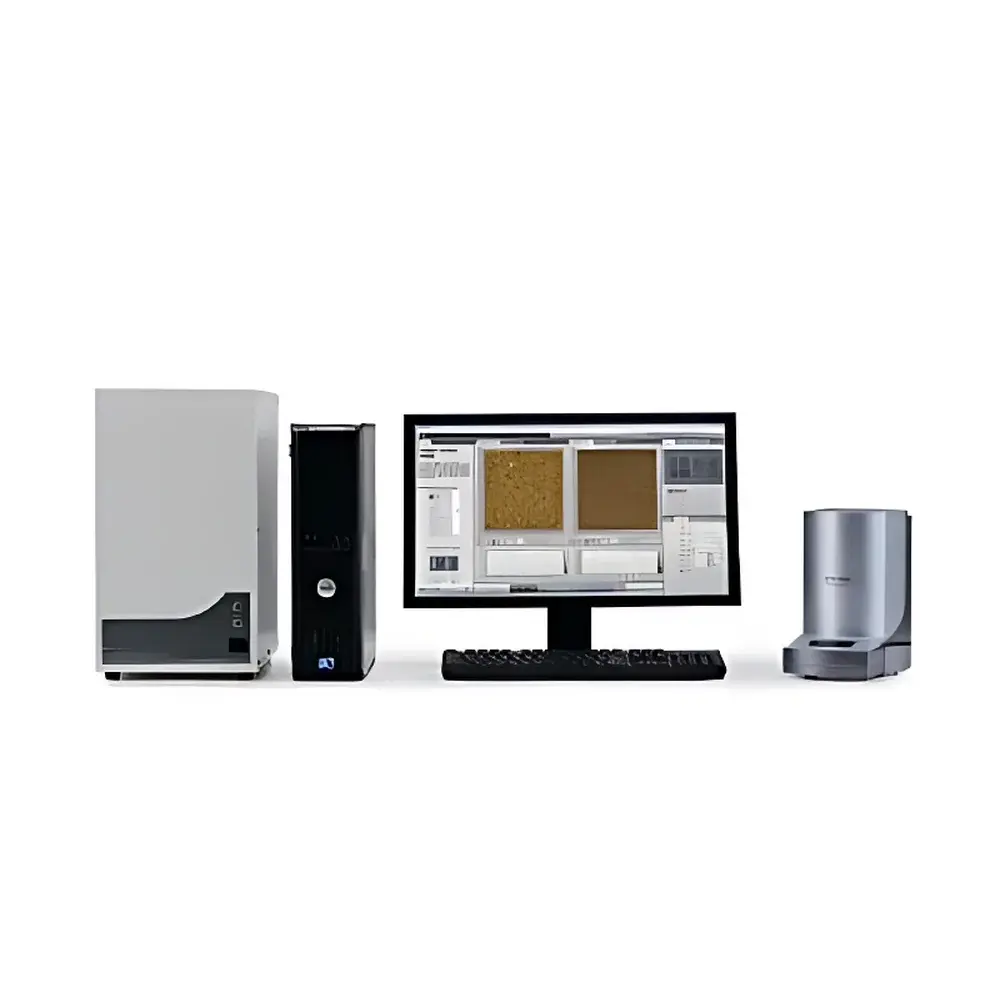

Shimadzu SPM-9700HT High-Speed Atomic Force Microscope

Overview

The Shimadzu SPM-9700HT is a high-speed, research-grade atomic force microscope engineered for precision nanoscale topographic and property mapping in demanding academic, industrial, and quality control laboratories. Based on the fundamental principles of dynamic and contact-mode AFM—where a sharp probe raster-scans a sample surface while detecting interatomic forces via cantilever deflection or resonance frequency shifts—the SPM-9700HT integrates a newly developed high-response HT scanner and co-optimized real-time control firmware to achieve imaging speeds exceeding five times those of conventional AFM platforms. This advancement enables reliable acquisition of high-fidelity topographic data at scan rates up to 5 Hz without compromising spatial resolution or quantitative repeatability, making it particularly suitable for time-resolved surface evolution studies, in situ process monitoring, and high-throughput nanomaterial characterization.

Key Features

• High-speed HT scanner with sub-nanometer closed-loop positioning stability and <0.2 nm horizontal / <0.05 nm vertical noise floor, ensuring metrological-grade reproducibility across repeated scans.
• Dual-mode scanning architecture supporting contact, tapping, phase, lateral force, force modulation, and force-distance spectroscopy—each calibrated traceably to NIST-traceable reference standards.
• VBDF (Variable Bandwidth Digital Filter) signal processing engine delivering 40% higher digital signal fidelity versus prior-generation Shimadzu AFMs, reducing thermal drift artifacts and enhancing SNR in low-amplitude measurements.
• “Probe Expert” optional probe-mounting fixture enabling repeatable, alignment-free cantilever installation with sub-micron angular accuracy—minimizing setup variability and operator dependency.
• Intuitive GUI with guided workflow navigation: one-click auto-approach, region-of-interest (ROI) selection, position memory recall, and context-aware parameter presets aligned with ISO 25178-6 and ASTM E2527 surface metrology guidelines.

Sample Compatibility & Compliance

The SPM-9700HT accommodates standard disc-shaped specimens up to Ø24 mm in diameter and 8 mm in thickness, compatible with common SEM stubs, silicon wafers, polymer films, and conductive/non-conductive substrates. Its ±6 mm motorized XYZ stage allows precise repositioning for multi-site analysis and correlation with optical or electron microscopy data. The system complies with IEC 61000-6-3 (EMC emissions), IEC 61000-6-2 (immunity), and meets mechanical safety requirements per ISO 13857. Optional environmental enclosures support controlled-atmosphere operation (inert gas, humidity regulation), enabling compliance with GLP/GMP workflows where sample integrity under defined ambient conditions is critical.

Software & Data Management

Acquisition and analysis are managed through Shimadzu’s proprietary SPM Analysis Software Suite v4.x, which supports full audit trail logging per FDA 21 CFR Part 11 requirements—including user authentication, electronic signatures, and immutable record retention. Raw force-volume and topographic datasets are stored in vendor-neutral HDF5 format with embedded metadata (scan parameters, calibration constants, timestamp, operator ID). Advanced post-processing includes polynomial flattening, FFT filtering, power spectral density (PSD) analysis, ISO 25178-compliant roughness parameter extraction (Sa, Sq, Sz, Sk), particle height/area/volume statistics, cross-sectional profiling at arbitrary angles, and overlay-capable multi-channel image fusion (e.g., topography + KFM potential map + MFM phase).

Applications

The SPM-9700HT serves as a core platform for multidimensional nanoscale characterization across disciplines: semiconductor R&D (gate oxide uniformity, CMP endpoint detection), advanced battery electrode morphology and SEI layer evolution, polymer blend phase separation kinetics, biomolecular adhesion quantification (e.g., ligand-receptor binding forces), ferroelectric domain switching dynamics, and nanomechanical property mapping (elastic modulus, adhesion hysteresis) when integrated with optional nanoindenter modules. Its modularity supports seamless coupling with complementary techniques—including vacuum-compatible STM heads, Kelvin probe force microscopy (KPFM) for surface potential mapping, magnetic force microscopy (MFM) for domain imaging, and conductive AFM (CAFM) for localized current-voltage spectroscopy.

FAQ

What scanning modes does the SPM-9700HT support out of the box?
Contact mode, tapping mode, phase imaging, lateral force microscopy (LFM), and force modulation imaging are fully enabled with standard configuration.
Is the system compatible with third-party probes?
Yes—it accepts industry-standard cantilevers with standard holder geometry (e.g., Bruker, Nanosensors, Olympus), though Shimadzu-certified probes are recommended for optimal VBDF performance calibration.
Can the SPM-9700HT be upgraded to operate in controlled environments?
Yes—optional hermetic chamber kits enable operation under nitrogen, argon, or regulated humidity (10–90% RH), with temperature stabilization available down to ±0.1°C.
Does the software support automated batch analysis for QA/QC workflows?
Yes—scriptable macro functionality allows unattended execution of standardized measurement protocols across multiple samples, with pass/fail thresholds configurable per ISO 25178-2 surface texture parameters.
What documentation is provided for regulatory compliance?
Factory calibration certificates, IQ/OQ documentation templates, and 21 CFR Part 11 validation support packages are included with each system shipment.
