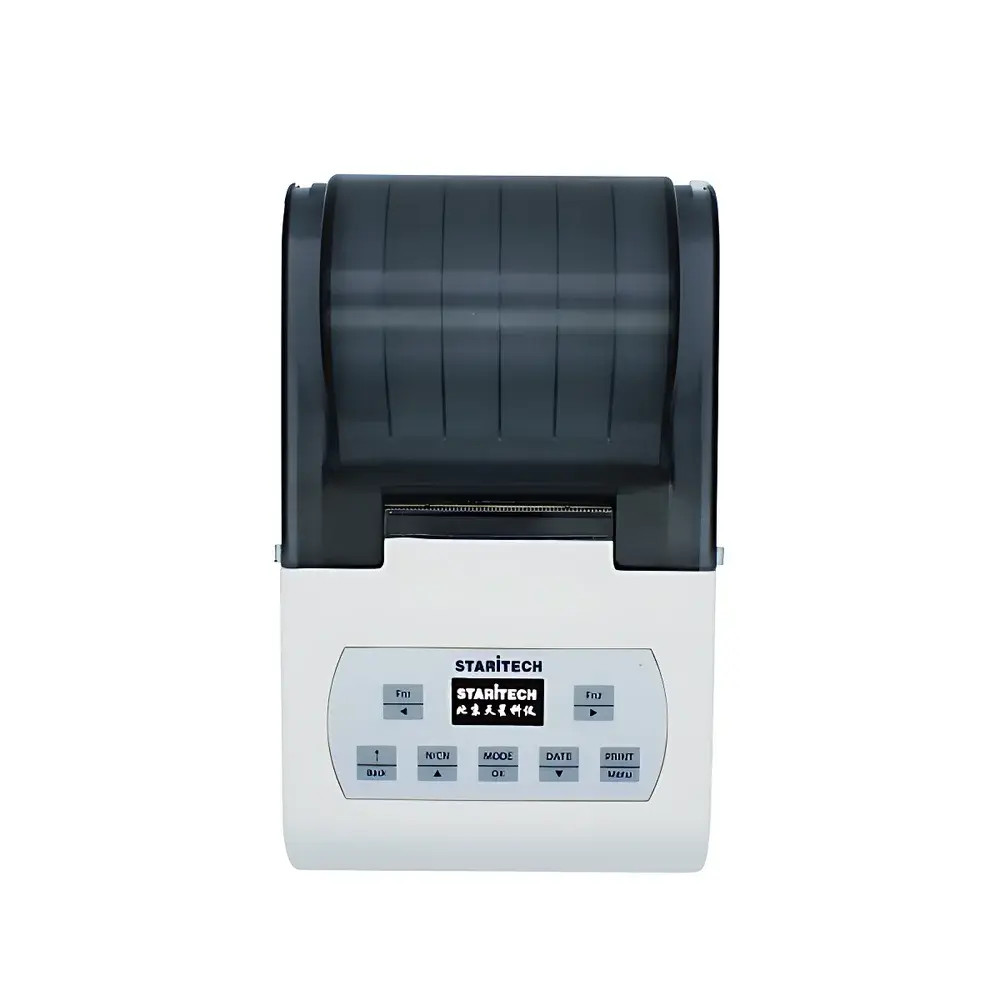

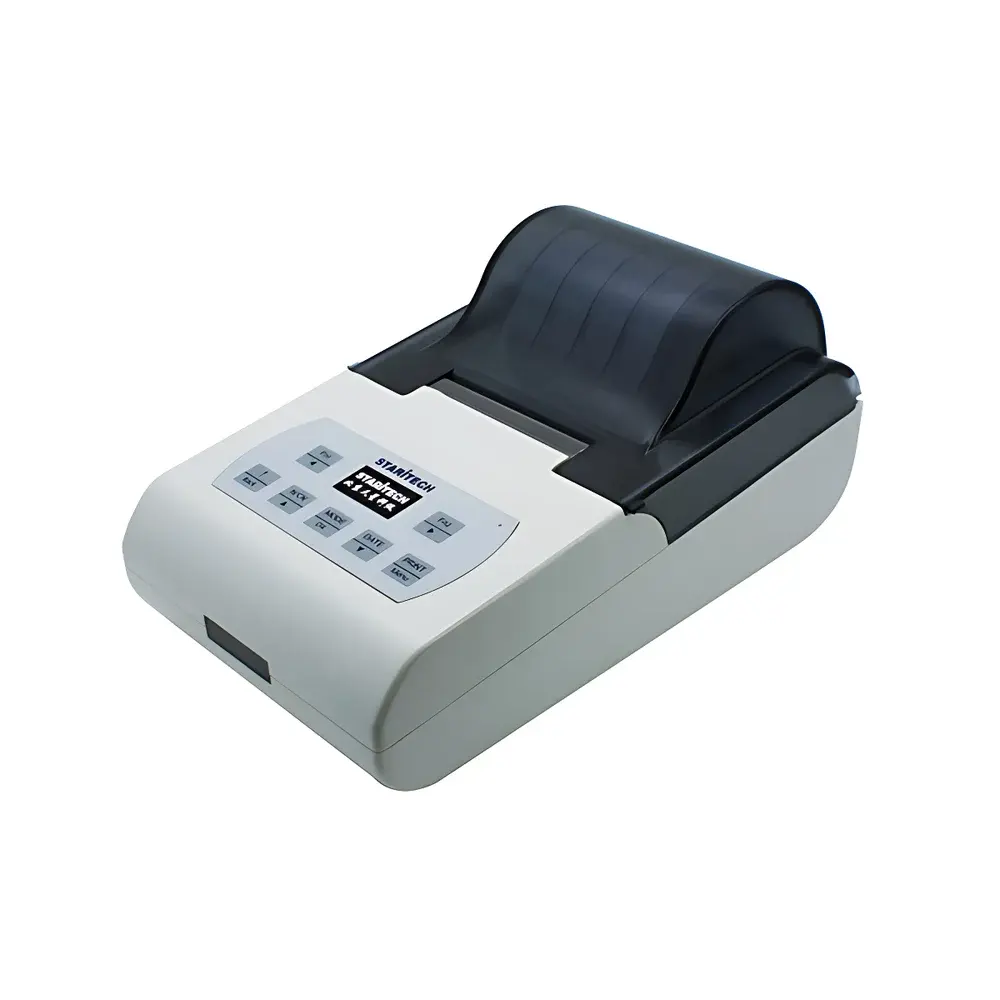

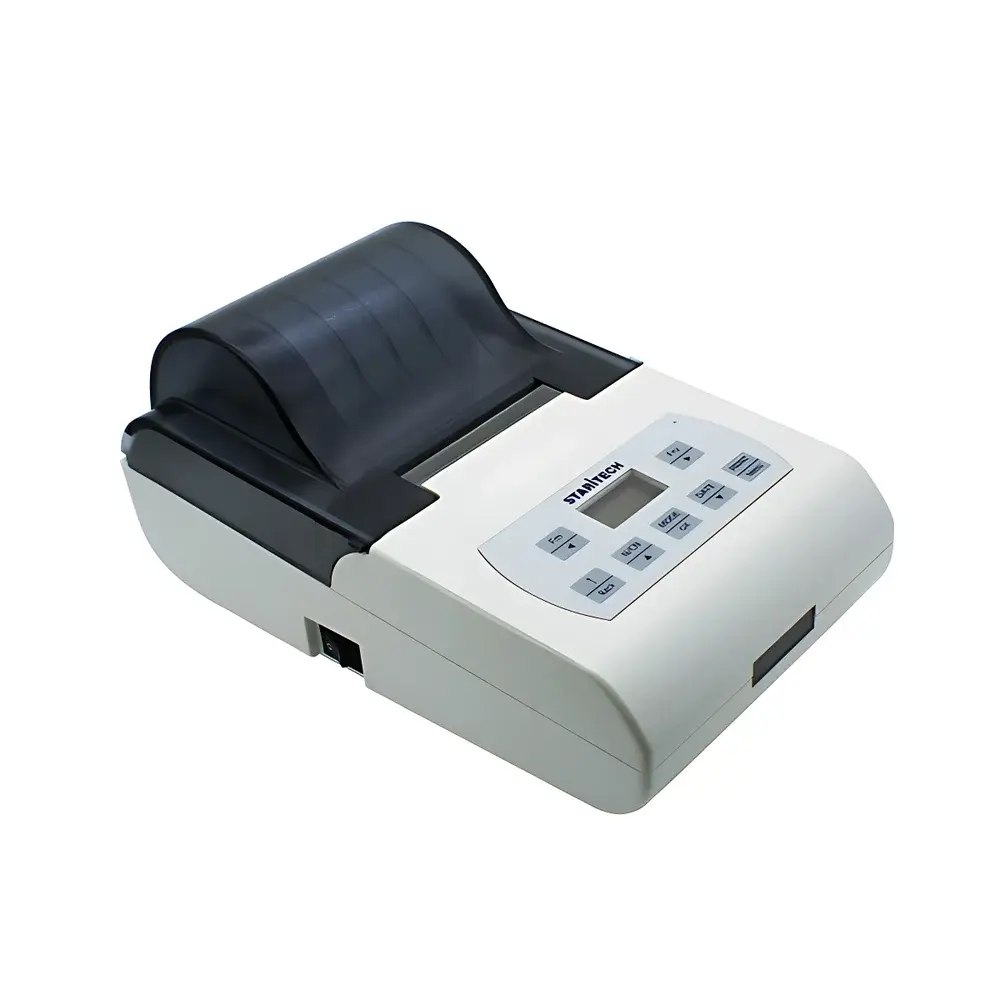

Shimadzu TX-110SI Balance Data Printer (STARiTECH Brand)
| Brand | STARiTECH |
|---|---|
| Origin | Beijing, China |
| Model | TX-110SI |
| Printing Method | 8-pin dot matrix (impact), thermal (dual-mode) |
| Data Interfaces | RS232, USB, RS485 |
| Applications | Weighing, Statistical Analysis, Formulation Management, Tare/Net/Gross Weighing, Pipette & Volumetric Flask Calibration |
| Characters per Line | 24 or 40 |
| Paper Width | 57 mm (standard plain paper) |
| Dimensions (W×H×L) | 114.6 × 86.6 × 188.2 mm |
| Minimum Sample Weight Management | Supported |
Overview
The Shimadzu TX-110SI Balance Data Printer is a GLP/GMP-compliant, dual-mode (impact and thermal) data recording solution engineered for integration with analytical and precision balances—including Shimadzu TX-series, AUW, ATX, and AP models—as well as a broad range of third-party laboratory balances (e.g., Sartorius CPA/BS/Q-series, Mettler Toledo ME/AG/ZB/AL/ICS, Ohaus Scout, A&D, and Shimadzu-compatible industrial scales). Unlike generic label printers, the TX-110SI functions as an autonomous data acquisition and processing unit: it receives raw weight values via serial or USB protocols, applies configurable mathematical transformations, enforces audit-trail–ready metadata tagging, and generates tamper-evident, timestamped reports compliant with ISO/IEC 17025, USP , ASTM E2656, and FDA 21 CFR Part 11 requirements for electronic records and signatures. Its core architecture eliminates reliance on PC-based software—ensuring deterministic output, zero latency in report generation, and full independence from operating system updates or driver compatibility issues.
Key Features
- 8-pin bidirectional impact printing mechanism using standard 57 mm plain paper and EPSON ERC-09/ERC-22 ribbons—ensuring archival-grade durability (>10-year legibility under ambient storage)
- Dual printing modes: selectable 24-character or 40-character line width for flexible report formatting
- Integrated 128×64 OLED display with bilingual (English/Chinese) UI support and real-time status feedback
- Configurable header/footer templates: programmable fields include instrument ID, operator ID, sample name/batch number, date/time stamp, sequence number, and digital signature line—each field individually enabled/disabled
- Two-tier access control: administrator-level configuration lockout and user-level operation mode selection, supporting role-based workflow enforcement per GMP Annex 11 and ALCOA+ principles
- On-device statistical engine: computes mean, standard deviation, coefficient of variation, sum, min/max, and delta across up to 300 stored measurements using IEEE 754 double-precision arithmetic
- Regulatory-grade calibration reporting: automated pipette and volumetric flask calibration per JJG 646–2006, including temperature-compensated volume conversion (Kt correction), multi-point repeatability assessment (V, E, S), and traceable uncertainty propagation
Sample Compatibility & Compliance
The TX-110SI interfaces seamlessly with balances and instruments transmitting ASCII-formatted weight data over RS232, RS485, or USB virtual COM port protocols. Verified compatibility extends beyond Shimadzu platforms to include Sartorius, Mettler Toledo, Ohaus, A&D, and INTEK Midrics systems. It also supports peripheral integration with barcode scanners (for sample ID auto-entry), external keyboards, and USB mass storage devices for CSV/Excel export. All printed outputs embed immutable timestamps, instrument-specific metadata, and sequential record numbering—enabling full traceability in GLP audits and FDA inspections. Report integrity is preserved through non-rewritable physical media and firmware-enforced write-once logic; no post-print editing or digital alteration is possible.
Software & Data Management
No host PC or proprietary software installation is required. Configuration is performed locally via OLED menu navigation or terminal-emulator commands (e.g., HyperTerminal, PuTTY). The device stores up to 300 weight entries in non-volatile memory with automatic time-stamped logging. Data export via USB flash drive produces standardized CSV files compatible with LIMS, ELN, and statistical analysis tools (e.g., JMP, Minitab, Python pandas). Audit trail functionality includes operator login history, parameter change logs, and print event timestamps—all retained independently of external systems. Firmware updates are delivered via signed USB image files to prevent unauthorized modification.
Applications
- Weighing Documentation: Single/multiple weighings with tare, gross, net, and differential weight calculations; batch release documentation with full traceability
- Quality Control Statistics: In-process control charting, stability study data aggregation, and SOP-driven pass/fail evaluation against specification limits
- Volumetric Equipment Verification: Fully automated pipette calibration workflows meeting ISO 8655 and CLSI EP15-A3 requirements
- Moisture Loss & Gravimetric Analysis: Dry-weight determination with time-stamped interval weighing and % moisture calculation
- Formulation & Dispensing Support: Multi-step recipe execution with cumulative mass tracking, tolerance alerts, and final formulation certificate generation
FAQ
Does the TX-110SI require a computer to operate?
No—it operates as a standalone peripheral with embedded firmware and local memory.
Can it print directly from a Mettler Toledo AL series balance?
Yes, when configured for RS232 ASCII output at 9600 bps, 8N1 protocol.
Is thermal printing supported without ribbon consumption?
Yes—thermal mode uses 57 mm thermal paper; impact mode requires ERC-09/ERC-22 ribbons.
How is data integrity ensured for regulatory submissions?
All reports include uneditable timestamps, instrument serial numbers, operator IDs, and cryptographic checksums encoded in printed barcodes.
What standards does its pipette calibration mode reference?
JJG 646–2006 (China National Verification Regulation) and ISO 8655–6:2022 (Pipette performance testing).
