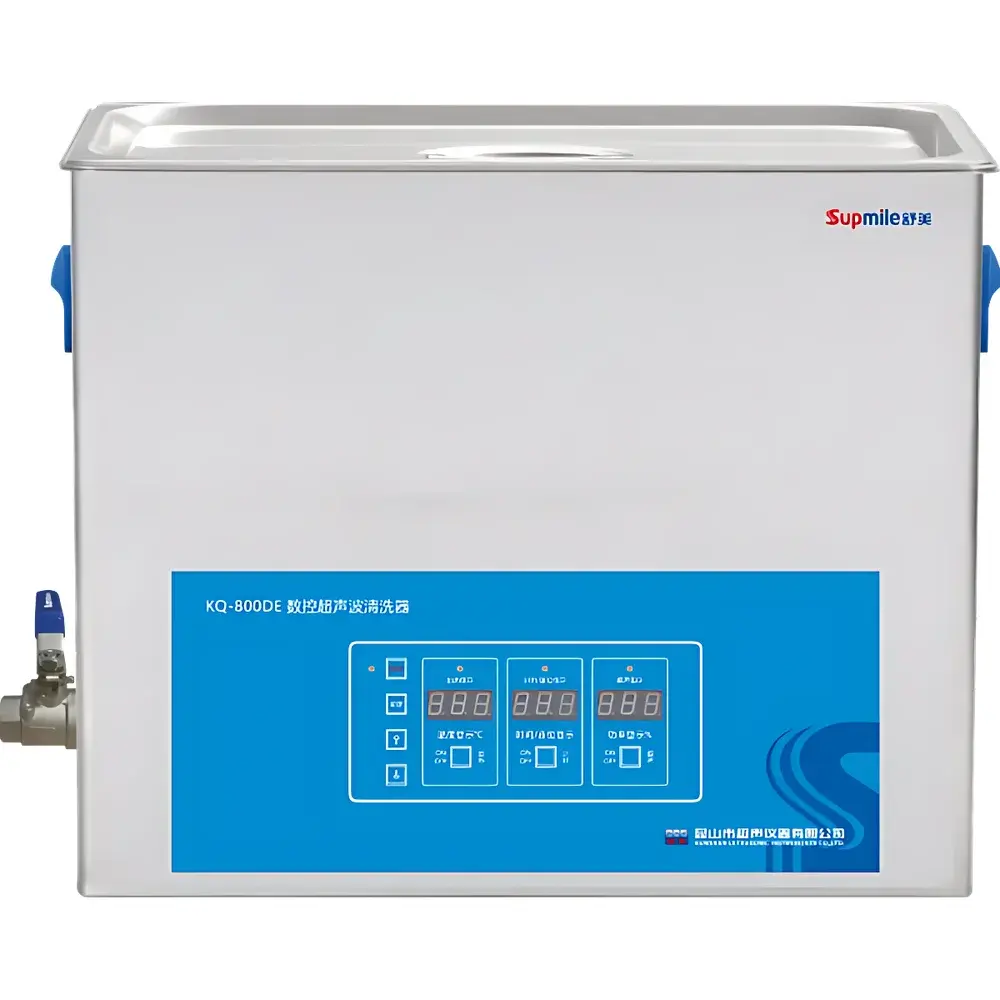

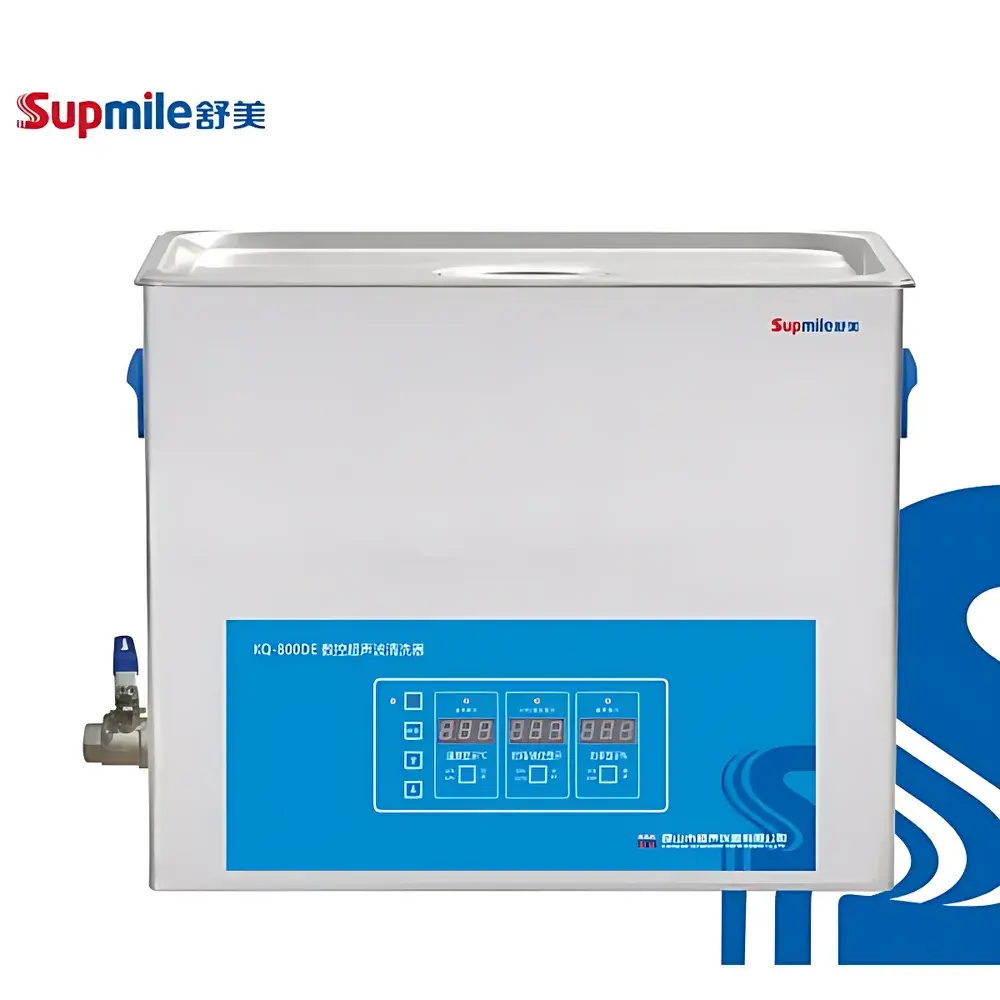

Shumei KQ-800DE Digital Ultrasonic Cleaner

Overview

The Shumei KQ-800DE Digital Ultrasonic Cleaner is a general-purpose laboratory cleaning system engineered for precision degreasing, particle removal, and solvent-based decontamination of delicate instrumentation, glassware, metal parts, and analytical components. It operates on the principle of ultrasonic cavitation—generating high-frequency (40 kHz) acoustic pressure waves in liquid media to induce controlled microbubble formation and implosive collapse. This physical mechanism delivers non-abrasive yet highly effective surface cleaning without mechanical scrubbing or thermal degradation. Designed for routine QC labs, R&D facilities, and maintenance workshops, the KQ-800DE integrates digital process control with robust 304 stainless steel construction, ensuring long-term corrosion resistance and compatibility with aqueous and mild organic cleaning solutions.

Key Features

• Digital microprocessor-based control system enabling precise, repeatable parameter programming—including ultrasonic power (40–100% of 800 W), heating temperature (ambient to 80 °C), and cleaning duration (1–480 minutes).
• Integrated safety monitoring with real-time digital indicators for low liquid level, overtemperature, overvoltage, and overcurrent conditions—preventing dry-run operation and thermal runaway.
• High-efficiency transducer array optimized for uniform energy distribution across the 30 L tank volume (500 × 300 × 200 mm internal dimensions), minimizing dead zones and enhancing cleaning reproducibility.
• Full 304 stainless steel tank and housing, compliant with ISO 8573-1 cleanliness class requirements for non-contaminating environments; suitable for use under GLP-aligned workflows.
• Sound-dampening hinged lid reduces ambient noise to ≤65 dB(A) during operation, supporting shared lab spaces and prolonged user exposure compliance per OSHA 29 CFR 1910.95 guidelines.
• Manual inlet and drain ports enable flexible integration into existing lab utility infrastructure; no permanent plumbing required.

Sample Compatibility & Compliance

The KQ-800DE accommodates a broad range of sample geometries and materials—including pipette tips, HPLC vials, filter housings, surgical instruments, optical lenses, PCB assemblies, and ceramic substrates—provided they are chemically stable within aqueous or ethanol/isopropanol-based cleaning baths. Its 40 kHz frequency balances penetration depth and surface resolution, making it suitable for both macro-particulate removal and sub-micron contaminant dislodgement. The unit meets CE marking requirements for electromagnetic compatibility (EMC Directive 2014/30/EU) and low-voltage safety (LVD Directive 2014/35/EU). While not certified to FDA 21 CFR Part 11 out-of-the-box, its digital logging capability (time-stamped parameter records) supports audit-ready documentation when paired with validated SOPs and external data archiving protocols.

Software & Data Management

The KQ-800DE employs an embedded single-chip controller with non-volatile memory to retain user-defined cleaning protocols across power cycles. All operational parameters—including setpoints and real-time sensor feedback (liquid temperature, elapsed time, active power level)—are displayed simultaneously on a high-contrast LED interface. No external software or driver installation is required. For laboratories requiring traceability, the device supports manual logbook entries aligned with ISO/IEC 17025 clause 7.7 (result reporting) and ASTM D2603 (ultrasonic cleaning validation methodology). Optional RS-232 output (available via third-party adapter) permits basic serial logging to external PCs for trend analysis.

Applications

• Pre-analytical preparation of GC/MS and ICP-MS sample introduction components (nebulizers, spray chambers, torches).
• Removal of polishing residues from metallurgical cross-sections prior to SEM imaging.
• Decontamination of reusable filtration membranes and syringe filters between batches.
• Cleaning of calibration standards, reference weights, and metrology fixtures to maintain dimensional integrity.
• Supporting ASTM E1916 (standard guide for ultrasonic cleaning validation) through controlled, documented parameter execution.
• Maintenance of optical alignment tools and laser cavity optics in photonics labs.

FAQ

What is the maximum recommended cleaning solution temperature?
The system supports heating up to 80 °C; however, sustained operation above 60 °C may accelerate evaporation and reduce cavitation efficiency. For optimal performance with aqueous detergents, 40–55 °C is typically recommended.
Can the KQ-800DE be used with flammable solvents?
No. The unit lacks explosion-proof certification and internal spark suppression. Only water-based or non-flammable, low-volatility solvents (e.g., isopropyl alcohol below 12% v/v in water) should be used.
Is the ultrasonic power output calibrated per ASTM E1727?
The transducer array is factory-tuned to deliver nominal 800 W at 40 kHz; however, formal radiometric calibration per ASTM E1727 requires third-party verification using hydrophone-based measurement systems.
Does the unit support continuous operation beyond 480 minutes?
No—the timer is hardware-limited to 480 minutes (8 hours) per cycle. For extended cleaning, users must manually restart the sequence after completion.
How often should the tank be descaled?
In hard-water environments, descaling with 5–10% citric acid solution is advised every 2–4 weeks depending on usage frequency and water mineral content.
