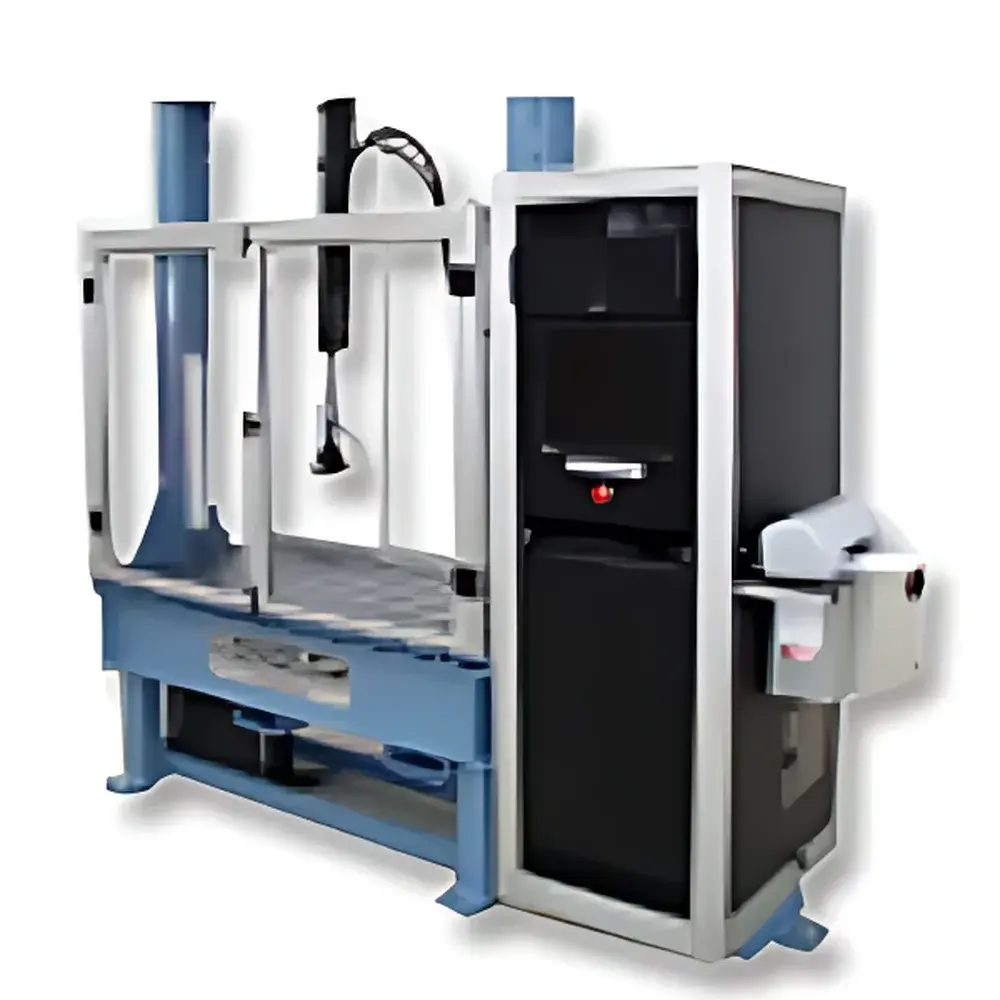

Single-Cylinder Static Load Tester
| Brand | Jiubin Instruments |
|---|---|
| Origin | Shanghai, China |
| Manufacturer Type | Authorized Distributor |
| Country of Origin | China |
| Model | JB |
| Pricing | Available Upon Request |
Overview
The Jiubin Instruments JB Single-Cylinder Static Load Tester is an electromechanical or hydraulically actuated testing system engineered for precise, repeatable application of uniaxial compressive or tensile static loads to mechanical components, vehicle interior trim assemblies, seat anchorages, and restraint system hardware. It operates on a fundamental principle of controlled force application via a single vertically oriented actuator—either hydraulic (1800 PSI rated supply) or non-hydraulic (e.g., servo-electric or pneumatic)—with load capacity up to 7500 lbf (3400 kgf) in both tension and compression directions. Unlike dynamic fatigue systems, this configuration is optimized for ISO 7500-1 Class 1 static force calibration compliance, delivering high reproducibility (< ±0.5% full scale) under steady-state loading conditions. The system integrates a dedicated floor-standing industrial PC running real-time control firmware, enabling deterministic load ramping, dwell hold, and step-load protocols without external DAQ dependency.
Key Features
- Single-actuator architecture with configurable mounting interface (ISO 8092-1 compliant base plate and T-slot rails) for rapid fixture adaptation across automotive interior, aerospace seating, and safety-critical fastener applications.
- Hydraulic power unit option rated at 1800 PSI nominal working pressure, supporting bidirectional force application with integrated pressure relief and thermal stability management.
- Non-hydraulic alternatives available—including servo-motor-driven ball-screw actuators—offering oil-free operation, lower maintenance overhead, and sub-millisecond position resolution for precision preload validation.
- Dedicated control PC with embedded real-time OS (QNX or VxWorks), preloaded with ASTM E4-compliant calibration traceability modules and dual-channel analog input for simultaneous load cell and extensometer signal acquisition.
- Front-panel emergency stop, dual-channel hardware interlock circuitry, and CE/UL-listed enclosure conforming to EN 60204-1 safety standards for industrial machinery.
Sample Compatibility & Compliance
The JB tester accommodates specimens ranging from 50 mm × 50 mm anchorage brackets to full-width automotive seat frames (up to 1200 mm width). Fixturing supports standardized test configurations per FMVSS 207 (Seating Systems), FMVSS 208 (Occupant Crash Protection), FMVSS 210 (Seat Belt Assembly Anchorages), and FMVSS 225 (Child Restraint Anchorage Systems). It also satisfies European Regulation ECE R17 (Seats and Seat Anchorages) and ECE R19 (Interior Fittings), with documented traceability to NIST-traceable load cells calibrated per ISO 376:2011. All test sequences are programmable to replicate regulatory dwell durations (e.g., 15 s minimum at peak load per FMVSS 210) and ramp rates (e.g., ≤ 250 lbf/s for quasi-static anchor testing).
Software & Data Management
The proprietary Jiubin TestSuite v4.2 software provides GUI-based test method definition, real-time load–displacement curve visualization, and automated report generation compliant with ISO/IEC 17025 documentation requirements. Raw data export is supported in CSV, XML, and HDF5 formats; audit trails include user ID, timestamp, calibration certificate ID, and environmental metadata (ambient temperature/humidity logged via integrated sensors). For regulated environments, optional 21 CFR Part 11 add-on enables electronic signatures, role-based access control, and immutable audit logs—fully compatible with GLP and Tier-1 automotive supplier quality management systems.
Applications
- Static pull testing of ISOFIX lower anchors and top tethers per ISO 13216-1 and FMVSS 225.
- Seat belt retractor locking verification under static load per SAE J1819.
- Structural integrity validation of vehicle door latch mechanisms under specified anchor loads.
- Preload verification of high-strength bolted joints in railcar seating subsystems (EN 12663-1).
- Compliance verification of child restraint system attachment points in OEM production line audits.
FAQ
What load accuracy class does the JB system meet?
It complies with ISO 7500-1 Class 1 for static force measurement, with typical uncertainty < ±0.5% of full scale when used with certified 0.05% FS load cells.
Can the system be integrated into an existing MES or QMS platform?
Yes—via OPC UA server interface (optional), supporting direct data streaming to Siemens Opcenter, PTC ThingWorx, or custom SQL-based quality databases.
Is hydraulic fluid maintenance required for long-term operation?
Only for hydraulic PU variants; recommended oil analysis every 1,500 operating hours and filter replacement every 3,000 hours per ISO 4406:2022 cleanliness standards.
Does Jiubin provide installation qualification (IQ) and operational qualification (OQ) documentation?
Yes—factory-verified IQ/OQ protocols are included, aligned with ASTM E2500-13 and Annex 11 (EU GMP) requirements for regulated testing environments.
