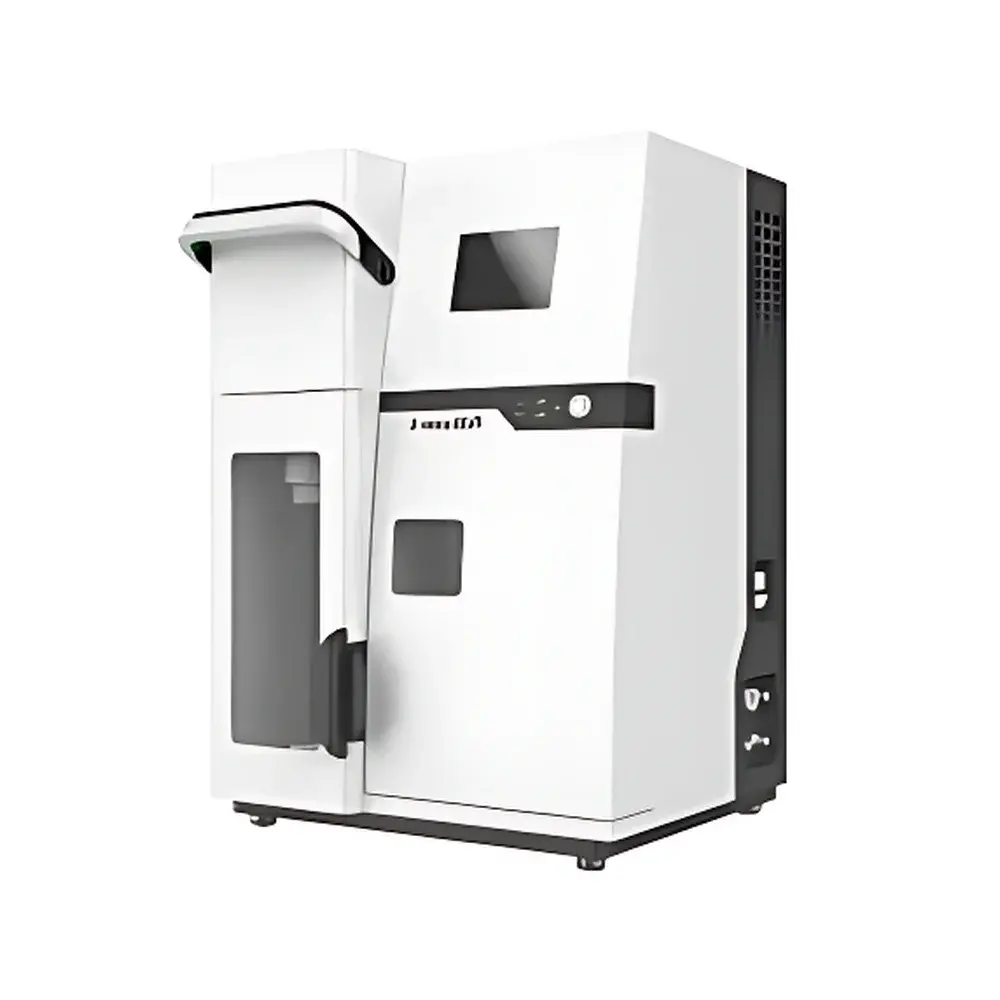

Sonnen KA06 Fully Automated Kjeldahl Nitrogen Determinator for Cation Exchange Capacity (CEC) Analysis in Soils
| Brand | Sonnen |
|---|---|
| Origin | Shanghai, China |
| Model | KA06 |
| Instrument Type | Kjeldahl Nitrogen Determinator |
| Automation Level | Fully Automated |
| Linear Range | RSD ≤ 1% over 1–3× nitrogen content in digestion tube |
| Detection Limit | 0.05 cmol/kg |
| Repeatability | RSD ≤ 0.5% |
| Titration Precision | ≤ 0.0012 µL/step |
| Minimum Titration Volume | 0.8 µL/step |
| Nitrogen Quantification Range | 0.01–210 mg N (equivalent to 0.07–1400 cmol/kg CEC) |
| Sample Throughput | 0.0–9.0 min/sample |
| Data Storage | 10 million records (on-device), unlimited (cloud) |
Overview
The Sonnen KA06 Fully Automated Kjeldahl Nitrogen Determinator is a dedicated analytical platform engineered for the precise quantification of total nitrogen in soil matrices—serving as the foundational measurement for calculating Cation Exchange Capacity (CEC) according to standardized wet-chemical protocols. Unlike generic nitrogen analyzers, the KA06 implements a rigorously controlled, end-to-end Kjeldahl workflow: acid digestion in concentrated H₂SO₄ under catalytic conditions, alkaline steam distillation at precisely regulated temperature and pressure, boric acid trapping, and photometric endpoint detection via high-resolution RGB colorimetry. Its design directly supports compliance with ISO 11261, ASTM D5142 (modified), GB/T 22923–2008, NY/T 295–1995, LY/T 1243–1999, and HJ 717–2014—making it a validated solution for accredited soil testing laboratories operating under GLP or ISO/IEC 17025 frameworks.
Key Features
- Fully automated reagent handling: simultaneous alkali addition, acid addition, steam distillation, back-titration, system calibration, and liquid-level monitoring—eliminating manual intervention across all critical steps.
- Multi-layered safety architecture: integrated pressure transducers and thermal cutoffs in the steam generator; dual-mode water-level sensing (float + electrode); real-time condensate temperature and volume monitoring; low-flow cold-water alarm with auto-shutdown.
- 35-position robotic autosampler compatibility enabling unattended batch processing for high-throughput soil CEC screening.
- Industrial-grade ARM-based embedded OS with 10-inch capacitive touchscreen, supporting bilingual (English/Chinese) UI and real-time process visualization.
- Four-tier user permission system (Program Administrator → Senior Admin → Assistant Admin → Operator), enforcing role-based access control aligned with FDA 21 CFR Part 11 and EU Annex 11 requirements.
- Dual-mode distillation: adjustable steam flow (0–100%) and programmable segmented distillate volume settings for method optimization across diverse soil types (e.g., clay-rich vs. organic matter–dominant samples).
- Optimized titration module: PTFE diaphragm pump with stepper-motor precision; external titration cup with LED-assisted illumination; dynamic titration algorithm enabling concurrent distillation and titration—reducing per-sample cycle time by up to 40%.
- High-fidelity endpoint detection: 16-bit trichromatic digital color sensor calibrated against NIST-traceable standards; automatic and manual color threshold adjustment to mitigate ambient light interference.
- Corrosion-resistant fluidic path: PTFE-lined splash trap, acid/alkali-resistant tubing, and chemically inert reagent reservoirs with continuous level monitoring.
Sample Compatibility & Compliance
The KA06 accepts solid soil samples (0–5 g) and liquid extracts (up to 15 mL), accommodating standard CEC extraction protocols including ammonium acetate (pH 7.0), barium chloride–triethanolamine, and sodium acetate–acetic acid methods. It delivers traceable nitrogen results required for CEC calculation per ISO 11260 and USDA Soil Survey Laboratory procedures. All hardware and firmware comply with IEC 61010-1 (electrical safety), EN 61326-1 (EMC), and carry CE marking. The system is certified to ISO 9001:2015 and supported by manufacturer-provided metrological verification documentation conforming to JJF 109–2012 (Calibration Specification for Kjeldahl Nitrogen Analyzers).
Software & Data Management
Control and data acquisition are managed through a Windows-based desktop application supporting audit-trail-enabled operation logs, recovery rate calculation (with built-in spike recovery templates), statistical summary (mean, SD, RSD, confidence intervals), and customizable report generation in 12 formats—including PDF, Word, Excel, CSV, and XML. Raw spectral color data, distillation curves, and titration profiles are stored with timestamped metadata. On-device storage retains ≥10⁷ test records; optional cloud synchronization provides encrypted, version-controlled archiving compliant with GDPR and HIPAA-aligned data governance policies. Data export supports LIMS integration via ODBC and HL7-compatible interfaces.
Applications
- Quantitative determination of exchangeable cations (Ca²⁺, Mg²⁺, K⁺, Na⁺, Al³⁺) via ammonium saturation and subsequent nitrogen measurement of displaced NH₄⁺.
- Soil fertility assessment in agronomic research, land remediation projects, and regulatory environmental monitoring programs.
- Nitrogen speciation in fertilizers, composts, biosolids, and agricultural byproducts per AOAC 984.13 and EPA Method 350.1.
- Method validation and proficiency testing in CNAS-accredited soil testing labs.
- Quality control of cation-exchange resins and modified clays used in wastewater treatment and soil amendment formulations.
FAQ
Does the KA06 directly measure CEC, or does it require post-processing calculations?
The KA06 measures total recoverable nitrogen (as NH₃) released during standardized cation displacement and steam distillation. CEC is calculated from this value using sample dry mass and stoichiometric conversion factors defined in GB/T 22923–2008 and ISO 11260.
Can the instrument be validated for GLP-compliant studies?
Yes—the four-level user permissions, electronic signature support, full audit trail, and 21 CFR Part 11–ready software architecture enable formal GLP validation per OECD Principles of Good Laboratory Practice.
What maintenance intervals are recommended for routine operation?
Daily: cleaning of condenser coils and drip tray; weekly: calibration verification with certified nitrogen standards (e.g., 100 mg N/mL ammonium sulfate); quarterly: pump tubing replacement and steam generator descaling per manufacturer’s SOP.
Is remote diagnostics and firmware updates supported?
Yes—via secure TLS-encrypted Ethernet connection; remote support requires prior authorization and adheres to ISO/IEC 27001 information security controls.
How is ammonia loss minimized during distillation?
Through a PTFE-coated splash trap, optimized condenser cooling efficiency (monitored inlet/outlet temperature differential), and real-time distillate temperature feedback controlling steam duty cycle to prevent boiling-over or vapor breakthrough.
