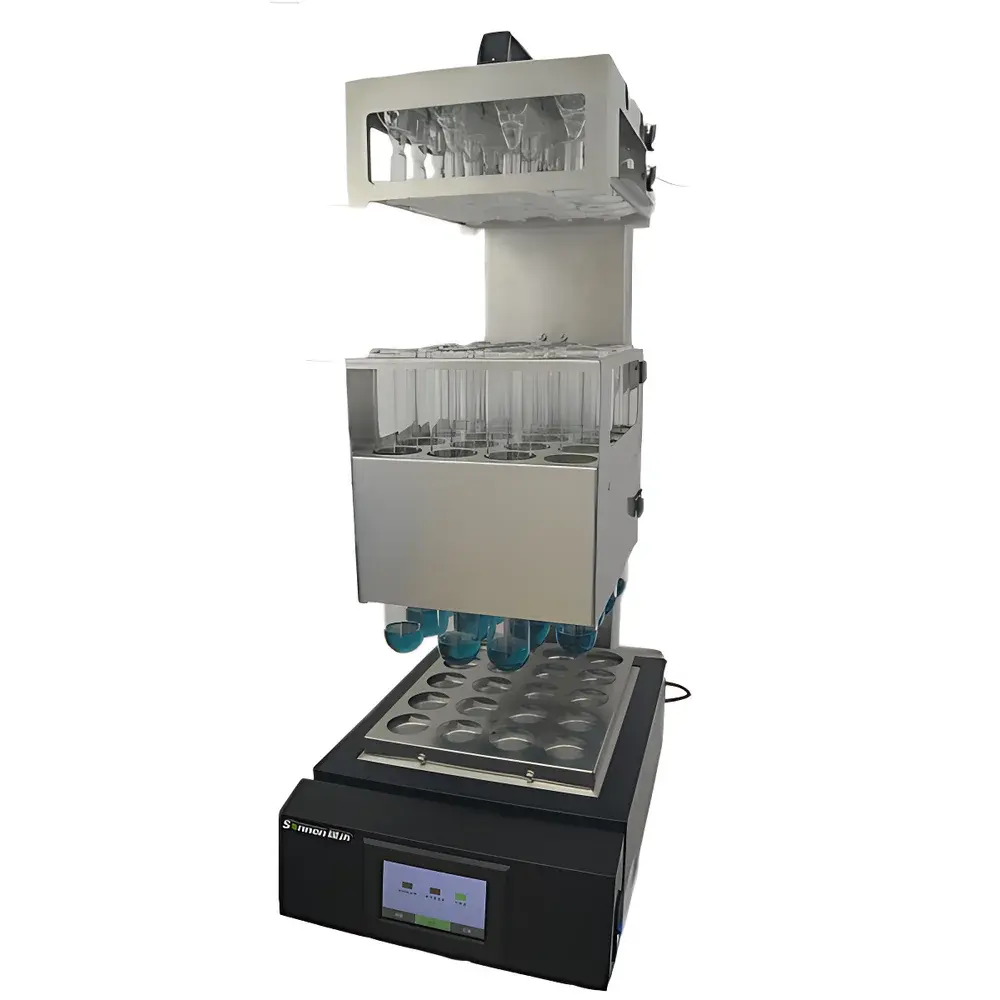

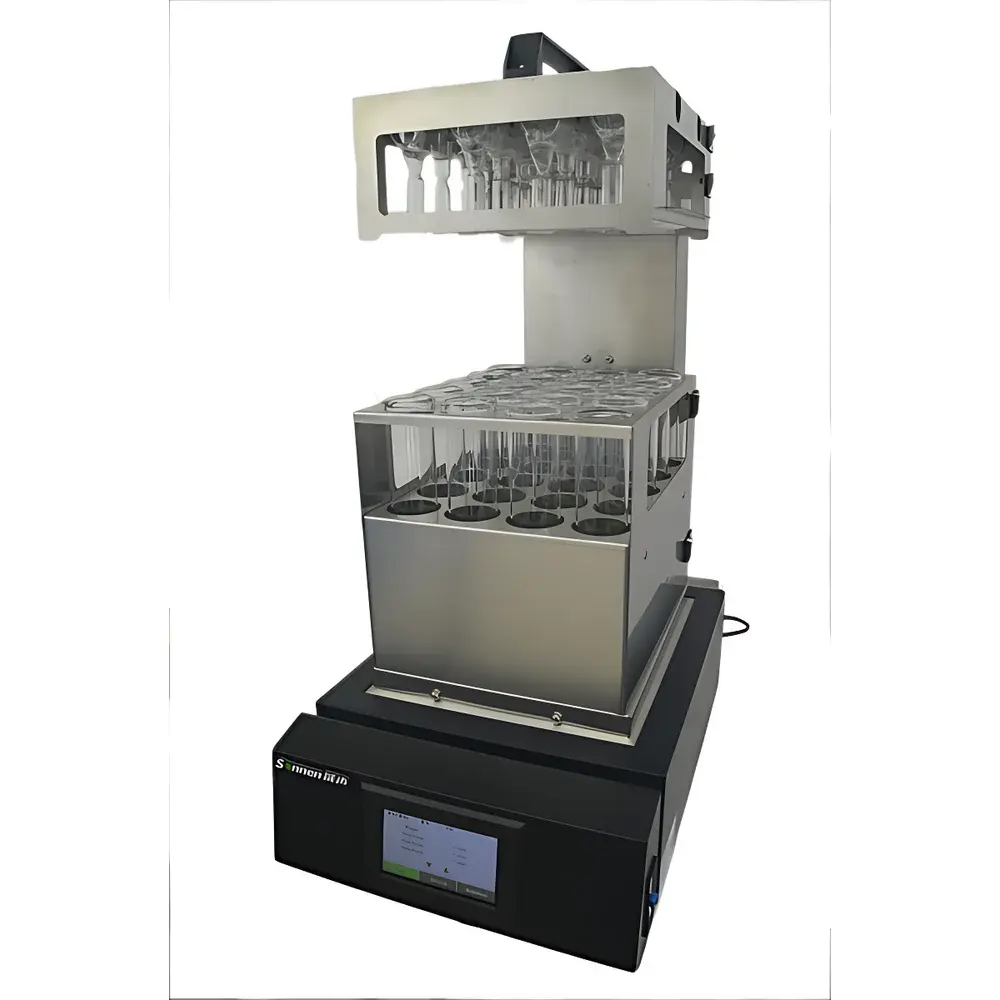

Sonnen Smart Series Aluminum Block Automated Digestion System
| Brand | Sonnen |
|---|---|
| Origin | Shanghai, China |
| Model | Smart08 / Smart12 / Smart20 / Smart42 / Smart56 |
| Digestion Positions | 8 / 12 / 20 / 42 / 56 |
| Temperature Range | Ambient to 450 °C |
| Temperature Accuracy | ±1 °C |
| Heating Principle | Integrated Aluminum Block Heating |
| Power Supply | AC 220 V ±10%, 50 Hz |
| Rated Power | 2400 W |
| Sample Capacity | ≤6 g solid or ≤25 mL liquid per tube |
| Digestion Tube Volume | 100 mL or 300 mL |
| Insulation Material | Ceramic fiber with air-channel thermal isolation |
| Safety Features | Over-temperature, over-current, over-pressure protection |
| Compliance | ISO 9001 certified |
Overview
The Sonnen Smart Series Aluminum Block Automated Digestion System is a precision-engineered electric heating digestion instrument designed for high-throughput, reproducible sample preparation in environmental, food, agricultural, and clinical laboratories. It operates on the principle of conductive heating via a monolithic aluminum block—engineered for uniform thermal distribution and rapid heat transfer—ensuring consistent digestion kinetics across all sample positions. Unlike traditional ceramic or graphite block digesters, the aluminum module delivers superior thermal responsiveness and tighter temperature control (±1 °C), critical for method-sensitive applications such as Kjeldahl nitrogen determination, COD analysis, total phosphorus quantification, and trace metal digestion (e.g., Pb, Cu, Zn, Sn) prior to ICP-OES or AAS measurement. The system supports fully automated workflows through programmable multi-stage ramp-and-hold protocols and optional integration with robotic sample handling systems.
Key Features
- Integrated aluminum heating block with optimized thermal mass and surface geometry for minimal temperature gradient (<±0.8 °C across 56 positions at 400 °C)
- Full-color capacitive touchscreen interface with intuitive navigation and multilingual UI support (English, Spanish, German)
- 510 user-configurable digestion methods, each supporting up to 21 independent heating stages with dual timing logic: “start-on-ramp” or “start-at-target-temperature”
- Dedicated interface for optional motorized lift-and-cool module—enabling unattended tube insertion, heating, cooling, and removal in compliance with GLP workflow requirements
- Corrosion-resistant housing with fluoropolymer (Teflon®-equivalent) coating and engineered acid-drain channels to divert condensate and spilled reagents away from electronics and structural components
- Redundant safety architecture: triple-redundant temperature sensors, real-time current monitoring, pressure venting mechanism, and ambient thermal surveillance with audible alarm and on-screen diagnostic codes
- Ceramic fiber insulation combined with forced-air convection channels minimizes external surface temperature rise (<45 °C at 450 °C setpoint), enhancing operator safety and lab energy efficiency
Sample Compatibility & Compliance
The Smart Series accommodates standard digestion tubes (100 mL and 300 mL borosilicate or quartz variants) and is validated for use with HNO₃, H₂SO₄, HClO₄, and H₂O₂-based digestion matrices under EPA Method 3050B, ISO 11466, ASTM D3682, and USP heavy metals procedures. Its design adheres to IEC 61010-1:2010 safety standards for laboratory electrical equipment. The system is ISO 9001:2015 certified, and documentation—including Declaration of Conformity, calibration certificate traceable to NIM (National Institute of Metrology, China), and full technical file—is supplied with each unit to support FDA 21 CFR Part 11–compliant audit readiness. All models are CE-marked for export to EEA markets.
Software & Data Management
Each unit includes embedded firmware with non-volatile memory for method storage and execution logging. Optional PC-based SonnenDigest Control Software (v3.2+) enables remote scheduling, real-time temperature profiling, data export in CSV/PDF formats, and electronic signature capture for QA/QC sign-off. Audit trails record operator ID, method parameters, start/stop timestamps, deviation alerts, and sensor health status—fully compliant with GLP and GMP documentation requirements. Data files are timestamped, digitally signed, and encrypted to prevent tampering, satisfying ALCOA+ principles (Attributable, Legible, Contemporaneous, Original, Accurate, Complete, Consistent, Enduring, Available).
Applications
- Kjeldahl nitrogen and crude protein determination in feed, dairy, and cereal matrices
- Chemical Oxygen Demand (COD) digestion per ISO 6060 and EPA 410.4
- Total phosphorus, arsenic, and selenium digestion in soil and wastewater per ISO 15681-1 and EPA 200.7
- Heavy metal extraction (Pb, Cd, Cr, Ni, Zn, Cu) from biological tissues, sludge, and polymers for ICP-MS quantification
- Pharmaceutical excipient digestion prior to residual catalyst (e.g., Pd, Pt) analysis
- Geochemical sample preparation for rare earth element (REE) mapping via LA-ICP-MS
FAQ
What digestion tube sizes are supported?
Standard configurations include 100 mL and 300 mL borosilicate glass tubes; quartz tubes are available upon request for HF-containing protocols.
Is remote monitoring possible?
Yes—via optional Ethernet/Wi-Fi connectivity and SonnenDigest Control Software, enabling live temperature graphs, email alerts on completion or fault, and centralized fleet management.
How is temperature uniformity verified across positions?
Each unit undergoes factory validation using NIST-traceable PT100 probes at all positions; a Certificate of Uniformity (±0.8 °C max deviation at 400 °C) is included.
Can the system be integrated into LIMS or ELN platforms?
Yes—through configurable OPC UA or RESTful API endpoints for bidirectional data exchange with major LIMS vendors (e.g., LabWare, Thermo Fisher SampleManager, LabVantage).
What maintenance is required for long-term reliability?
Annual verification of temperature sensors and heating block integrity is recommended; no consumable parts exist—the aluminum block has a rated service life exceeding 10 years under normal operation.
