SonTek FlowTracker Acoustic Doppler Velocimeter

Overview

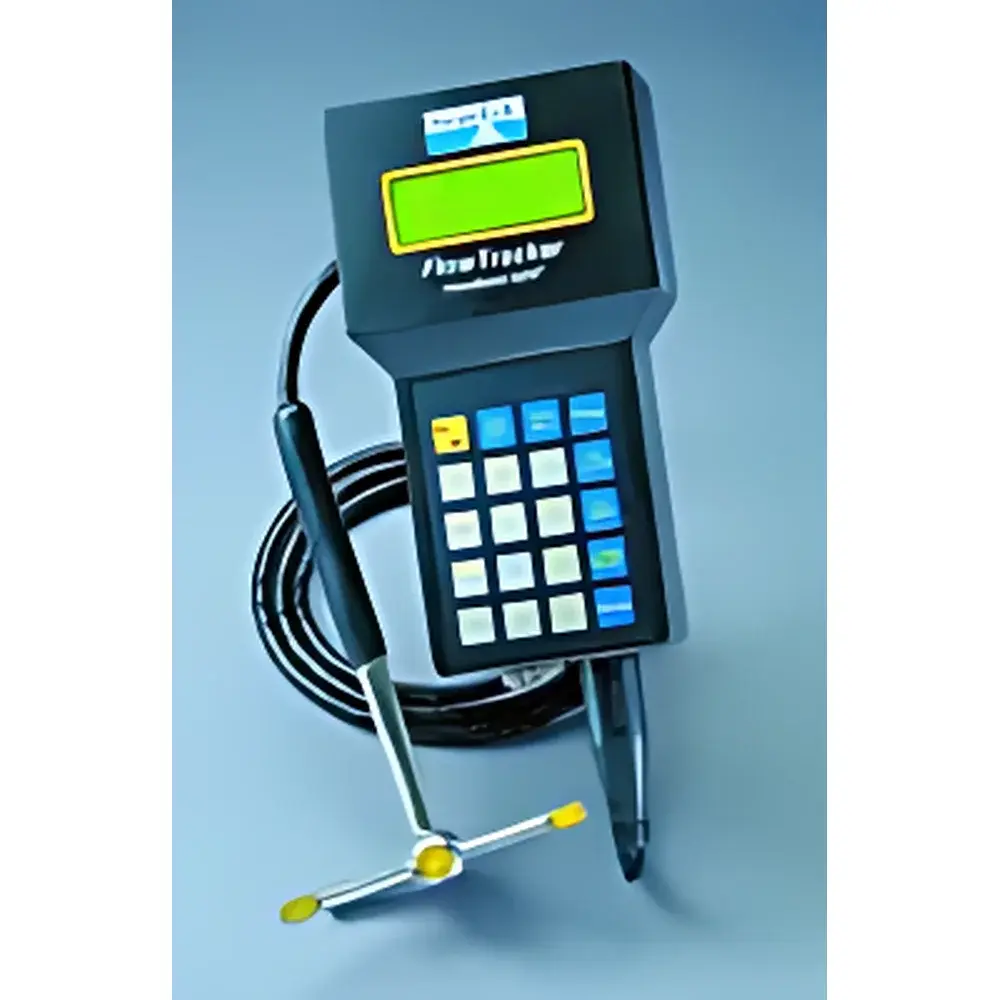

The SonTek FlowTracker Acoustic Doppler Velocimeter (ADV) is a field-deployable, handheld instrument engineered for high-fidelity, point-based velocity measurements in open-channel hydrosystems. It operates on the principle of coherent acoustic Doppler shift detection—transmitting ultrasonic pulses into water and analyzing frequency shifts in backscattered signals from suspended particles to compute instantaneous, two-dimensional (2D) velocity vectors at a precisely defined sampling volume located 10 cm upstream of the transducer face. Unlike mechanical current meters or electromagnetic flowmeters, the FlowTracker requires no moving parts, exhibits zero mechanical wear, and delivers laboratory-grade precision under dynamic field conditions—including shallow, low-velocity flows where traditional instruments fail. Its ability to resolve velocities as low as 0.001 m/s at depths as shallow as 2 cm makes it uniquely suited for ecological monitoring, irrigation channel surveys, wetland hydrology, and regulatory compliance applications governed by USGS protocols and ISO 748 (Measurement of liquid flow in open channels — Velocity-area methods).

Key Features

• True ADV architecture with dual-transducer configuration enabling robust 2D vector resolution without reliance on external orientation sensors
• Submersible handheld controller rated IP68 (1 m depth for indefinite duration), engineered for all-weather operation from −20 °C to +50 °C
• Backlit high-contrast LCD display supporting real-time velocity magnitude/direction, temperature, and automated discharge metrics
• Integrated platinum-resistance temperature sensor (±0.1 °C resolution) co-located with the velocity sampling volume for thermal compensation
• Onboard USGS/ISO-compliant discharge calculation engine—supports trapezoidal, rectangular, and irregular cross-section inputs with automatic width/depth segmentation
• No user calibration required; factory calibrated using traceable flume validation per ISO/IEC 17025-accredited procedures
• RS-232 serial interface for direct connection to laptop or data logger; supports ASCII output for integration with third-party GIS or SCADA platforms

Sample Compatibility & Compliance

The FlowTracker is validated for use across natural and engineered open-channel environments containing naturally occurring acoustic scatterers (e.g., silt, clay, organic particulates). It performs reliably in turbid waters (NTU > 10), clear mountain streams, wastewater effluents, and sediment-laden floodwaters—provided minimum particle concentration exceeds ~10 ppm. The instrument complies with key international standards including ISO 748 (open-channel flow measurement), ASTM D3858 (field calibration of current meters), and USGS Techniques and Methods Book 3, Chapter A22. Data integrity meets GLP and GMP audit requirements: all measurements are time-stamped, instrument-serial-numbered, and stored non-volatile memory—even during battery replacement. No data corruption occurs due to voltage fluctuation, as analog signal processing and ADC conversion are regulated independently of battery state.

Software & Data Management

The included FlowTracker PC software provides secure, structured data management aligned with regulatory reporting workflows. It enables batch download of up to 64 full flow files (each containing up to 160,000 velocity vectors), automated QA/QC flagging based on signal-to-noise ratio (SNR), correlation coefficient thresholds, and outlier rejection per ISO 748 Annex B. Export formats include CSV, Excel (.xlsx), and XML compliant with EPA WQX and USGS NWIS schemas. Audit trails record operator ID, file modification history, and software version—supporting 21 CFR Part 11 readiness when deployed in federally funded or regulated water quality programs. Firmware updates are delivered via signed packages to ensure cryptographic integrity.

Applications

• Natural streamflow monitoring for ecological baseflow assessment and drought response planning
• Irrigation district canal efficiency audits and distribution uniformity verification
• Wastewater treatment plant influent/effluent channel characterization and hydraulic loading validation
• Floodplain mapping and emergency response flow estimation during high-water events
• Mine drainage and tailings pond outflow monitoring under NPDES permit requirements
• Constructed wetland performance evaluation (hydraulic retention time, flow path analysis)
• Research-grade boundary layer profiling in flumes and mesocosms

FAQ

Does the FlowTracker require annual recalibration?
No. The instrument is factory-calibrated using NIST-traceable reference flows in accredited flumes and does not require scheduled recalibration. Field verification against known reference velocities (e.g., tow-tank or calibrated vane meter) is recommended annually for critical compliance applications.

Can the FlowTracker measure three-dimensional velocity components?
The standard FlowTracker model acquires two orthogonal velocity components (u and v) in the horizontal plane. A dedicated FlowTracker 3D variant with vertical (w) component capability is available upon request.

Is the RS-232 interface compatible with modern laptops lacking serial ports?
Yes—USB-to-RS-232 adapters certified for industrial serial communication (FTDI chipset, 9600 baud, 8N1) are fully supported and included in optional accessory kits.

How is temperature compensation applied during velocity computation?
The integrated temperature sensor continuously feeds real-time water temperature to the Doppler processor, which dynamically adjusts sound speed assumptions used in velocity vector reconstruction—ensuring accuracy across seasonal thermal gradients.

What happens if the probe is partially exposed above water during shallow measurement?
The instrument automatically detects air exposure via signal amplitude collapse and suspends velocity acquisition until full submersion is re-established—preventing spurious data entry in transitional depth conditions.
