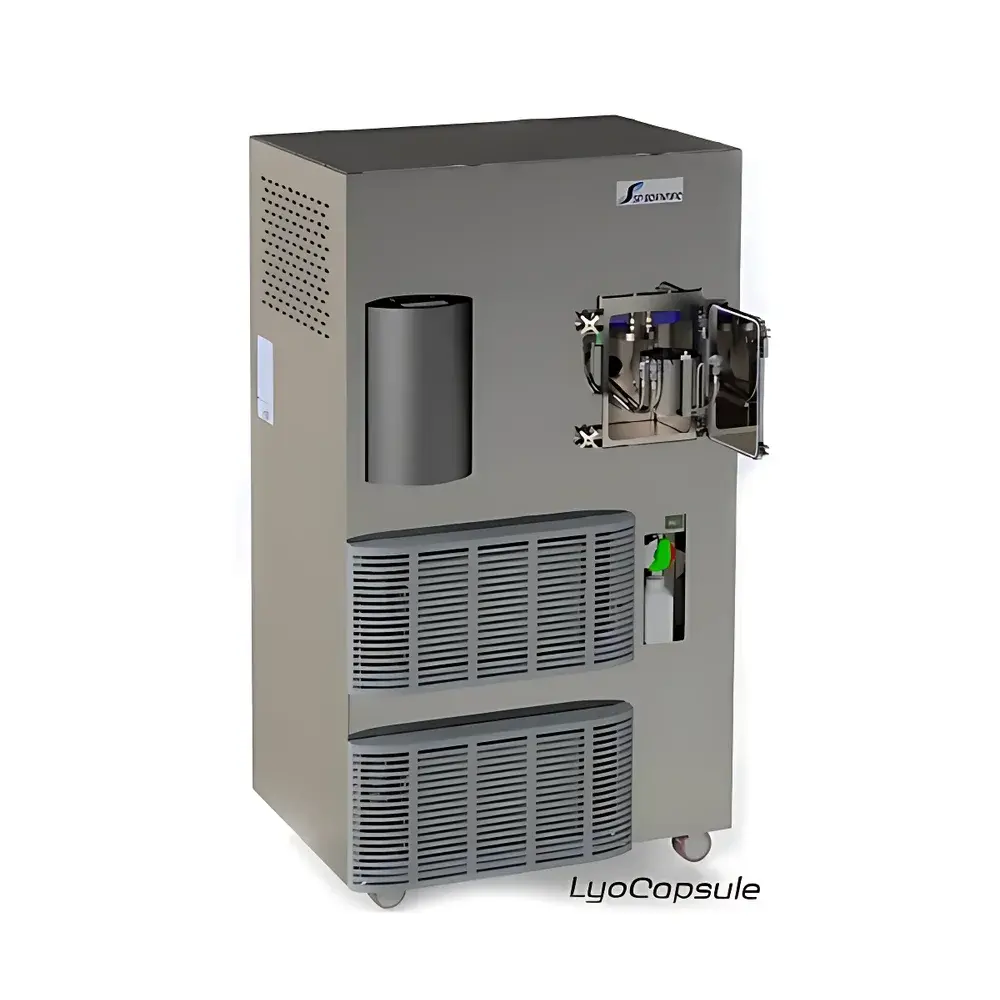

SP Scientific Virtis LyoCapsule™ Smart R&D-Scale Freeze Dryer

Overview

The SP Scientific Virtis LyoCapsule™ is a purpose-engineered, chamber-based freeze dryer designed explicitly for formulation development, process understanding, and Quality-by-Design (QbD) implementation in biopharmaceutical and diagnostic R&D laboratories. Unlike conventional manifold or benchtop systems, the LyoCapsule™ replicates the thermal and vacuum dynamics of production-scale lyophilizers—enabling predictive scale-up through high-fidelity small-volume experimentation. Its core architecture employs a cylindrical drying chamber with independent wall and shelf temperature control, eliminating radial thermal gradients and mitigating edge effects that compromise data reproducibility in traditional R&D units. The system operates on fundamental principles of primary and secondary drying kinetics, where precise control over shelf temperature, chamber pressure, and condenser performance allows researchers to map critical process parameters (CPPs) against critical quality attributes (CQAs), including residual moisture, cake structure integrity, and reconstitution time.

Key Features

• True chamber-based design with integrated wall temperature control—ensures uniform heat transfer across all vial positions, delivering ±1 °C shelf temperature uniformity and eliminating positional bias during drying.
• Dual-zone thermal management: independently regulated shelf (−55 °C to +60 °C) and chamber wall systems enable dynamic simulation of large-scale lyophilizer boundary conditions, supporting mechanistic modeling of heat and mass transfer.
• Compact 76.1 cm² shelf area accommodates up to seven 2–20 mL vials—ideal for screening formulations using limited quantities of high-value APIs, monoclonal antibodies, or nucleic acid therapeutics.
• High-capacity −70 °C condenser with 2 L/24 h ice-trapping capacity ensures stable vacuum maintenance (<10 mTorr) even during extended primary drying phases with volatile co-solvents.
• 316L stainless steel chamber and condenser doors minimize radiative heat loss and permit safe use of organic solvents (e.g., tert-butanol, ethanol) under controlled vacuum—critical for novel formulation development.
• Modular chamber assembly: the entire drying chamber can be fully removed and reinstalled, streamlining aseptic loading and reducing operator exposure to cold surfaces or vacuum hazards.
• Integrated 100 L/min vacuum system with oil mist filtration meets ISO 8573-1 Class 2 purity requirements for pharmaceutical-grade vacuum generation.

Sample Compatibility & Compliance

The LyoCapsule™ supports vial-based lyophilization of aqueous and solvent-containing formulations across diverse therapeutic modalities—including proteins, peptides, vaccines, oligonucleotides, and diagnostic enzyme conjugates. Its chamber geometry and thermal control architecture comply with ICH Q5C, Q5D, and Q8(R2) guidance frameworks, facilitating seamless transition from early-stage feasibility studies to regulatory filing packages. All hardware and firmware are designed to support 21 CFR Part 11-compliant audit trails when paired with validated Lyos™ software configurations. System documentation includes full traceability of calibration records, IQ/OQ protocols, and material certifications aligned with ASTM F2662 and ISO 20957 standards for laboratory freeze dryers.

Software & Data Management

Control and data acquisition are managed via Lyos™—a validated, Windows-based platform compliant with ALCOA+ data integrity principles. Key modules include Batch Execution (BE), Process Recipe Control Manager (PRCM), automated nitrogen or argon backfill, and programmable stoppering actuation. Real-time monitoring of shelf temperature, chamber pressure, condenser temperature, and product thermocouple signals is logged at configurable intervals (down to 1-second resolution). Optional Smart™ software enables model-assisted process development: users define target CQAs (e.g., −25 °C), and the system autonomously iterates ramp rates, hold times, and pressure setpoints across successive cycles—generating multivariate design space maps per ICH Q8(R2) Annex II.

Applications

• Biopharmaceutical process development teams evaluating formulation robustness under variable freezing rates and annealing conditions.
• Contract development and manufacturing organizations (CDMOs) establishing design spaces for FDA-submitted BLA modules.
• Academic and government research labs investigating lyophilization-induced protein aggregation mechanisms using microscale thermal analysis integration.
• In vitro diagnostic (IVD) developers optimizing stabilization of labile enzymes and antibody conjugates in point-of-care test kits.
• Regulatory science institutions performing comparative assessments of lyophilization cycle equivalence across equipment platforms per USP <1088>.

FAQ

Can the LyoCapsule™ be used with organic solvents such as tert-butanol or ethanol?

Yes—the 316L stainless steel chamber and door construction, combined with its −70 °C condenser, permits safe lyophilization of solvent-based formulations under controlled vacuum conditions.
Does the system support PAT integration for real-time monitoring?

Yes—Lyos™ software provides native OPC UA connectivity for integration with NIR, Raman, or tunable diode laser absorption spectroscopy (TDLAS) probes, enabling in-line monitoring of residual moisture and sublimation front progression.
Is the LyoCapsule™ suitable for GMP-regulated environment validation?

While intended for R&D, the system’s documented design history, ISO 9001 certification, and 21 CFR Part 11-ready software configuration support IQ/OQ execution in GxP-aligned laboratories.
How does wall temperature control improve process predictability?

By actively regulating chamber wall temperature to match shelf setpoints, the LyoCapsule™ eliminates convective and radiative asymmetry—reproducing the low-velocity, conductive-dominant heat transfer regime characteristic of production-scale lyophilizers.
What level of automation is available for cycle development?

With optional Smart™ software, users can define CQA targets and execute autonomous multi-cycle optimization, generating statistically valid design space models without manual intervention.
