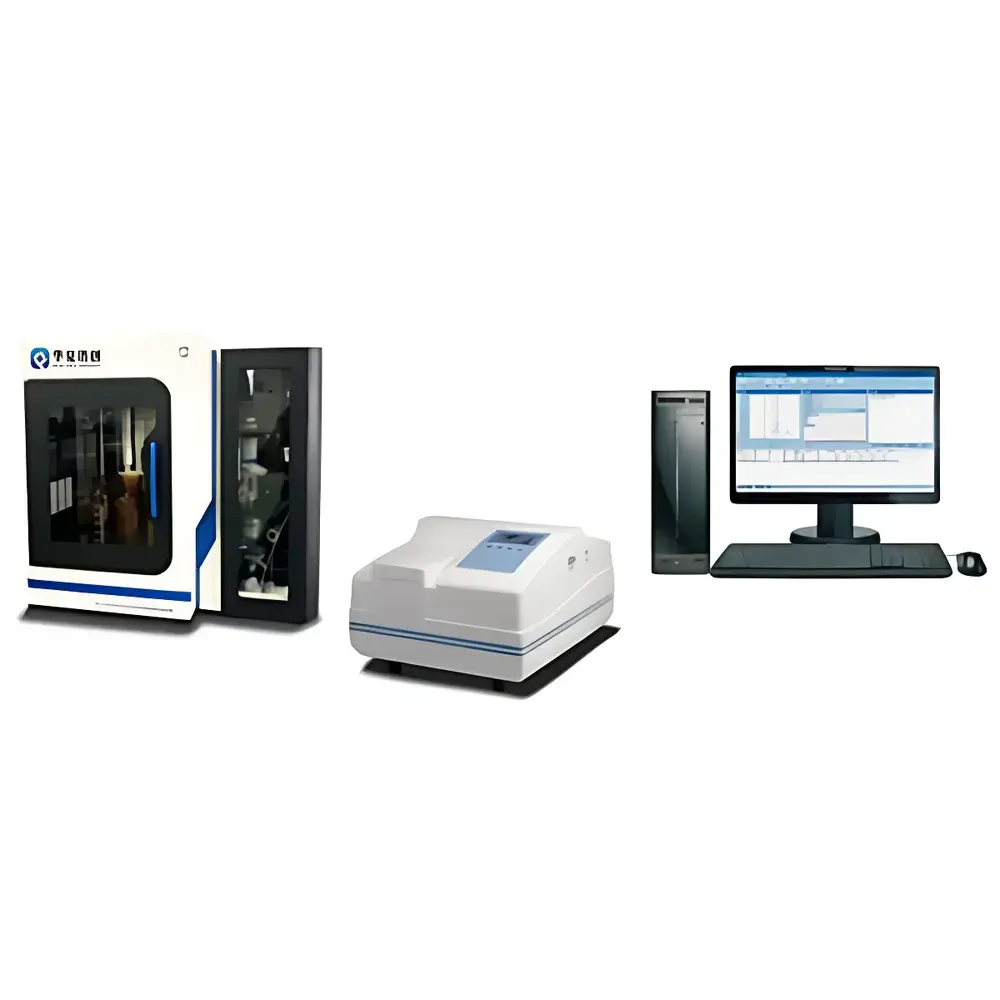

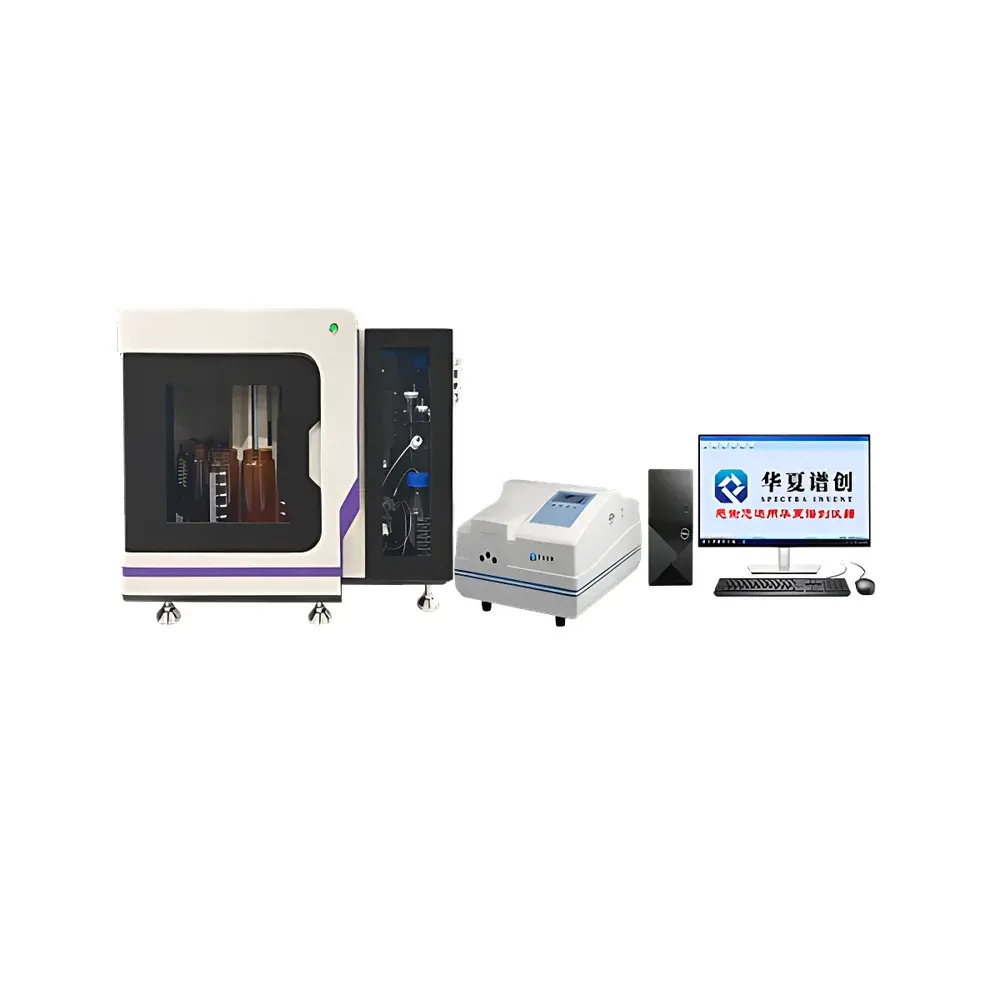

Spectra Invent OIL-530 Fully Automated Fluorescence Spectrophotometric Oil Analyzer

Overview

The Spectra Invent OIL-530 is a laboratory-grade, fully automated fluorescence spectrophotometric oil analyzer engineered for precise quantification of total petroleum hydrocarbons (TPH) and polycyclic aromatic hydrocarbons (PAHs) in aqueous environmental samples. It operates on the principle of ultraviolet-induced fluorescence—where hydrocarbon molecules absorb UV light (typically at 365 nm excitation) and emit characteristic fluorescence in the visible range (e.g., 400–550 nm). This method offers high selectivity for aromatic and aliphatic hydrocarbons, minimal interference from common water matrix constituents (e.g., humic substances, chlorophyll), and superior sensitivity compared to infrared or gravimetric techniques. The OIL-530 is designed for routine compliance monitoring in municipal wastewater treatment plants, industrial effluent discharge labs, environmental testing service providers, and regulatory field laboratories requiring trace-level oil-in-water analysis per EPA Method 1664B (modified), ISO 9377-2, and GB/T 16488–1996.

Key Features

• Fully integrated automation: Performs volumetric sample aspiration, reagent dosing (e.g., n-hexane or CCl₄ extraction solvent), liquid–liquid extraction, phase separation via centrifugal or membrane-based oil–water partitioning, fluorescence measurement, and full system rinsing—all without manual intervention.
• Modular sample introduction architecture: Features a standalone detection module decoupled from pre-treatment hardware, enabling seamless switching between automated batch processing and single-sample manual injection—ideal for urgent spot checks or method validation protocols.
• Uninterrupted multi-sample operation: Supports continuous loading of up to 48 vials on a programmable carousel; instrument queues analyses and executes them sequentially with no operator presence required, optimizing throughput during overnight or unattended runs.
• Embedded safety and integrity monitoring: Equipped with real-time pressure sensors, solvent level detectors, leak detection circuitry, and UV lamp intensity feedback control—triggering audible/visual alerts and halting operation upon deviation from validated operational thresholds.
• Self-calibrating optical path: Integrated reference photodiode and dual-wavelength correction algorithm compensate for lamp drift, cuvette fouling, and ambient temperature fluctuations—ensuring long-term photometric stability and measurement reproducibility (RSD <1.5% at 1 mg/L).

Sample Compatibility & Compliance

The OIL-530 accepts raw or filtered water samples—including surface water, groundwater, seawater, wastewater influent/effluent, and leachate—with minimal pretreatment (e.g., filtration through 0.45 µm membrane). It complies with key regulatory frameworks governing environmental hydrocarbon analysis: ASTM D7678 (Standard Test Method for Determination of Oil and Grease in Water by Fluorescence), ISO 9377-2:2000 (Water quality — Determination of hydrocarbon oil index — Part 2: Fluorometric method), and Chinese national standard GB/T 16488–1996. Its software supports audit-ready data logging aligned with GLP and ISO/IEC 17025 requirements, including electronic signatures, change history tracking, and user-access-level permissions.

Software & Data Management

The instrument is controlled via SpectraSoft™ v4.2—a Windows-based application supporting method creation, calibration curve generation (linear, quadratic, or cubic fit), QC sample scheduling, and auto-reporting in PDF/CSV formats. All raw spectral data, integration parameters, and instrument status logs are timestamped and stored with SHA-256 hash verification. The software includes built-in 21 CFR Part 11 compliance modules: electronic signature capture, audit trail export (with operator ID, action, and timestamp), and role-based access control (admin, analyst, reviewer). Data backups can be scheduled to network drives or encrypted USB media, and remote diagnostics are supported via secure TLS-encrypted VNC.

Applications

• Regulatory compliance testing for NPDES and EU WFD discharge permits
• Leak detection and source identification in industrial cooling water systems
• Monitoring oil removal efficiency across coagulation–flocculation, dissolved air flotation (DAF), and activated carbon treatment stages
• Field-deployable lab support for emergency spill response teams (when paired with portable solvent handling kits)
• Research applications in biodegradation kinetics of crude oil fractions under controlled microcosm conditions

FAQ

What extraction solvents are compatible with the OIL-530?
n-Hexane, cyclohexane, and tetrachloroethylene are validated for use; CCl₄ is supported but requires optional halogen-resistant fluidic components.
Does the system require daily recalibration?
No—factory-installed wavelength and photometric calibration are stable for ≥6 months; users perform only quarterly verification using NIST-traceable mineral oil standards.
Can the OIL-530 quantify specific hydrocarbon classes (e.g., BTEX or PAHs)?
It reports total extractable petroleum hydrocarbons (EPH); speciation requires coupling with GC–MS or HPLC–fluorescence as a complementary technique.
Is method validation documentation provided?
Yes—each unit ships with IQ/OQ/PQ protocols, a full validation report per ISO/IEC 17025 Annex A.1, and raw data files from factory performance testing.
What maintenance intervals are recommended?
Solvent lines and extraction cartridges require replacement every 200 runs; UV lamp life is rated at 2,000 hours; annual optical alignment and detector dark-current verification are advised.
